| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_222T01_9000000520_04083cztM0_level2.evt | modeM0/AS1G05_222T01_9000000520_04083cztM0_level2_quad_clean.evt |
| Size (bytes) | 478,828,800 | 85,489,920 |
| Size | 456.6 MB | 81.5 MB |
| Events in quadrant A | 3,439,100 | 533,748 |
| Events in quadrant B | 3,700,826 | 538,420 |
| Events in quadrant C | 3,225,440 | 527,856 |
| Events in quadrant D | 3,666,433 | 507,315 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14773 | 3 |
| B | 0 | 15576 | 2 |
| C | 0 | 14247 | 2 |
| D | 0 | 15800 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6912 | 47 | 0.679977% |
| B | 6912 | 104 | 1.504630% |
| C | 6912 | 10 | 0.144676% |
| D | 6912 | 123 | 1.779514% |

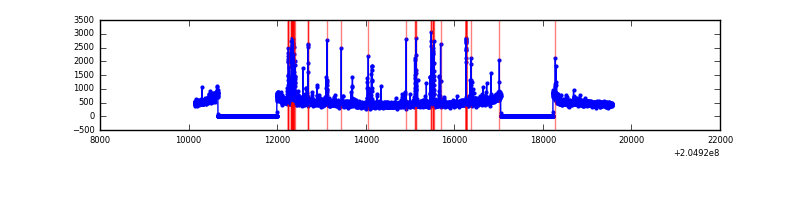

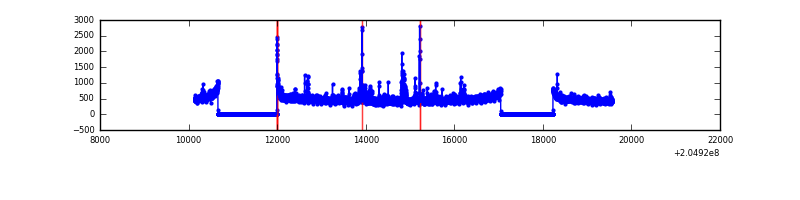

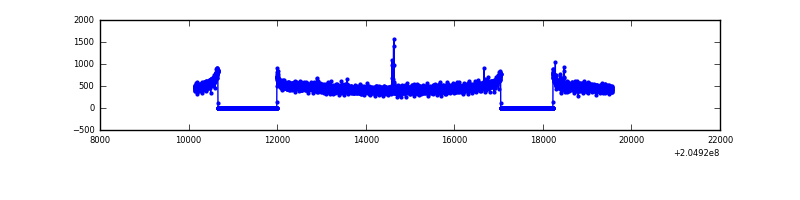

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9422 | 6914 | 11 | 11 | 0.12% | 0.16% |  |
| B | 9422 | 6914 | 58 | 58 | 0.62% | 0.84% |  |
| C | 9422 | 6914 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9422 | 6914 | 91 | 91 | 0.97% | 1.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 199 | 140068 | 814.93 | 832 | 814 | 170.9 |
| A | 0 | 50 | 70328 | 406.8 | 832 | 814 | 170.9 |
| A | 0 | 226 | 20817 | 117.06 | 832 | 814 | 170.9 |
| B | 14 | 167 | 180337 | 1098.26 | 845 | 826 | 163.4 |
| B | 10 | 16 | 128312 | 779.97 | 845 | 826 | 163.4 |
| B | 15 | 54 | 35788 | 213.9 | 845 | 826 | 163.4 |
| C | 9 | 144 | 17140 | 84.89 | 821 | 826 | 192.2 |
| C | 13 | 61 | 6825 | 31.21 | 821 | 826 | 192.2 |
| C | 3 | 202 | 2020 | 6.21 | 821 | 826 | 192.2 |
| D | 10 | 172 | 174341 | 884.43 | 809 | 785 | 196.2 |
| D | 2 | 14 | 142767 | 723.53 | 809 | 785 | 196.2 |
| D | 12 | 233 | 125007 | 633.03 | 809 | 785 | 196.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

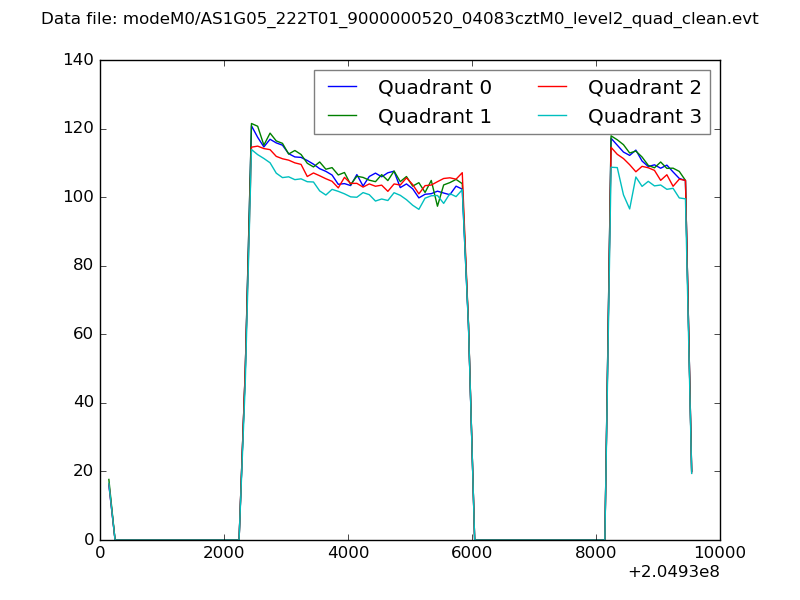

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

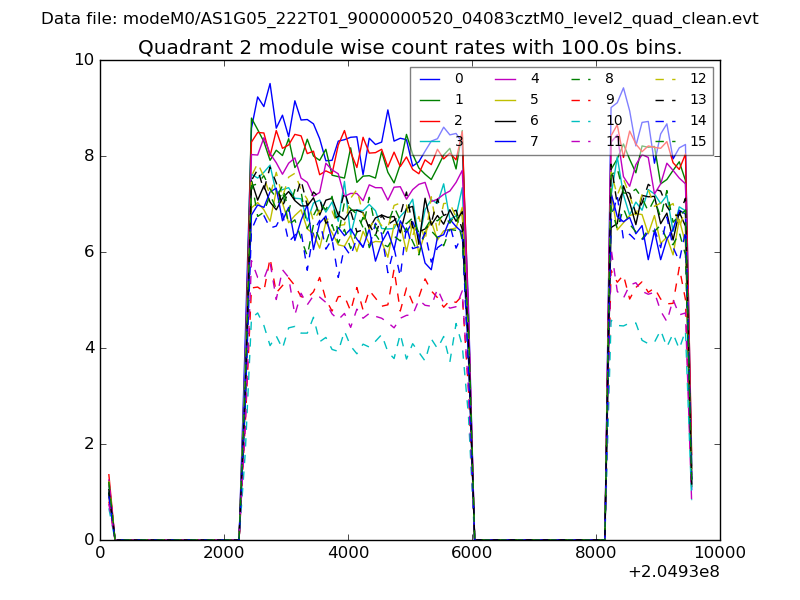

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

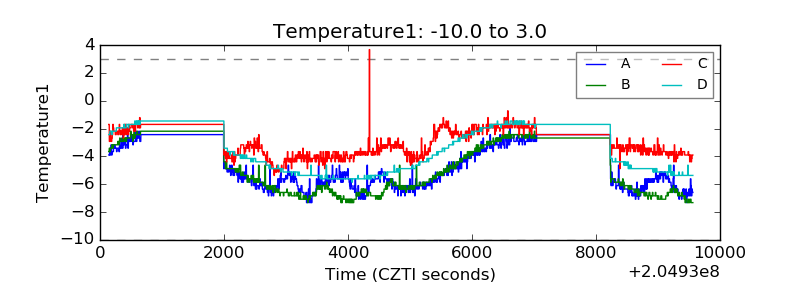

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

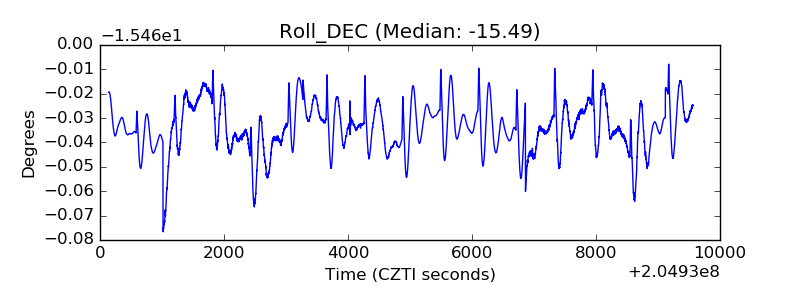

| _Roll_DEC |  |
| _Roll_RA |  |

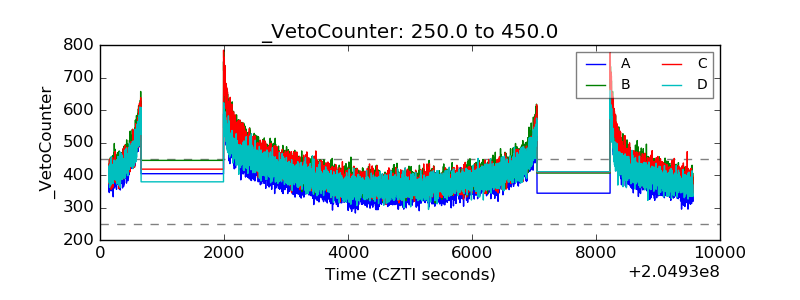

| Veto Counter |  |
