| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_222T01_9000000520_04091cztM0_level2.evt | modeM0/AS1G05_222T01_9000000520_04091cztM0_level2_quad_clean.evt |
| Size (bytes) | 775,327,680 | 56,796,480 |
| Size | 739.4 MB | 54.2 MB |
| Events in quadrant A | 3,188,923 | 342,578 |
| Events in quadrant B | 3,664,835 | 342,036 |
| Events in quadrant C | 12,317,836 | 235,084 |
| Events in quadrant D | 3,849,395 | 324,677 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14062 | 3 |
| B | 0 | 14797 | 2 |
| C | 0 | 41209 | 2 |
| D | 0 | 16187 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6791 | 75 | 1.104403% |
| B | 6791 | 82 | 1.207480% |
| C | 6791 | 3846 | 56.633780% |
| D | 6791 | 181 | 2.665292% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

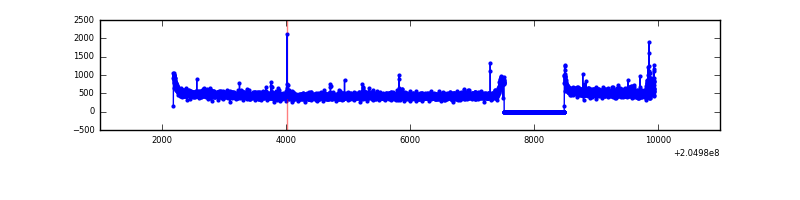

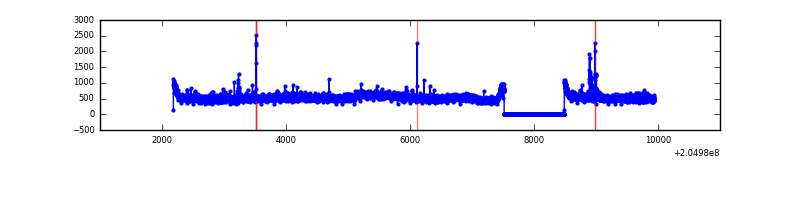

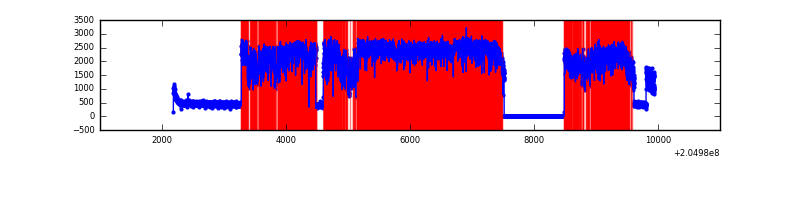

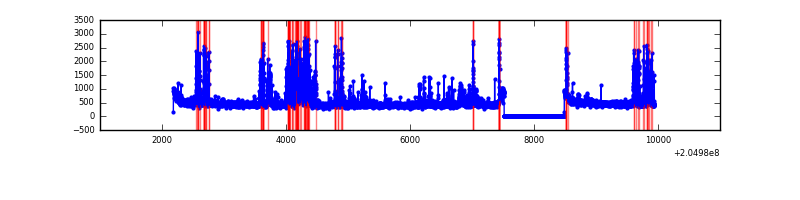

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7761 | 6791 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7761 | 6791 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7761 | 6791 | 3850 | 3850 | 49.61% | 56.69% |  |
| D | 7761 | 6791 | 118 | 118 | 1.52% | 1.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 199 | 54492 | 324.62 | 804 | 784 | 165.4 |
| A | 0 | 226 | 13145 | 74.71 | 804 | 784 | 165.4 |
| A | 0 | 50 | 11773 | 66.42 | 804 | 784 | 165.4 |
| B | 3 | 0 | 365830 | 2312.25 | 810 | 789 | 157.9 |
| B | 15 | 204 | 64513 | 403.64 | 810 | 789 | 157.9 |
| B | 10 | 16 | 42730 | 265.66 | 810 | 789 | 157.9 |
| C | 12 | 204 | 9747298 | 63586.89 | 656 | 658 | 153.3 |
| C | 9 | 144 | 5279 | 30.15 | 656 | 658 | 153.3 |
| C | 13 | 61 | 5255 | 29.99 | 656 | 658 | 153.3 |
| D | 12 | 233 | 594431 | 3169.65 | 774 | 752 | 187.3 |
| D | 13 | 239 | 133515 | 708.82 | 774 | 752 | 187.3 |
| D | 13 | 223 | 70031 | 369.88 | 774 | 752 | 187.3 |

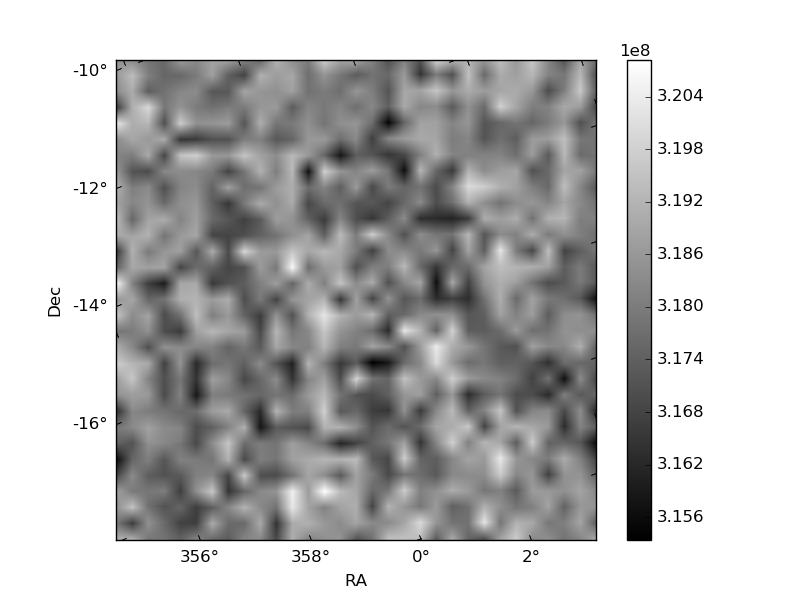

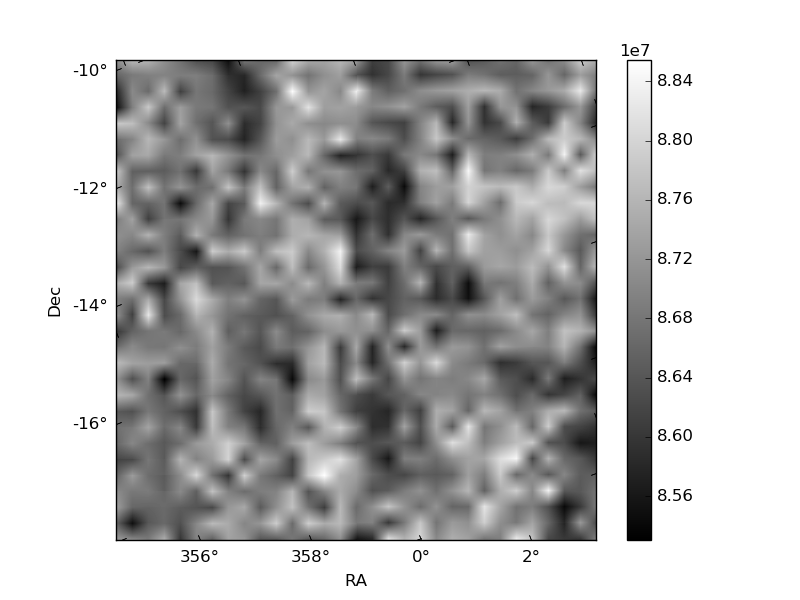

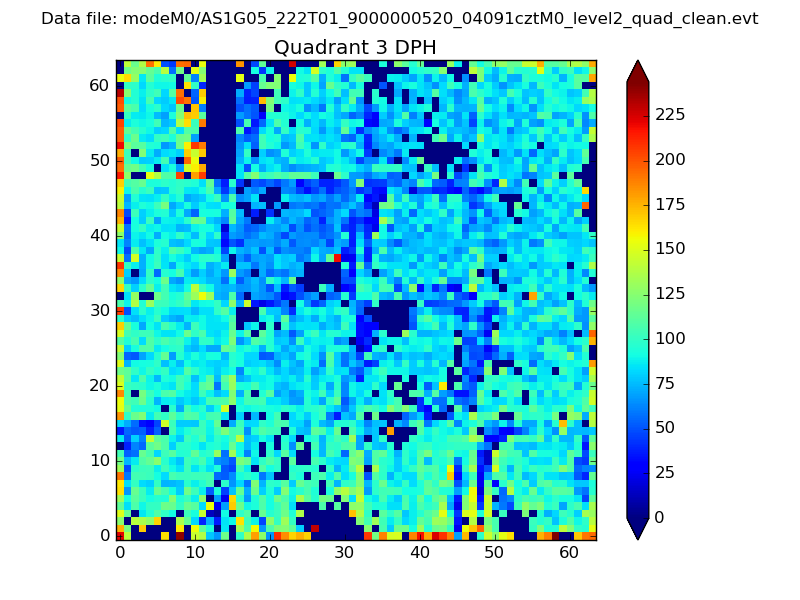

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

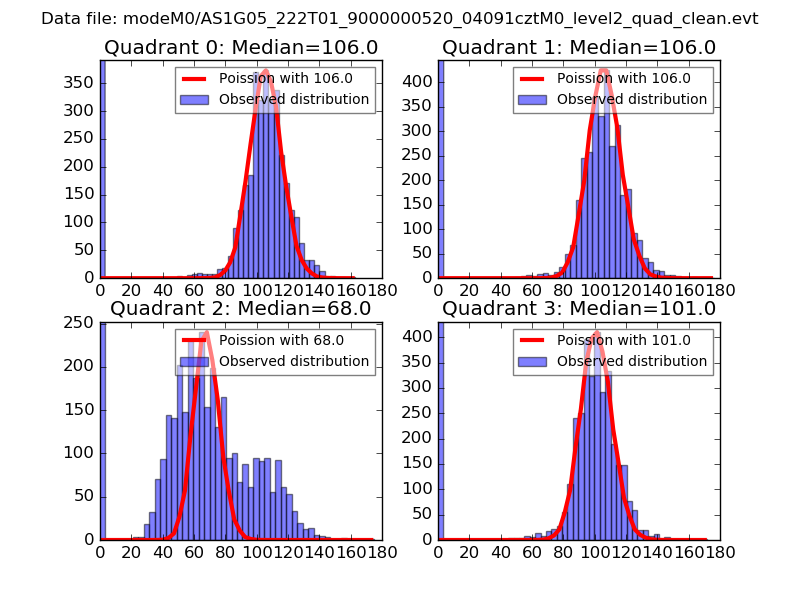

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

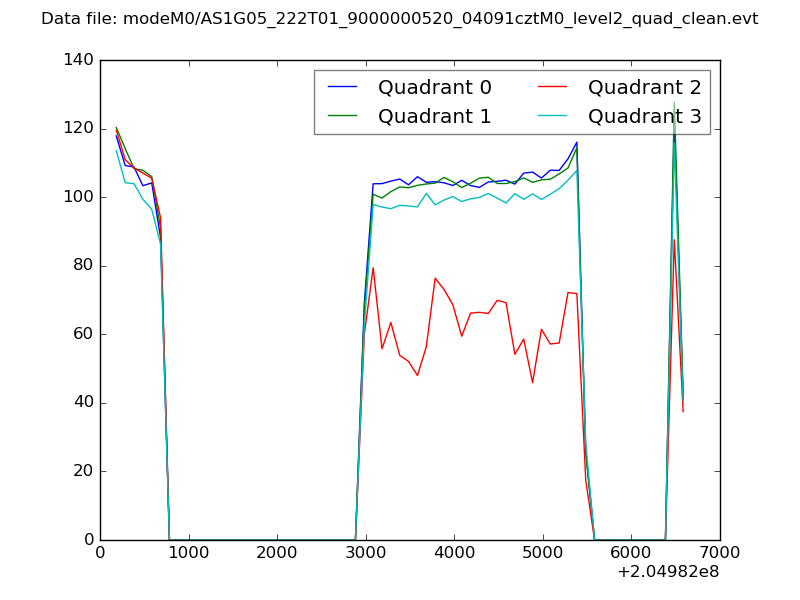

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

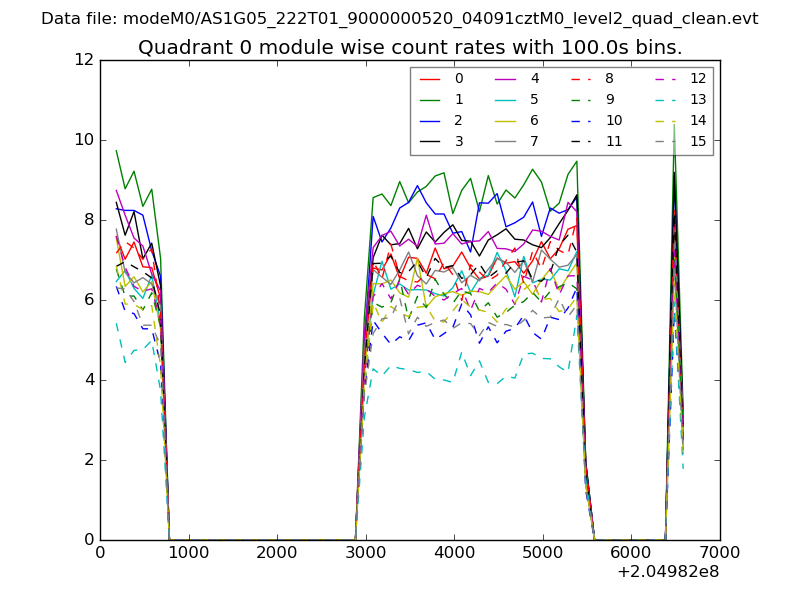

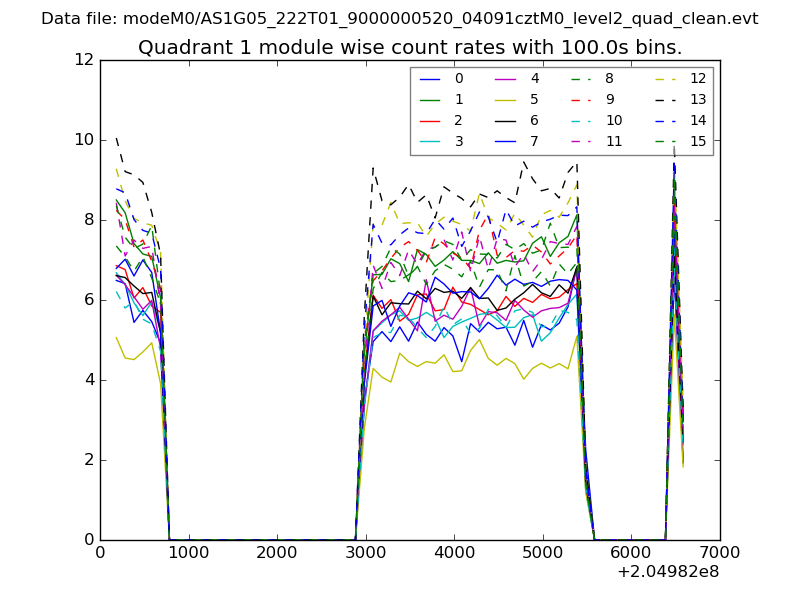

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

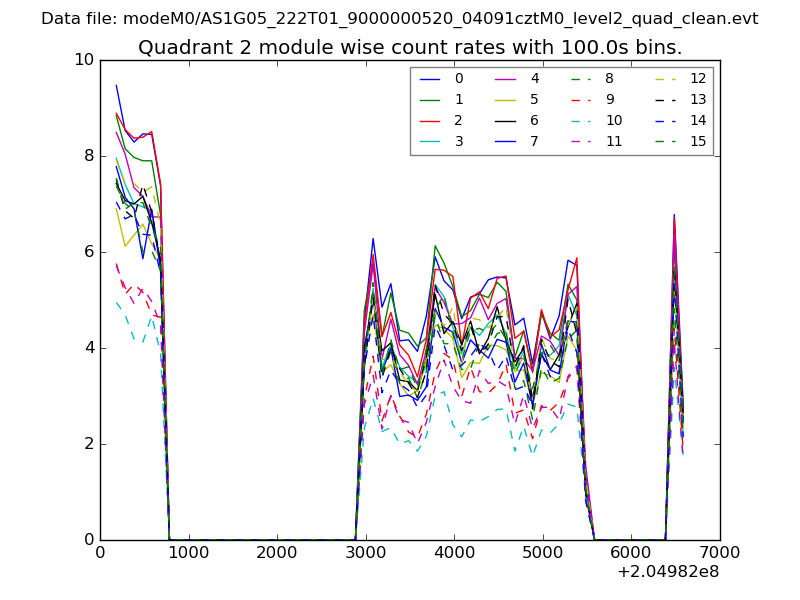

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

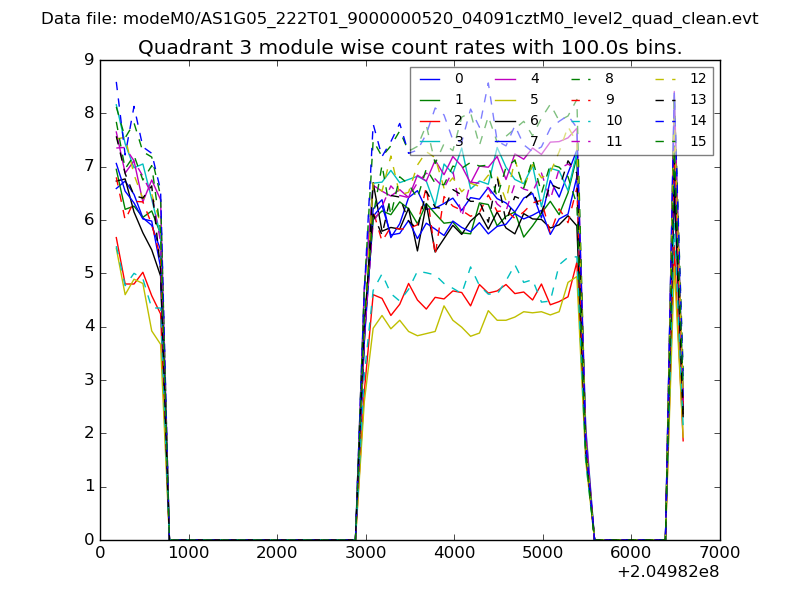

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

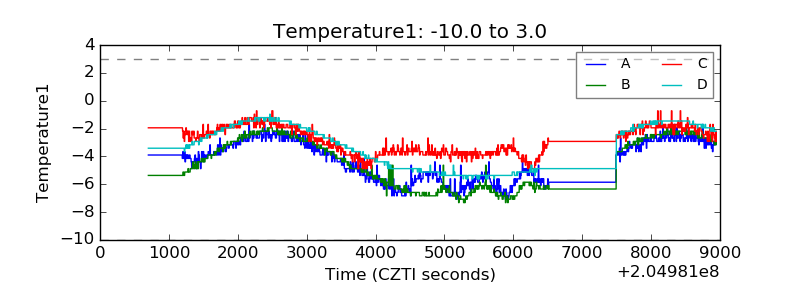

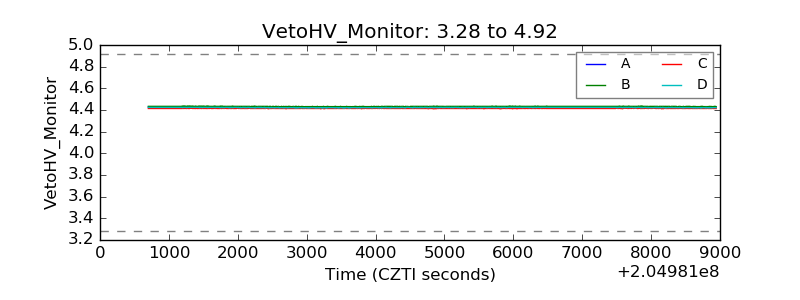

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

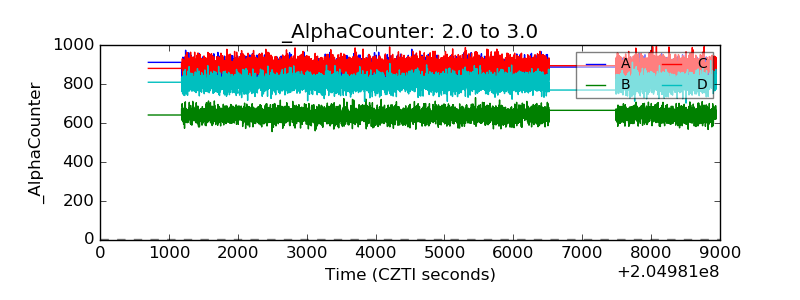

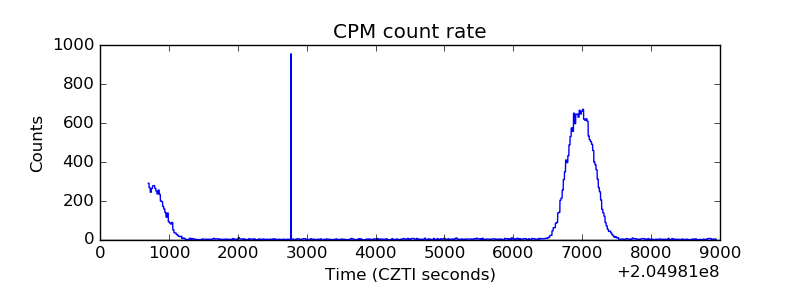

| Alpha Counter |  |
| _CPM_Rate |  |

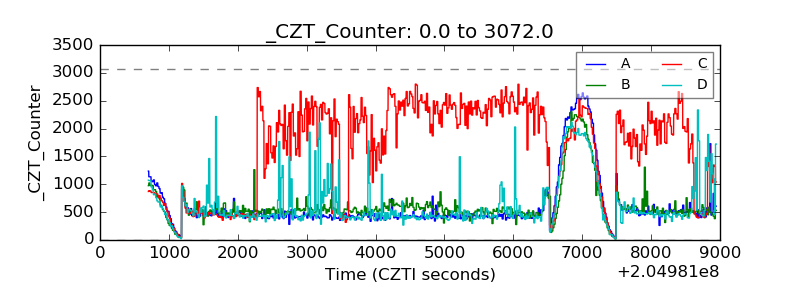

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

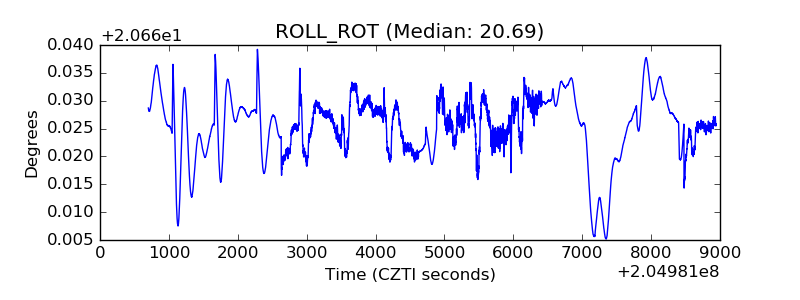

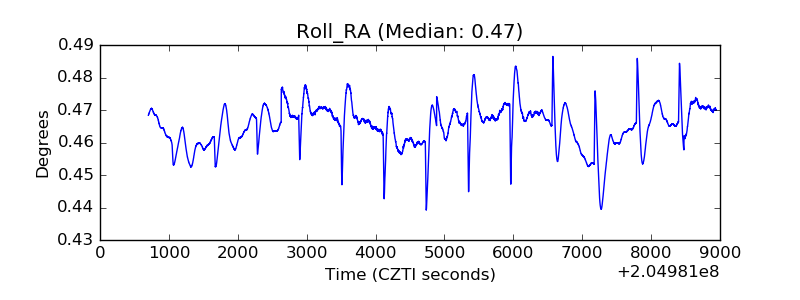

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

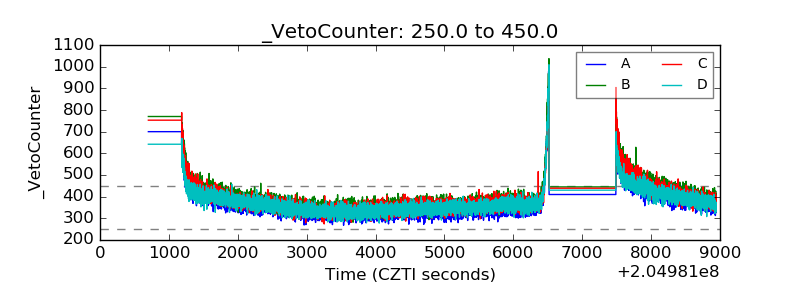

| Veto Counter |  |
