| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_195T01_9000000530_04133cztM0_level2.evt | modeM0/AS1G05_195T01_9000000530_04133cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,028,197,440 | 166,224,960 |
| Size | 980.6 MB | 158.5 MB |
| Events in quadrant A | 7,042,459 | 1,017,114 |
| Events in quadrant B | 9,447,195 | 1,002,552 |
| Events in quadrant C | 6,387,805 | 1,022,402 |
| Events in quadrant D | 7,276,458 | 987,290 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 315 | 13 |
| B | 0 | 315 | 15 |
| C | 0 | 317 | 23 |
| D | 0 | 316 | 18 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33200 | 2166 |
| B | 0 | 39642 | 2381 |
| C | 0 | 31683 | 1953 |
| D | 0 | 34424 | 2157 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 1 |
| B | 0 | 17 | 3 |
| C | 0 | 17 | 4 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14525 | 250 | 1.721170% |
| B | 14521 | 1011 | 6.962330% |
| C | 14563 | 187 | 1.284076% |
| D | 14520 | 287 | 1.976584% |

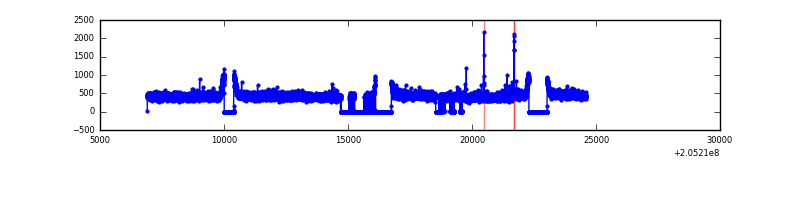

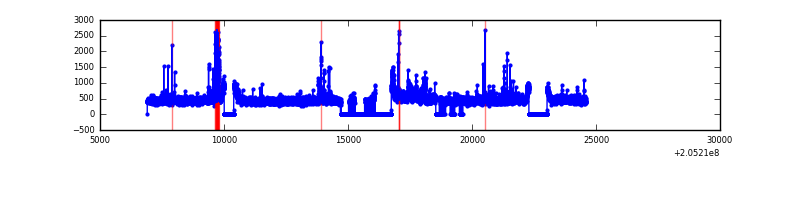

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17682 | 14737 | 34 | 34 | 0.19% | 0.23% |  |
| B | 17682 | 14706 | 762 | 762 | 4.31% | 5.18% |  |
| C | 17682 | 14776 | 3 | 3 | 0.02% | 0.02% |  |
| D | 17682 | 14712 | 93 | 93 | 0.53% | 0.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 314391 | 920.83 | 1654 | 1615 | 339.7 |
| A | 0 | 50 | 155639 | 453.45 | 1654 | 1615 | 339.7 |
| A | 0 | 118 | 52153 | 148.79 | 1654 | 1615 | 339.7 |
| B | 10 | 16 | 2019323 | 6485.71 | 1617 | 1578 | 311.1 |
| B | 15 | 204 | 261378 | 835.08 | 1617 | 1578 | 311.1 |
| B | 4 | 48 | 249900 | 798.19 | 1617 | 1578 | 311.1 |
| C | 10 | 65 | 29686 | 74.65 | 1615 | 1622 | 376.0 |
| C | 8 | 128 | 15441 | 36.76 | 1615 | 1622 | 376.0 |
| C | 13 | 61 | 13464 | 31.5 | 1615 | 1622 | 376.0 |
| D | 4 | 95 | 357415 | 920.33 | 1601 | 1551 | 386.7 |
| D | 2 | 63 | 251101 | 645.38 | 1601 | 1551 | 386.7 |
| D | 13 | 53 | 187916 | 481.97 | 1601 | 1551 | 386.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

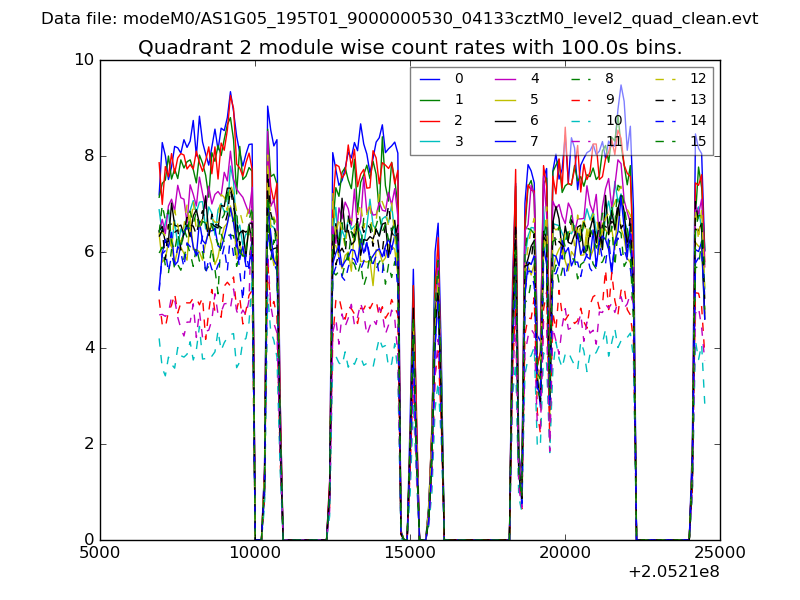

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

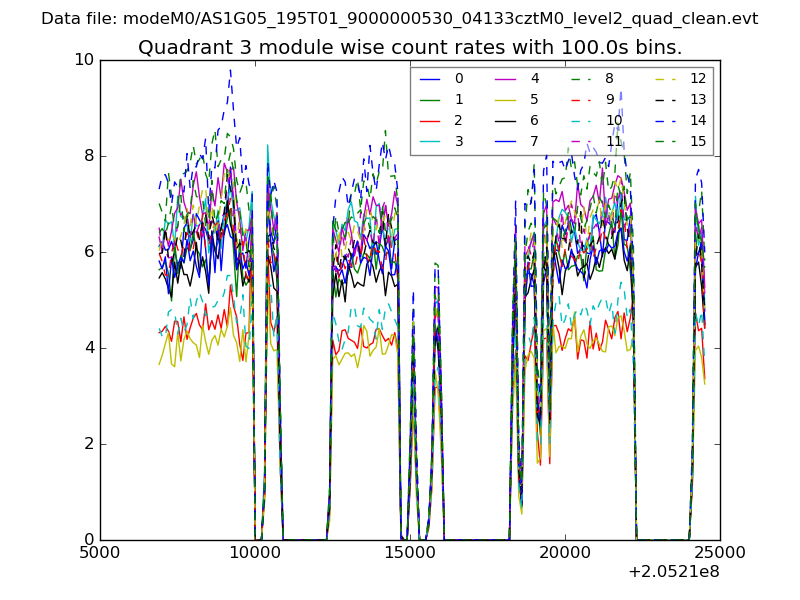

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

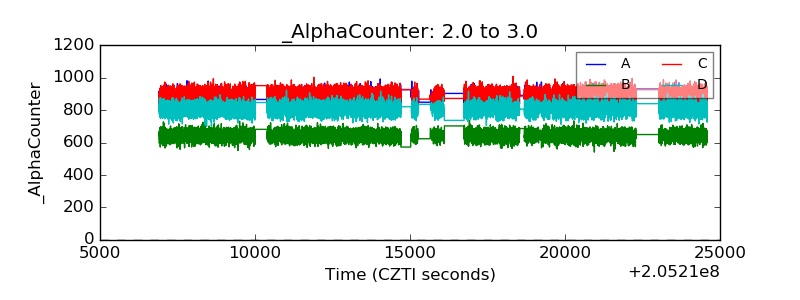

| Alpha Counter |  |

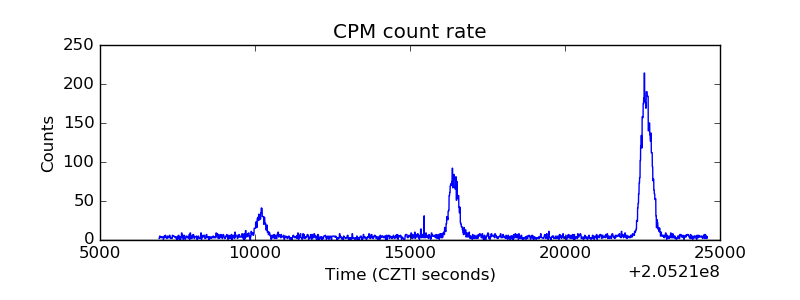

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

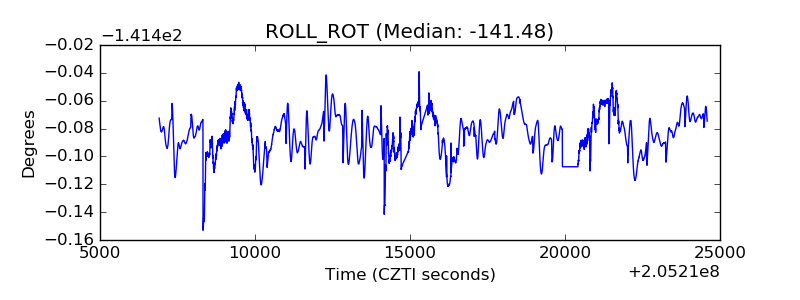

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

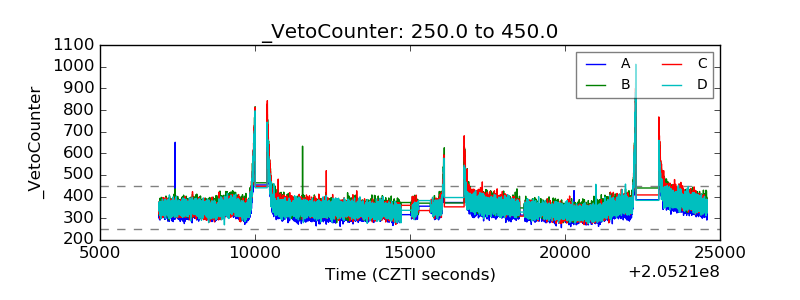

| Veto Counter |  |
