| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1SLEW_01234_9000000529_04120cztM0_level2.evt | modeM0/AS1SLEW_01234_9000000529_04120cztM0_level2_quad_clean.evt |
| Size (bytes) | 107,282,880 | 16,868,160 |
| Size | 102.3 MB | 16.1 MB |
| Events in quadrant A | 790,115 | 102,145 |
| Events in quadrant B | 737,898 | 105,970 |
| Events in quadrant C | 681,282 | 103,511 |
| Events in quadrant D | 946,009 | 98,415 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3130 | 1 |
| B | 0 | 2949 | 1 |
| C | 0 | 2803 | 1 |
| D | 0 | 3632 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1333 | 43 | 3.225806% |
| B | 1333 | 33 | 2.475619% |
| C | 1333 | 24 | 1.800450% |
| D | 1333 | 103 | 7.726932% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1333 | 1333 | 15 | 15 | 1.13% | 1.13% |  |
| B | 1333 | 1333 | 0 | 0 | 0.00% | 0.00% |  |
| C | 1333 | 1333 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1333 | 1333 | 80 | 80 | 6.00% | 6.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 61101 | 1599.95 | 179 | 174 | 38.1 |
| A | 0 | 199 | 34592 | 903.82 | 179 | 174 | 38.1 |
| A | 0 | 226 | 4872 | 123.37 | 179 | 174 | 38.1 |
| B | 15 | 204 | 22947 | 618.63 | 180 | 175 | 36.8 |
| B | 15 | 85 | 7229 | 191.63 | 180 | 175 | 36.8 |
| B | 12 | 111 | 3179 | 81.61 | 180 | 175 | 36.8 |
| C | 9 | 144 | 12368 | 296.02 | 171 | 171 | 41.2 |
| C | 13 | 61 | 1417 | 30.24 | 171 | 171 | 41.2 |
| C | 5 | 206 | 685 | 12.47 | 171 | 171 | 41.2 |
| D | 13 | 239 | 252528 | 5958.43 | 169 | 164 | 42.4 |
| D | 2 | 37 | 23654 | 554.61 | 169 | 164 | 42.4 |
| D | 2 | 14 | 8333 | 192.87 | 169 | 164 | 42.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

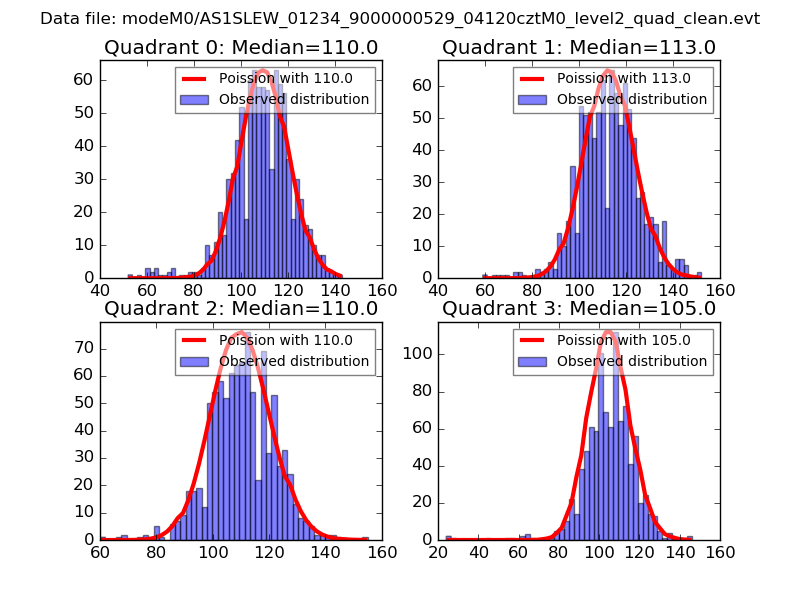

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

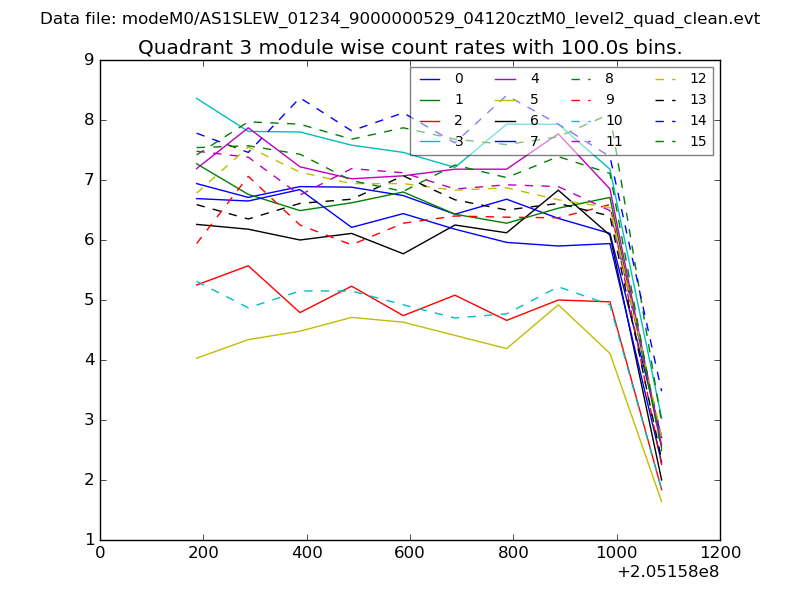

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

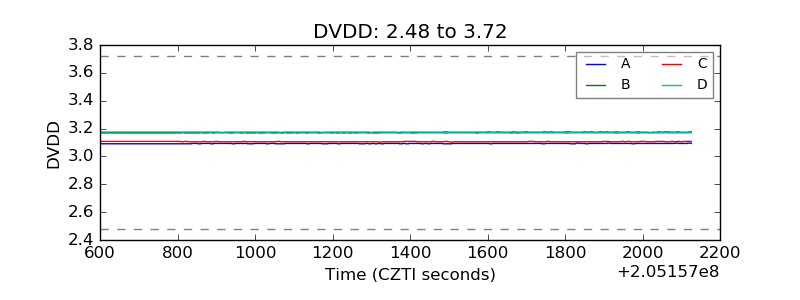

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

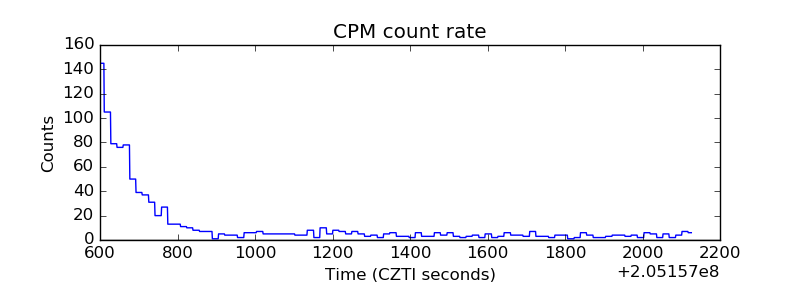

| _CPM_Rate |  |

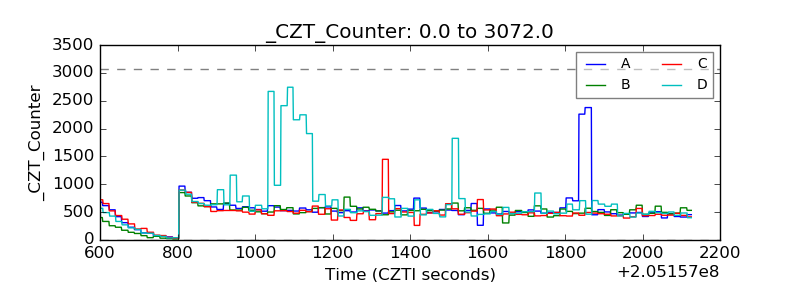

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

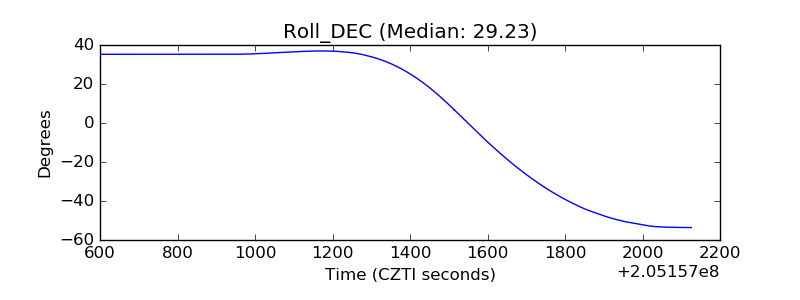

| _Roll_DEC |  |
| _Roll_RA |  |

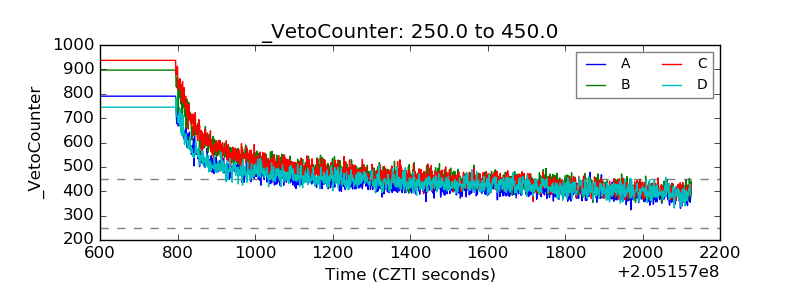

| Veto Counter |  |
