| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04145cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04145cztM0_level2_quad_clean.evt |
| Size (bytes) | 496,704,960 | 79,372,800 |
| Size | 473.7 MB | 75.7 MB |
| Events in quadrant A | 3,254,374 | 485,839 |
| Events in quadrant B | 3,457,723 | 486,224 |
| Events in quadrant C | 3,332,028 | 480,725 |
| Events in quadrant D | 4,512,093 | 451,806 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14702 | 2 |
| B | 0 | 15101 | 5 |
| C | 0 | 15000 | 13 |
| D | 0 | 18720 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7168 | 41 | 0.571987% |
| B | 7166 | 82 | 1.144292% |
| C | 7162 | 70 | 0.977381% |
| D | 7168 | 357 | 4.980469% |

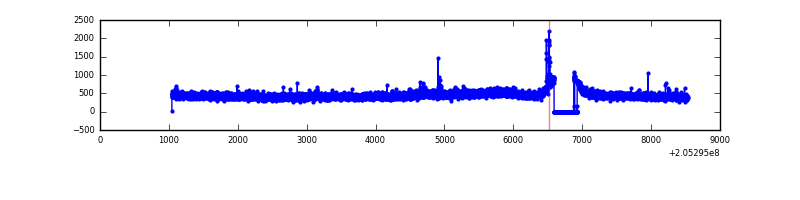

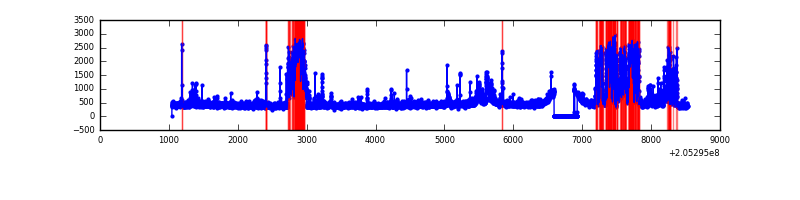

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7488 | 7170 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7488 | 7170 | 10 | 10 | 0.13% | 0.14% |  |
| C | 7488 | 7170 | 18 | 18 | 0.24% | 0.25% |  |
| D | 7488 | 7170 | 343 | 343 | 4.58% | 4.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 58568 | 342.94 | 817 | 799 | 168.5 |
| A | 0 | 50 | 21916 | 125.36 | 817 | 799 | 168.5 |
| A | 13 | 14 | 9389 | 50.99 | 817 | 799 | 168.5 |
| B | 10 | 16 | 93116 | 576.78 | 825 | 807 | 160.0 |
| B | 14 | 167 | 73748 | 455.76 | 825 | 807 | 160.0 |
| B | 15 | 204 | 42595 | 261.11 | 825 | 807 | 160.0 |
| C | 10 | 65 | 165652 | 866.79 | 801 | 805 | 190.2 |
| C | 8 | 128 | 17991 | 90.37 | 801 | 805 | 190.2 |
| C | 8 | 112 | 7773 | 36.64 | 801 | 805 | 190.2 |
| D | 2 | 232 | 1353869 | 7028.31 | 784 | 759 | 192.5 |
| D | 12 | 233 | 119787 | 618.25 | 784 | 759 | 192.5 |
| D | 2 | 14 | 37697 | 191.86 | 784 | 759 | 192.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

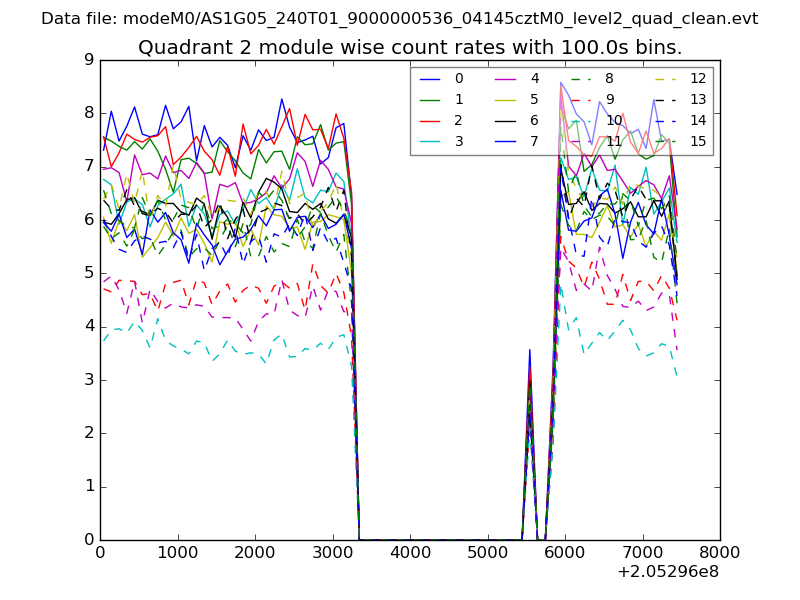

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

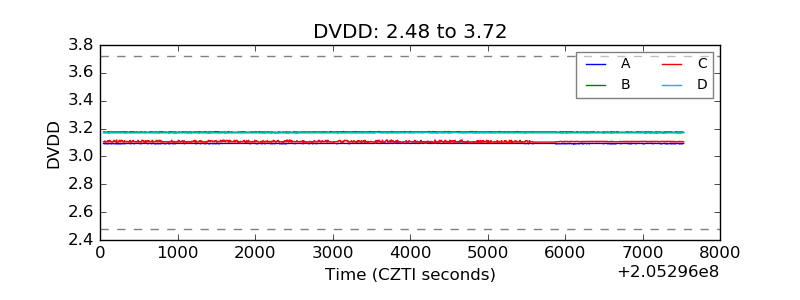

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

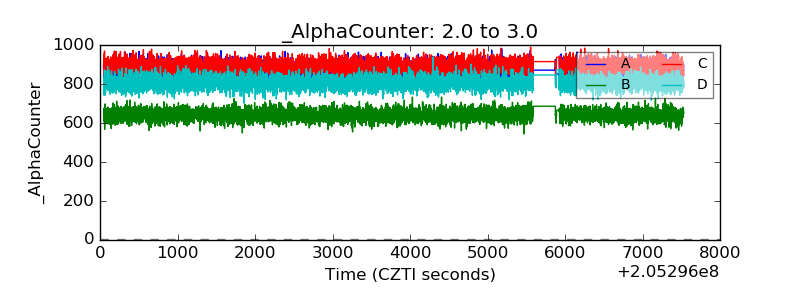

| Alpha Counter |  |

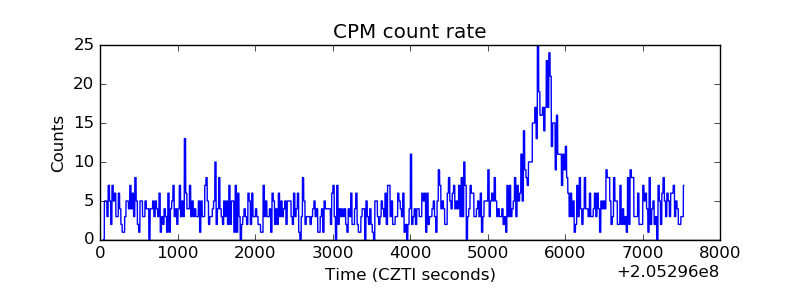

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

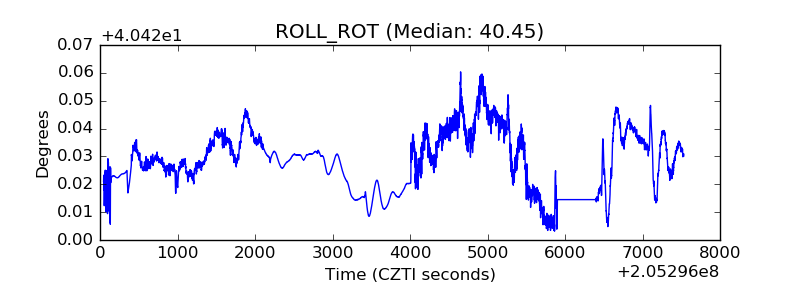

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
