| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04154cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04154cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,403,520 | 55,376,640 |
| Size | 424.8 MB | 52.8 MB |
| Events in quadrant A | 3,498,390 | 313,612 |
| Events in quadrant B | 3,365,986 | 317,402 |
| Events in quadrant C | 3,048,346 | 306,690 |
| Events in quadrant D | 3,146,494 | 297,248 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14394 | 3 |
| B | 0 | 13823 | 2 |
| C | 0 | 13101 | 2 |
| D | 0 | 13539 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6327 | 133 | 2.102102% |
| B | 6327 | 112 | 1.770191% |
| C | 6327 | 57 | 0.900901% |
| D | 6327 | 62 | 0.979927% |

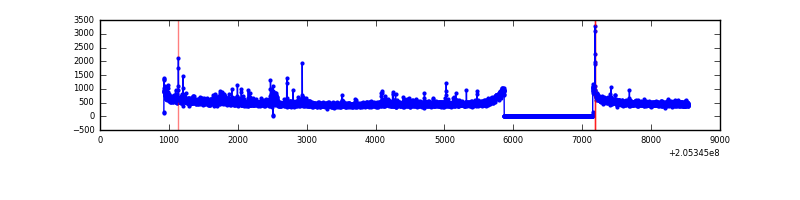

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7614 | 6329 | 15 | 15 | 0.20% | 0.24% |  |
| B | 7614 | 6329 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7614 | 6329 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7614 | 6329 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 199 | 168334 | 1011.96 | 813 | 795 | 165.6 |
| A | 14 | 111 | 99352 | 595.3 | 813 | 795 | 165.6 |
| A | 8 | 15 | 27297 | 160.08 | 813 | 795 | 165.6 |
| B | 4 | 81 | 89329 | 567.78 | 821 | 804 | 155.9 |
| B | 0 | 183 | 24835 | 154.13 | 821 | 804 | 155.9 |
| B | 15 | 204 | 22997 | 142.34 | 821 | 804 | 155.9 |
| C | 13 | 61 | 6520 | 31.8 | 780 | 785 | 180.4 |
| C | 14 | 67 | 2509 | 9.56 | 780 | 785 | 180.4 |
| C | 12 | 4 | 2354 | 8.7 | 780 | 785 | 180.4 |
| D | 2 | 63 | 77838 | 412.07 | 779 | 757 | 187.1 |
| D | 10 | 172 | 25536 | 132.47 | 779 | 757 | 187.1 |
| D | 2 | 232 | 25159 | 130.45 | 779 | 757 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

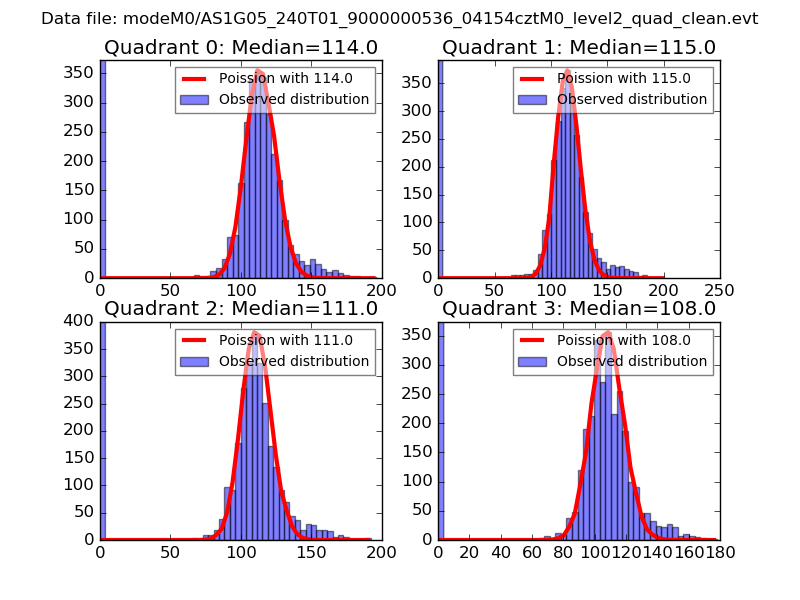

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

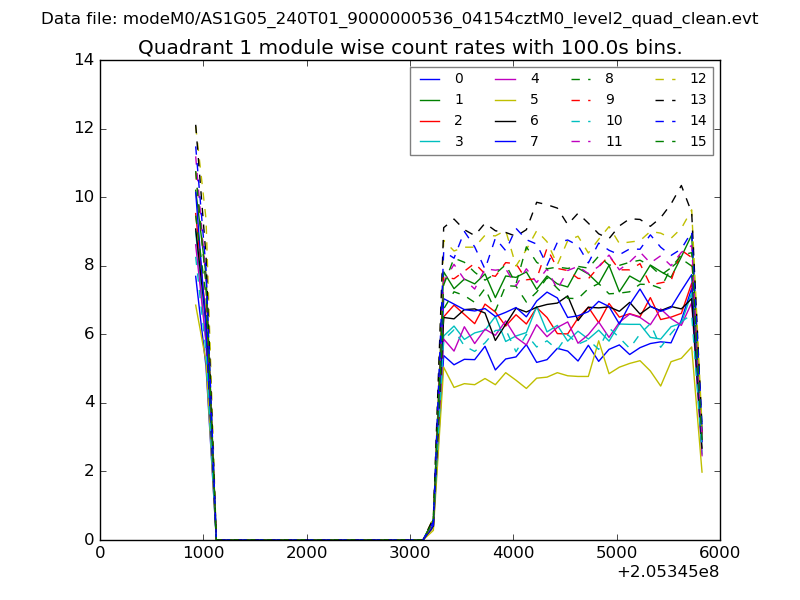

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

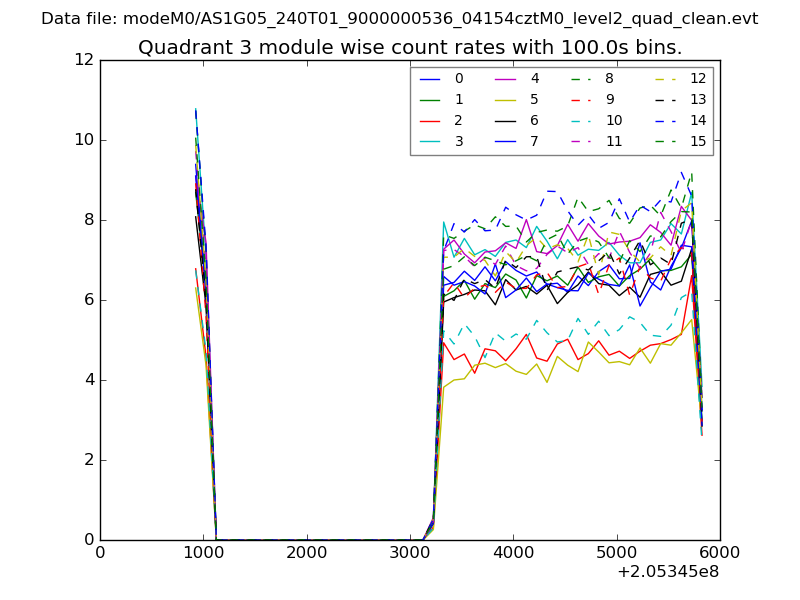

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

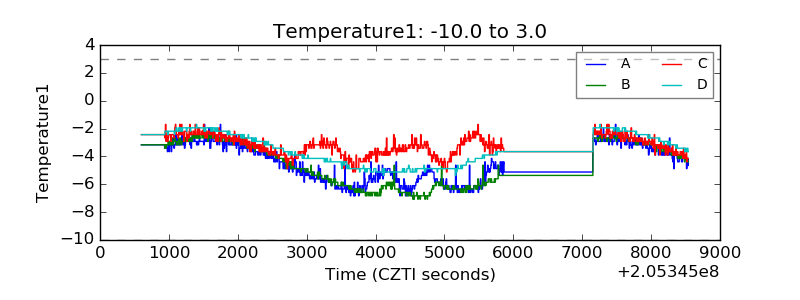

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

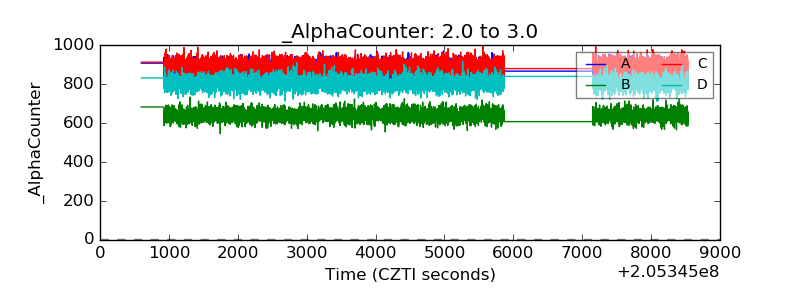

| Alpha Counter |  |
| _CPM_Rate |  |

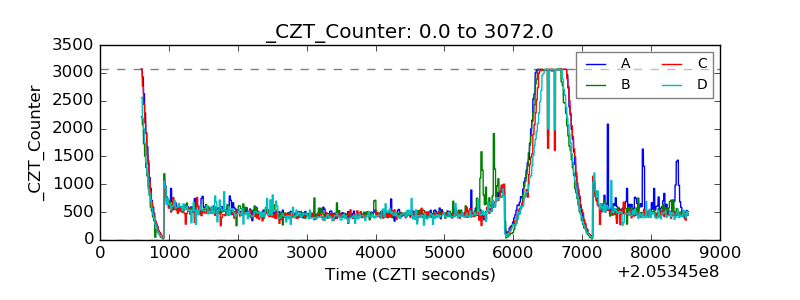

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

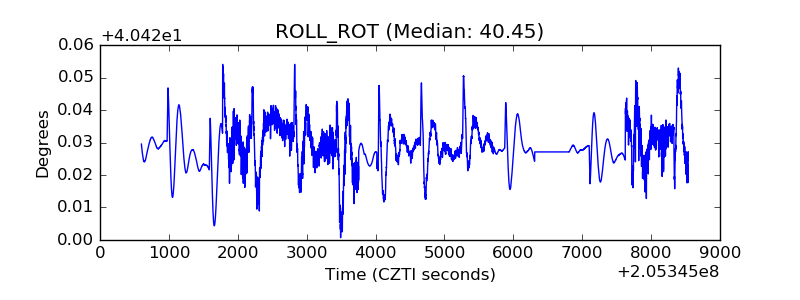

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
