| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04169cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04169cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,900,800 | 55,362,240 |
| Size | 448.1 MB | 52.8 MB |
| Events in quadrant A | 3,640,464 | 313,535 |
| Events in quadrant B | 3,789,421 | 318,969 |
| Events in quadrant C | 3,055,876 | 306,928 |
| Events in quadrant D | 3,318,655 | 298,144 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14660 | 3 |
| B | 0 | 15357 | 2 |
| C | 0 | 13103 | 2 |
| D | 0 | 14070 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6288 | 145 | 2.305980% |
| B | 6288 | 168 | 2.671756% |
| C | 6288 | 104 | 1.653944% |
| D | 6288 | 102 | 1.622137% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7548 | 6289 | 14 | 14 | 0.19% | 0.22% |  |
| B | 7548 | 6289 | 17 | 17 | 0.23% | 0.27% |  |
| C | 7548 | 6289 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7548 | 6289 | 14 | 14 | 0.19% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 352188 | 2170.02 | 805 | 789 | 161.9 |
| A | 15 | 234 | 74671 | 456.25 | 805 | 789 | 161.9 |
| A | 0 | 50 | 70580 | 430.98 | 805 | 789 | 161.9 |
| B | 4 | 81 | 232342 | 1495.02 | 812 | 796 | 154.9 |
| B | 14 | 167 | 152048 | 976.59 | 812 | 796 | 154.9 |
| B | 8 | 3 | 107307 | 687.71 | 812 | 796 | 154.9 |
| C | 9 | 144 | 23243 | 124.44 | 773 | 777 | 180.5 |
| C | 12 | 4 | 9530 | 48.48 | 773 | 777 | 180.5 |
| C | 13 | 61 | 6378 | 31.02 | 773 | 777 | 180.5 |
| D | 2 | 232 | 207289 | 1112.47 | 773 | 750 | 185.7 |
| D | 13 | 239 | 62849 | 334.48 | 773 | 750 | 185.7 |
| D | 12 | 233 | 46988 | 249.05 | 773 | 750 | 185.7 |

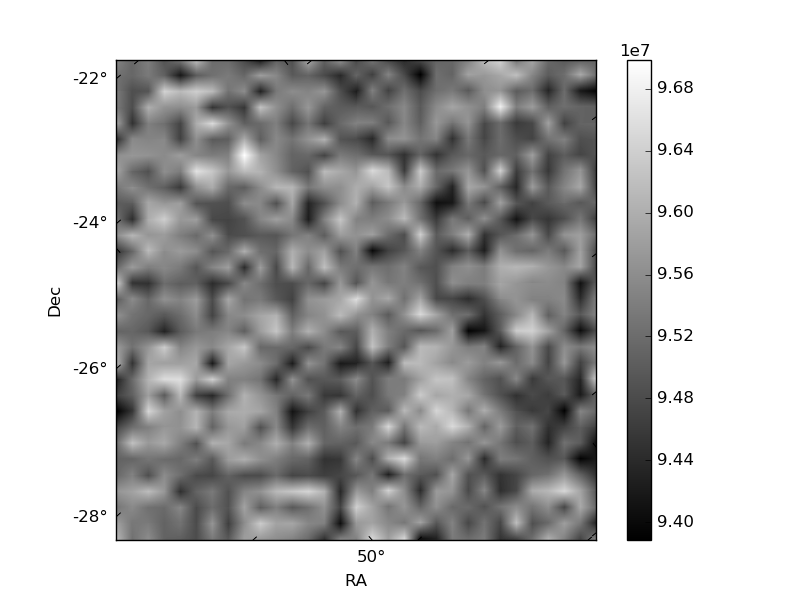

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

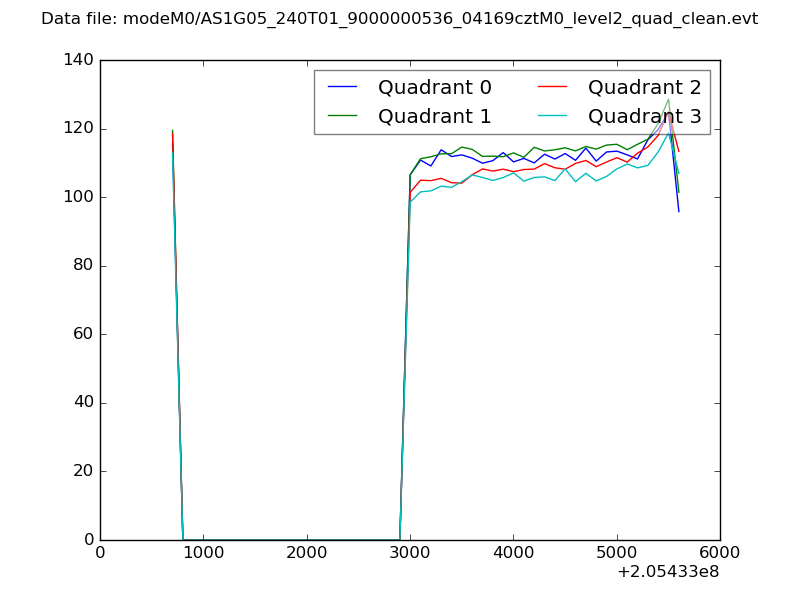

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

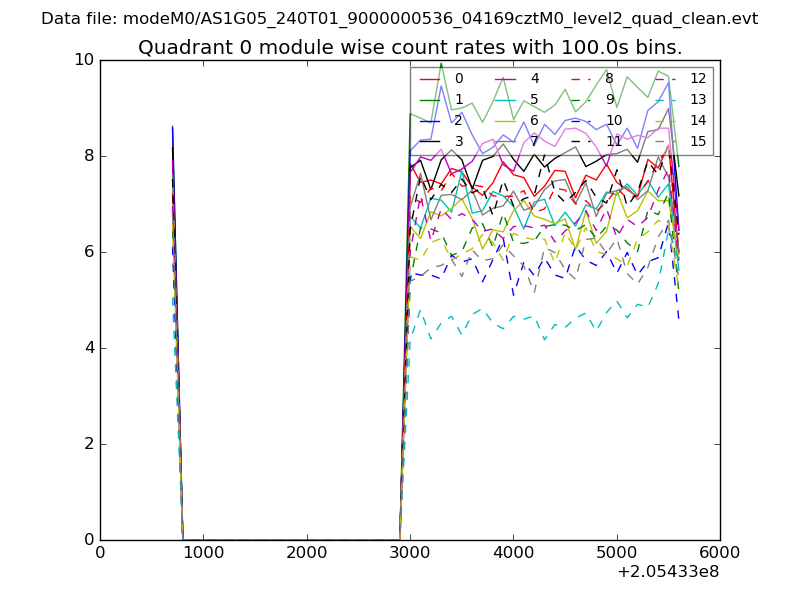

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

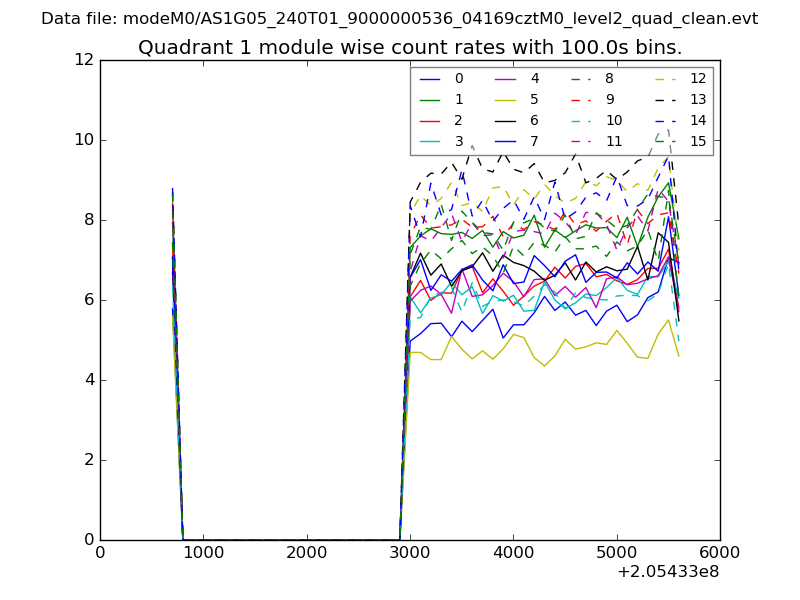

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

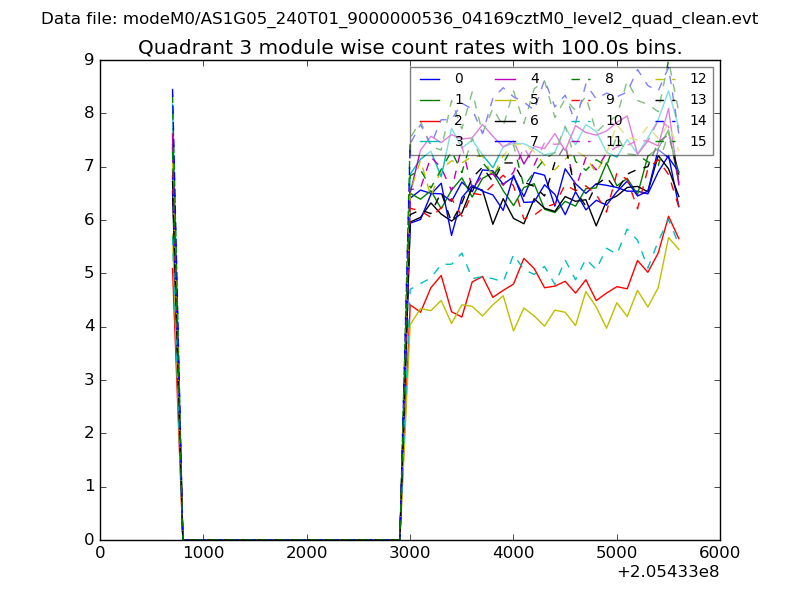

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

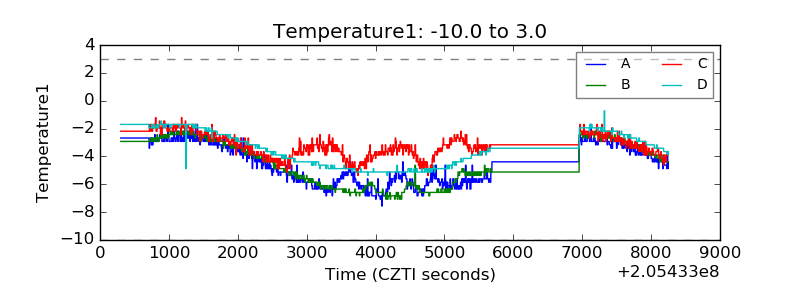

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

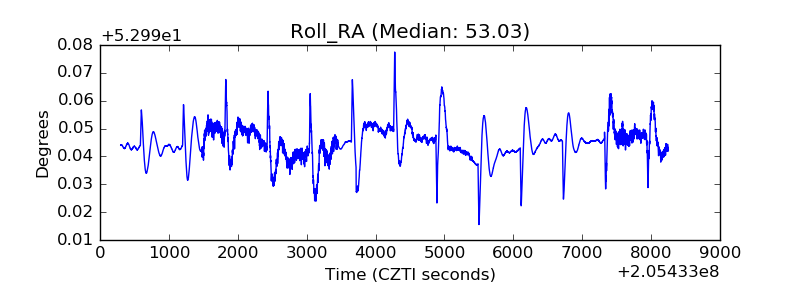

| _Roll_RA |  |

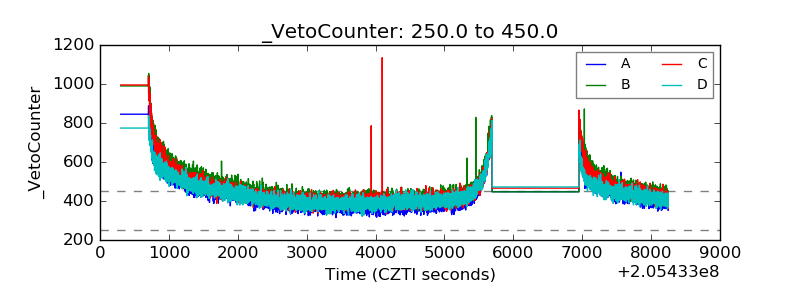

| Veto Counter |  |
