| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04181cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04181cztM0_level2_quad_clean.evt |
| Size (bytes) | 540,538,560 | 69,318,720 |
| Size | 515.5 MB | 66.1 MB |
| Events in quadrant A | 4,006,684 | 420,218 |
| Events in quadrant B | 4,641,359 | 426,020 |
| Events in quadrant C | 3,062,938 | 414,643 |
| Events in quadrant D | 4,219,579 | 385,383 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16170 | 2 |
| B | 0 | 18524 | 1 |
| C | 0 | 13325 | 1 |
| D | 0 | 16818 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6492 | 167 | 2.572397% |
| B | 6492 | 133 | 2.048675% |
| C | 6492 | 53 | 0.816389% |
| D | 6492 | 358 | 5.514479% |

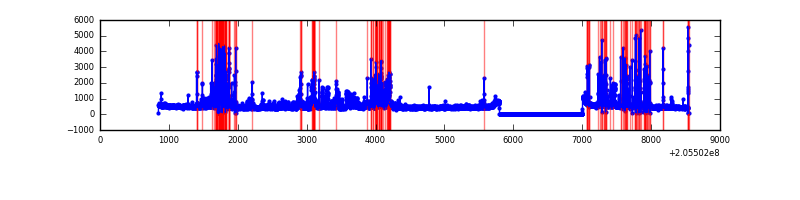

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7697 | 6493 | 74 | 74 | 0.96% | 1.14% |  |
| B | 7697 | 6493 | 42 | 42 | 0.55% | 0.65% |  |
| C | 7697 | 6493 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7697 | 6493 | 218 | 218 | 2.83% | 3.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 448448 | 2715.97 | 813 | 796 | 164.8 |
| A | 0 | 50 | 392910 | 2379.01 | 813 | 796 | 164.8 |
| A | 13 | 14 | 11562 | 65.32 | 813 | 796 | 164.8 |
| B | 3 | 0 | 1355278 | 8788.79 | 813 | 798 | 154.1 |
| B | 4 | 81 | 51580 | 329.51 | 813 | 798 | 154.1 |
| B | 10 | 16 | 42807 | 272.58 | 813 | 798 | 154.1 |
| C | 7 | 247 | 18674 | 99.45 | 776 | 781 | 179.9 |
| C | 9 | 144 | 7949 | 39.84 | 776 | 781 | 179.9 |
| C | 10 | 65 | 6831 | 33.63 | 776 | 781 | 179.9 |
| D | 4 | 95 | 482592 | 2643.82 | 764 | 743 | 182.3 |
| D | 2 | 232 | 422452 | 2313.84 | 764 | 743 | 182.3 |
| D | 12 | 79 | 219855 | 1202.23 | 764 | 743 | 182.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

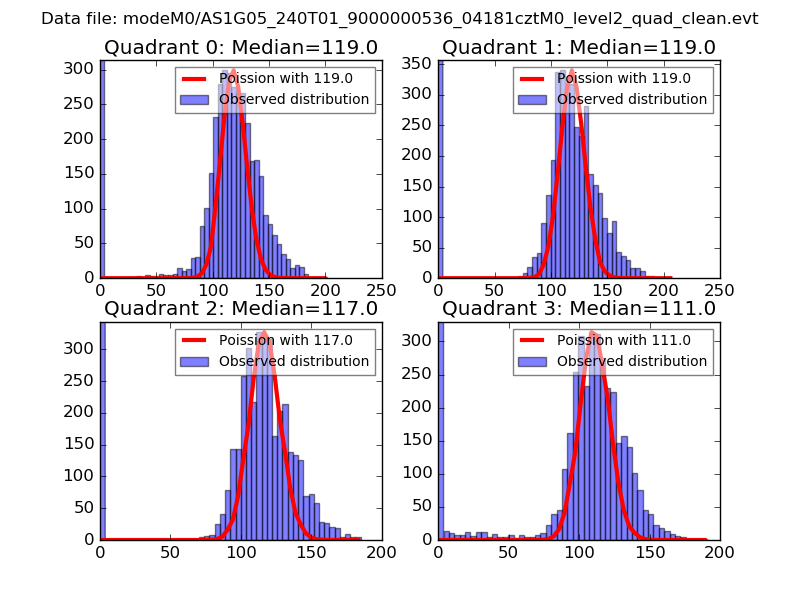

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

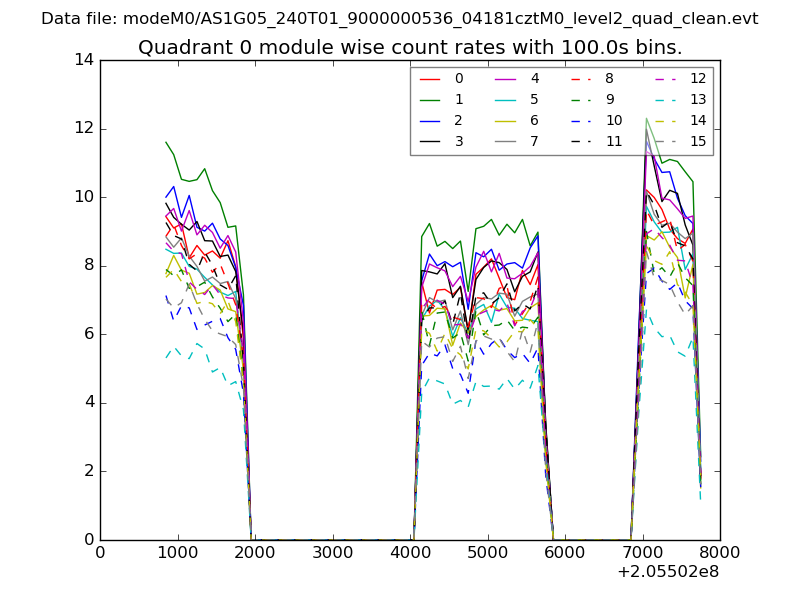

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

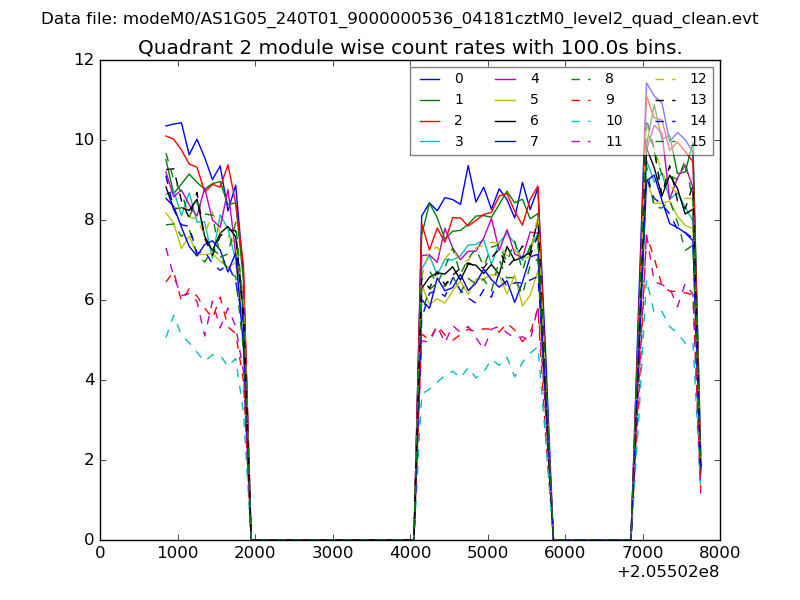

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

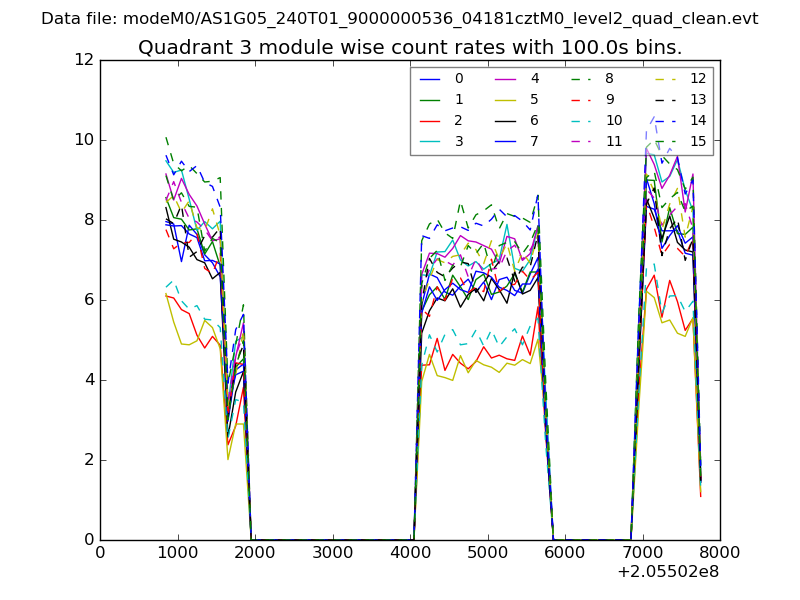

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

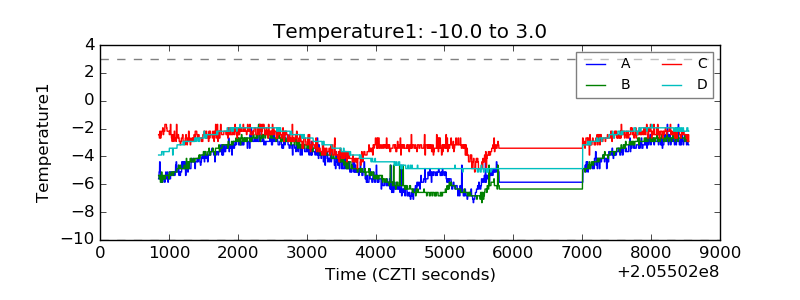

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

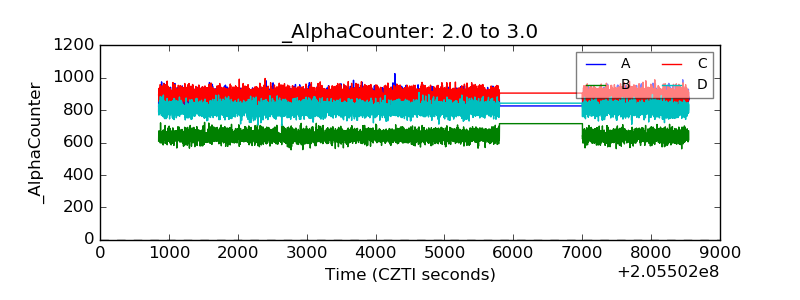

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

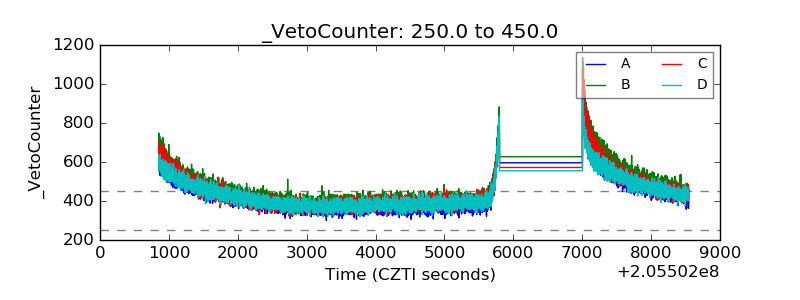

| Veto Counter |  |
