| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04188cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04188cztM0_level2_quad_clean.evt |
| Size (bytes) | 558,547,200 | 82,987,200 |
| Size | 532.7 MB | 79.1 MB |
| Events in quadrant A | 3,805,283 | 503,080 |
| Events in quadrant B | 4,843,681 | 497,222 |
| Events in quadrant C | 3,901,877 | 492,408 |
| Events in quadrant D | 3,836,370 | 478,968 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16604 | 3 |
| B | 0 | 19728 | 4 |
| C | 0 | 16977 | 2 |
| D | 0 | 17201 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7781 | 137 | 1.760699% |
| B | 7780 | 578 | 7.429306% |
| C | 7781 | 93 | 1.195219% |
| D | 7781 | 133 | 1.709292% |

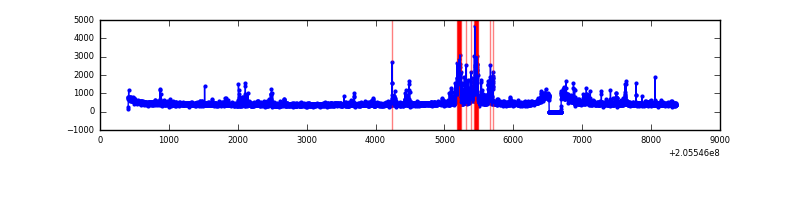

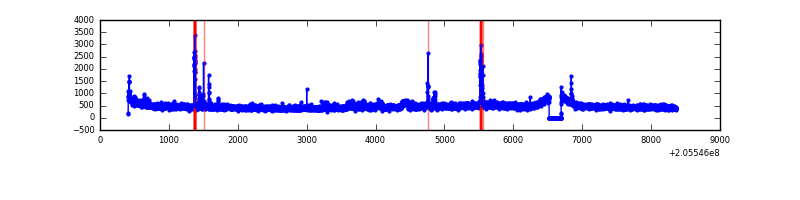

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7956 | 7782 | 32 | 32 | 0.40% | 0.41% |  |
| B | 7956 | 7782 | 262 | 262 | 3.29% | 3.37% |  |
| C | 7956 | 7782 | 11 | 11 | 0.14% | 0.14% |  |
| D | 7956 | 7782 | 53 | 53 | 0.67% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 105874 | 557.38 | 911 | 890 | 188.4 |
| A | 14 | 111 | 63927 | 334.68 | 911 | 890 | 188.4 |
| A | 15 | 234 | 44760 | 232.91 | 911 | 890 | 188.4 |
| B | 3 | 0 | 1189276 | 6809.32 | 903 | 881 | 174.5 |
| B | 10 | 16 | 51301 | 288.9 | 903 | 881 | 174.5 |
| B | 8 | 3 | 40544 | 227.26 | 903 | 881 | 174.5 |
| C | 9 | 144 | 358761 | 1698.13 | 896 | 896 | 210.7 |
| C | 1 | 3 | 17578 | 79.16 | 896 | 896 | 210.7 |
| C | 10 | 65 | 12902 | 56.97 | 896 | 896 | 210.7 |
| D | 12 | 79 | 136863 | 625.94 | 888 | 858 | 217.3 |
| D | 4 | 95 | 115578 | 527.98 | 888 | 858 | 217.3 |
| D | 13 | 239 | 90806 | 413.97 | 888 | 858 | 217.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

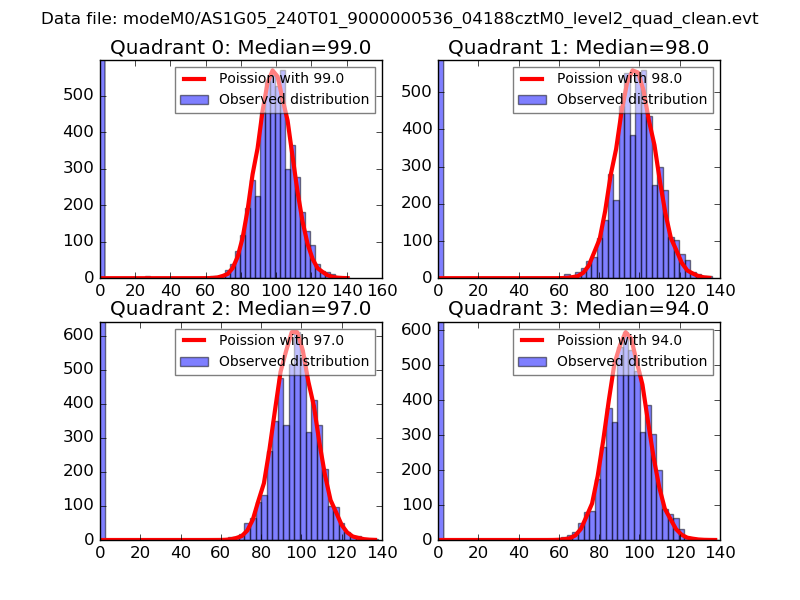

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

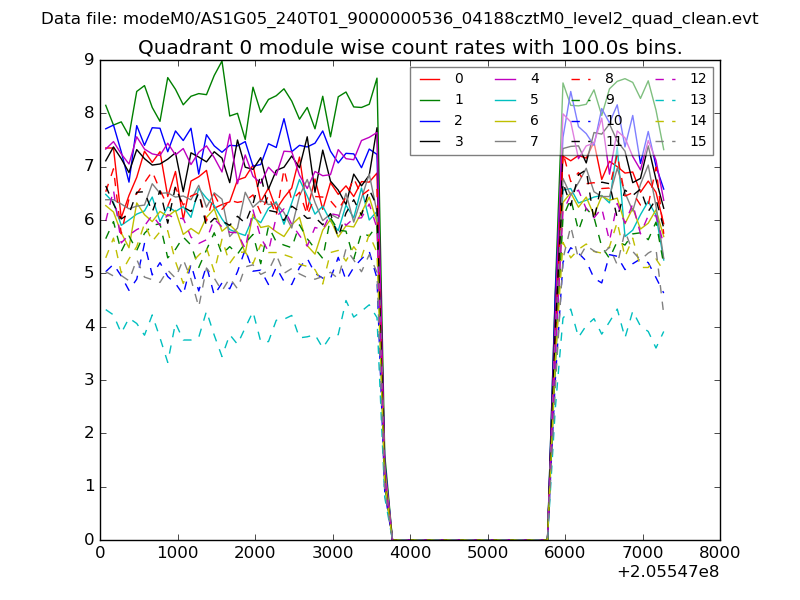

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

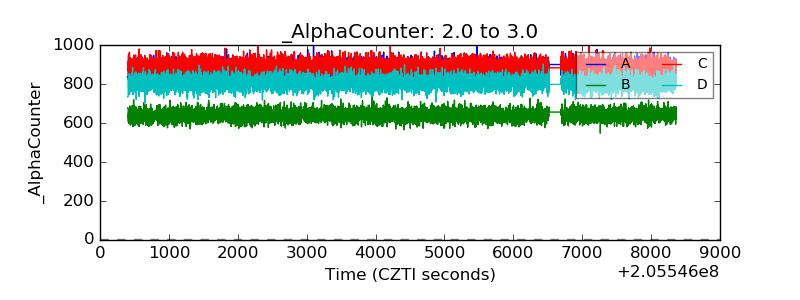

| Alpha Counter |  |

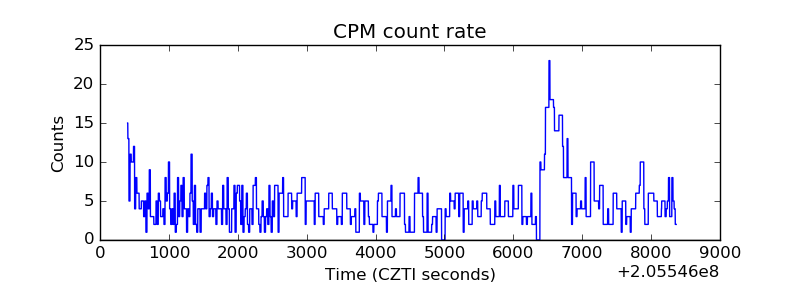

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

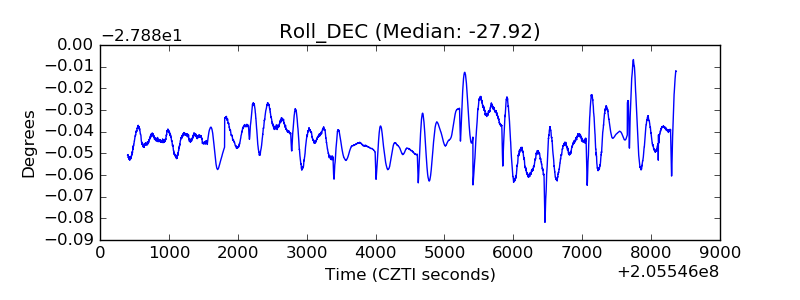

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
