| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04200cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04200cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,668,480 | 68,621,760 |
| Size | 536.6 MB | 65.4 MB |
| Events in quadrant A | 5,677,348 | 375,618 |
| Events in quadrant B | 4,075,601 | 418,861 |
| Events in quadrant C | 3,643,510 | 399,339 |
| Events in quadrant D | 3,176,893 | 403,785 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21377 | 3 |
| B | 0 | 16540 | 2 |
| C | 0 | 15465 | 2 |
| D | 0 | 14598 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6885 | 872 | 12.665214% |
| B | 6885 | 189 | 2.745098% |
| C | 6885 | 190 | 2.759622% |
| D | 6885 | 67 | 0.973130% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7665 | 6886 | 589 | 589 | 7.68% | 8.55% |  |
| B | 7665 | 6886 | 68 | 68 | 0.89% | 0.99% |  |
| C | 7665 | 6886 | 80 | 80 | 1.04% | 1.16% |  |
| D | 7665 | 6886 | 17 | 17 | 0.22% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 1908039 | 11494.48 | 802 | 784 | 165.9 |
| A | 3 | 1 | 412779 | 2482.98 | 802 | 784 | 165.9 |
| A | 15 | 234 | 134241 | 804.31 | 802 | 784 | 165.9 |
| B | 3 | 0 | 383699 | 2356.59 | 838 | 818 | 162.5 |
| B | 8 | 3 | 257548 | 1580.15 | 838 | 818 | 162.5 |
| B | 14 | 167 | 142212 | 870.27 | 838 | 818 | 162.5 |
| C | 9 | 144 | 482398 | 2589.22 | 795 | 801 | 186.0 |
| C | 8 | 128 | 19623 | 101.19 | 795 | 801 | 186.0 |
| C | 10 | 65 | 10591 | 52.63 | 795 | 801 | 186.0 |
| D | 13 | 239 | 71784 | 360.64 | 808 | 784 | 196.9 |
| D | 13 | 223 | 46923 | 234.36 | 808 | 784 | 196.9 |
| D | 14 | 226 | 8921 | 41.33 | 808 | 784 | 196.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

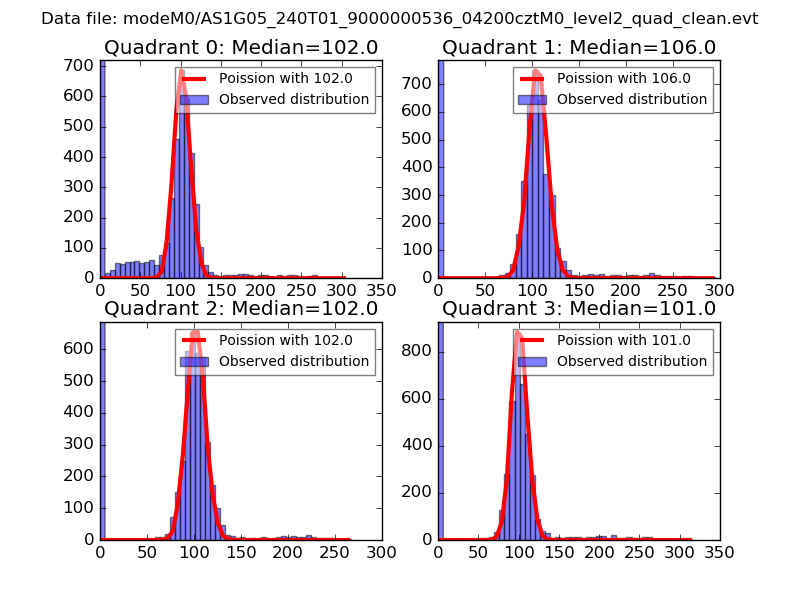

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

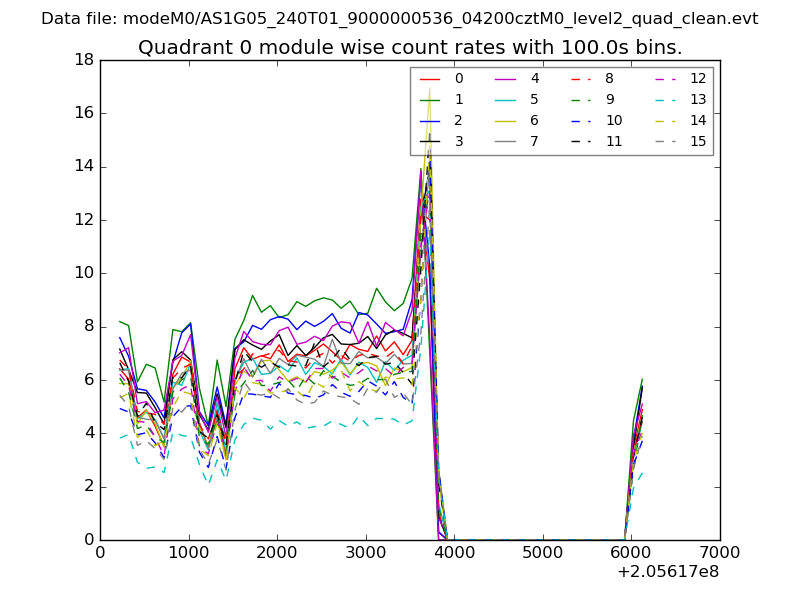

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
