| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04201cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04201cztM0_level2_quad_clean.evt |
| Size (bytes) | 610,456,320 | 70,433,280 |
| Size | 582.2 MB | 67.2 MB |
| Events in quadrant A | 5,421,865 | 405,114 |
| Events in quadrant B | 5,639,115 | 410,273 |
| Events in quadrant C | 3,487,186 | 410,400 |
| Events in quadrant D | 3,444,104 | 397,691 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21073 | 3 |
| B | 0 | 21531 | 2 |
| C | 0 | 15532 | 2 |
| D | 0 | 15690 | 4 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7311 | 395 | 5.402818% |
| B | 7311 | 703 | 9.615648% |
| C | 7311 | 52 | 0.711257% |
| D | 7310 | 108 | 1.477428% |

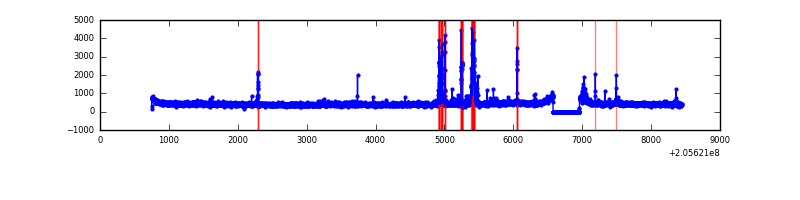

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7696 | 7312 | 229 | 229 | 2.98% | 3.13% |  |
| B | 7696 | 7311 | 483 | 483 | 6.28% | 6.61% |  |
| C | 7696 | 7312 | 6 | 6 | 0.08% | 0.08% |  |
| D | 7696 | 7312 | 72 | 72 | 0.94% | 0.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 913110 | 5224.71 | 846 | 825 | 174.6 |
| A | 3 | 1 | 760456 | 4350.45 | 846 | 825 | 174.6 |
| A | 15 | 234 | 416090 | 2378.25 | 846 | 825 | 174.6 |
| B | 3 | 0 | 1875277 | 11503.29 | 834 | 813 | 163.0 |
| B | 14 | 167 | 477221 | 2923.64 | 834 | 813 | 163.0 |
| B | 15 | 204 | 28977 | 172.84 | 834 | 813 | 163.0 |
| C | 9 | 144 | 213900 | 1096.81 | 829 | 833 | 194.3 |
| C | 10 | 65 | 10531 | 49.92 | 829 | 833 | 194.3 |
| C | 8 | 208 | 8113 | 37.48 | 829 | 833 | 194.3 |
| D | 13 | 239 | 207502 | 1027.35 | 826 | 800 | 201.2 |
| D | 13 | 223 | 47144 | 230.34 | 826 | 800 | 201.2 |
| D | 13 | 72 | 37718 | 183.49 | 826 | 800 | 201.2 |

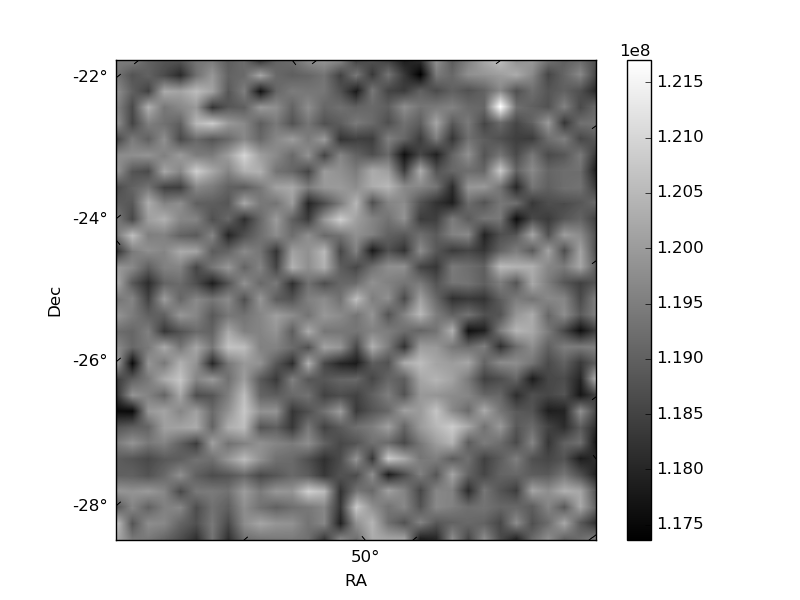

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

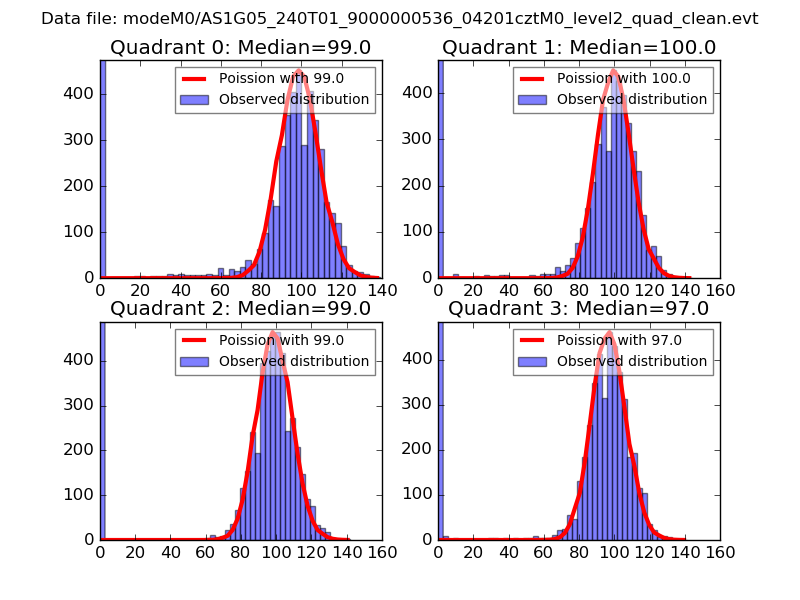

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

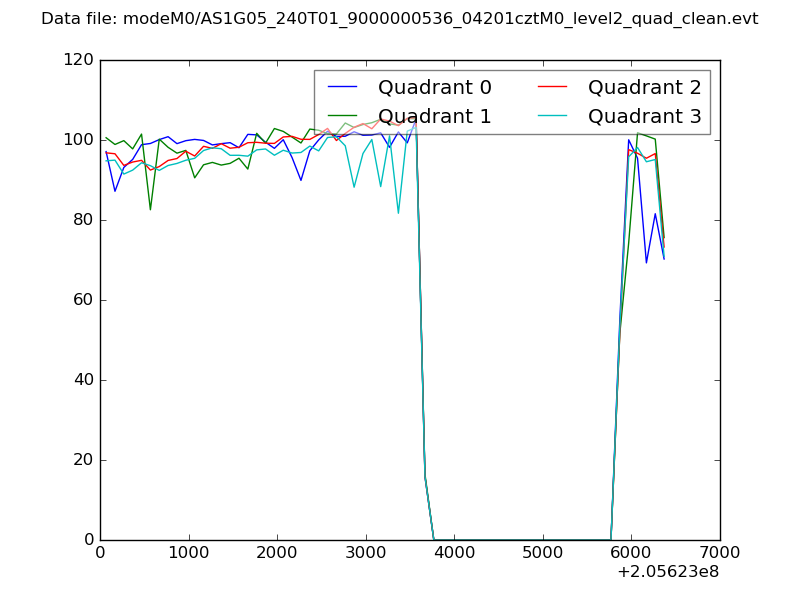

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

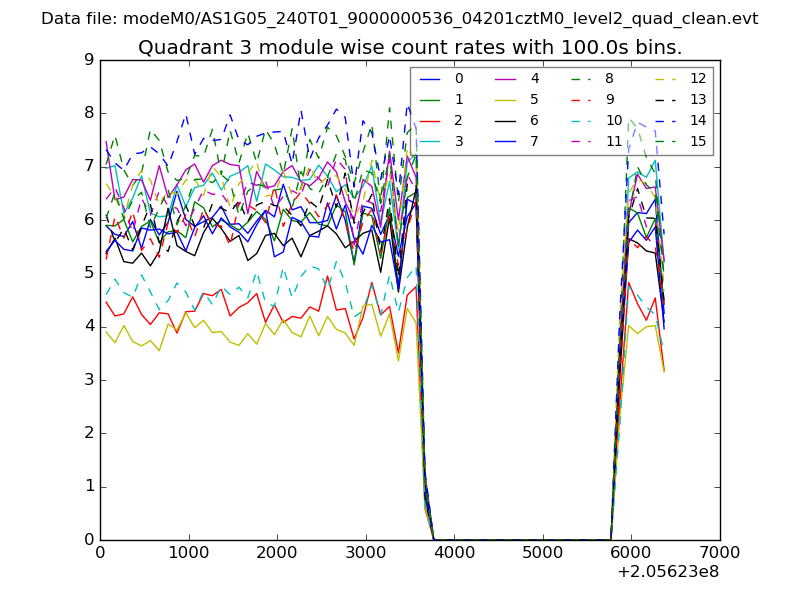

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

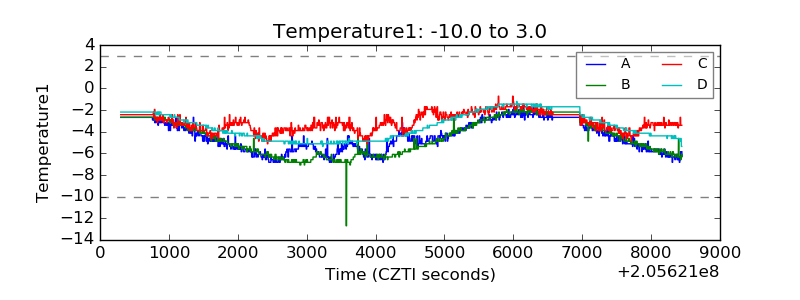

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

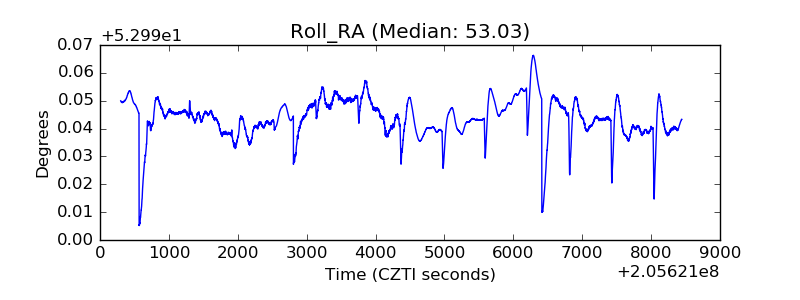

| _Roll_RA |  |

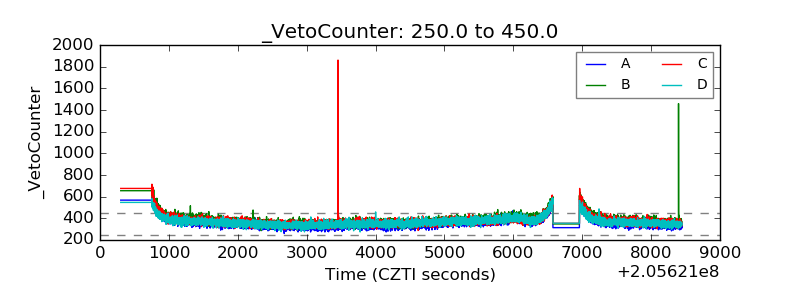

| Veto Counter |  |
