| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04236cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04236cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,038,080 | 76,288,320 |
| Size | 479.7 MB | 72.8 MB |
| Events in quadrant A | 3,027,640 | 472,365 |
| Events in quadrant B | 3,675,347 | 473,086 |
| Events in quadrant C | 3,033,970 | 465,310 |
| Events in quadrant D | 5,045,747 | 434,970 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13562 | 16 |
| B | 0 | 15106 | 7 |
| C | 0 | 13616 | 11 |
| D | 0 | 19695 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6652 | 30 | 0.450992% |
| B | 6655 | 54 | 0.811420% |
| C | 6653 | 19 | 0.285585% |
| D | 6655 | 444 | 6.671675% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7677 | 6658 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7677 | 6658 | 8 | 8 | 0.10% | 0.12% |  |
| C | 7677 | 6658 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7677 | 6658 | 397 | 397 | 5.17% | 5.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 27368 | 166.84 | 773 | 755 | 159.5 |
| A | 0 | 149 | 16988 | 101.76 | 773 | 755 | 159.5 |
| A | 0 | 226 | 9132 | 52.52 | 773 | 755 | 159.5 |
| B | 3 | 0 | 472486 | 3125.34 | 777 | 760 | 150.9 |
| B | 14 | 167 | 94671 | 622.19 | 777 | 760 | 150.9 |
| B | 15 | 204 | 48082 | 313.52 | 777 | 760 | 150.9 |
| C | 9 | 144 | 91127 | 511.13 | 751 | 754 | 176.8 |
| C | 10 | 65 | 6935 | 34.96 | 751 | 754 | 176.8 |
| C | 13 | 61 | 6102 | 30.24 | 751 | 754 | 176.8 |
| D | 2 | 63 | 1800820 | 10039.28 | 740 | 719 | 179.3 |
| D | 13 | 239 | 218853 | 1216.55 | 740 | 719 | 179.3 |
| D | 11 | 132 | 93294 | 516.3 | 740 | 719 | 179.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

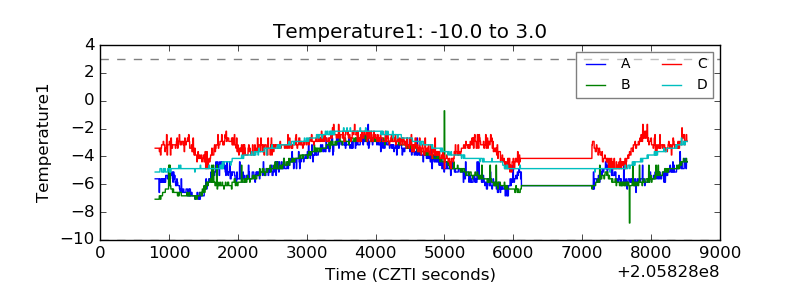

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

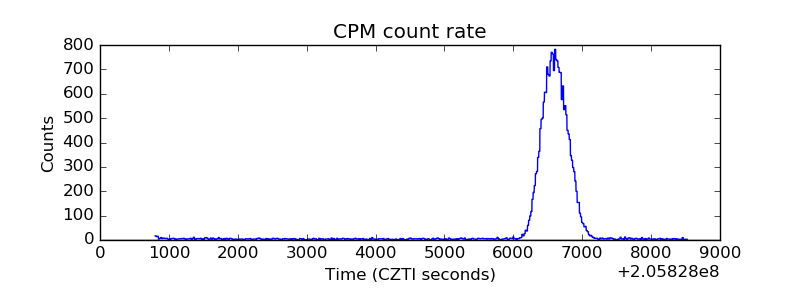

| _CPM_Rate |  |

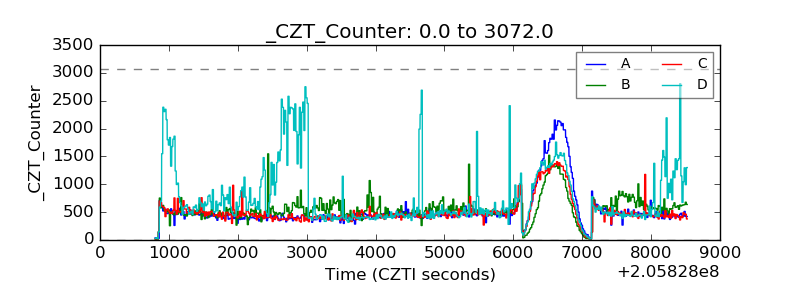

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

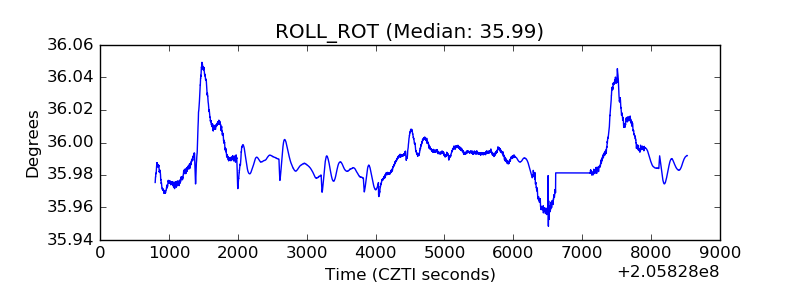

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
