| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04256cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04256cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,468,160 | 60,698,880 |
| Size | 491.6 MB | 57.9 MB |
| Events in quadrant A | 3,633,496 | 356,289 |
| Events in quadrant B | 3,585,691 | 361,296 |
| Events in quadrant C | 3,048,486 | 346,506 |
| Events in quadrant D | 4,910,606 | 328,238 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14758 | 3 |
| B | 0 | 14522 | 2 |
| C | 0 | 13262 | 2 |
| D | 0 | 19015 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6387 | 125 | 1.957100% |
| B | 6387 | 110 | 1.722248% |
| C | 6387 | 60 | 0.939408% |
| D | 6387 | 287 | 4.493502% |

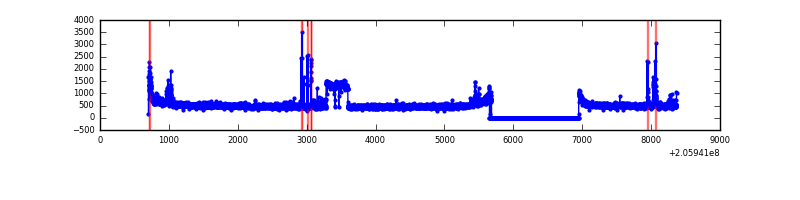

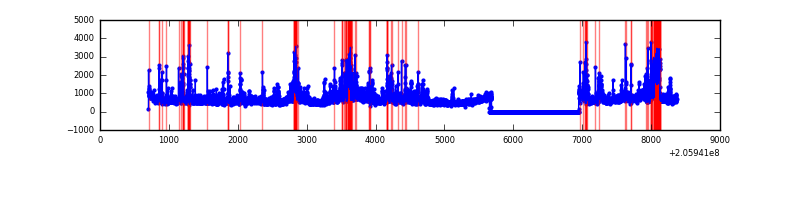

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7667 | 6387 | 16 | 16 | 0.21% | 0.25% |  |
| B | 7667 | 6389 | 9 | 9 | 0.12% | 0.14% |  |
| C | 7667 | 6389 | 11 | 11 | 0.14% | 0.17% |  |
| D | 7667 | 6389 | 201 | 201 | 2.62% | 3.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 199 | 294513 | 1789.8 | 806 | 790 | 164.1 |
| A | 0 | 50 | 132683 | 803.69 | 806 | 790 | 164.1 |
| A | 0 | 149 | 62736 | 377.47 | 806 | 790 | 164.1 |
| B | 3 | 0 | 166270 | 1075.3 | 808 | 792 | 153.9 |
| B | 5 | 184 | 102706 | 662.25 | 808 | 792 | 153.9 |
| B | 4 | 48 | 47125 | 301.08 | 808 | 792 | 153.9 |
| C | 9 | 144 | 47795 | 265.26 | 765 | 770 | 177.3 |
| C | 7 | 174 | 11361 | 59.74 | 765 | 770 | 177.3 |
| C | 13 | 61 | 6471 | 32.16 | 765 | 770 | 177.3 |
| D | 11 | 132 | 672643 | 3664.32 | 762 | 740 | 183.4 |
| D | 9 | 85 | 406932 | 2215.23 | 762 | 740 | 183.4 |
| D | 2 | 232 | 377684 | 2055.72 | 762 | 740 | 183.4 |

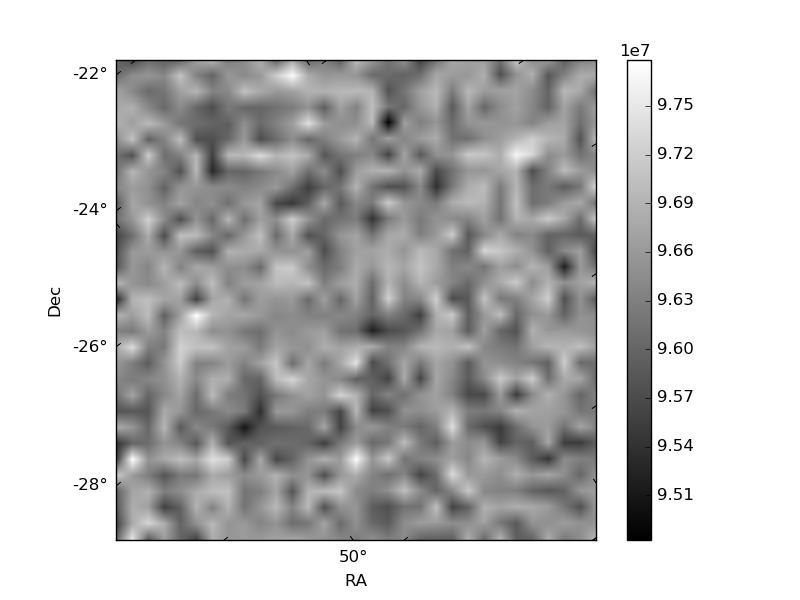

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

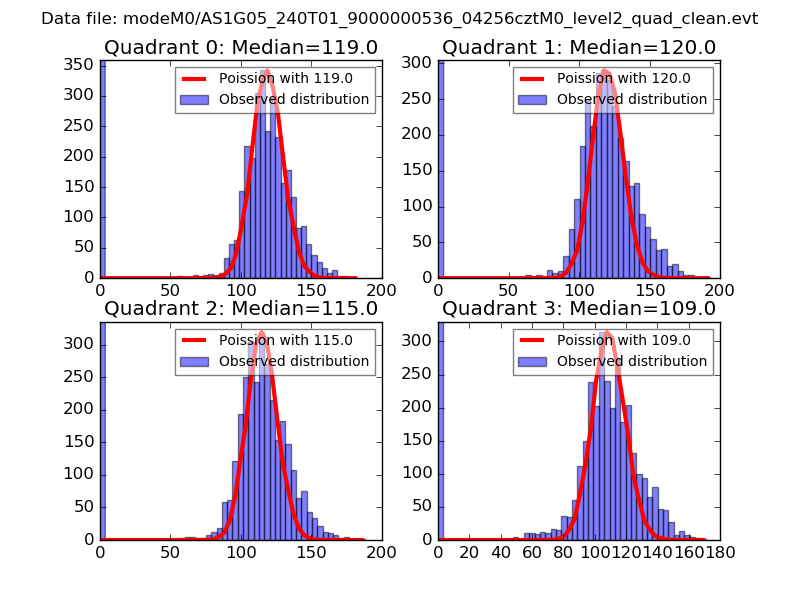

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

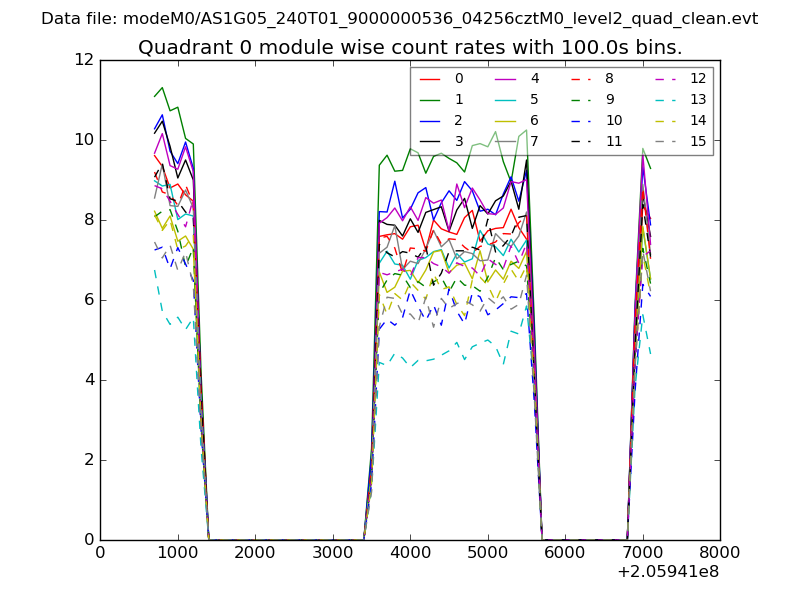

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

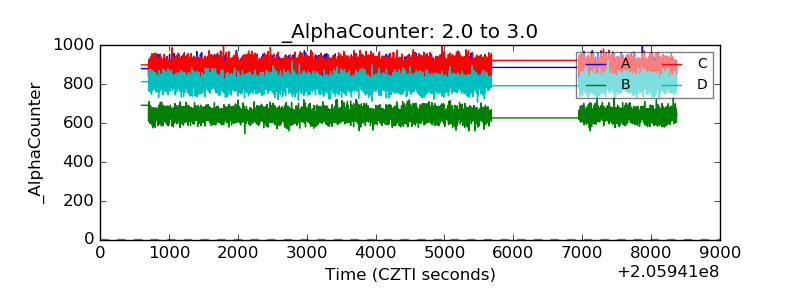

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

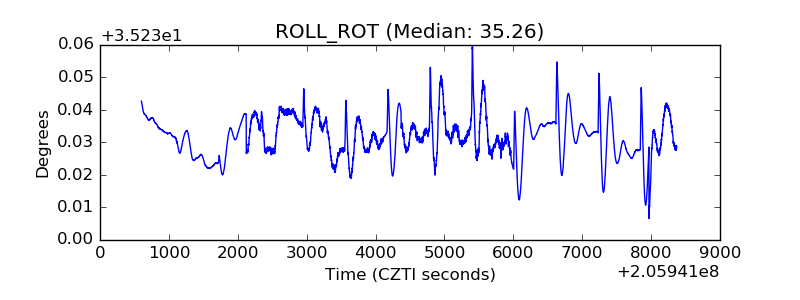

| _ROLL_ROT |  |
| _Roll_DEC |  |

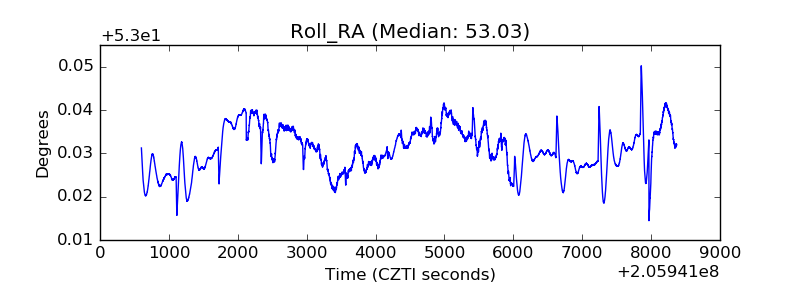

| _Roll_RA |  |
| Veto Counter |  |
