| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04260cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04260cztM0_level2_quad_clean.evt |
| Size (bytes) | 641,537,280 | 72,527,040 |
| Size | 611.8 MB | 69.2 MB |
| Events in quadrant A | 4,313,410 | 419,045 |
| Events in quadrant B | 5,048,058 | 425,664 |
| Events in quadrant C | 4,748,171 | 397,257 |
| Events in quadrant D | 4,783,347 | 404,148 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18103 | 4 |
| B | 0 | 20489 | 12 |
| C | 0 | 19754 | 6 |
| D | 0 | 19622 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7905 | 310 | 3.921569% |
| B | 7903 | 467 | 5.909148% |
| C | 7904 | 657 | 8.312247% |
| D | 7904 | 190 | 2.403846% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

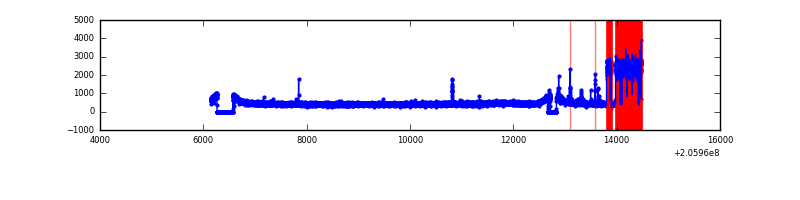

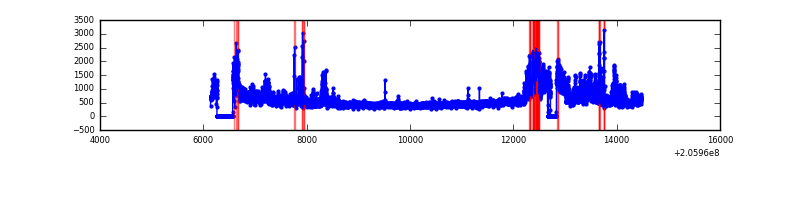

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8340 | 7908 | 157 | 157 | 1.88% | 1.99% |  |
| B | 8340 | 7908 | 63 | 63 | 0.76% | 0.80% |  |
| C | 8340 | 7908 | 509 | 509 | 6.10% | 6.44% |  |
| D | 8340 | 7906 | 52 | 52 | 0.62% | 0.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 199 | 415442 | 2158.82 | 923 | 899 | 192.0 |
| A | 8 | 15 | 127530 | 659.46 | 923 | 899 | 192.0 |
| A | 0 | 50 | 98038 | 505.87 | 923 | 899 | 192.0 |
| B | 5 | 184 | 828420 | 4555.27 | 927 | 904 | 181.7 |
| B | 3 | 0 | 503989 | 2769.36 | 927 | 904 | 181.7 |
| B | 5 | 171 | 65447 | 355.29 | 927 | 904 | 181.7 |
| C | 9 | 144 | 1190257 | 5735.03 | 885 | 888 | 207.4 |
| C | 10 | 65 | 31810 | 149.1 | 885 | 888 | 207.4 |
| C | 9 | 54 | 26016 | 121.17 | 885 | 888 | 207.4 |
| D | 9 | 85 | 619194 | 2784.78 | 900 | 872 | 222.0 |
| D | 13 | 53 | 98828 | 441.17 | 900 | 872 | 222.0 |
| D | 4 | 95 | 95153 | 424.62 | 900 | 872 | 222.0 |

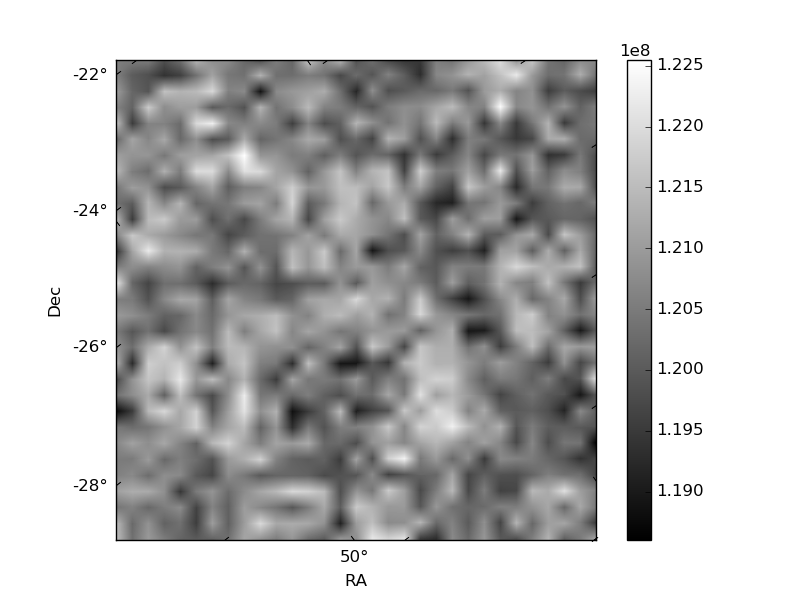

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

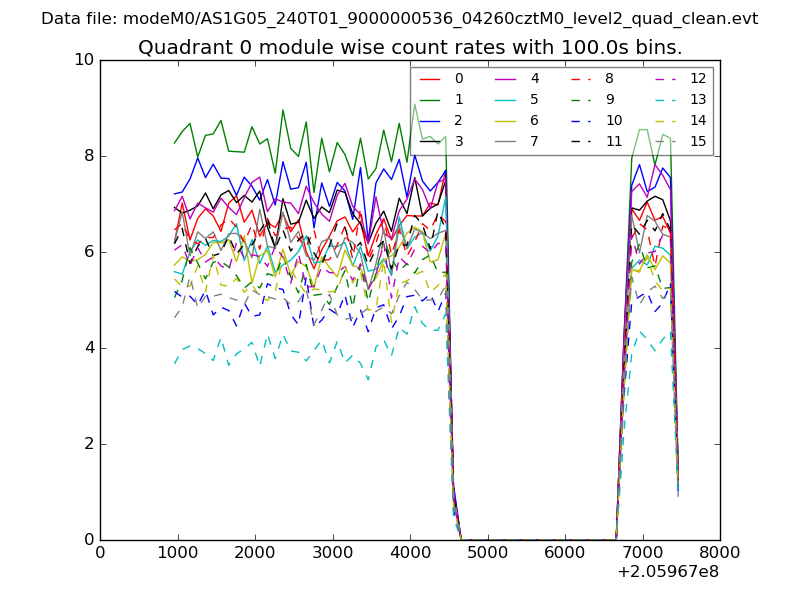

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

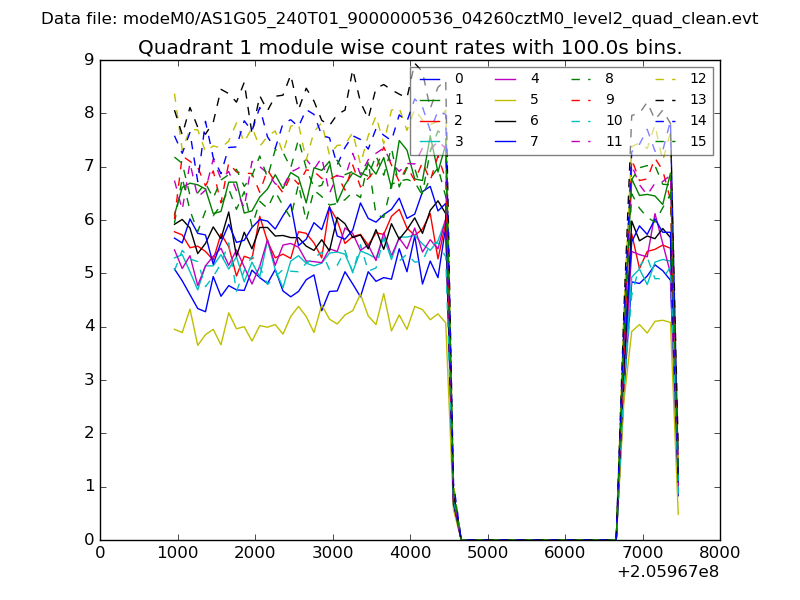

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

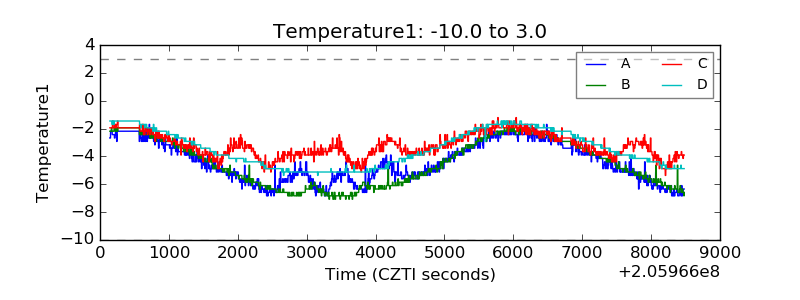

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

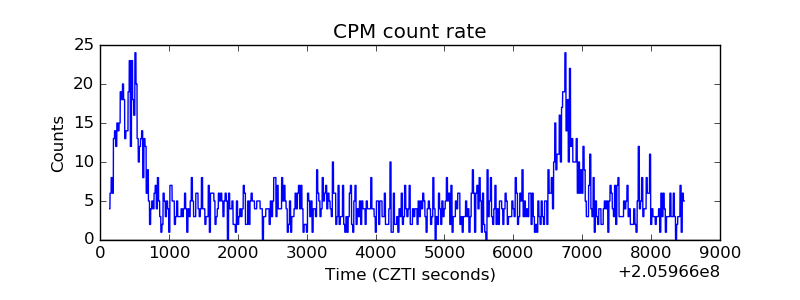

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

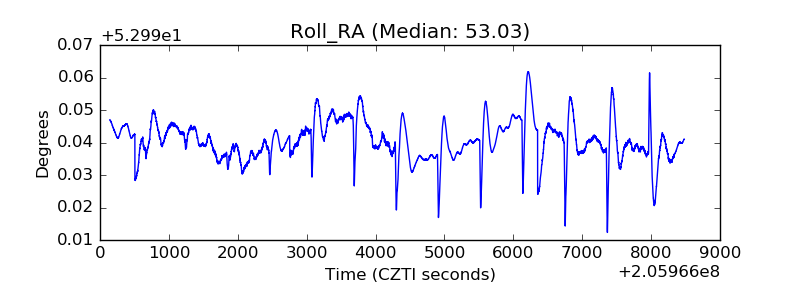

| _Roll_RA |  |
| Veto Counter |  |
