| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04261cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04261cztM0_level2_quad_clean.evt |
| Size (bytes) | 664,560,000 | 78,197,760 |
| Size | 633.8 MB | 74.6 MB |
| Events in quadrant A | 4,238,934 | 473,763 |
| Events in quadrant B | 4,983,997 | 474,525 |
| Events in quadrant C | 4,779,791 | 442,032 |
| Events in quadrant D | 5,603,901 | 443,674 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17917 | 11 |
| B | 0 | 20234 | 29 |
| C | 0 | 19610 | 10 |
| D | 0 | 22032 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7668 | 314 | 4.094940% |
| B | 7665 | 322 | 4.200913% |
| C | 7668 | 695 | 9.063641% |
| D | 7671 | 399 | 5.201408% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8026 | 7673 | 192 | 192 | 2.39% | 2.50% |  |
| B | 8026 | 7670 | 53 | 53 | 0.66% | 0.69% |  |
| C | 8026 | 7673 | 599 | 599 | 7.46% | 7.81% |  |
| D | 8026 | 7673 | 279 | 279 | 3.48% | 3.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 583909 | 3260.35 | 866 | 844 | 178.8 |
| A | 0 | 199 | 148037 | 823.07 | 866 | 844 | 178.8 |
| A | 8 | 15 | 111682 | 619.78 | 866 | 844 | 178.8 |
| B | 3 | 0 | 922847 | 5364.62 | 881 | 857 | 171.9 |
| B | 5 | 184 | 539358 | 3133.28 | 881 | 857 | 171.9 |
| B | 5 | 171 | 42944 | 244.88 | 881 | 857 | 171.9 |
| C | 9 | 144 | 1410254 | 7168.11 | 836 | 837 | 196.6 |
| C | 9 | 54 | 37846 | 188.22 | 836 | 837 | 196.6 |
| C | 10 | 65 | 35846 | 178.05 | 836 | 837 | 196.6 |
| D | 2 | 232 | 1384326 | 6697.73 | 841 | 816 | 206.6 |
| D | 9 | 85 | 418582 | 2022.45 | 841 | 816 | 206.6 |
| D | 2 | 136 | 119847 | 576.24 | 841 | 816 | 206.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

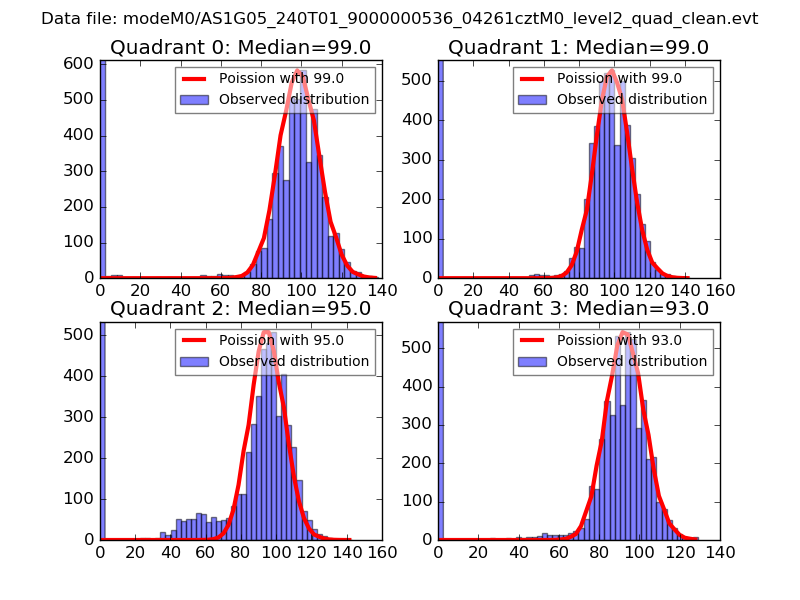

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

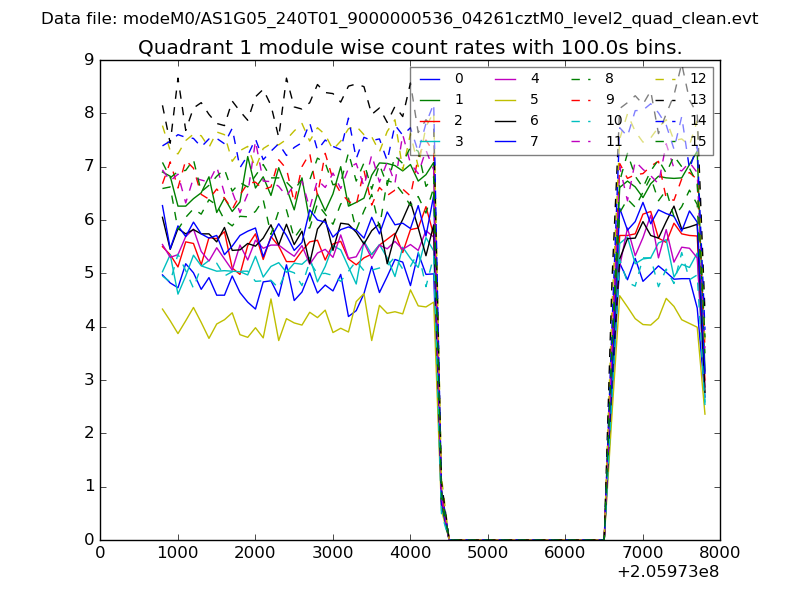

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

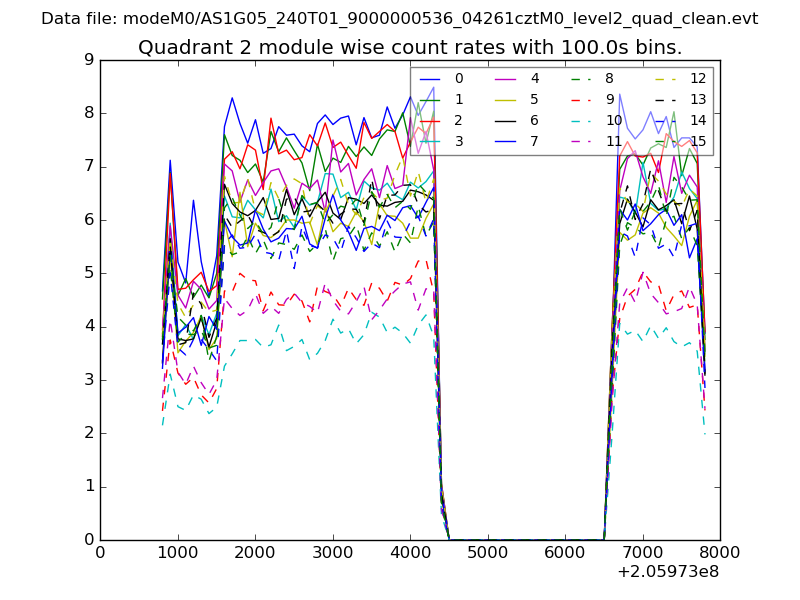

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

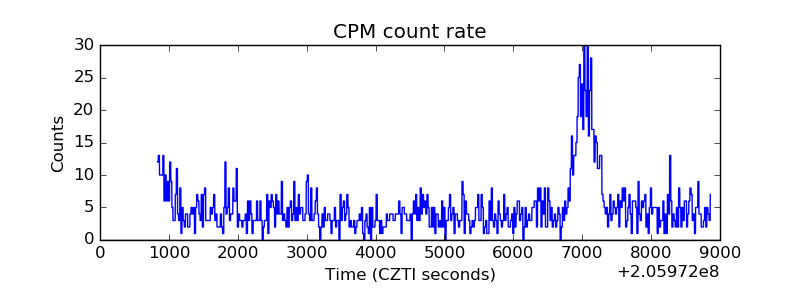

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

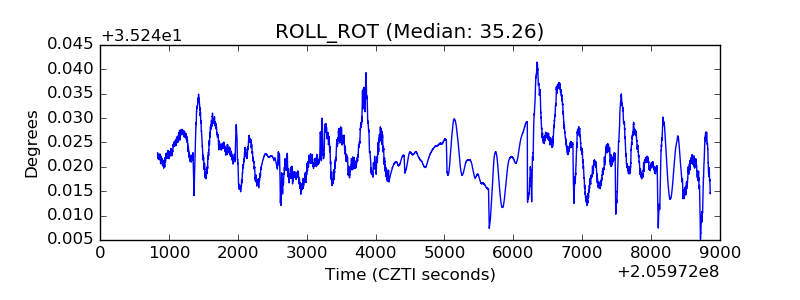

| _ROLL_ROT |  |
| _Roll_DEC |  |

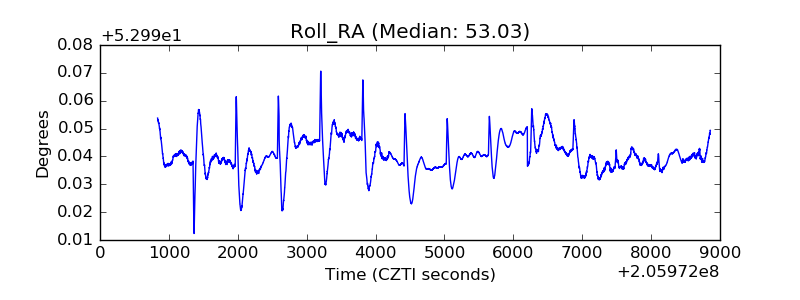

| _Roll_RA |  |
| Veto Counter |  |
