| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04271cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04271cztM0_level2_quad_clean.evt |
| Size (bytes) | 602,763,840 | 56,828,160 |
| Size | 574.8 MB | 54.2 MB |
| Events in quadrant A | 3,558,594 | 333,127 |
| Events in quadrant B | 5,012,539 | 330,573 |
| Events in quadrant C | 2,937,724 | 323,093 |
| Events in quadrant D | 6,314,344 | 287,954 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14467 | 2 |
| B | 0 | 19530 | 1 |
| C | 0 | 13072 | 1 |
| D | 0 | 23292 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6381 | 240 | 3.761166% |
| B | 6381 | 152 | 2.382072% |
| C | 6381 | 59 | 0.924620% |
| D | 6381 | 464 | 7.271588% |

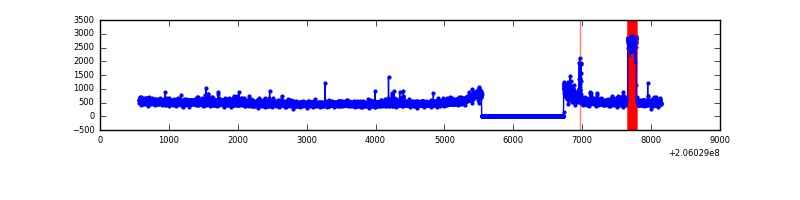

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7571 | 6381 | 124 | 124 | 1.64% | 1.94% |  |
| B | 7571 | 6381 | 17 | 17 | 0.22% | 0.27% |  |
| C | 7571 | 6382 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7571 | 6382 | 359 | 359 | 4.74% | 5.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 329841 | 2086.58 | 776 | 759 | 157.7 |
| A | 8 | 15 | 152170 | 960.04 | 776 | 759 | 157.7 |
| A | 0 | 199 | 70783 | 444.0 | 776 | 759 | 157.7 |
| B | 3 | 0 | 1646854 | 10994.95 | 787 | 771 | 149.7 |
| B | 14 | 167 | 138932 | 922.84 | 787 | 771 | 149.7 |
| B | 8 | 3 | 73029 | 482.64 | 787 | 771 | 149.7 |
| C | 13 | 61 | 6170 | 31.15 | 750 | 754 | 173.9 |
| C | 1 | 3 | 3762 | 17.3 | 750 | 754 | 173.9 |
| C | 9 | 54 | 3382 | 15.11 | 750 | 754 | 173.9 |
| D | 11 | 132 | 2041666 | 11477.95 | 730 | 710 | 177.8 |
| D | 1 | 52 | 652320 | 3664.53 | 730 | 710 | 177.8 |
| D | 2 | 232 | 359419 | 2017.31 | 730 | 710 | 177.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

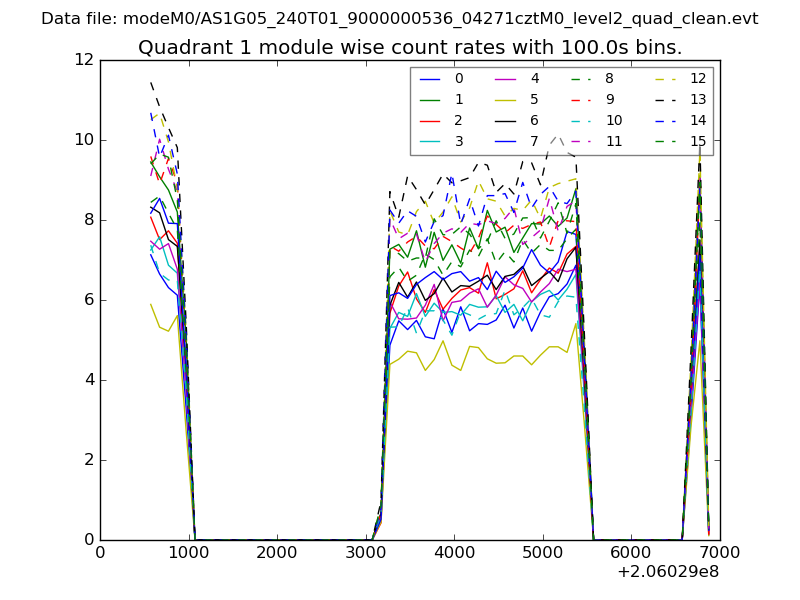

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

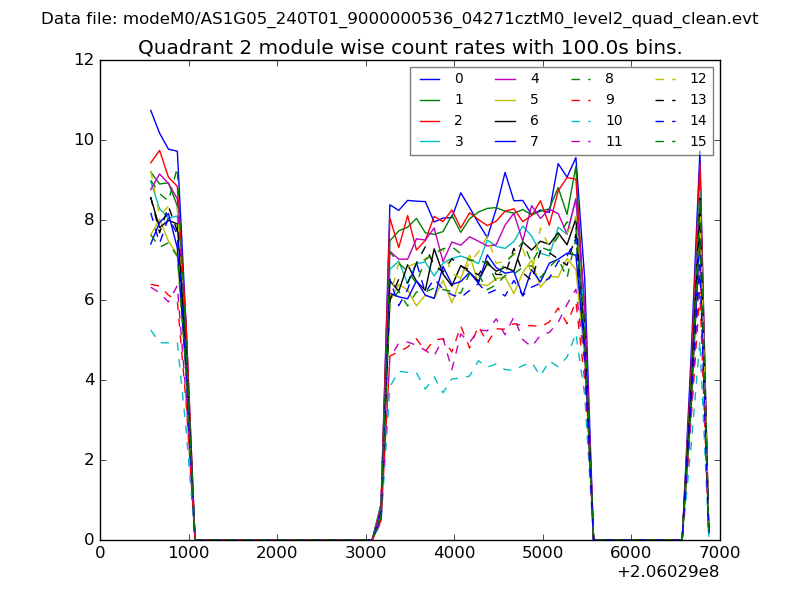

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

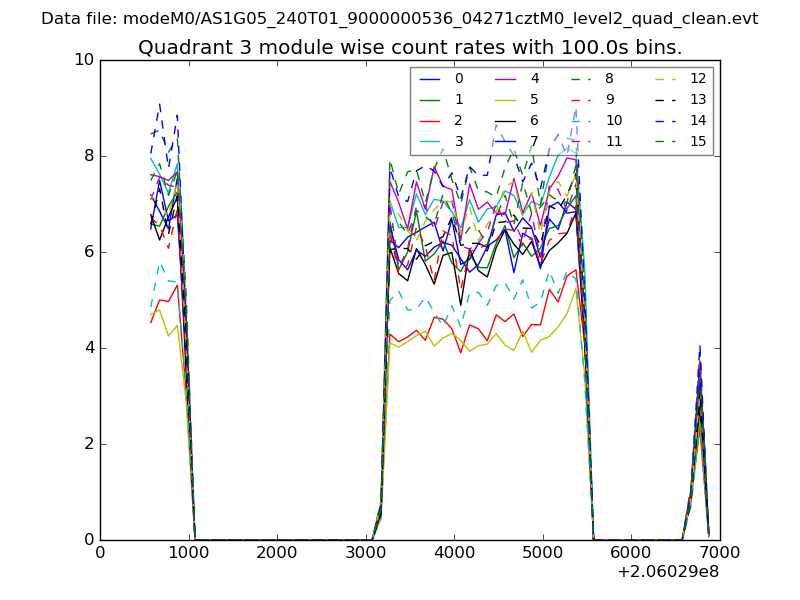

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

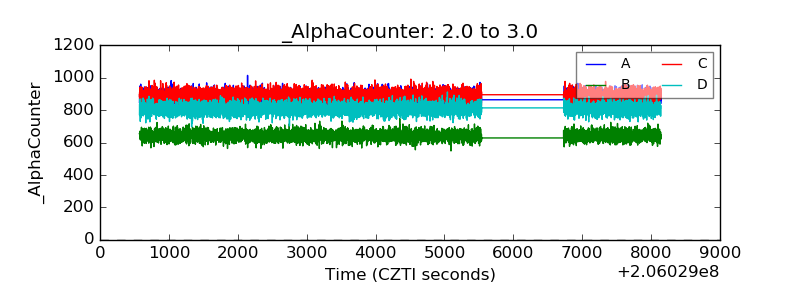

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

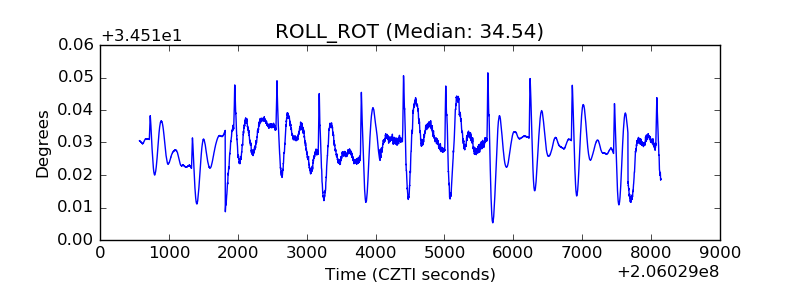

| _ROLL_ROT |  |
| _Roll_DEC |  |

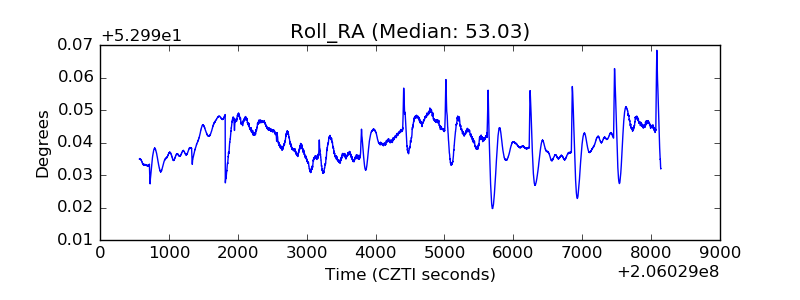

| _Roll_RA |  |

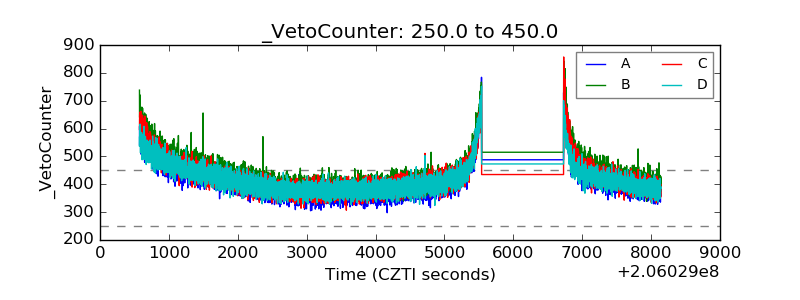

| Veto Counter |  |
