| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04278cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04278cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,819,725,120 | 197,441,280 |
| Size | 1.7 GB | 188.3 MB |
| Events in quadrant A | 9,978,922 | 1,200,140 |
| Events in quadrant B | 15,474,400 | 1,181,565 |
| Events in quadrant C | 10,956,274 | 1,164,611 |
| Events in quadrant D | 17,420,056 | 1,119,859 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 390 | 0 |
| B | 0 | 390 | 0 |
| C | 0 | 390 | 0 |
| D | 0 | 390 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 42498 | 7 |
| B | 0 | 59403 | 23 |
| C | 0 | 46102 | 9 |
| D | 0 | 65387 | 22 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19059 | 400 | 2.098746% |
| B | 19055 | 739 | 3.878247% |
| C | 19058 | 655 | 3.436877% |
| D | 19055 | 858 | 4.502755% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 21030 | 19063 | 129 | 129 | 0.61% | 0.68% |  |
| B | 21030 | 19062 | 177 | 177 | 0.84% | 0.93% |  |
| C | 21030 | 19064 | 438 | 438 | 2.08% | 2.30% |  |
| D | 21030 | 19061 | 403 | 403 | 1.92% | 2.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 652044 | 1453.68 | 2172 | 2118 | 447.1 |
| A | 0 | 50 | 359345 | 799.0 | 2172 | 2118 | 447.1 |
| A | 0 | 199 | 279674 | 620.8 | 2172 | 2118 | 447.1 |
| B | 3 | 0 | 6019717 | 14386.73 | 2179 | 2127 | 418.3 |
| B | 10 | 16 | 403015 | 958.43 | 2179 | 2127 | 418.3 |
| B | 14 | 167 | 319334 | 758.37 | 2179 | 2127 | 418.3 |
| C | 9 | 144 | 2480923 | 5090.06 | 2103 | 2112 | 487.0 |
| C | 9 | 247 | 207428 | 421.6 | 2103 | 2112 | 487.0 |
| C | 10 | 65 | 22238 | 41.33 | 2103 | 2112 | 487.0 |
| D | 11 | 132 | 6771084 | 13460.74 | 2083 | 2021 | 502.9 |
| D | 2 | 232 | 1977985 | 3929.34 | 2083 | 2021 | 502.9 |
| D | 2 | 136 | 240713 | 474.66 | 2083 | 2021 | 502.9 |

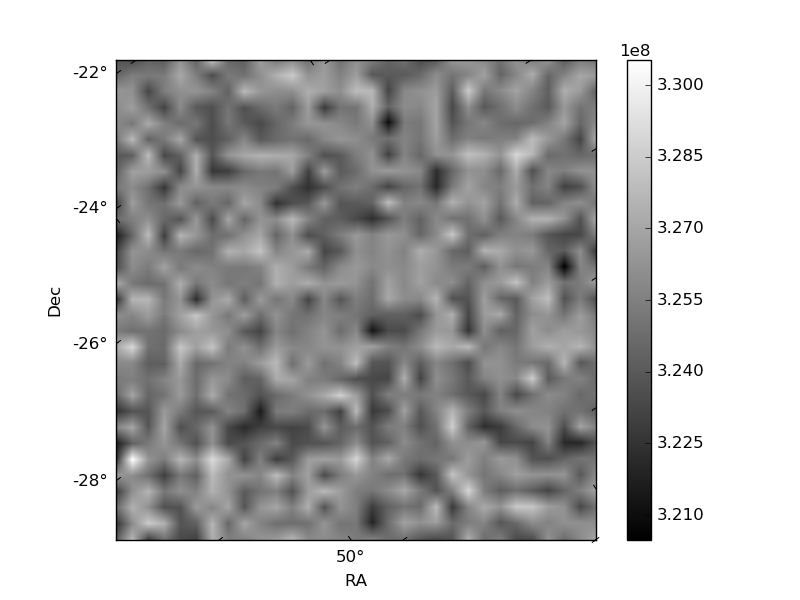

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

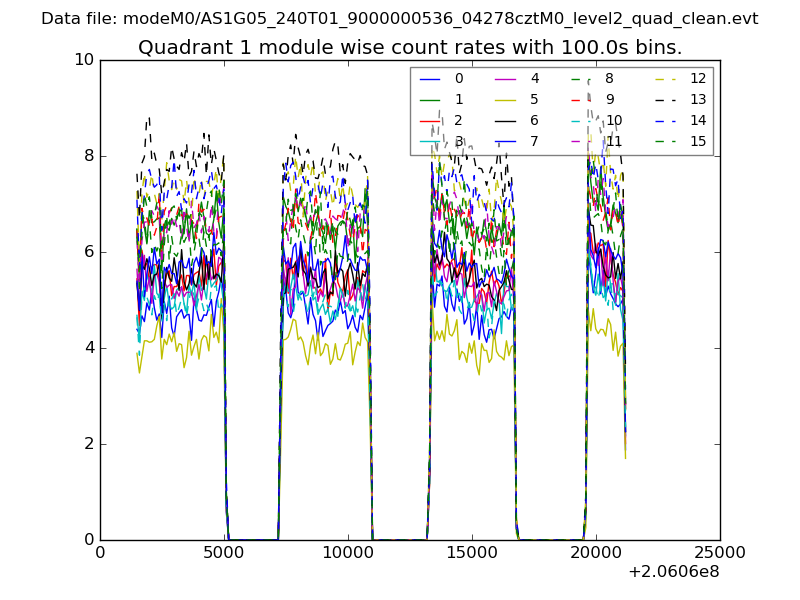

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

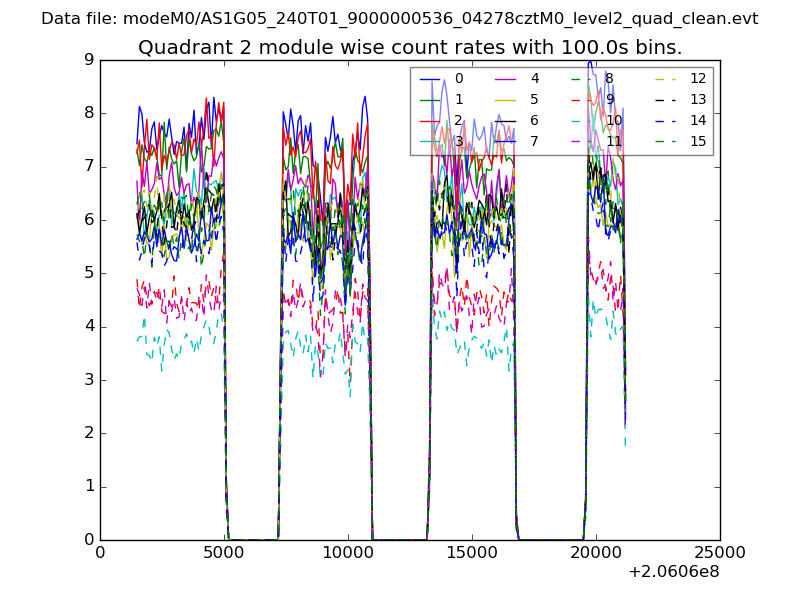

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

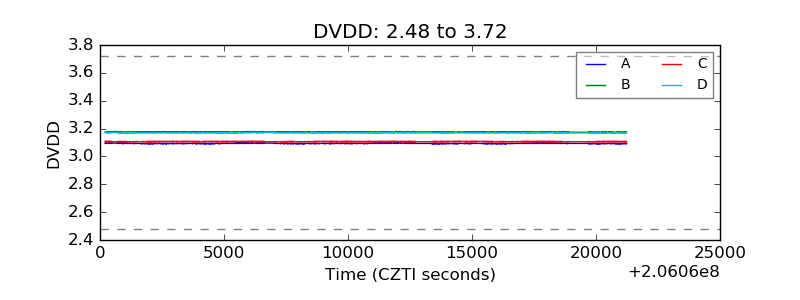

| D_VDD |  |

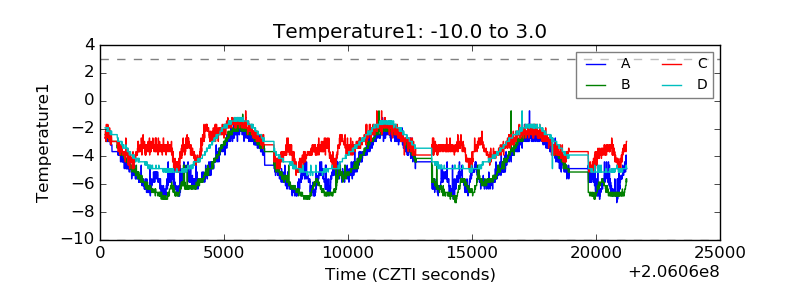

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

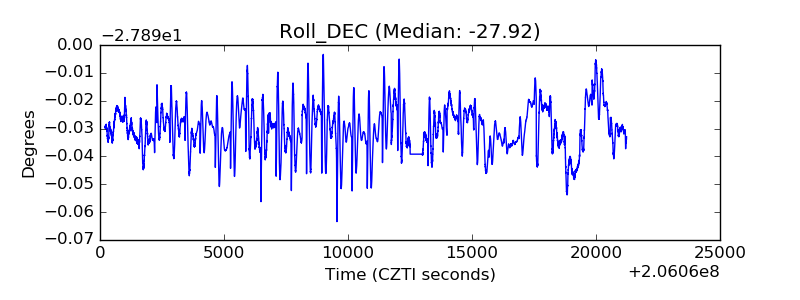

| _Roll_DEC |  |

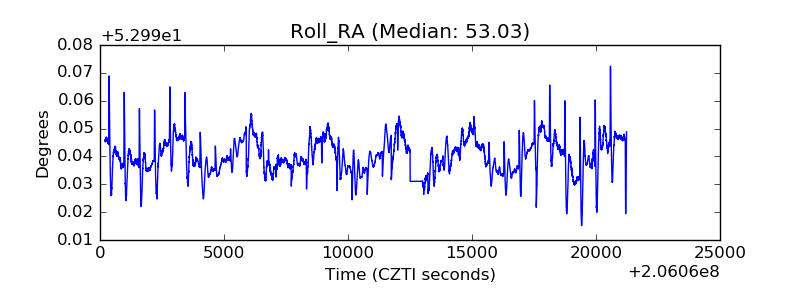

| _Roll_RA |  |
| Veto Counter |  |
