| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_240T01_9000000536_04281cztM0_level2.evt | modeM0/AS1G05_240T01_9000000536_04281cztM0_level2_quad_clean.evt |
| Size (bytes) | 317,646,720 | 43,410,240 |
| Size | 302.9 MB | 41.4 MB |
| Events in quadrant A | 1,843,587 | 259,814 |
| Events in quadrant B | 2,730,454 | 260,466 |
| Events in quadrant C | 1,772,483 | 259,588 |
| Events in quadrant D | 2,995,328 | 246,479 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 84 | 0 |
| C | 0 | 84 | 0 |
| D | 0 | 84 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8364 | 16 |
| B | 0 | 10828 | 13 |
| C | 0 | 8349 | 11 |
| D | 0 | 11868 | 24 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4076 | 29 | 0.711482% |
| B | 4078 | 45 | 1.103482% |
| C | 4078 | 26 | 0.637567% |
| D | 4075 | 139 | 3.411043% |

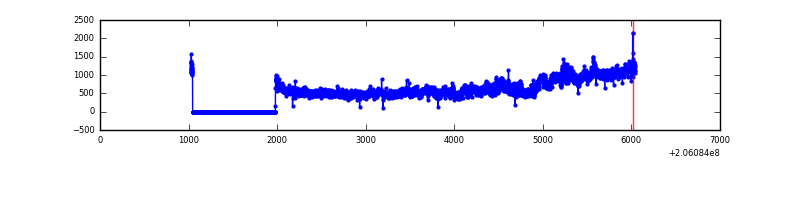

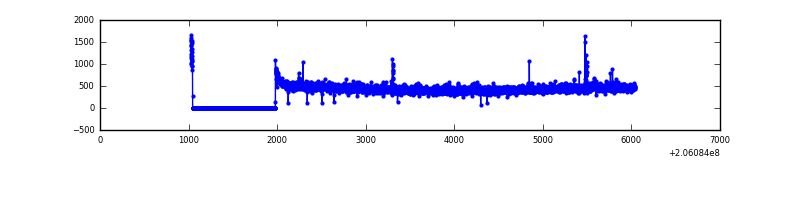

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5018 | 4084 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5018 | 4083 | 2 | 2 | 0.04% | 0.05% |  |
| C | 5018 | 4084 | 1 | 1 | 0.02% | 0.02% |  |
| D | 5018 | 4083 | 91 | 91 | 1.81% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 46275 | 482.11 | 456 | 445 | 95.1 |
| A | 0 | 50 | 26847 | 277.74 | 456 | 445 | 95.1 |
| A | 0 | 199 | 12436 | 126.14 | 456 | 445 | 95.1 |
| B | 3 | 0 | 863987 | 9532.3 | 458 | 447 | 90.6 |
| B | 14 | 167 | 55123 | 603.55 | 458 | 447 | 90.6 |
| B | 10 | 16 | 14359 | 153.57 | 458 | 447 | 90.6 |
| C | 9 | 247 | 20688 | 193.08 | 444 | 447 | 104.8 |
| C | 9 | 54 | 10826 | 99.0 | 444 | 447 | 104.8 |
| C | 13 | 61 | 3616 | 30.23 | 444 | 447 | 104.8 |
| D | 11 | 132 | 693821 | 6362.54 | 440 | 427 | 109.0 |
| D | 2 | 232 | 354323 | 3247.32 | 440 | 427 | 109.0 |
| D | 13 | 239 | 148158 | 1355.57 | 440 | 427 | 109.0 |

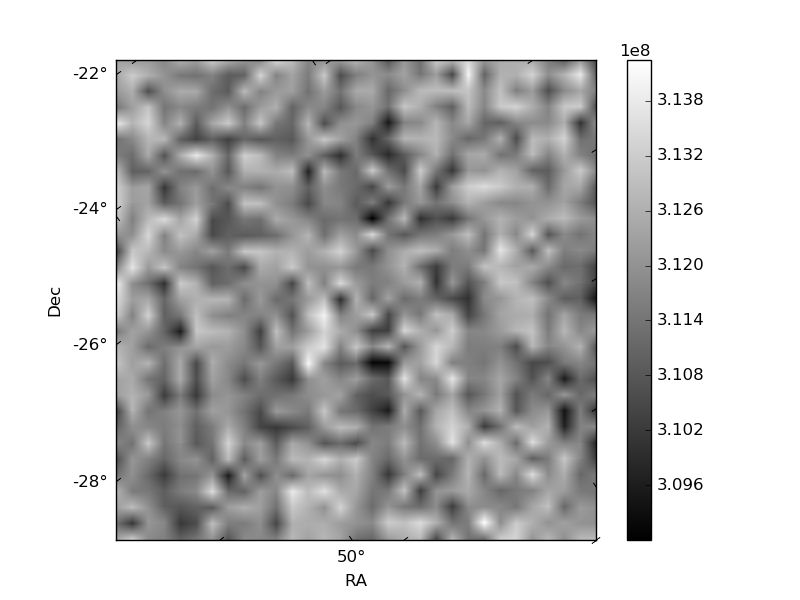

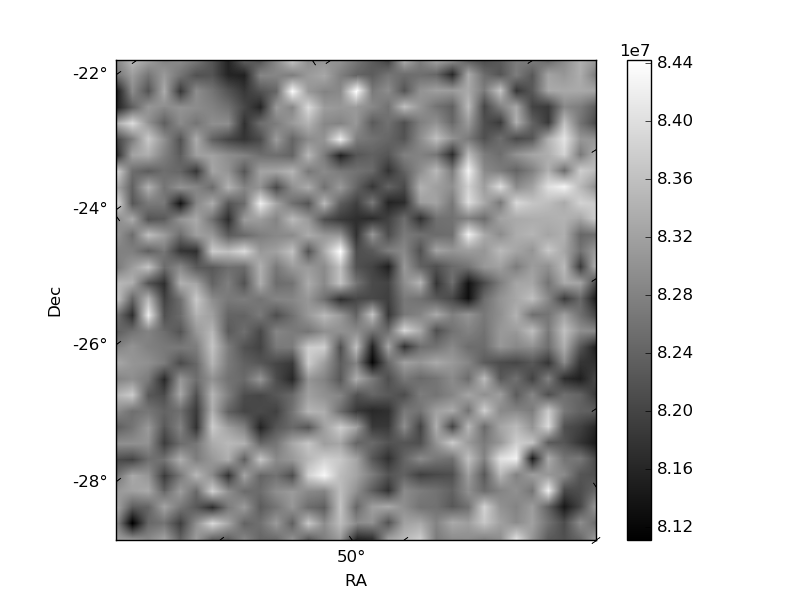

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

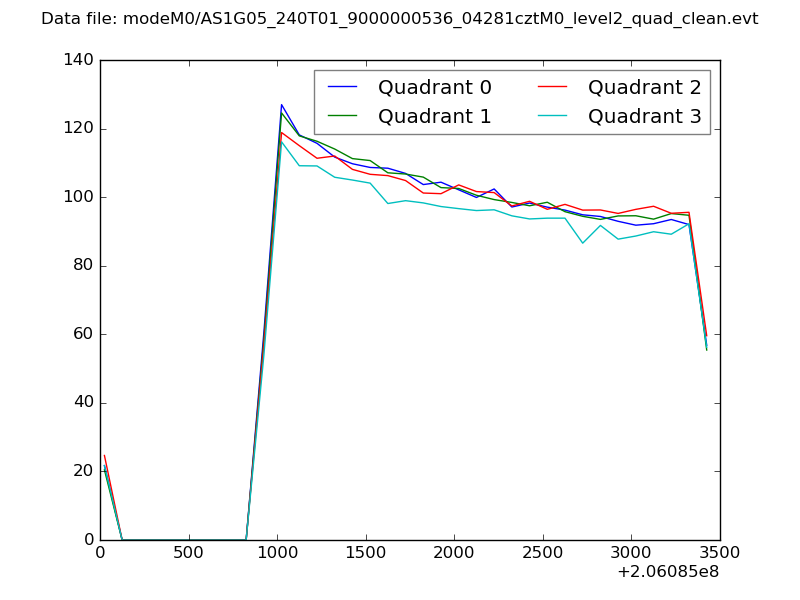

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

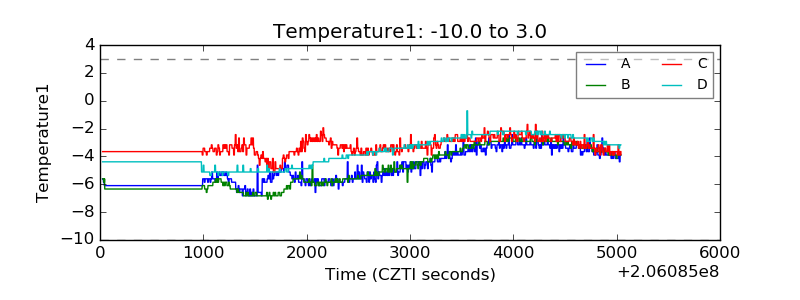

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

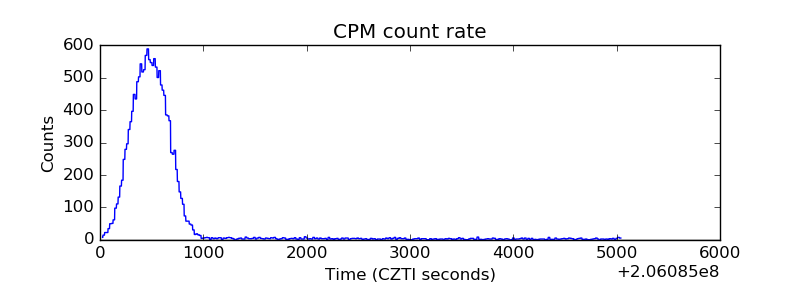

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

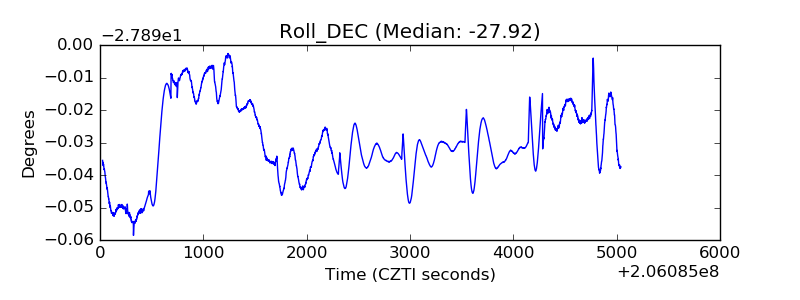

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
