| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_219T01_9000000540_04303cztM0_level2.evt | modeM0/AS1G05_219T01_9000000540_04303cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,826,880 | 88,796,160 |
| Size | 485.3 MB | 84.7 MB |
| Events in quadrant A | 3,585,740 | 549,738 |
| Events in quadrant B | 3,749,197 | 543,995 |
| Events in quadrant C | 3,376,498 | 541,169 |
| Events in quadrant D | 4,178,401 | 521,642 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16112 | 4 |
| B | 0 | 16397 | 3 |
| C | 0 | 15711 | 3 |
| D | 0 | 17965 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7650 | 102 | 1.333333% |
| B | 7650 | 122 | 1.594771% |
| C | 7650 | 23 | 0.300654% |
| D | 7650 | 121 | 1.581699% |

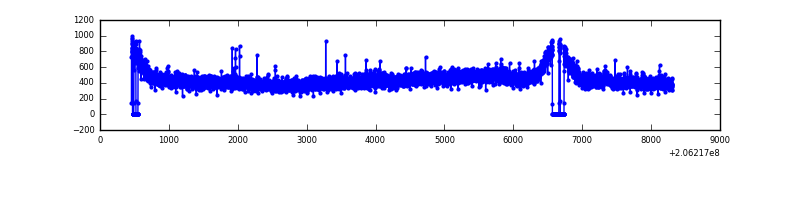

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7850 | 7654 | 8 | 8 | 0.10% | 0.10% |  |
| B | 7850 | 7654 | 12 | 12 | 0.15% | 0.16% |  |
| C | 7850 | 7654 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7850 | 7654 | 79 | 79 | 1.01% | 1.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 110538 | 606.1 | 882 | 865 | 181.0 |
| A | 13 | 248 | 16014 | 83.72 | 882 | 865 | 181.0 |
| A | 0 | 50 | 15897 | 83.07 | 882 | 865 | 181.0 |
| B | 15 | 204 | 104338 | 600.66 | 891 | 871 | 172.3 |
| B | 10 | 16 | 35665 | 201.99 | 891 | 871 | 172.3 |
| B | 3 | 0 | 34084 | 192.81 | 891 | 871 | 172.3 |
| C | 9 | 247 | 22555 | 108.53 | 851 | 854 | 200.0 |
| C | 10 | 65 | 10696 | 49.22 | 851 | 854 | 200.0 |
| C | 8 | 128 | 8282 | 37.15 | 851 | 854 | 200.0 |
| D | 13 | 53 | 423652 | 2045.65 | 846 | 821 | 206.7 |
| D | 13 | 223 | 164145 | 790.16 | 846 | 821 | 206.7 |
| D | 2 | 136 | 111789 | 536.86 | 846 | 821 | 206.7 |

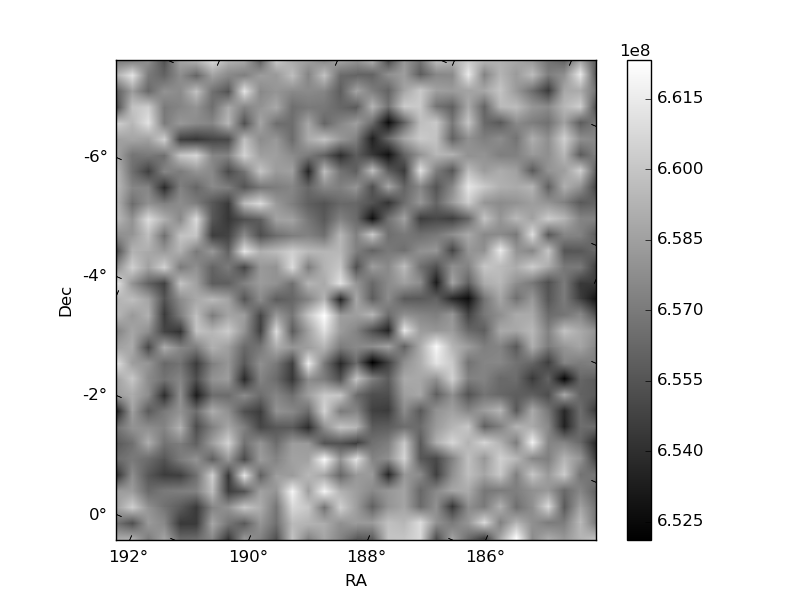

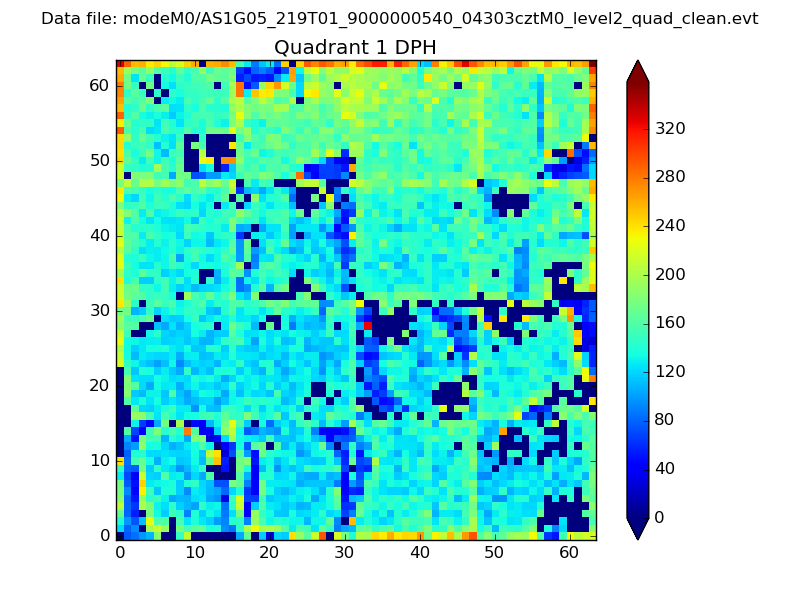

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

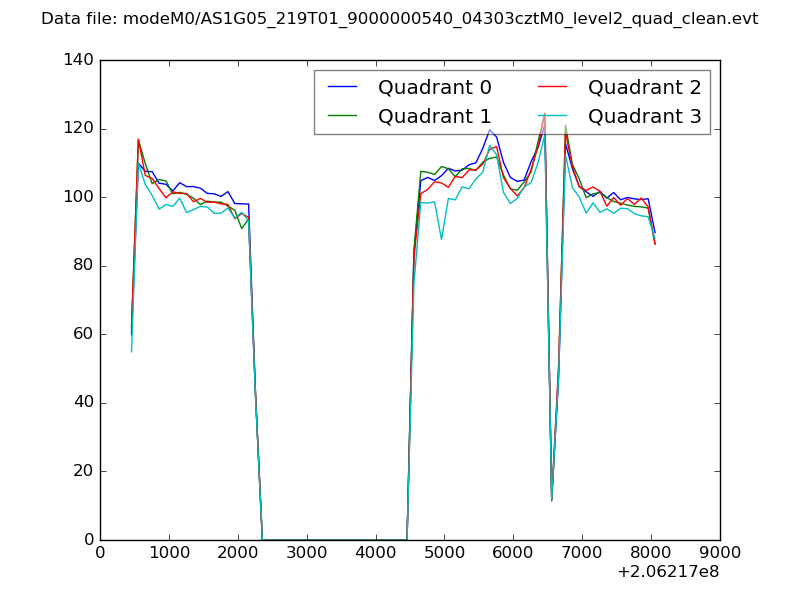

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

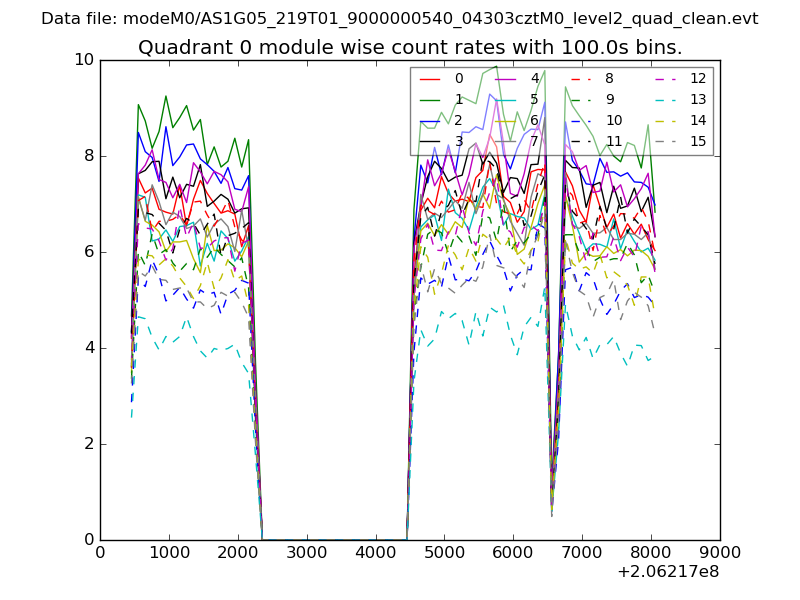

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

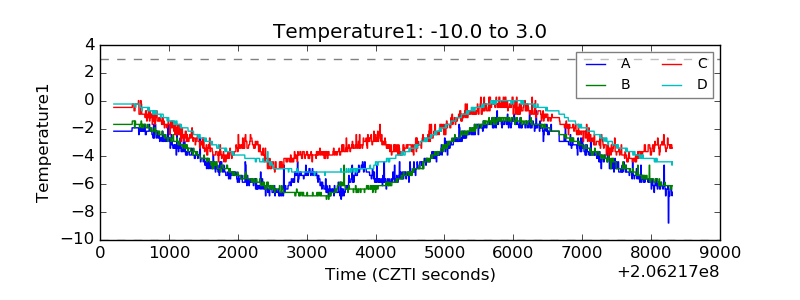

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

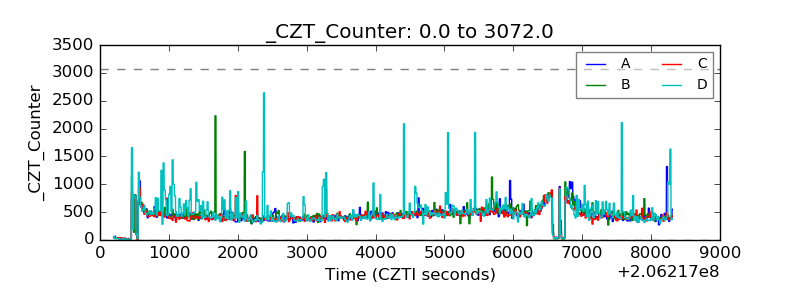

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

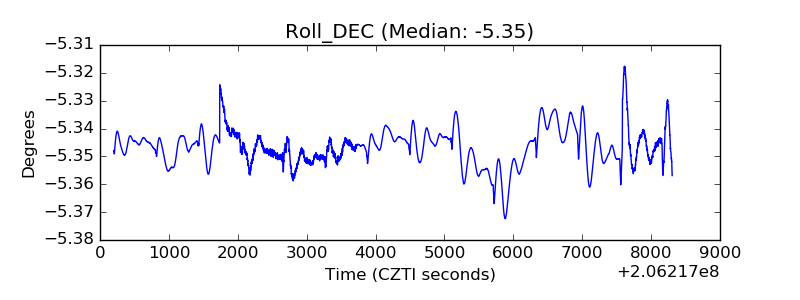

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
