| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_219T01_9000000540_04311cztM0_level2.evt | modeM0/AS1G05_219T01_9000000540_04311cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,336,000 | 76,564,800 |
| Size | 426.6 MB | 73.0 MB |
| Events in quadrant A | 3,549,749 | 478,635 |
| Events in quadrant B | 3,323,986 | 478,444 |
| Events in quadrant C | 2,925,283 | 470,459 |
| Events in quadrant D | 3,323,141 | 453,830 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14741 | 2 |
| B | 0 | 13576 | 1 |
| C | 0 | 12881 | 1 |
| D | 0 | 14122 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6266 | 114 | 1.819342% |
| B | 6266 | 77 | 1.228854% |
| C | 6266 | 52 | 0.829876% |
| D | 6266 | 175 | 2.792850% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7441 | 6266 | 30 | 30 | 0.40% | 0.48% |  |
| B | 7441 | 6266 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7441 | 6266 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7441 | 6266 | 113 | 113 | 1.52% | 1.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 431776 | 2720.58 | 774 | 757 | 158.4 |
| A | 15 | 234 | 105019 | 658.1 | 774 | 757 | 158.4 |
| A | 0 | 50 | 14828 | 88.81 | 774 | 757 | 158.4 |
| B | 3 | 0 | 129698 | 871.65 | 771 | 754 | 147.9 |
| B | 0 | 172 | 49413 | 328.93 | 771 | 754 | 147.9 |
| B | 4 | 48 | 41404 | 274.79 | 771 | 754 | 147.9 |
| C | 9 | 54 | 14682 | 80.55 | 742 | 745 | 173.0 |
| C | 9 | 247 | 10181 | 54.54 | 742 | 745 | 173.0 |
| C | 13 | 61 | 6135 | 31.15 | 742 | 745 | 173.0 |
| D | 9 | 35 | 281355 | 1608.75 | 735 | 715 | 174.4 |
| D | 13 | 239 | 67083 | 380.45 | 735 | 715 | 174.4 |
| D | 2 | 136 | 52456 | 296.6 | 735 | 715 | 174.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

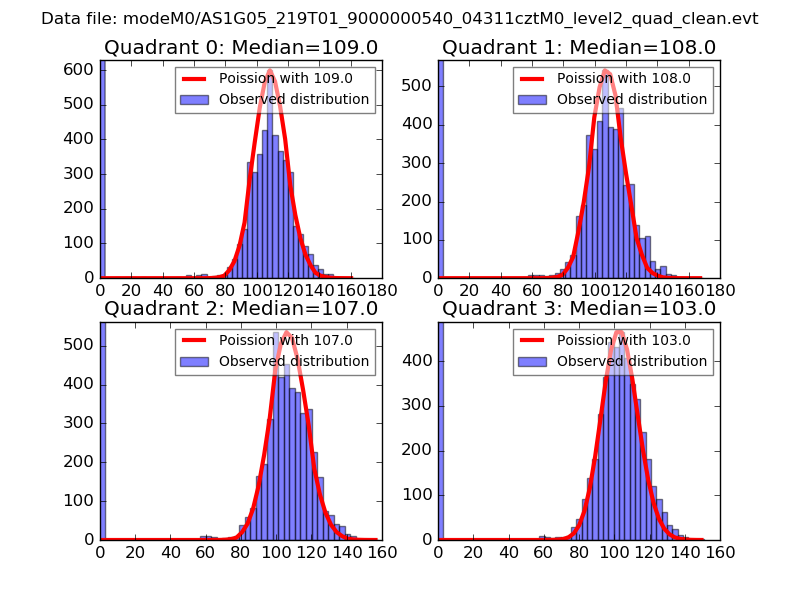

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

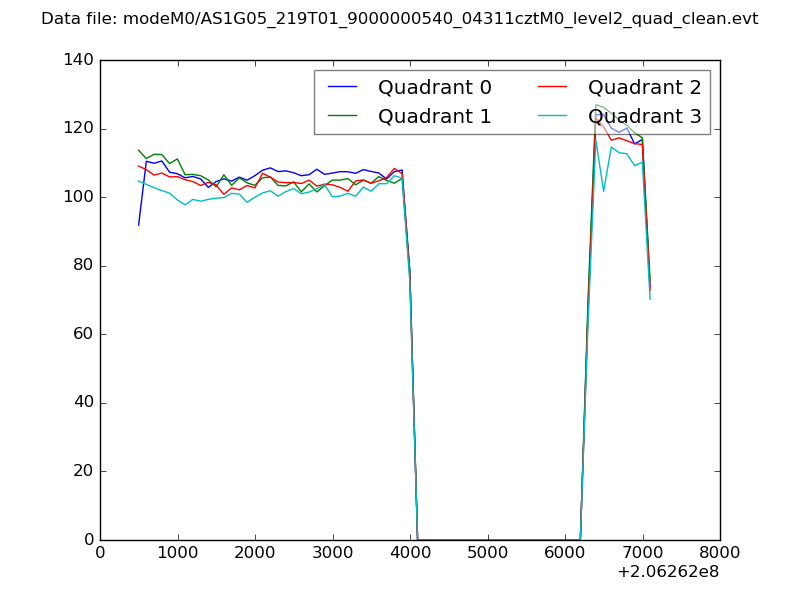

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

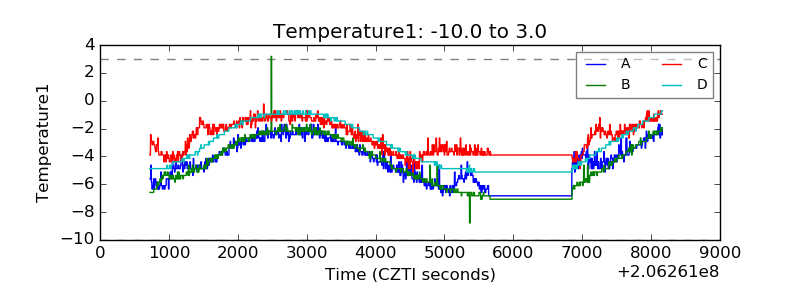

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

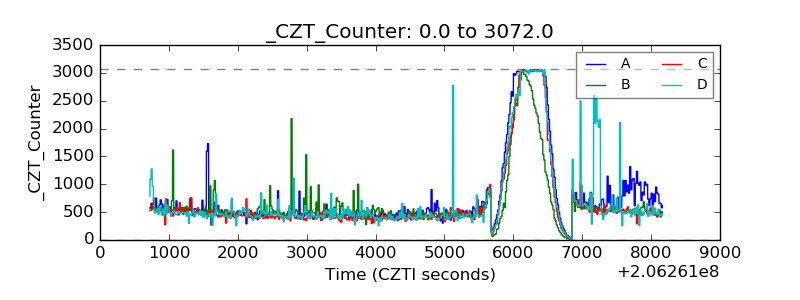

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

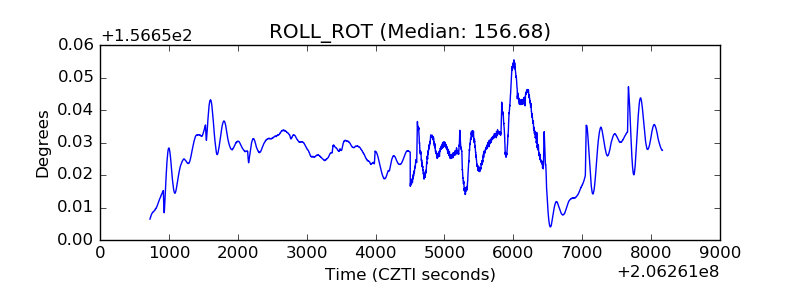

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

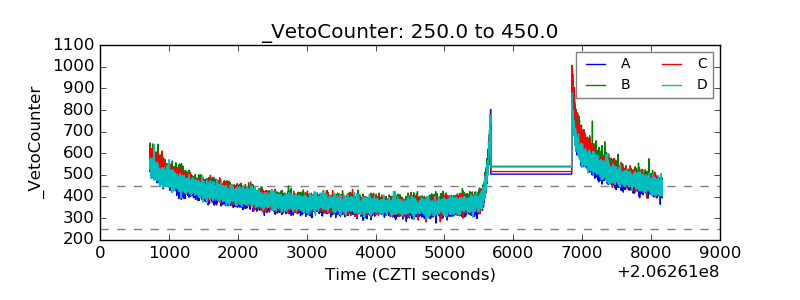

| Veto Counter |  |
