| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_219T01_9000000540_04312cztM0_level2.evt | modeM0/AS1G05_219T01_9000000540_04312cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,885,760 | 91,298,880 |
| Size | 534.9 MB | 87.1 MB |
| Events in quadrant A | 5,942,263 | 583,531 |
| Events in quadrant B | 3,761,945 | 591,023 |
| Events in quadrant C | 3,106,365 | 576,982 |
| Events in quadrant D | 3,735,065 | 559,141 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22412 | 2 |
| B | 0 | 15083 | 1 |
| C | 0 | 13502 | 1 |
| D | 0 | 15389 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6512 | 223 | 3.424447% |
| B | 6512 | 155 | 2.380221% |
| C | 6512 | 72 | 1.105651% |
| D | 6512 | 227 | 3.485872% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7732 | 6512 | 49 | 49 | 0.63% | 0.75% |  |
| B | 7732 | 6512 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7732 | 6512 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7732 | 6512 | 138 | 138 | 1.78% | 2.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 2661540 | 15947.86 | 821 | 804 | 166.8 |
| A | 0 | 50 | 64801 | 383.58 | 821 | 804 | 166.8 |
| A | 13 | 248 | 22647 | 130.92 | 821 | 804 | 166.8 |
| B | 0 | 187 | 399367 | 2528.14 | 819 | 802 | 157.7 |
| B | 15 | 204 | 73454 | 460.84 | 819 | 802 | 157.7 |
| B | 8 | 3 | 65179 | 408.35 | 819 | 802 | 157.7 |
| C | 10 | 65 | 11534 | 58.99 | 789 | 794 | 182.1 |
| C | 9 | 54 | 7983 | 39.49 | 789 | 794 | 182.1 |
| C | 13 | 61 | 6626 | 32.03 | 789 | 794 | 182.1 |
| D | 9 | 35 | 279090 | 1479.47 | 788 | 767 | 188.1 |
| D | 2 | 136 | 107088 | 565.17 | 788 | 767 | 188.1 |
| D | 13 | 53 | 94773 | 499.7 | 788 | 767 | 188.1 |

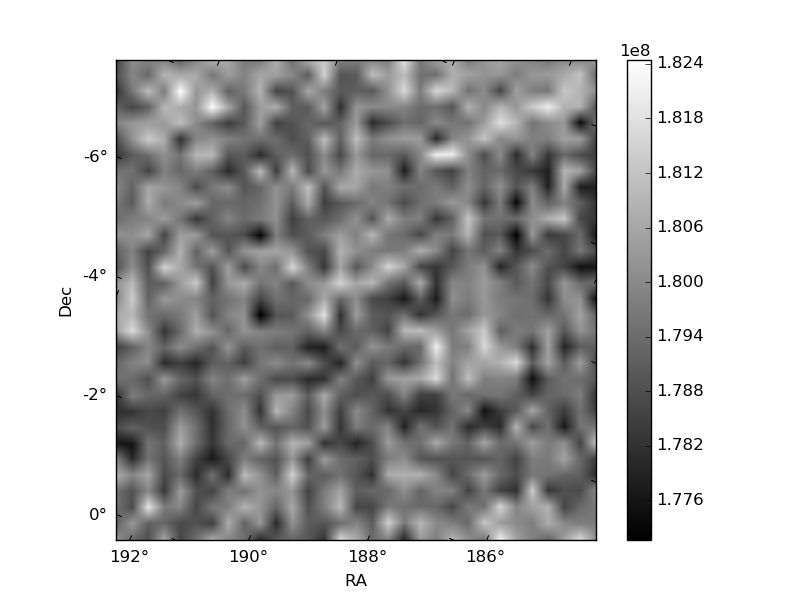

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

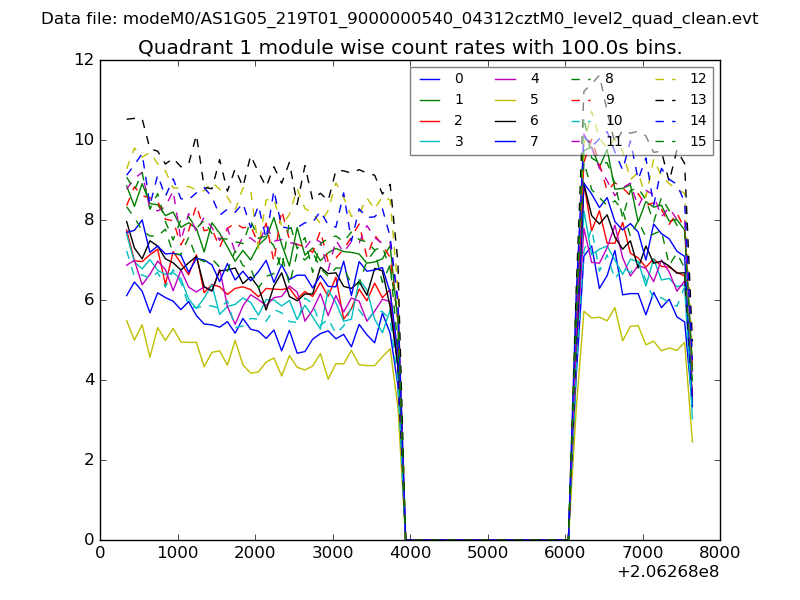

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

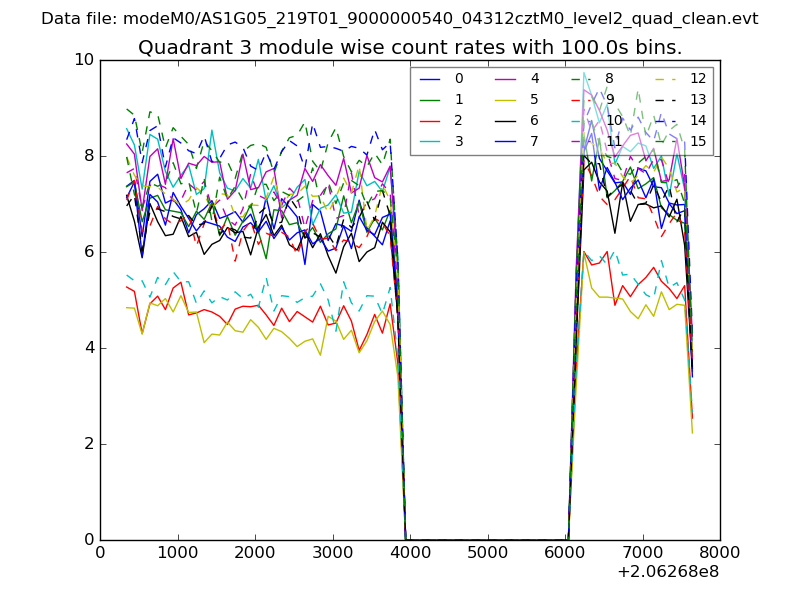

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

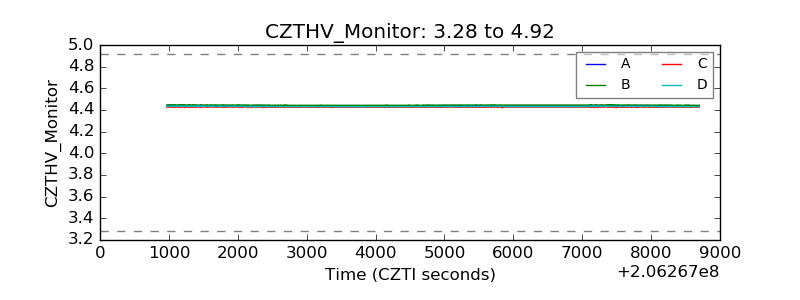

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

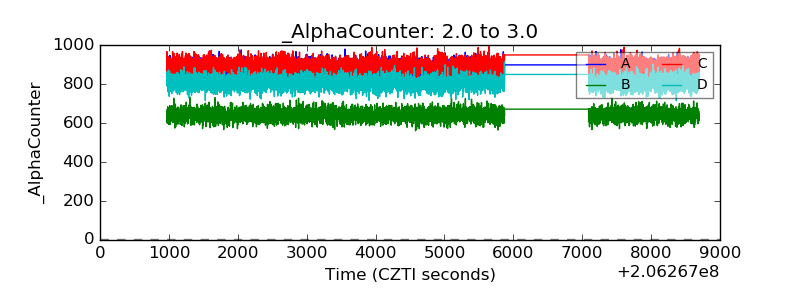

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

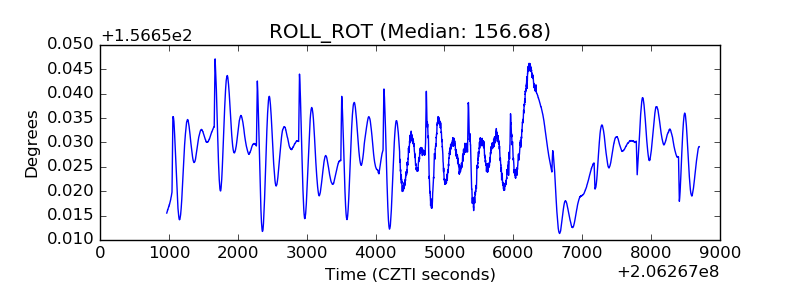

| _ROLL_ROT |  |

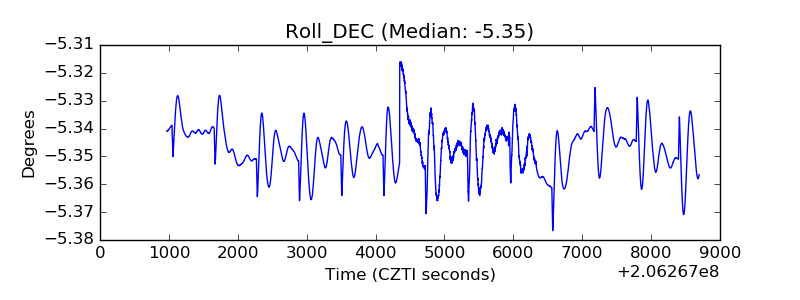

| _Roll_DEC |  |

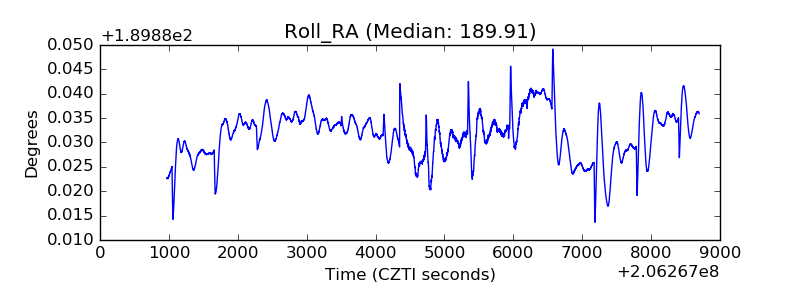

| _Roll_RA |  |
