| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_219T01_9000000540_04315cztM0_level2.evt | modeM0/AS1G05_219T01_9000000540_04315cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,388,480 | 71,447,040 |
| Size | 417.1 MB | 68.1 MB |
| Events in quadrant A | 3,315,022 | 440,606 |
| Events in quadrant B | 3,316,910 | 432,394 |
| Events in quadrant C | 3,142,249 | 430,486 |
| Events in quadrant D | 3,043,800 | 419,963 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 2 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14191 | 18 |
| B | 0 | 14183 | 31 |
| C | 0 | 13818 | 18 |
| D | 0 | 13579 | 27 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6308 | 100 | 1.585289% |
| B | 6303 | 65 | 1.031255% |
| C | 6308 | 79 | 1.252378% |
| D | 6304 | 66 | 1.046954% |

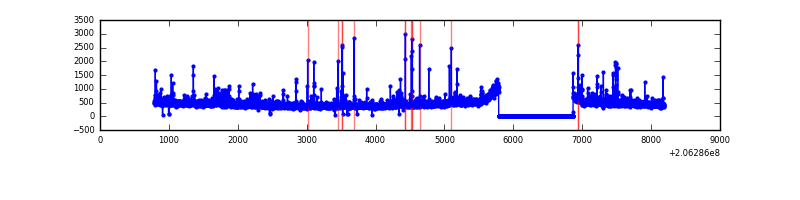

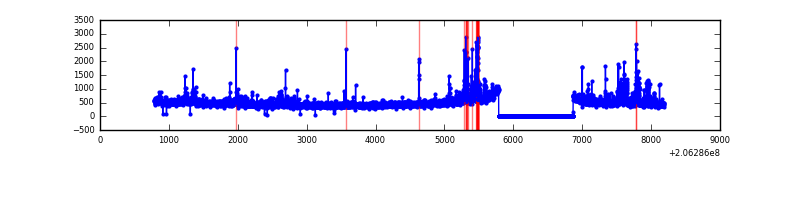

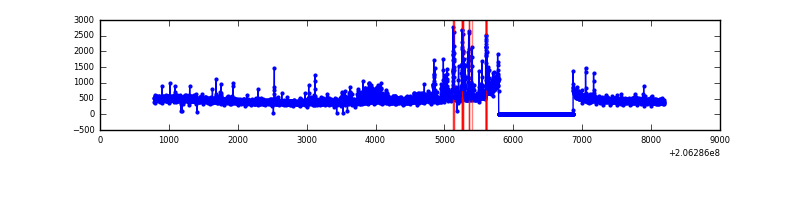

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

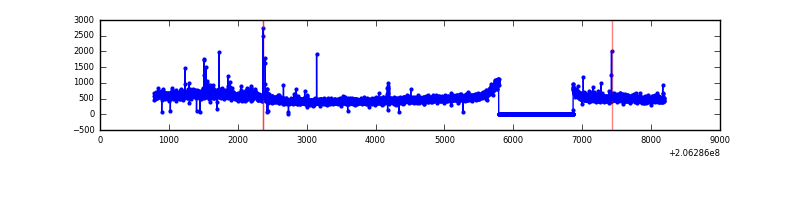

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7396 | 6316 | 32 | 32 | 0.43% | 0.51% |  |
| B | 7396 | 6315 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7396 | 6316 | 25 | 25 | 0.34% | 0.40% |  |
| D | 7396 | 6316 | 14 | 14 | 0.19% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 396089 | 2569.33 | 746 | 730 | 153.9 |
| A | 13 | 248 | 12538 | 76.74 | 746 | 730 | 153.9 |
| A | 15 | 234 | 11795 | 71.91 | 746 | 730 | 153.9 |
| B | 3 | 0 | 238135 | 1625.43 | 751 | 733 | 146.1 |
| B | 15 | 204 | 56719 | 383.32 | 751 | 733 | 146.1 |
| B | 8 | 3 | 33958 | 227.48 | 751 | 733 | 146.1 |
| C | 9 | 247 | 303379 | 1795.38 | 718 | 722 | 168.6 |
| C | 10 | 65 | 25860 | 149.12 | 718 | 722 | 168.6 |
| C | 12 | 4 | 6699 | 35.46 | 718 | 722 | 168.6 |
| D | 4 | 95 | 53483 | 301.11 | 721 | 702 | 175.3 |
| D | 2 | 136 | 53024 | 298.49 | 721 | 702 | 175.3 |
| D | 13 | 53 | 52205 | 293.82 | 721 | 702 | 175.3 |

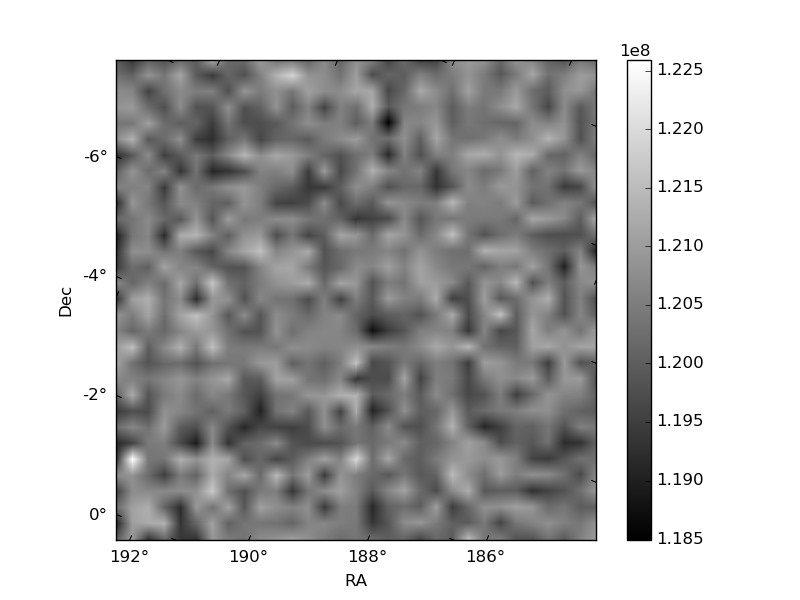

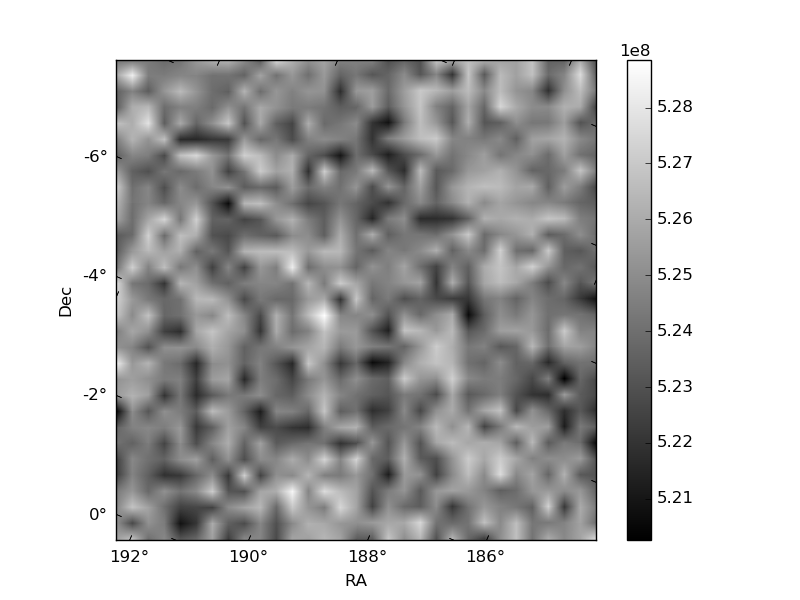

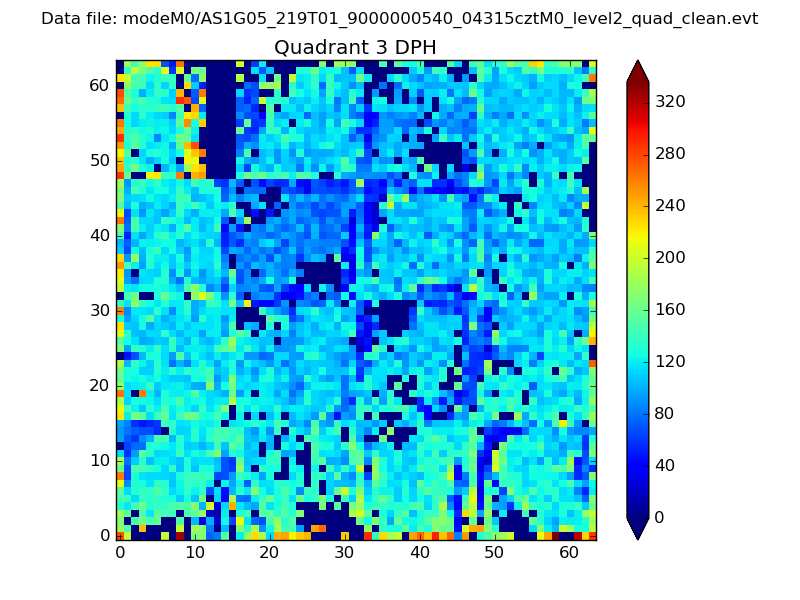

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

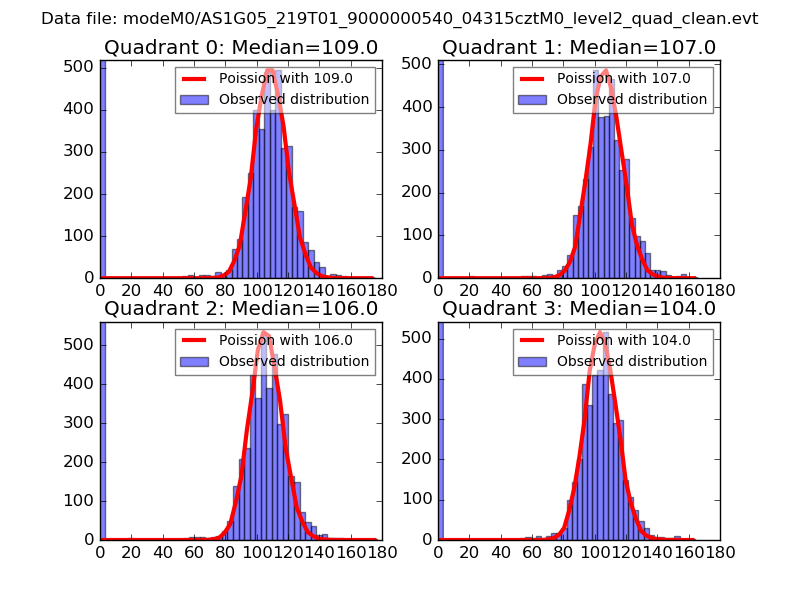

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

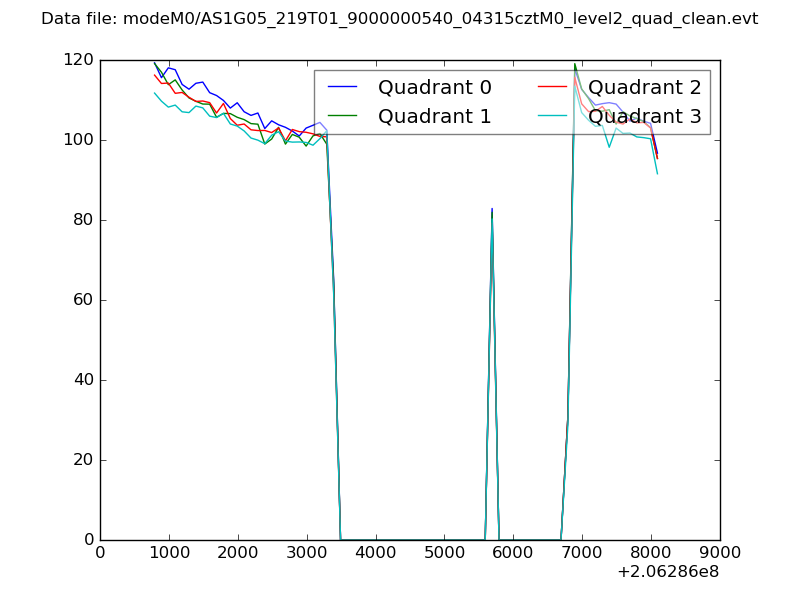

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

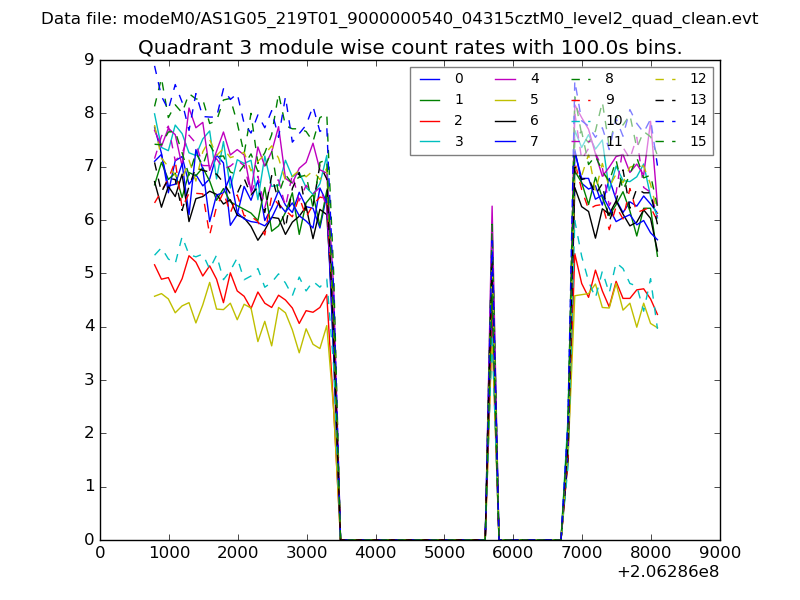

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

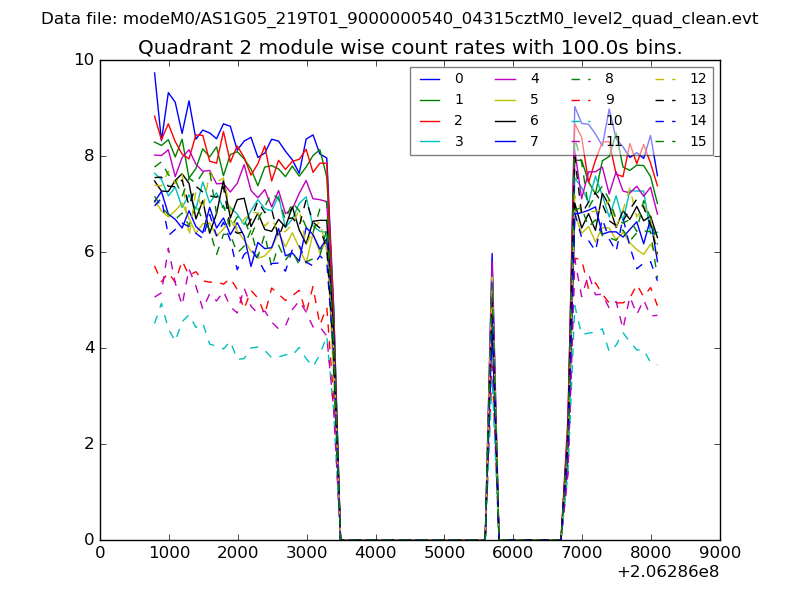

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

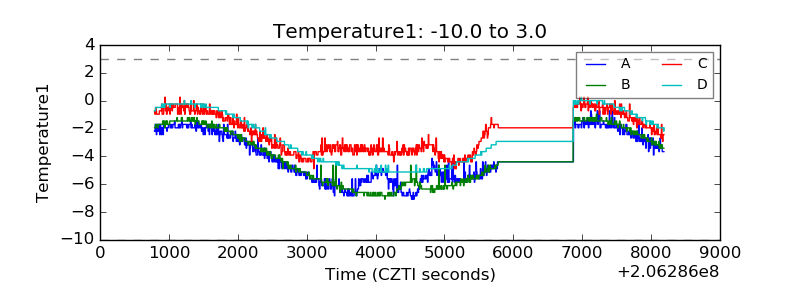

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

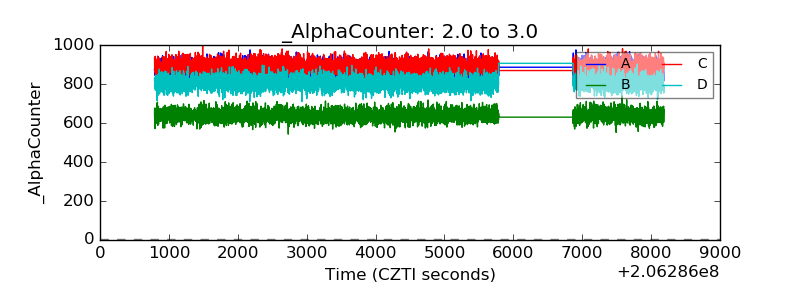

| Alpha Counter |  |

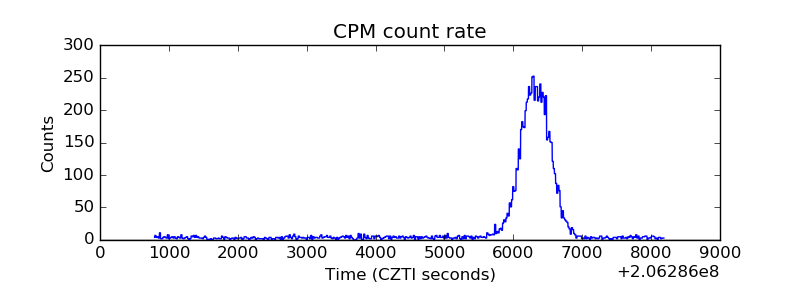

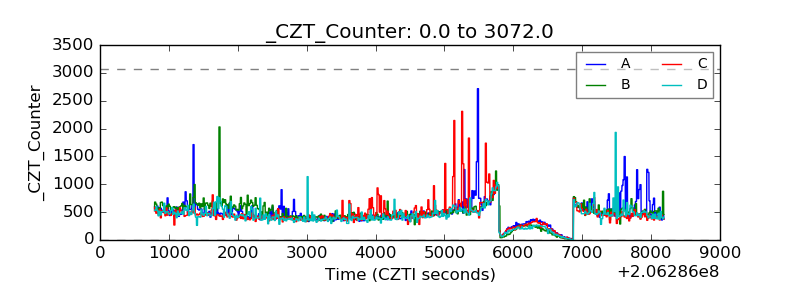

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

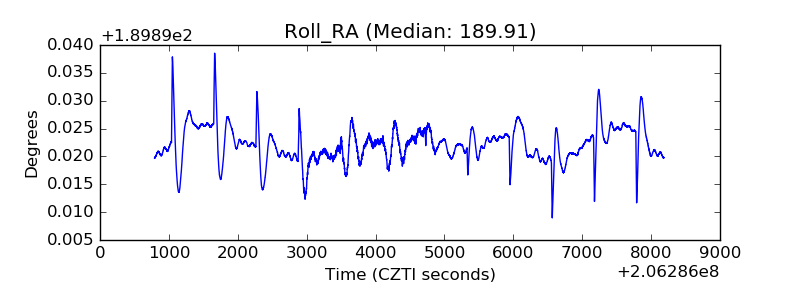

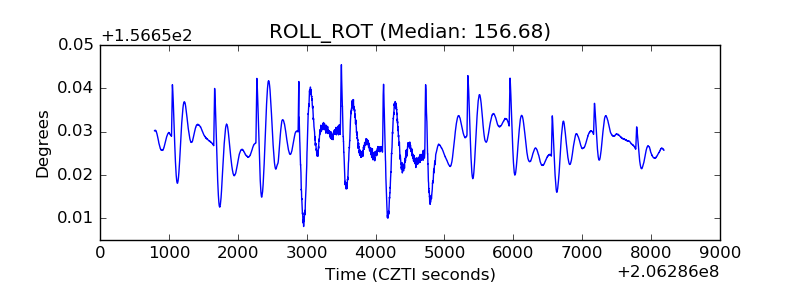

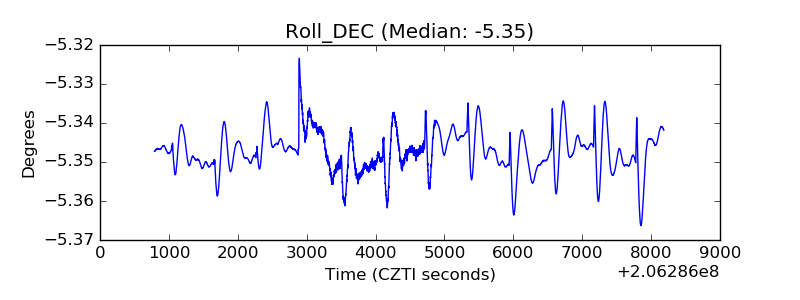

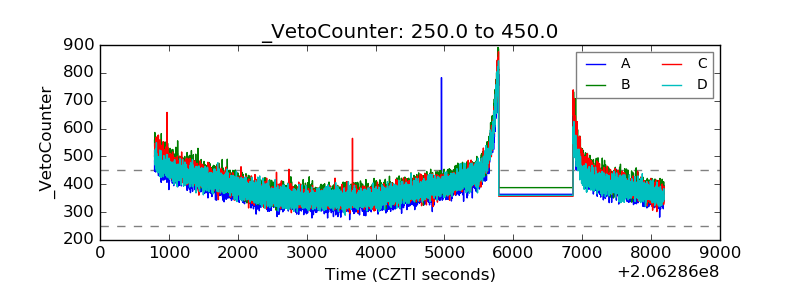

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
