| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_219T01_9000000540_04319cztM0_level2.evt | modeM0/AS1G05_219T01_9000000540_04319cztM0_level2_quad_clean.evt |
| Size (bytes) | 622,817,280 | 71,605,440 |
| Size | 594.0 MB | 68.3 MB |
| Events in quadrant A | 3,258,748 | 435,751 |
| Events in quadrant B | 4,442,335 | 424,215 |
| Events in quadrant C | 3,133,723 | 426,622 |
| Events in quadrant D | 7,544,104 | 384,842 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 4 |
| B | 0 | 148 | 4 |
| C | 0 | 148 | 4 |
| D | 0 | 148 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15025 | 269 |
| B | 0 | 18283 | 402 |
| C | 0 | 14881 | 240 |
| D | 0 | 28407 | 968 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7149 | 60 | 0.839278% |
| B | 7129 | 86 | 1.206340% |
| C | 7160 | 31 | 0.432961% |
| D | 7068 | 1425 | 20.161290% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

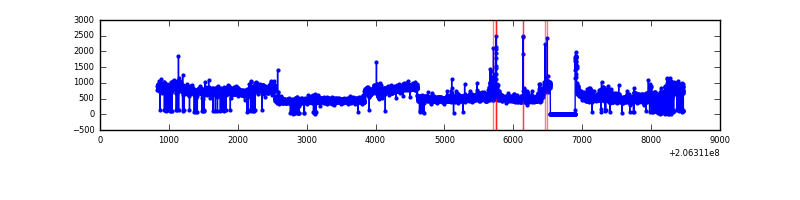

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7637 | 7265 | 12 | 12 | 0.16% | 0.17% |  |
| B | 7637 | 7270 | 8 | 8 | 0.10% | 0.11% |  |
| C | 7637 | 7273 | 3 | 3 | 0.04% | 0.04% |  |
| D | 7637 | 7205 | 1184 | 1184 | 15.50% | 16.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 14 | 42641 | 250.92 | 808 | 791 | 166.8 |
| A | 13 | 251 | 31815 | 186.01 | 808 | 791 | 166.8 |
| A | 4 | 2 | 22698 | 131.35 | 808 | 791 | 166.8 |
| B | 3 | 0 | 1107559 | 6935.9 | 811 | 791 | 159.6 |
| B | 8 | 3 | 46059 | 283.69 | 811 | 791 | 159.6 |
| B | 10 | 16 | 43862 | 269.92 | 811 | 791 | 159.6 |
| C | 9 | 247 | 26829 | 141.33 | 780 | 783 | 184.3 |
| C | 14 | 48 | 23105 | 121.12 | 780 | 783 | 184.3 |
| C | 10 | 65 | 20118 | 104.92 | 780 | 783 | 184.3 |
| D | 2 | 63 | 4481703 | 25356.12 | 725 | 704 | 176.7 |
| D | 2 | 136 | 59480 | 332.59 | 725 | 704 | 176.7 |
| D | 13 | 53 | 45363 | 252.71 | 725 | 704 | 176.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

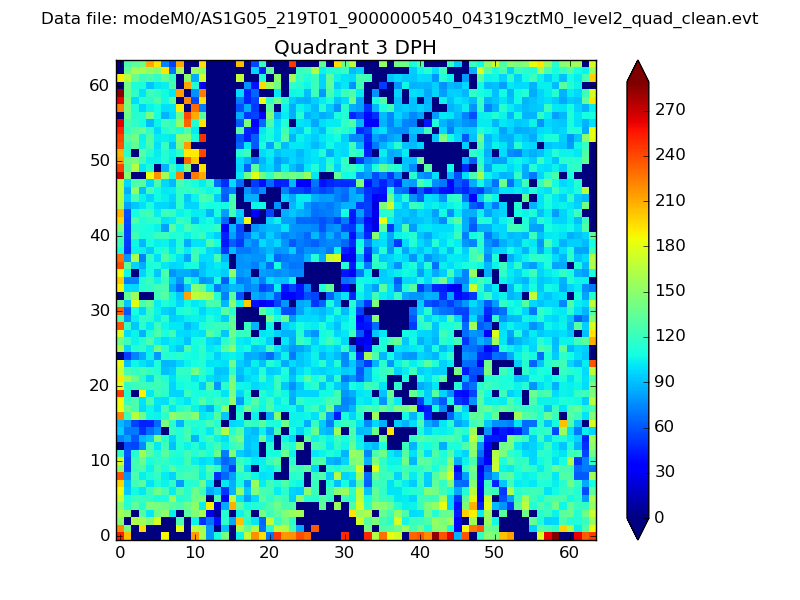

| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

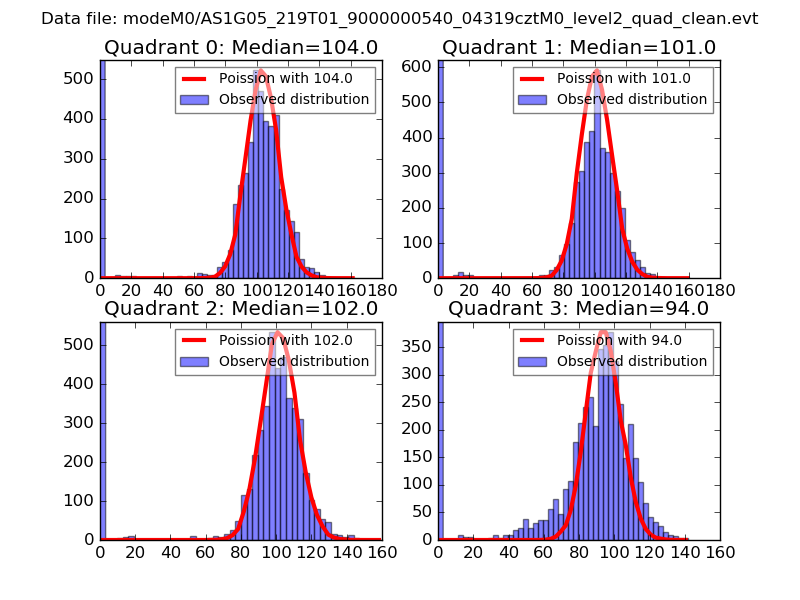

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

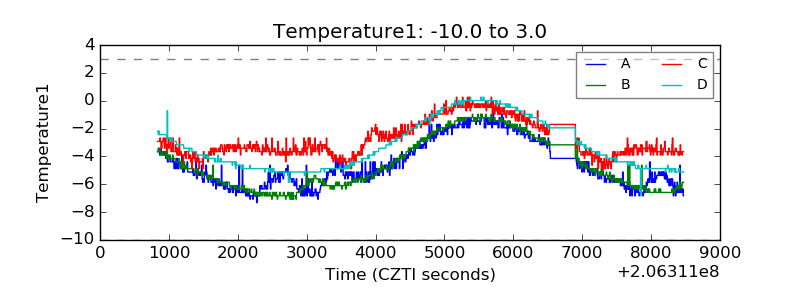

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

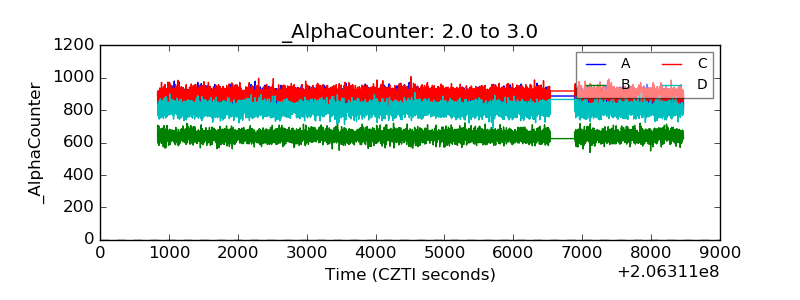

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

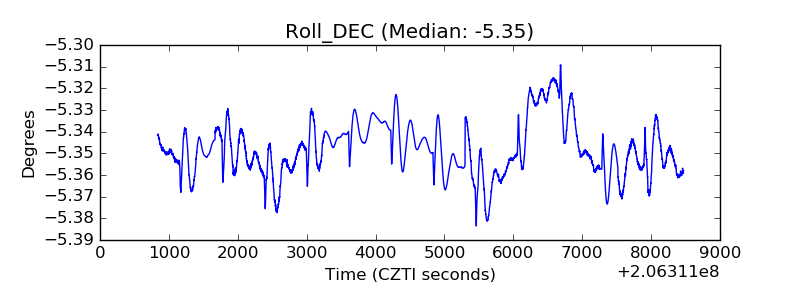

| _Roll_DEC |  |
| _Roll_RA |  |

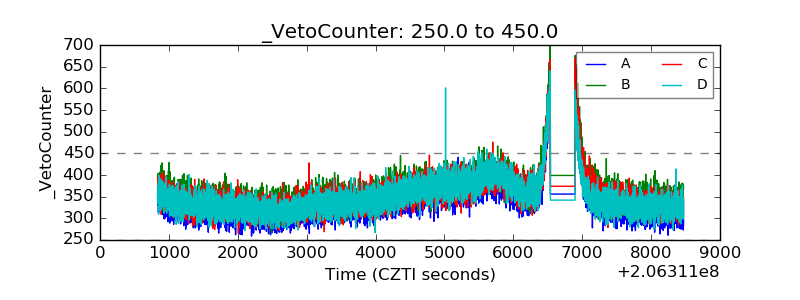

| Veto Counter |  |
