| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_219T01_9000000540_04322cztM0_level2.evt | modeM0/AS1G05_219T01_9000000540_04322cztM0_level2_quad_clean.evt |
| Size (bytes) | 906,073,920 | 52,542,720 |
| Size | 864.1 MB | 50.1 MB |
| Events in quadrant A | 3,309,536 | 342,423 |
| Events in quadrant B | 17,025,261 | 84,960 |
| Events in quadrant C | 3,196,417 | 335,684 |
| Events in quadrant D | 3,426,941 | 329,681 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14776 | 6 |
| B | 0 | 55436 | 32 |
| C | 0 | 14689 | 2 |
| D | 0 | 15396 | 9 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7127 | 103 | 1.445208% |
| B | 7124 | 6306 | 88.517687% |
| C | 7128 | 76 | 1.066218% |
| D | 7125 | 73 | 1.024561% |

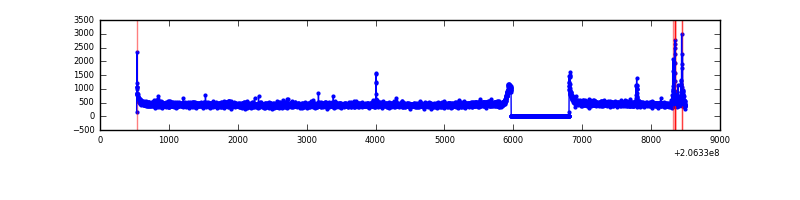

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7968 | 7128 | 24 | 24 | 0.30% | 0.34% |  |
| B | 7967 | 7124 | 6024 | 6024 | 75.61% | 84.56% |  |
| C | 7968 | 7128 | 8 | 8 | 0.10% | 0.11% |  |
| D | 7968 | 7128 | 30 | 30 | 0.38% | 0.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 85167 | 497.17 | 827 | 807 | 169.7 |
| A | 13 | 14 | 16215 | 90.81 | 827 | 807 | 169.7 |
| A | 8 | 15 | 14852 | 82.77 | 827 | 807 | 169.7 |
| B | 3 | 0 | 15206919 | 183788.03 | 425 | 414 | 82.7 |
| B | 4 | 48 | 43330 | 518.69 | 425 | 414 | 82.7 |
| B | 14 | 167 | 34598 | 413.15 | 425 | 414 | 82.7 |
| C | 9 | 247 | 80990 | 428.59 | 798 | 802 | 187.1 |
| C | 13 | 61 | 6588 | 30.92 | 798 | 802 | 187.1 |
| C | 3 | 202 | 1991 | 6.35 | 798 | 802 | 187.1 |
| D | 4 | 95 | 206692 | 1068.44 | 795 | 772 | 192.7 |
| D | 12 | 233 | 34684 | 175.95 | 795 | 772 | 192.7 |
| D | 2 | 14 | 34501 | 175.0 | 795 | 772 | 192.7 |

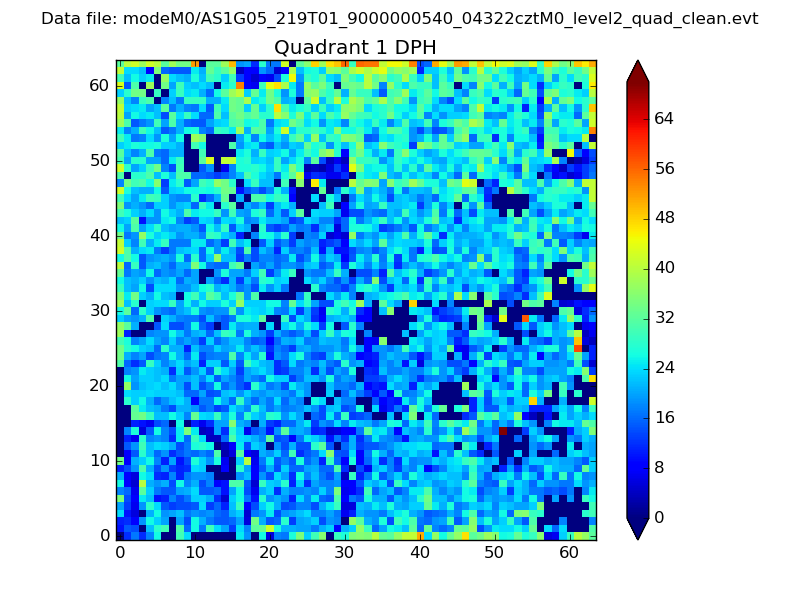

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

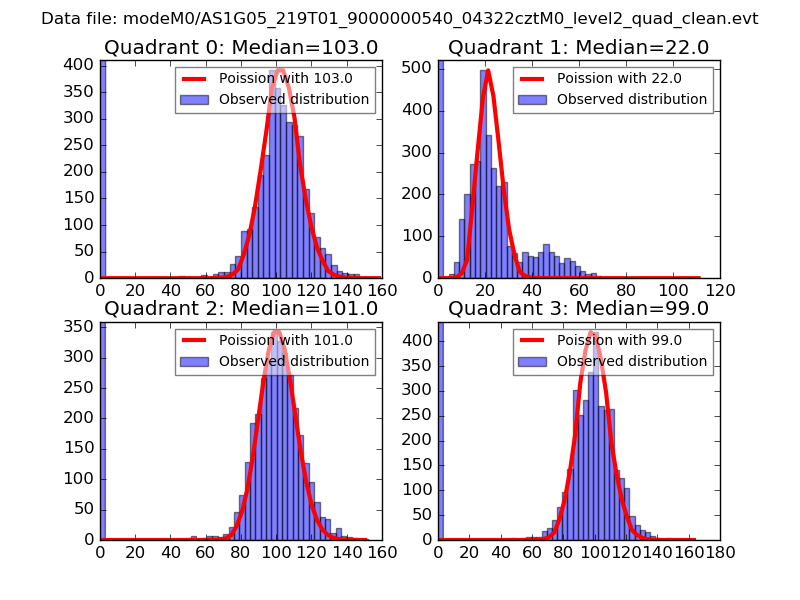

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

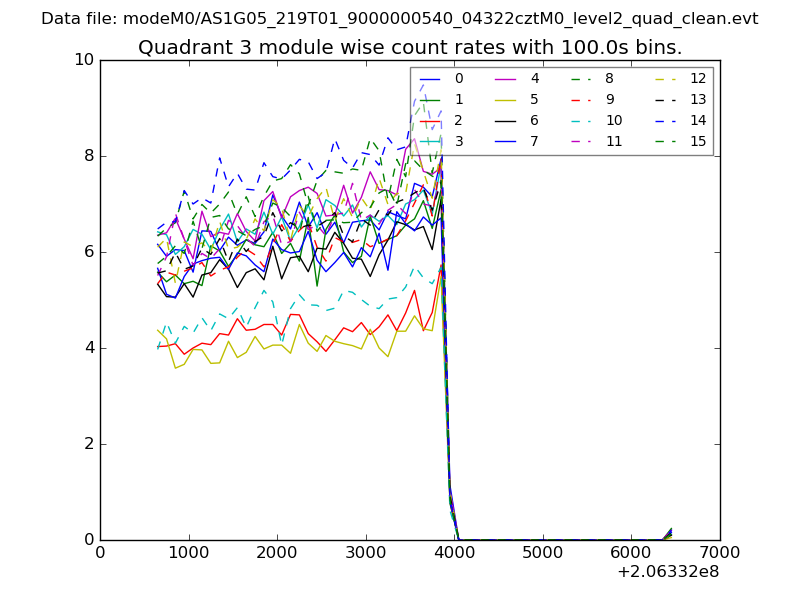

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

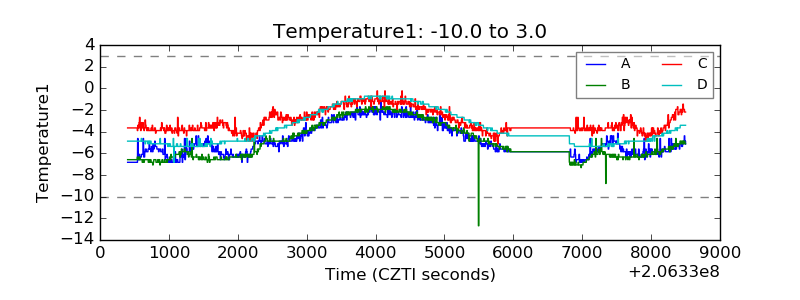

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

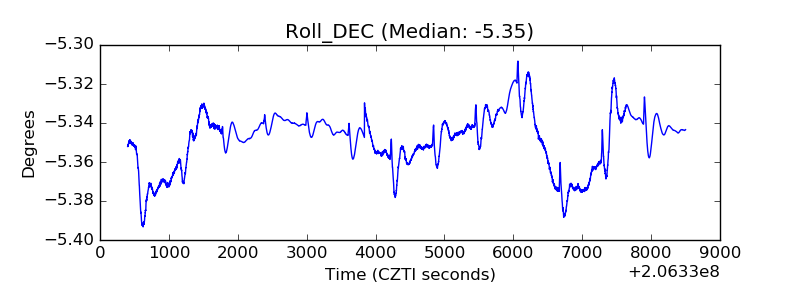

| _Roll_DEC |  |
| _Roll_RA |  |

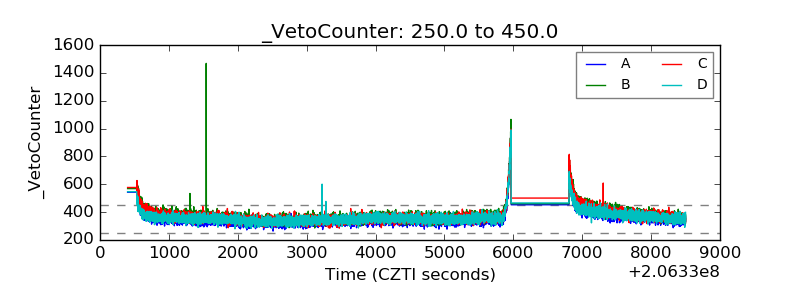

| Veto Counter |  |
