| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_219T01_9000000540_04331cztM0_level2.evt | modeM0/AS1G05_219T01_9000000540_04331cztM0_level2_quad_clean.evt |
| Size (bytes) | 910,704,960 | 68,446,080 |
| Size | 868.5 MB | 65.3 MB |
| Events in quadrant A | 3,349,278 | 487,813 |
| Events in quadrant B | 17,356,487 | 160,833 |
| Events in quadrant C | 3,113,423 | 475,304 |
| Events in quadrant D | 3,294,827 | 465,805 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14850 | 2 |
| B | 0 | 56143 | 1 |
| C | 0 | 14295 | 1 |
| D | 0 | 14884 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6904 | 70 | 1.013905% |
| B | 6904 | 6382 | 92.439166% |
| C | 6904 | 19 | 0.275203% |
| D | 6904 | 51 | 0.738702% |

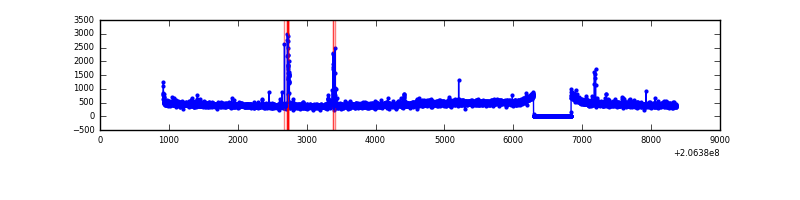

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7449 | 6905 | 37 | 37 | 0.50% | 0.54% |  |
| B | 7449 | 6904 | 6303 | 6303 | 84.62% | 91.29% |  |
| C | 7449 | 6905 | 12 | 12 | 0.16% | 0.17% |  |
| D | 7449 | 6905 | 39 | 39 | 0.52% | 0.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 224367 | 1367.07 | 790 | 774 | 163.6 |
| A | 13 | 251 | 43431 | 260.81 | 790 | 774 | 163.6 |
| A | 8 | 15 | 21718 | 128.05 | 790 | 774 | 163.6 |
| B | 3 | 0 | 15701322 | 229279.61 | 355 | 346 | 68.5 |
| B | 15 | 204 | 123130 | 1793.0 | 355 | 346 | 68.5 |
| B | 14 | 167 | 59768 | 867.73 | 355 | 346 | 68.5 |
| C | 10 | 65 | 69462 | 385.61 | 761 | 764 | 178.2 |
| C | 9 | 16 | 37125 | 204.1 | 761 | 764 | 178.2 |
| C | 9 | 247 | 18737 | 100.88 | 761 | 764 | 178.2 |
| D | 2 | 136 | 113941 | 611.1 | 761 | 739 | 185.2 |
| D | 12 | 233 | 104235 | 558.71 | 761 | 739 | 185.2 |
| D | 9 | 35 | 36755 | 194.43 | 761 | 739 | 185.2 |

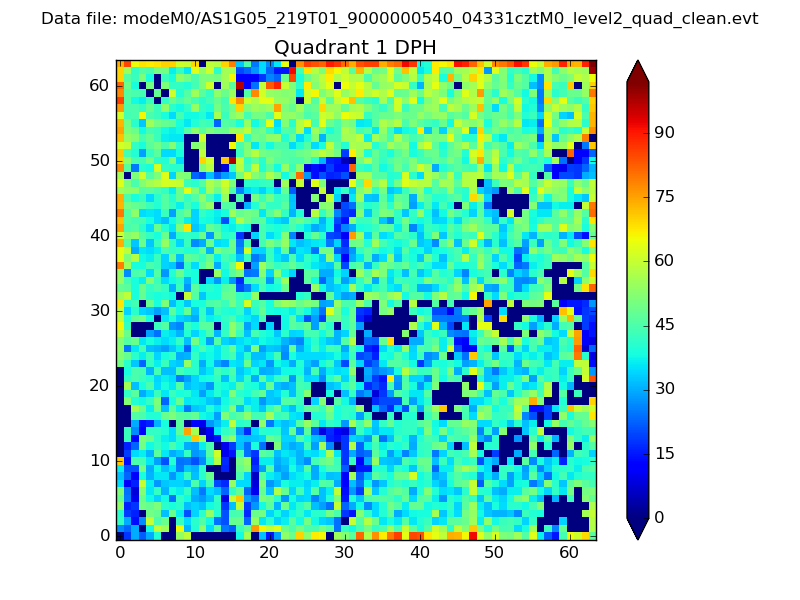

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

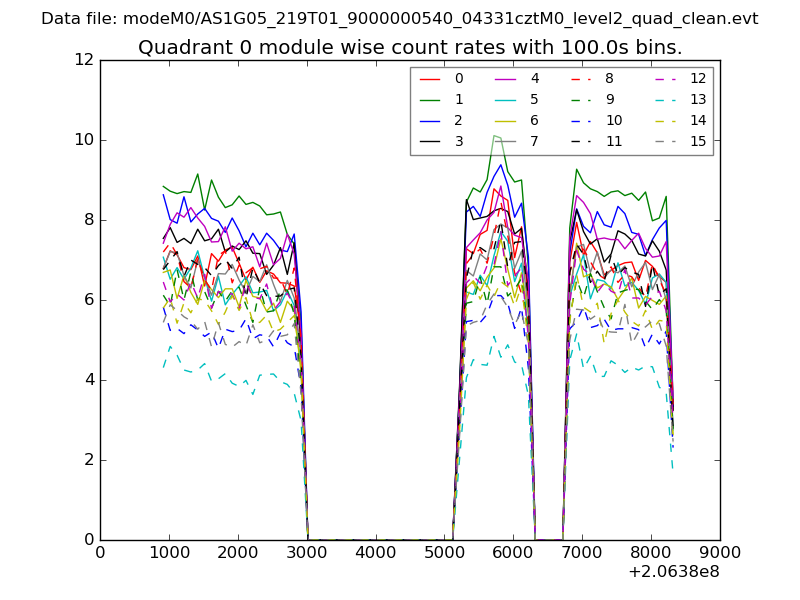

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

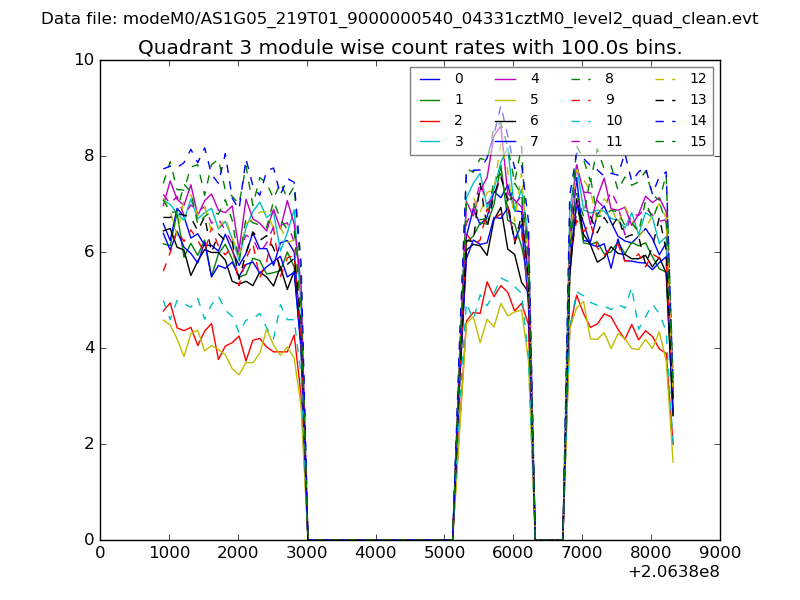

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

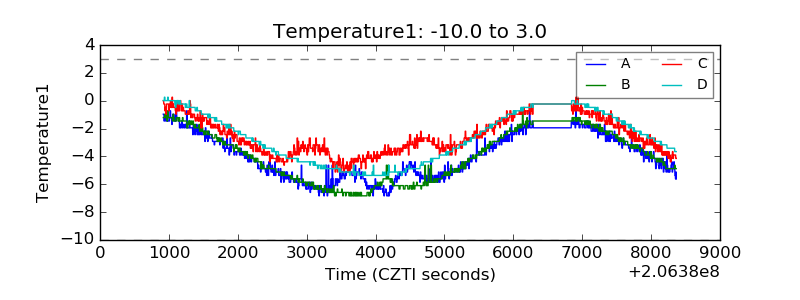

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

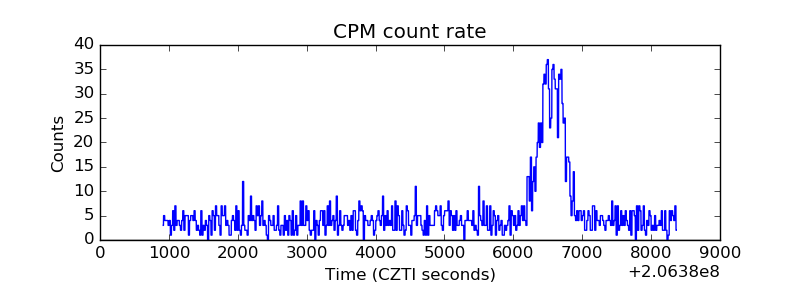

| _CPM_Rate |  |

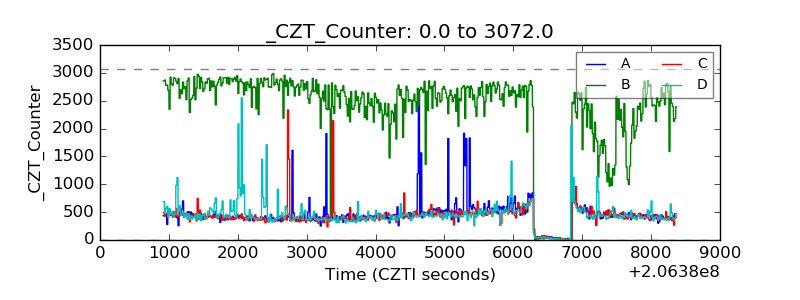

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

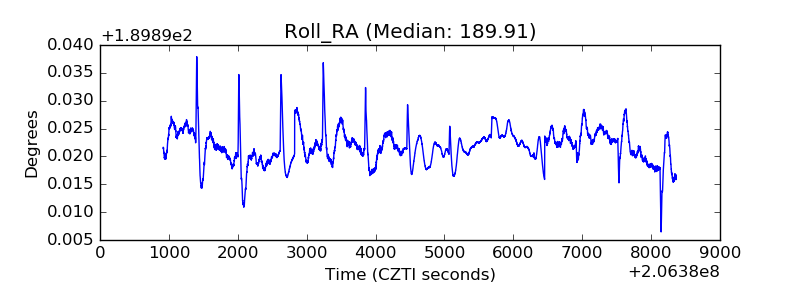

| _Roll_RA |  |
| Veto Counter |  |
