| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_219T01_9000000540_04337cztM0_level2.evt | modeM0/AS1G05_219T01_9000000540_04337cztM0_level2_quad_clean.evt |
| Size (bytes) | 798,157,440 | 53,161,920 |
| Size | 761.2 MB | 50.7 MB |
| Events in quadrant A | 3,198,125 | 347,607 |
| Events in quadrant B | 14,529,311 | 131,427 |
| Events in quadrant C | 2,863,971 | 342,446 |
| Events in quadrant D | 3,139,103 | 331,428 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13987 | 2 |
| B | 0 | 47553 | 1 |
| C | 0 | 13218 | 1 |
| D | 0 | 14074 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6523 | 94 | 1.441055% |
| B | 6523 | 5116 | 78.430170% |
| C | 6523 | 33 | 0.505902% |
| D | 6523 | 51 | 0.781849% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

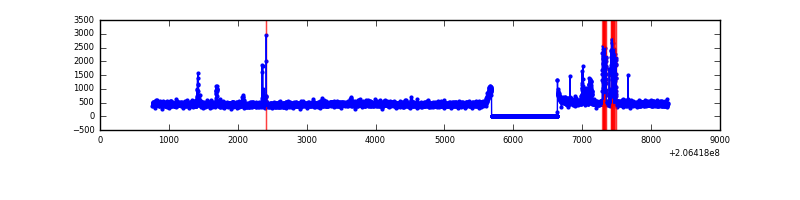

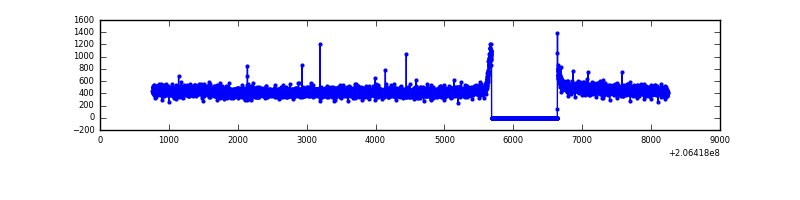

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7478 | 6523 | 42 | 42 | 0.56% | 0.64% |  |
| B | 7478 | 6523 | 4909 | 4909 | 65.65% | 75.26% |  |
| C | 7478 | 6523 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7478 | 6523 | 24 | 24 | 0.32% | 0.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 230541 | 1471.63 | 756 | 738 | 156.2 |
| A | 0 | 13 | 23359 | 144.86 | 756 | 738 | 156.2 |
| A | 8 | 15 | 18728 | 115.21 | 756 | 738 | 156.2 |
| B | 3 | 0 | 12729433 | 154423.82 | 429 | 418 | 82.4 |
| B | 14 | 167 | 54105 | 651.31 | 429 | 418 | 82.4 |
| B | 10 | 16 | 38670 | 464.06 | 429 | 418 | 82.4 |
| C | 13 | 61 | 6066 | 30.87 | 731 | 733 | 172.8 |
| C | 9 | 16 | 5187 | 25.78 | 731 | 733 | 172.8 |
| C | 9 | 54 | 2083 | 7.81 | 731 | 733 | 172.8 |
| D | 2 | 136 | 100138 | 561.34 | 727 | 706 | 177.1 |
| D | 13 | 239 | 78352 | 438.34 | 727 | 706 | 177.1 |
| D | 2 | 37 | 39886 | 221.19 | 727 | 706 | 177.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

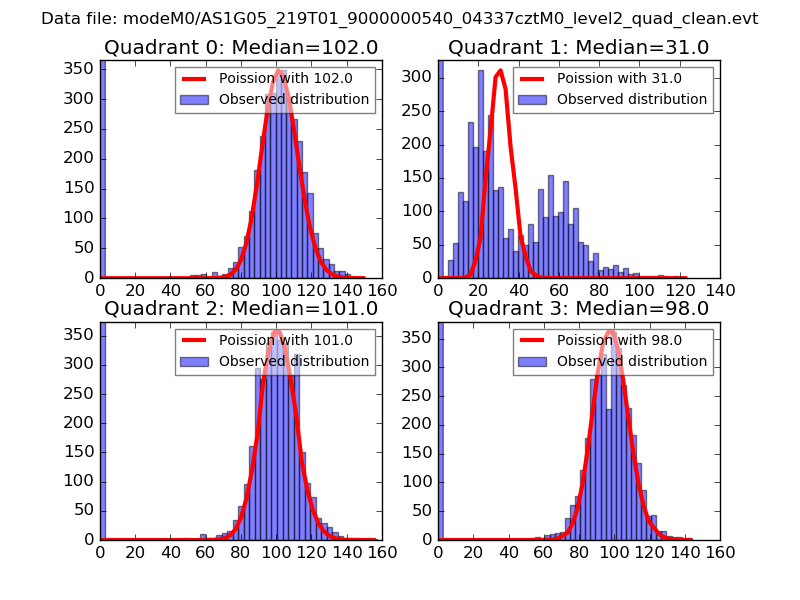

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

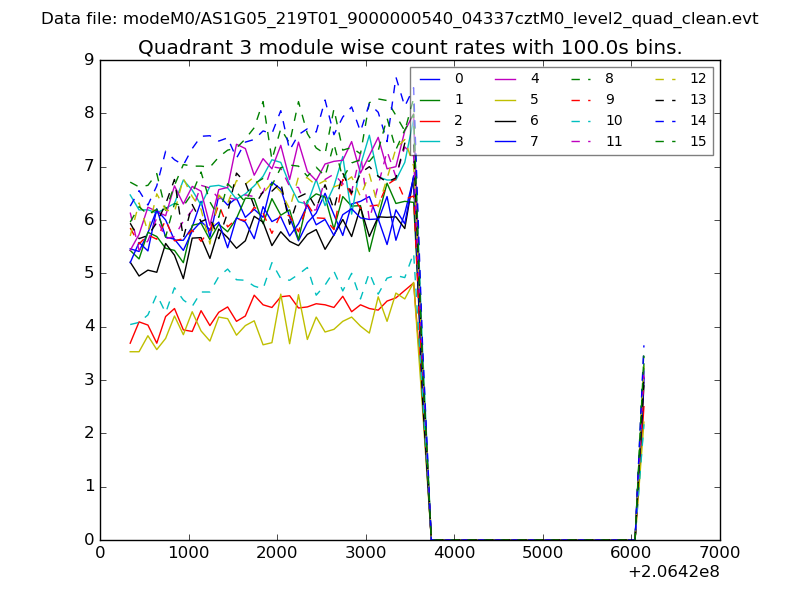

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

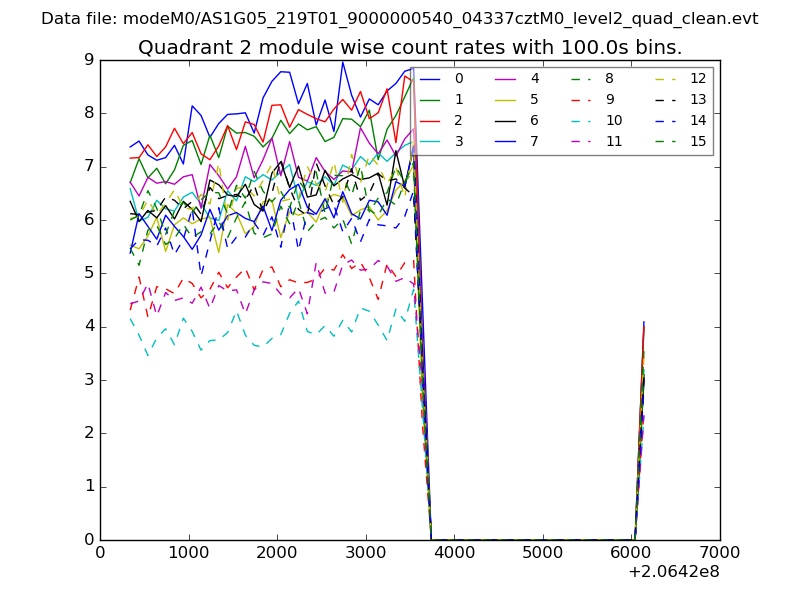

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

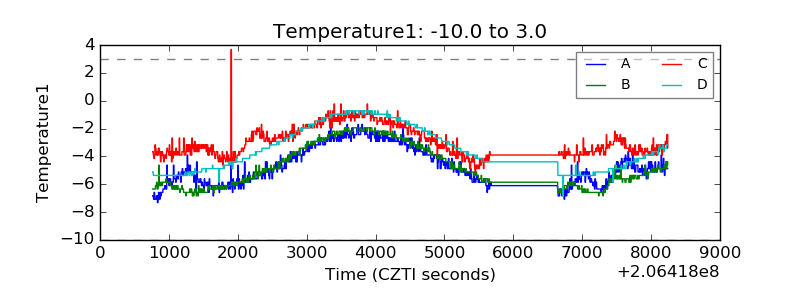

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

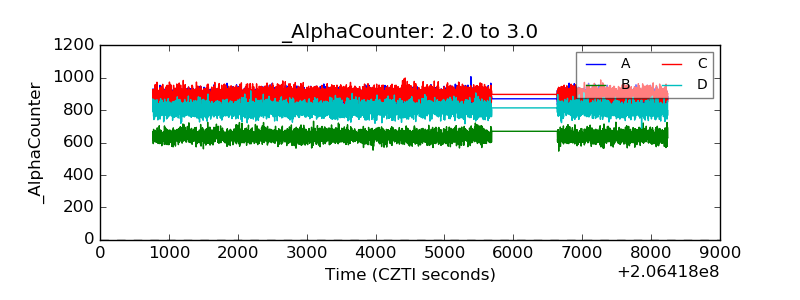

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

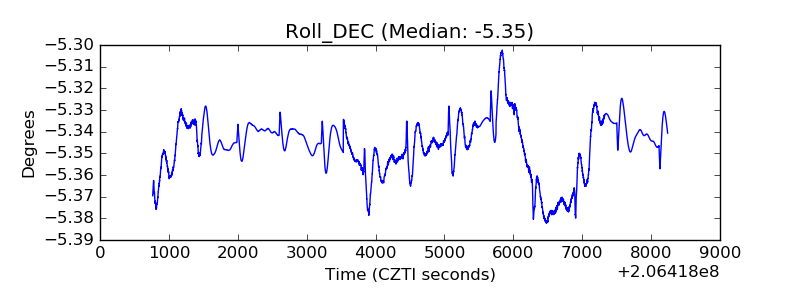

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
