| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_219T01_9000000540_04339cztM0_level2.evt | modeM0/AS1G05_219T01_9000000540_04339cztM0_level2_quad_clean.evt |
| Size (bytes) | 686,347,200 | 61,963,200 |
| Size | 654.6 MB | 59.1 MB |
| Events in quadrant A | 3,227,471 | 399,621 |
| Events in quadrant B | 11,201,685 | 256,440 |
| Events in quadrant C | 2,899,551 | 392,842 |
| Events in quadrant D | 3,024,123 | 379,645 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13798 | 2 |
| B | 0 | 37622 | 1 |
| C | 0 | 13063 | 1 |
| D | 0 | 13511 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6398 | 137 | 2.141294% |
| B | 6398 | 2811 | 43.935605% |
| C | 6398 | 65 | 1.015942% |
| D | 6398 | 86 | 1.344170% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7453 | 6398 | 43 | 43 | 0.58% | 0.67% |  |
| B | 7452 | 6397 | 2352 | 2352 | 31.56% | 36.77% |  |
| C | 7453 | 6398 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7453 | 6398 | 24 | 24 | 0.32% | 0.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 234223 | 1489.55 | 768 | 751 | 156.7 |
| A | 8 | 15 | 10452 | 61.89 | 768 | 751 | 156.7 |
| A | 14 | 111 | 9460 | 55.56 | 768 | 751 | 156.7 |
| B | 3 | 0 | 8697424 | 71476.32 | 629 | 614 | 121.7 |
| B | 4 | 48 | 22731 | 181.77 | 629 | 614 | 121.7 |
| B | 14 | 167 | 20780 | 165.74 | 629 | 614 | 121.7 |
| C | 13 | 61 | 6322 | 31.98 | 741 | 745 | 174.4 |
| C | 9 | 16 | 3843 | 17.77 | 741 | 745 | 174.4 |
| C | 7 | 222 | 2972 | 12.77 | 741 | 745 | 174.4 |
| D | 2 | 136 | 86656 | 480.32 | 737 | 716 | 178.9 |
| D | 13 | 239 | 53485 | 294.92 | 737 | 716 | 178.9 |
| D | 10 | 172 | 45386 | 249.66 | 737 | 716 | 178.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

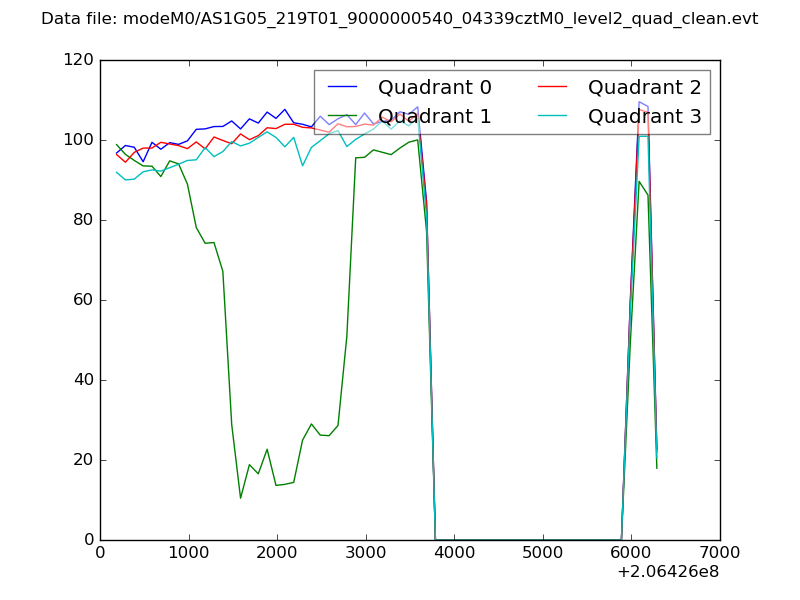

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

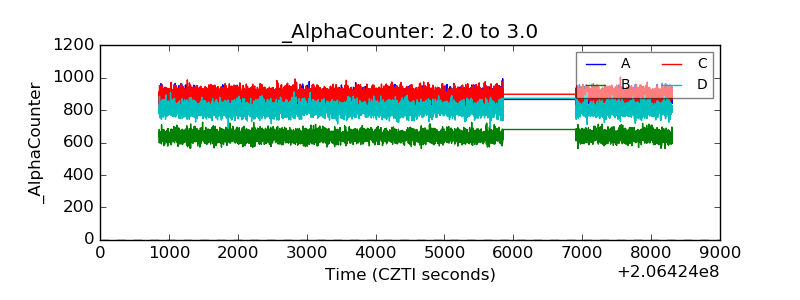

| Alpha Counter |  |

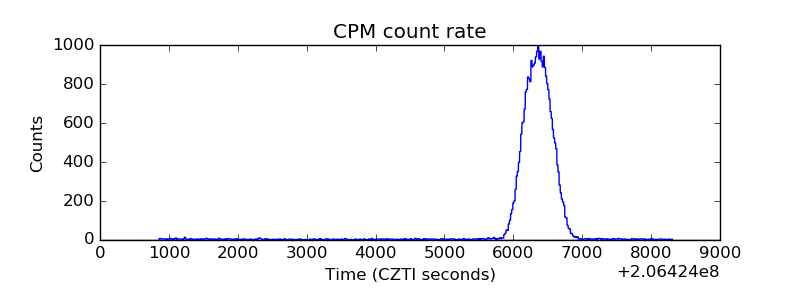

| _CPM_Rate |  |

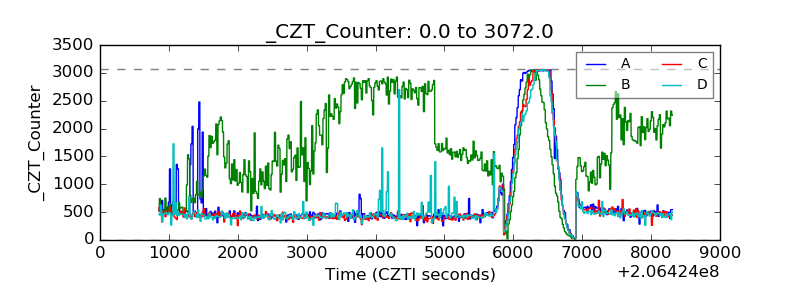

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

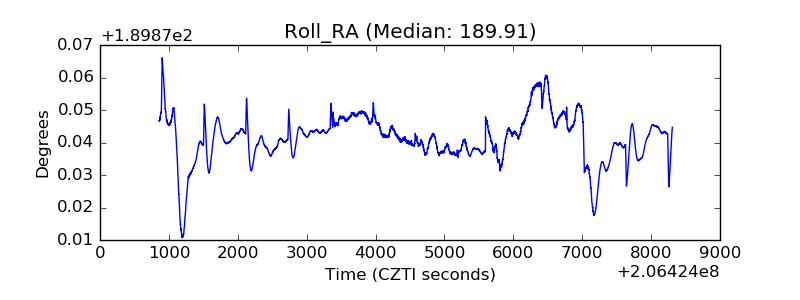

| _Roll_RA |  |

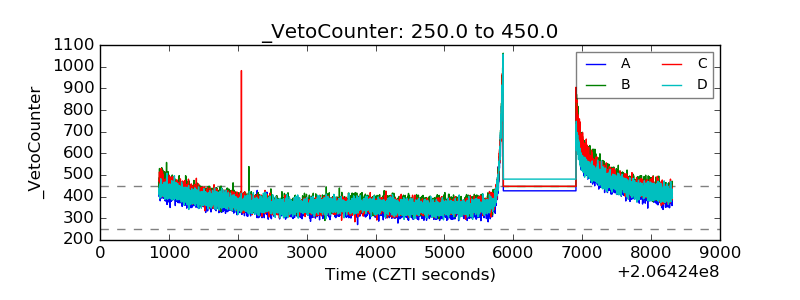

| Veto Counter |  |
