| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_219T01_9000000540_04346cztM0_level2.evt | modeM0/AS1G05_219T01_9000000540_04346cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,099,532,160 | 70,090,560 |
| Size | 1.0 GB | 66.8 MB |
| Events in quadrant A | 3,447,468 | 532,095 |
| Events in quadrant B | 19,700,278 | 93,582 |
| Events in quadrant C | 4,853,636 | 510,309 |
| Events in quadrant D | 4,801,318 | 470,685 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15494 | 2 |
| B | 0 | 63349 | 1 |
| C | 0 | 19666 | 1 |
| D | 0 | 19527 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7363 | 53 | 0.719815% |
| B | 7363 | 7329 | 99.538232% |
| C | 7363 | 258 | 3.504007% |
| D | 7363 | 569 | 7.727828% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7678 | 7364 | 33 | 33 | 0.43% | 0.45% |  |
| B | 7677 | 7362 | 7271 | 7271 | 94.71% | 98.76% |  |
| C | 7678 | 7363 | 192 | 192 | 2.50% | 2.61% |  |
| D | 7678 | 7364 | 532 | 532 | 6.93% | 7.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 101957 | 575.55 | 848 | 829 | 175.7 |
| A | 0 | 50 | 29214 | 161.55 | 848 | 829 | 175.7 |
| A | 7 | 16 | 22673 | 124.32 | 848 | 829 | 175.7 |
| B | 3 | 0 | 18613523 | 369669.28 | 257 | 252 | 50.4 |
| B | 10 | 16 | 27016 | 531.55 | 257 | 252 | 50.4 |
| B | 15 | 54 | 22140 | 434.71 | 257 | 252 | 50.4 |
| C | 9 | 247 | 1282736 | 6785.56 | 807 | 812 | 188.9 |
| C | 9 | 16 | 385104 | 2034.16 | 807 | 812 | 188.9 |
| C | 8 | 128 | 15020 | 75.21 | 807 | 812 | 188.9 |
| D | 9 | 35 | 1210406 | 6348.19 | 781 | 759 | 190.5 |
| D | 13 | 53 | 200539 | 1048.44 | 781 | 759 | 190.5 |
| D | 2 | 136 | 173890 | 908.59 | 781 | 759 | 190.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

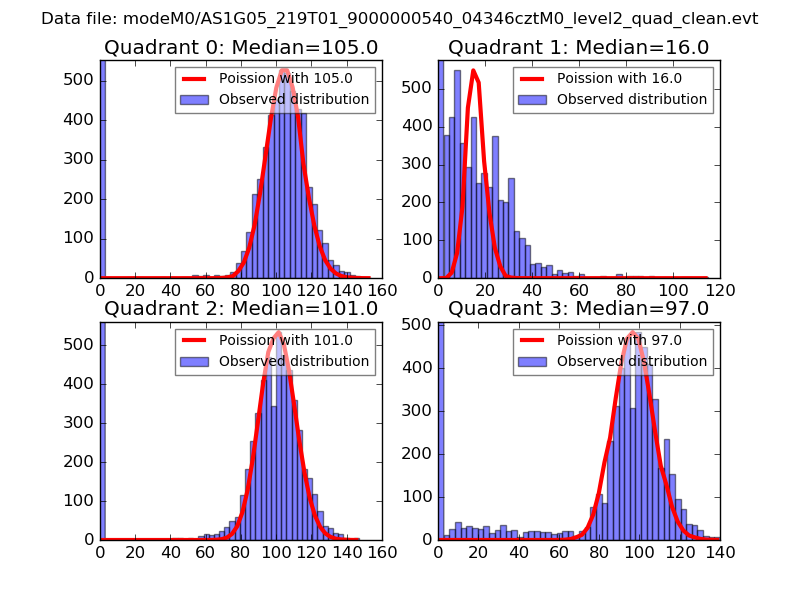

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

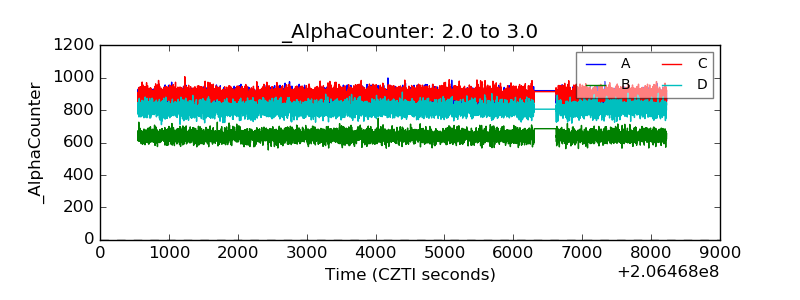

| Alpha Counter |  |

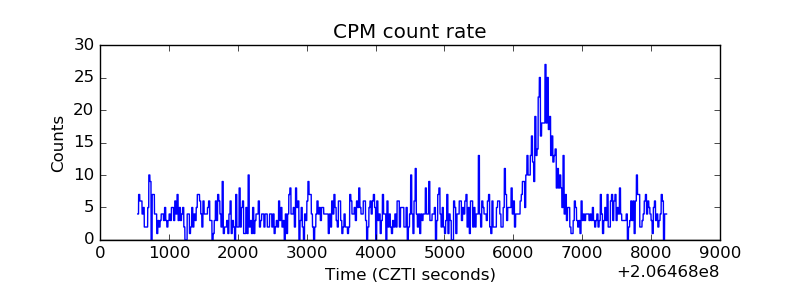

| _CPM_Rate |  |

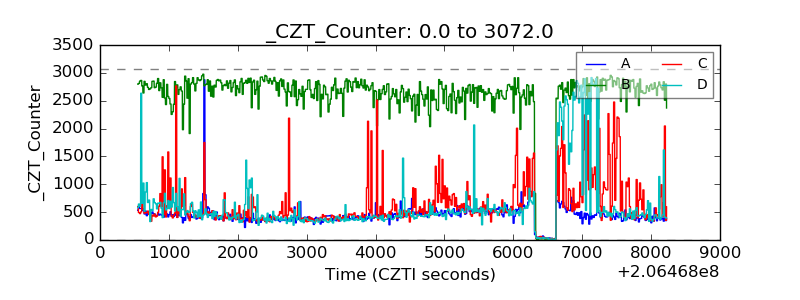

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

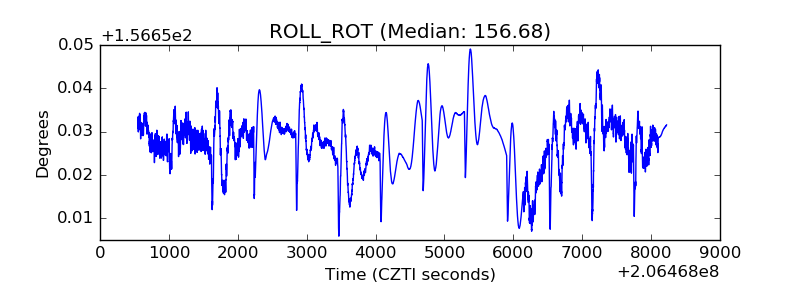

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

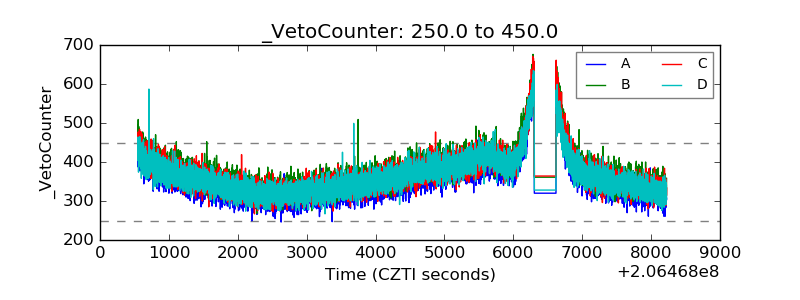

| Veto Counter |  |
