| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_219T01_9000000540_04354cztM0_level2.evt | modeM0/AS1G05_219T01_9000000540_04354cztM0_level2_quad_clean.evt |
| Size (bytes) | 642,090,240 | 65,949,120 |
| Size | 612.3 MB | 62.9 MB |
| Events in quadrant A | 3,380,307 | 415,719 |
| Events in quadrant B | 3,790,455 | 413,995 |
| Events in quadrant C | 8,288,617 | 323,226 |
| Events in quadrant D | 3,546,799 | 390,486 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14217 | 3 |
| B | 0 | 15492 | 2 |
| C | 0 | 28989 | 2 |
| D | 0 | 14933 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6502 | 81 | 1.245771% |
| B | 6478 | 147 | 2.269219% |
| C | 6502 | 1952 | 30.021532% |
| D | 6502 | 133 | 2.045524% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7637 | 6502 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7637 | 6479 | 19 | 19 | 0.25% | 0.29% |  |
| C | 7637 | 6502 | 1590 | 1590 | 20.82% | 24.45% |  |
| D | 7637 | 6502 | 87 | 87 | 1.14% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 118612 | 720.81 | 801 | 786 | 163.5 |
| A | 8 | 15 | 103784 | 630.1 | 801 | 786 | 163.5 |
| A | 15 | 234 | 38135 | 228.49 | 801 | 786 | 163.5 |
| B | 3 | 0 | 584691 | 3811.85 | 800 | 782 | 153.2 |
| B | 15 | 204 | 33219 | 211.75 | 800 | 782 | 153.2 |
| B | 4 | 48 | 32384 | 206.3 | 800 | 782 | 153.2 |
| C | 9 | 247 | 5649441 | 36109.86 | 667 | 670 | 156.4 |
| C | 10 | 65 | 16821 | 103.25 | 667 | 670 | 156.4 |
| C | 12 | 4 | 12822 | 77.68 | 667 | 670 | 156.4 |
| D | 2 | 136 | 453018 | 2429.11 | 768 | 746 | 186.2 |
| D | 4 | 95 | 58021 | 307.62 | 768 | 746 | 186.2 |
| D | 10 | 172 | 29304 | 153.38 | 768 | 746 | 186.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

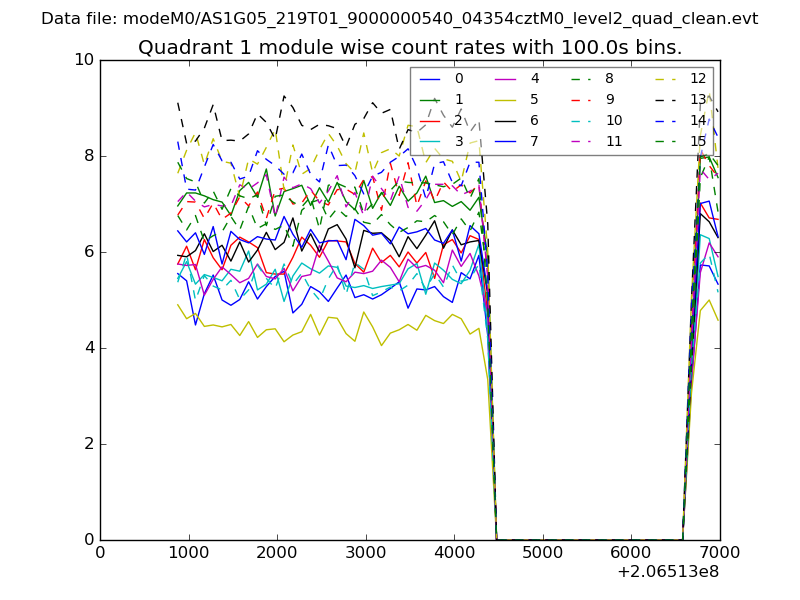

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

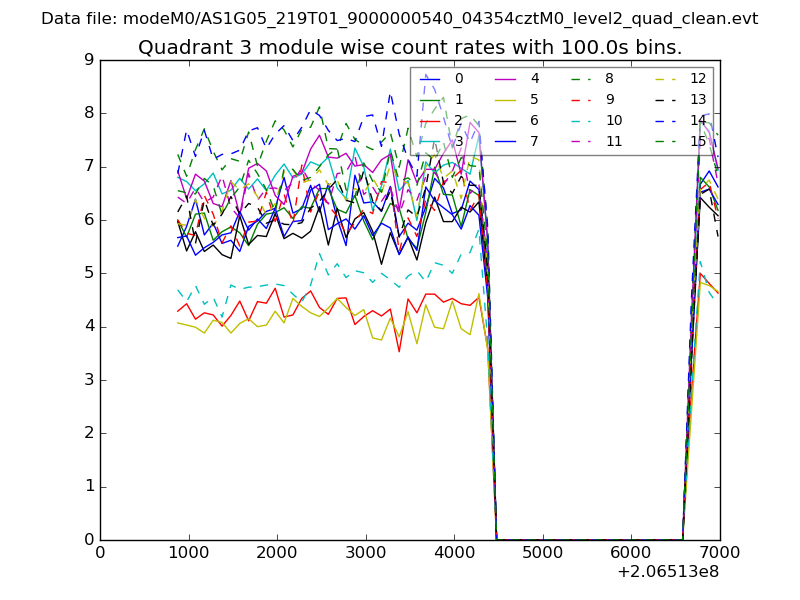

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
