| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_252T01_9000000544_04368cztM0_level2.evt | modeM0/AS1G05_252T01_9000000544_04368cztM0_level2_quad_clean.evt |
| Size (bytes) | 479,833,920 | 55,730,880 |
| Size | 457.6 MB | 53.1 MB |
| Events in quadrant A | 4,332,282 | 308,394 |
| Events in quadrant B | 3,220,654 | 311,165 |
| Events in quadrant C | 3,137,664 | 303,187 |
| Events in quadrant D | 3,384,542 | 295,511 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17238 | 3 |
| B | 0 | 13923 | 2 |
| C | 0 | 13882 | 2 |
| D | 0 | 14852 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6725 | 175 | 2.602230% |
| B | 6725 | 52 | 0.773234% |
| C | 6725 | 45 | 0.669145% |
| D | 6725 | 108 | 1.605948% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7815 | 6725 | 85 | 85 | 1.09% | 1.26% |  |
| B | 7815 | 6725 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7815 | 6725 | 6 | 6 | 0.08% | 0.09% |  |
| D | 7815 | 6725 | 78 | 78 | 1.00% | 1.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 1133954 | 6917.47 | 802 | 785 | 163.8 |
| A | 8 | 15 | 38555 | 230.57 | 802 | 785 | 163.8 |
| A | 15 | 234 | 36599 | 218.63 | 802 | 785 | 163.8 |
| B | 14 | 167 | 31100 | 192.8 | 815 | 796 | 157.2 |
| B | 15 | 204 | 13843 | 83.01 | 815 | 796 | 157.2 |
| B | 12 | 111 | 13312 | 79.63 | 815 | 796 | 157.2 |
| C | 9 | 247 | 67182 | 368.28 | 775 | 779 | 180.3 |
| C | 12 | 4 | 18034 | 95.7 | 775 | 779 | 180.3 |
| C | 9 | 16 | 11314 | 58.43 | 775 | 779 | 180.3 |
| D | 4 | 95 | 145283 | 770.4 | 767 | 743 | 187.6 |
| D | 13 | 239 | 111164 | 588.54 | 767 | 743 | 187.6 |
| D | 13 | 223 | 54337 | 285.65 | 767 | 743 | 187.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

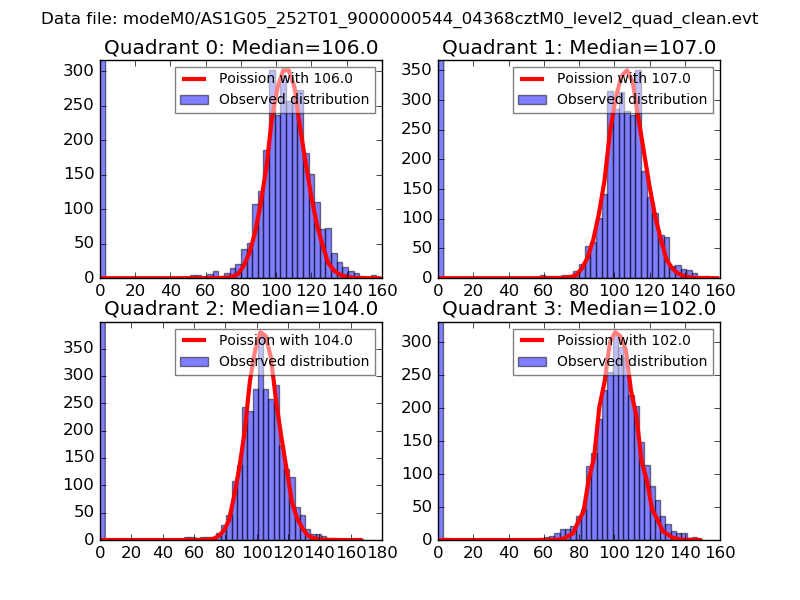

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

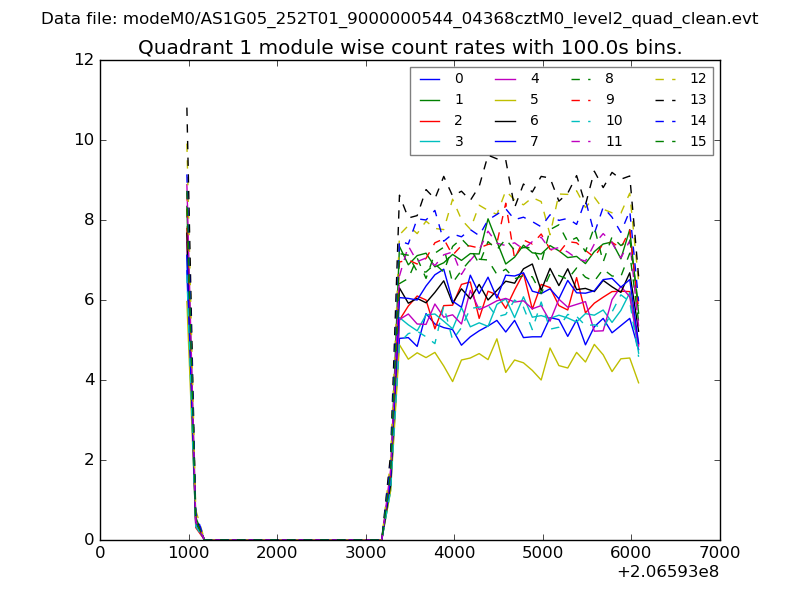

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

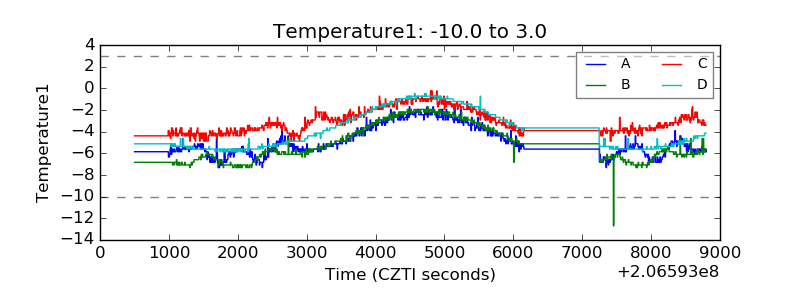

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

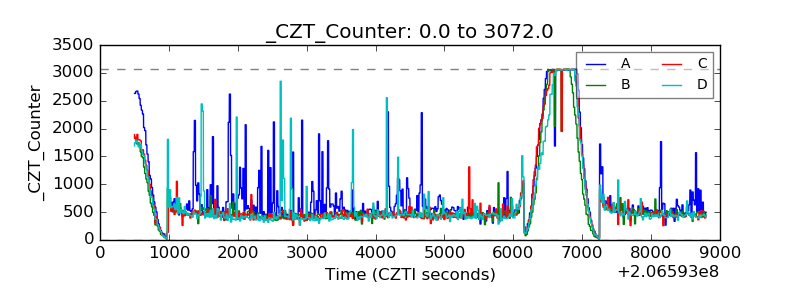

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

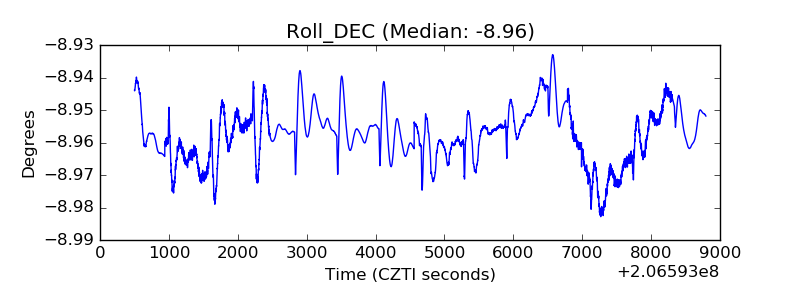

| _Roll_DEC |  |
| _Roll_RA |  |

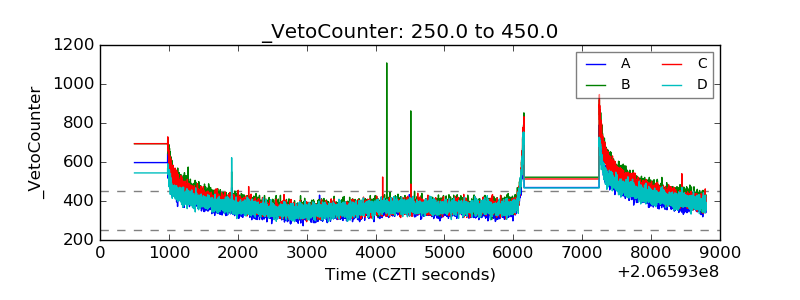

| Veto Counter |  |
