| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_252T01_9000000544_04371cztM0_level2.evt | modeM0/AS1G05_252T01_9000000544_04371cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,081,600 | 75,611,520 |
| Size | 500.8 MB | 72.1 MB |
| Events in quadrant A | 5,379,534 | 459,719 |
| Events in quadrant B | 3,084,988 | 485,021 |
| Events in quadrant C | 2,971,472 | 469,618 |
| Events in quadrant D | 4,053,482 | 450,034 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20160 | 2 |
| B | 0 | 12751 | 1 |
| C | 0 | 12630 | 1 |
| D | 0 | 16026 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6091 | 572 | 9.390905% |
| B | 6091 | 95 | 1.559678% |
| C | 6091 | 88 | 1.444755% |
| D | 6091 | 335 | 5.499918% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7355 | 6090 | 373 | 373 | 5.07% | 6.12% |  |
| B | 7356 | 6091 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7356 | 6091 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7355 | 6090 | 221 | 221 | 3.00% | 3.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 2400543 | 15550.15 | 758 | 744 | 154.3 |
| A | 0 | 50 | 36780 | 233.51 | 758 | 744 | 154.3 |
| A | 0 | 247 | 10968 | 66.25 | 758 | 744 | 154.3 |
| B | 0 | 183 | 15229 | 95.61 | 788 | 771 | 151.2 |
| B | 12 | 111 | 12610 | 78.29 | 788 | 771 | 151.2 |
| B | 15 | 204 | 11672 | 72.09 | 788 | 771 | 151.2 |
| C | 9 | 247 | 14058 | 75.64 | 753 | 756 | 175.9 |
| C | 13 | 61 | 6384 | 32.0 | 753 | 756 | 175.9 |
| C | 9 | 16 | 5779 | 28.56 | 753 | 756 | 175.9 |
| D | 12 | 233 | 302570 | 1692.29 | 742 | 720 | 178.4 |
| D | 2 | 63 | 261807 | 1463.76 | 742 | 720 | 178.4 |
| D | 2 | 37 | 205548 | 1148.35 | 742 | 720 | 178.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

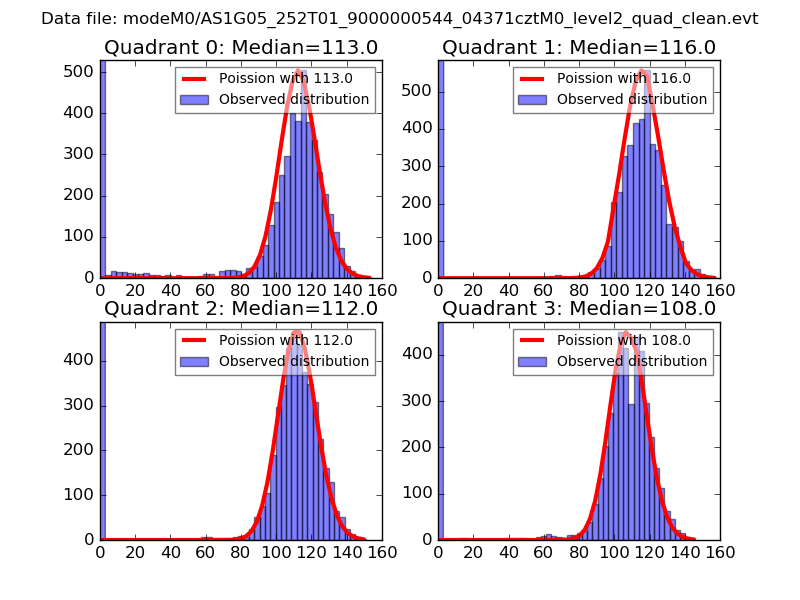

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
