| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_230T02_9000000548_04403cztM0_level2.evt | modeM0/AS1G05_230T02_9000000548_04403cztM0_level2_quad_clean.evt |
| Size (bytes) | 484,260,480 | 67,043,520 |
| Size | 461.8 MB | 63.9 MB |
| Events in quadrant A | 2,887,175 | 403,651 |
| Events in quadrant B | 4,867,892 | 383,875 |
| Events in quadrant C | 2,952,934 | 398,668 |
| Events in quadrant D | 3,517,081 | 390,971 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13393 | 2 |
| B | 0 | 18861 | 1 |
| C | 0 | 13658 | 1 |
| D | 0 | 15416 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6486 | 121 | 1.865557% |
| B | 6486 | 390 | 6.012951% |
| C | 6486 | 118 | 1.819303% |
| D | 6486 | 176 | 2.713537% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7111 | 6487 | 12 | 12 | 0.17% | 0.18% |  |
| B | 7111 | 6487 | 238 | 238 | 3.35% | 3.67% |  |
| C | 7111 | 6487 | 33 | 33 | 0.46% | 0.51% |  |
| D | 7111 | 6487 | 114 | 114 | 1.60% | 1.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 51850 | 340.4 | 728 | 710 | 150.2 |
| A | 8 | 192 | 11358 | 70.88 | 728 | 710 | 150.2 |
| A | 13 | 14 | 11251 | 70.16 | 728 | 710 | 150.2 |
| B | 10 | 16 | 1175823 | 8541.44 | 720 | 703 | 137.6 |
| B | 14 | 167 | 835740 | 6069.52 | 720 | 703 | 137.6 |
| B | 4 | 48 | 15353 | 106.48 | 720 | 703 | 137.6 |
| C | 9 | 247 | 146171 | 889.68 | 706 | 709 | 163.5 |
| C | 14 | 48 | 28858 | 172.17 | 706 | 709 | 163.5 |
| C | 12 | 4 | 17306 | 101.51 | 706 | 709 | 163.5 |
| D | 13 | 53 | 308980 | 1826.5 | 705 | 684 | 168.8 |
| D | 2 | 37 | 265460 | 1568.67 | 705 | 684 | 168.8 |
| D | 9 | 35 | 187591 | 1107.33 | 705 | 684 | 168.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

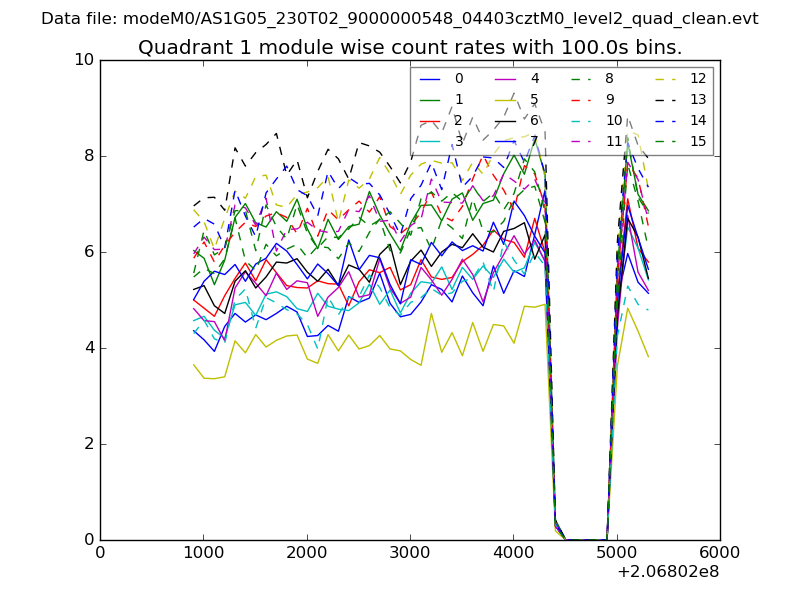

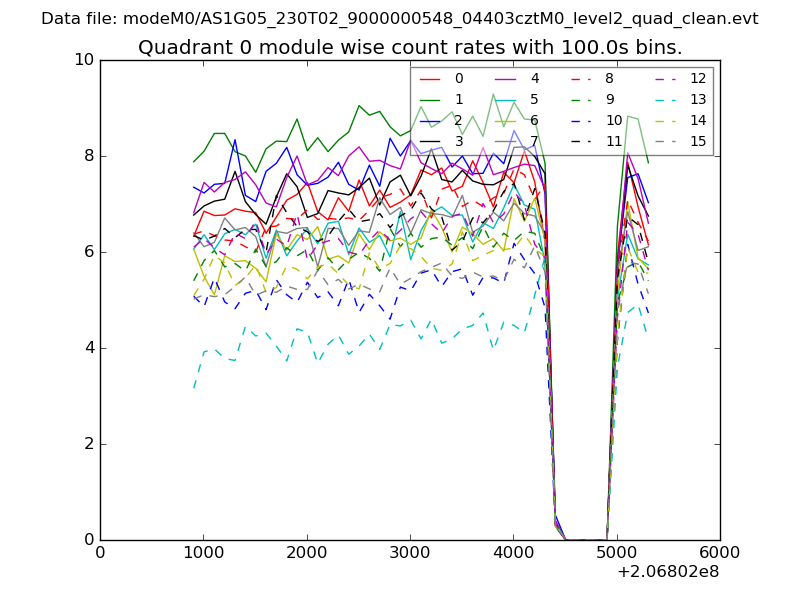

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

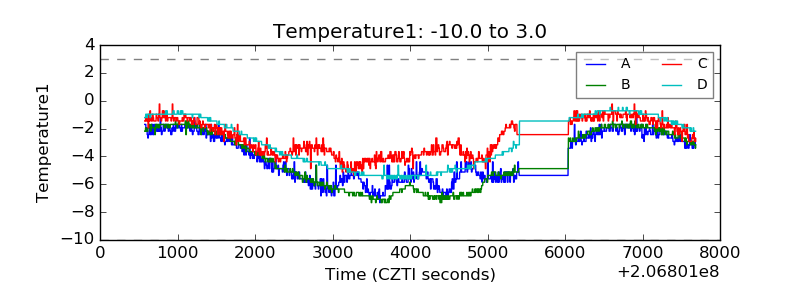

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

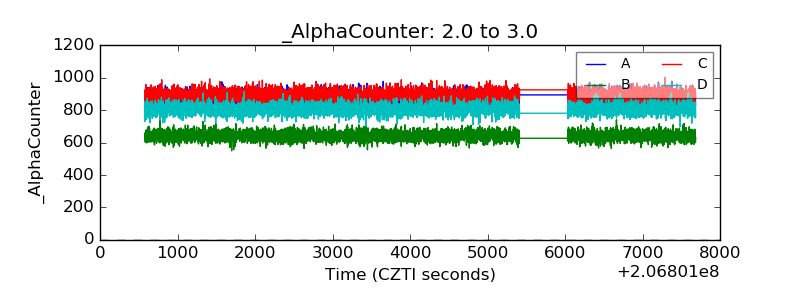

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

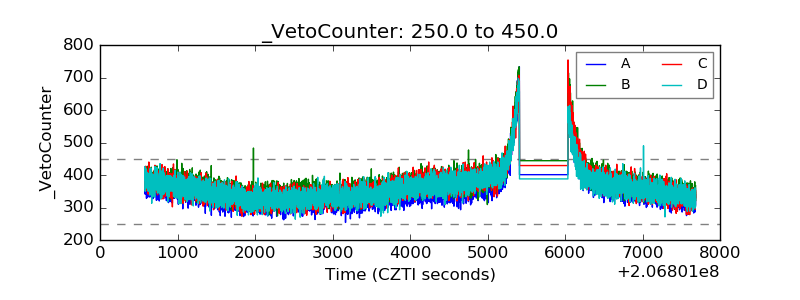

| Veto Counter |  |
