| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_230T04_9000000550_04412cztM0_level2.evt | modeM0/AS1G05_230T04_9000000550_04412cztM0_level2_quad_clean.evt |
| Size (bytes) | 417,758,400 | 87,143,040 |
| Size | 398.4 MB | 83.1 MB |
| Events in quadrant A | 3,020,809 | 549,662 |
| Events in quadrant B | 3,084,492 | 549,843 |
| Events in quadrant C | 3,004,851 | 550,653 |
| Events in quadrant D | 3,094,379 | 530,365 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13500 | 3 |
| B | 0 | 13616 | 2 |
| C | 0 | 13495 | 2 |
| D | 0 | 13989 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6570 | 48 | 0.730594% |
| B | 6570 | 42 | 0.639269% |
| C | 6570 | 27 | 0.410959% |
| D | 6570 | 67 | 1.019787% |

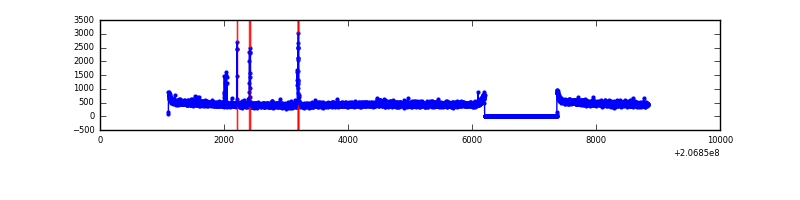

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7735 | 6571 | 16 | 16 | 0.21% | 0.24% |  |
| B | 7735 | 6571 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7735 | 6571 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7735 | 6571 | 42 | 42 | 0.54% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 59100 | 382.44 | 759 | 743 | 152.6 |
| A | 8 | 15 | 28873 | 184.35 | 759 | 743 | 152.6 |
| A | 15 | 234 | 8151 | 48.55 | 759 | 743 | 152.6 |
| B | 7 | 252 | 25983 | 173.59 | 771 | 751 | 145.4 |
| B | 12 | 18 | 16372 | 107.47 | 771 | 751 | 145.4 |
| B | 0 | 219 | 14305 | 93.25 | 771 | 751 | 145.4 |
| C | 9 | 247 | 37392 | 212.17 | 749 | 749 | 172.7 |
| C | 9 | 16 | 28525 | 160.83 | 749 | 749 | 172.7 |
| C | 14 | 48 | 6605 | 33.91 | 749 | 749 | 172.7 |
| D | 2 | 31 | 91791 | 516.17 | 739 | 718 | 176.4 |
| D | 13 | 105 | 55304 | 309.37 | 739 | 718 | 176.4 |
| D | 4 | 95 | 51187 | 286.04 | 739 | 718 | 176.4 |

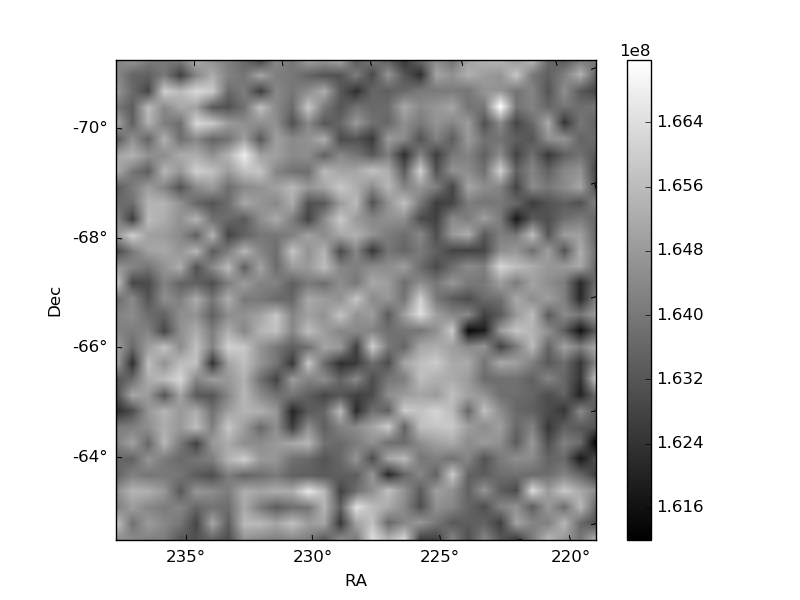

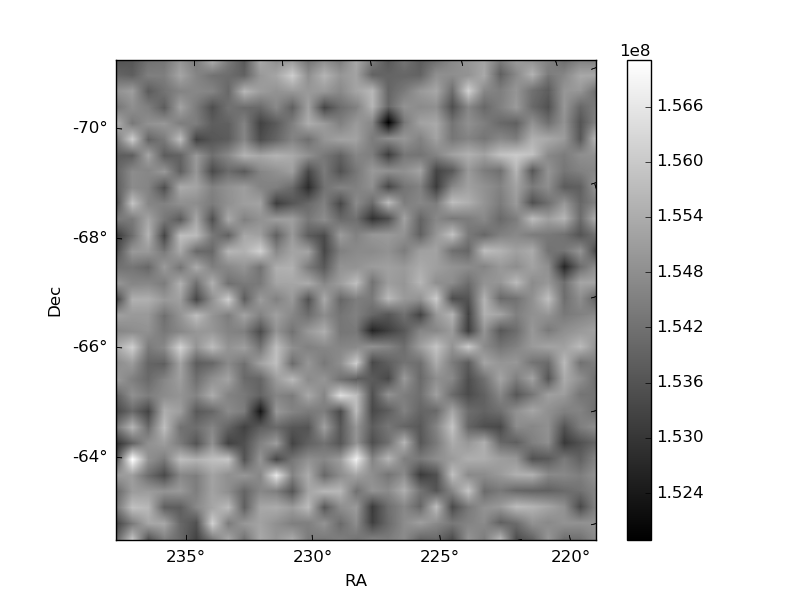

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

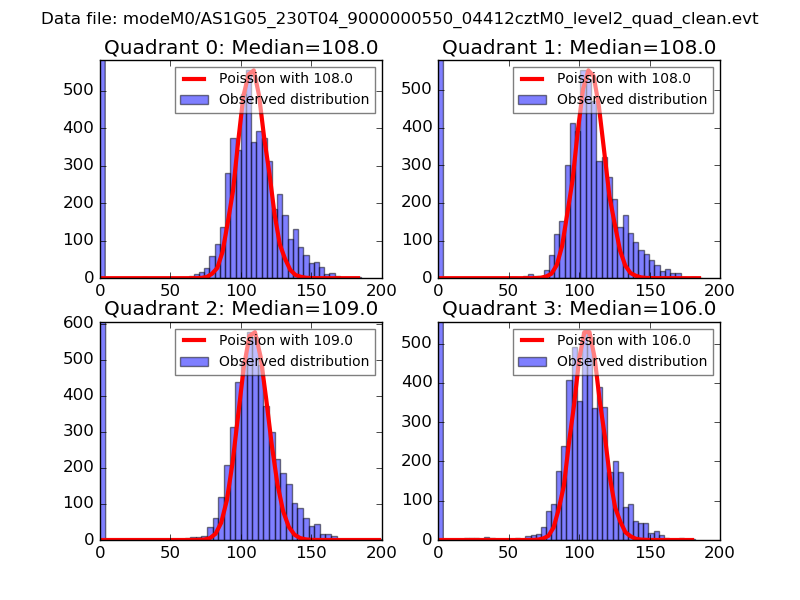

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

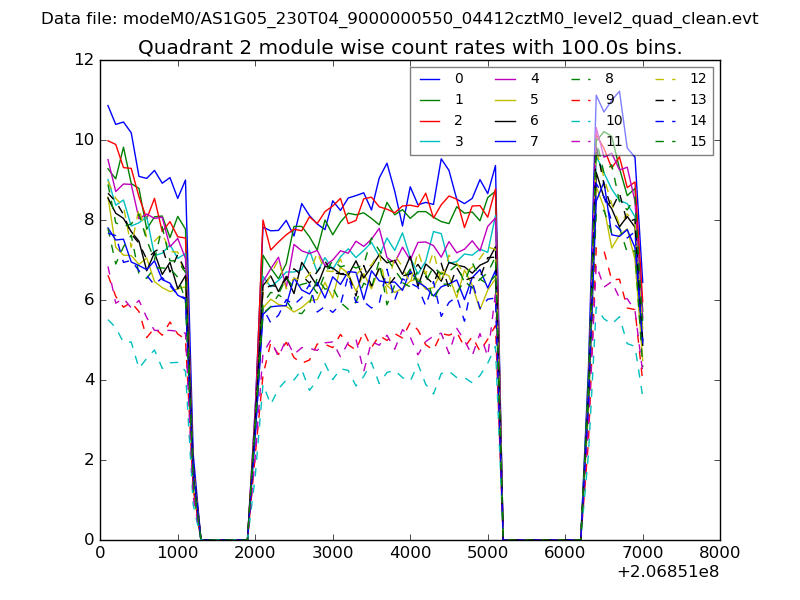

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

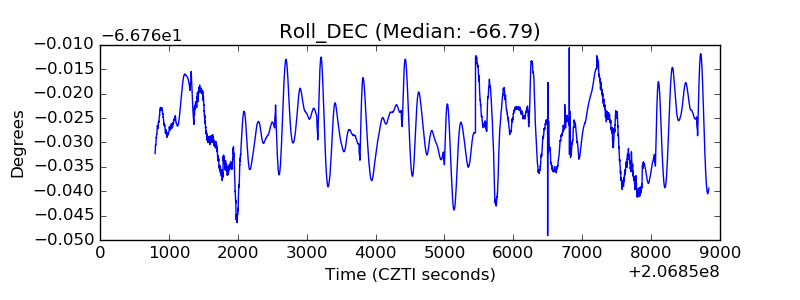

| _Roll_DEC |  |
| _Roll_RA |  |

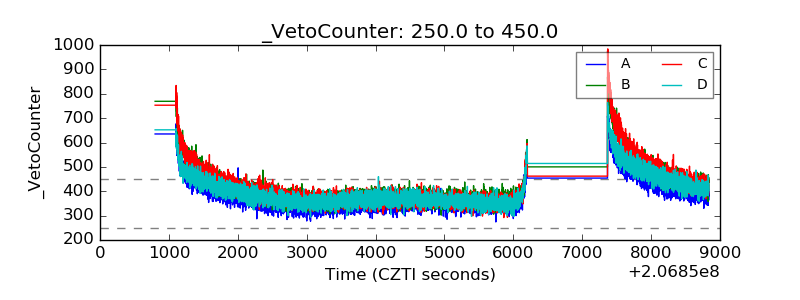

| Veto Counter |  |
