| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_230T04_9000000550_04414cztM0_level2.evt | modeM0/AS1G05_230T04_9000000550_04414cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,919,680 | 83,989,440 |
| Size | 501.6 MB | 80.1 MB |
| Events in quadrant A | 3,185,228 | 531,171 |
| Events in quadrant B | 3,991,086 | 524,356 |
| Events in quadrant C | 2,979,682 | 542,081 |
| Events in quadrant D | 5,345,326 | 506,767 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13558 | 3 |
| B | 0 | 15858 | 2 |
| C | 0 | 13034 | 2 |
| D | 0 | 20189 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6286 | 110 | 1.749920% |
| B | 6286 | 294 | 4.677060% |
| C | 6286 | 40 | 0.636335% |
| D | 6286 | 190 | 3.022590% |

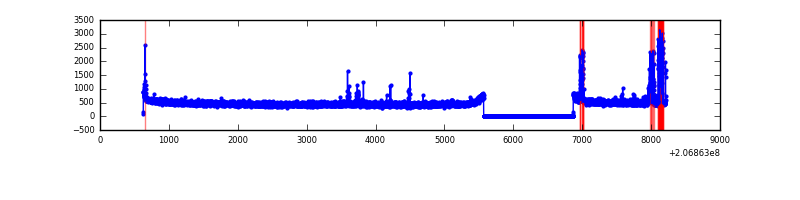

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7586 | 6287 | 48 | 48 | 0.63% | 0.76% |  |
| B | 7586 | 6287 | 202 | 202 | 2.66% | 3.21% |  |
| C | 7586 | 6287 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7586 | 6287 | 131 | 131 | 1.73% | 2.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 222363 | 1453.34 | 761 | 746 | 152.5 |
| A | 14 | 111 | 15382 | 95.98 | 761 | 746 | 152.5 |
| A | 8 | 15 | 11084 | 67.8 | 761 | 746 | 152.5 |
| B | 14 | 167 | 1004034 | 7144.6 | 761 | 744 | 140.4 |
| B | 15 | 204 | 21982 | 151.24 | 761 | 744 | 140.4 |
| B | 0 | 183 | 13937 | 93.95 | 761 | 744 | 140.4 |
| C | 9 | 247 | 23184 | 130.61 | 750 | 755 | 171.7 |
| C | 9 | 16 | 10421 | 56.29 | 750 | 755 | 171.7 |
| C | 14 | 48 | 7320 | 38.23 | 750 | 755 | 171.7 |
| D | 13 | 114 | 2269915 | 13057.07 | 738 | 718 | 173.8 |
| D | 13 | 239 | 78257 | 446.16 | 738 | 718 | 173.8 |
| D | 12 | 233 | 58715 | 333.72 | 738 | 718 | 173.8 |

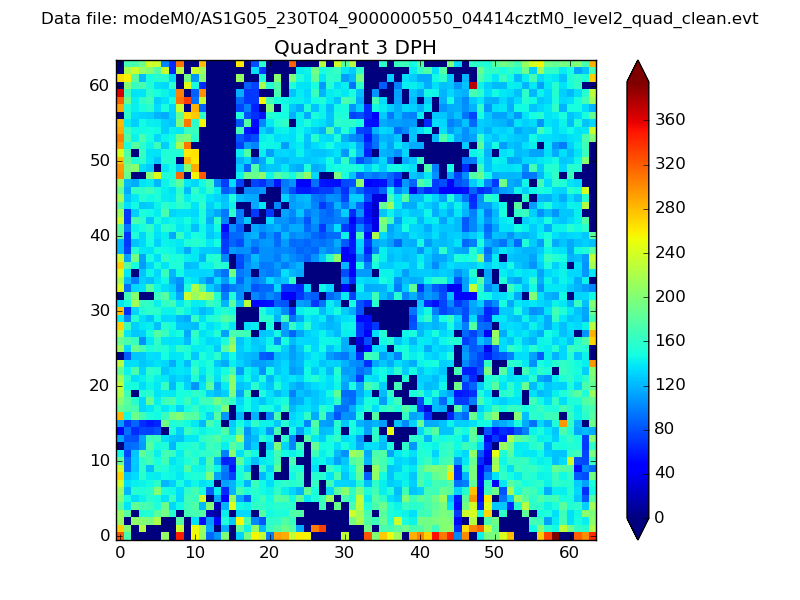

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

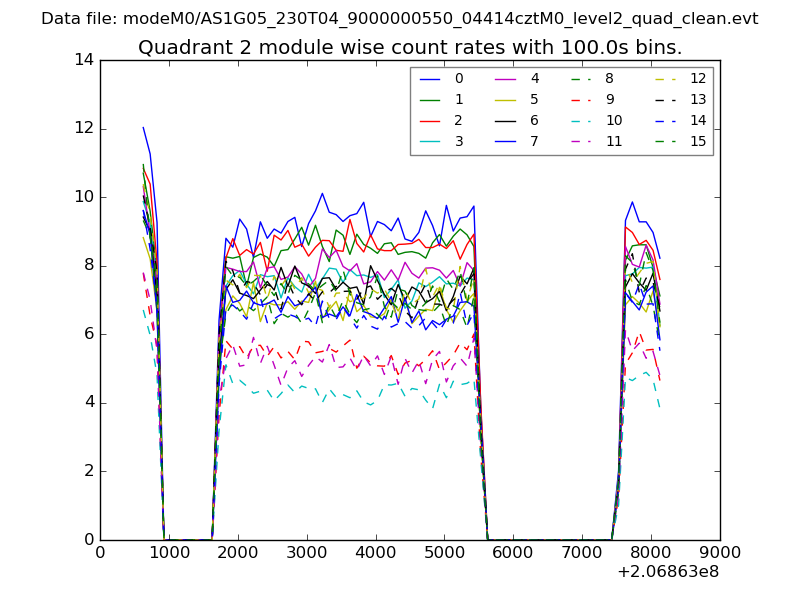

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

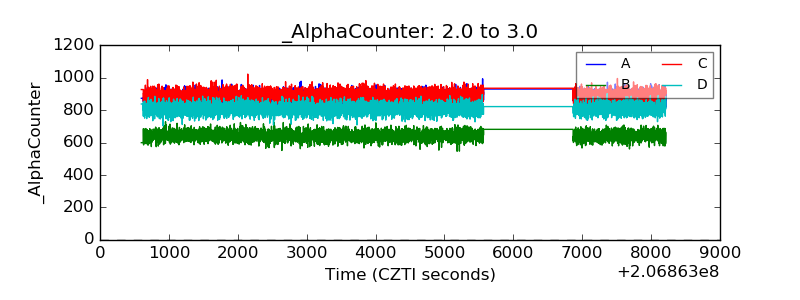

| Alpha Counter |  |
| _CPM_Rate |  |

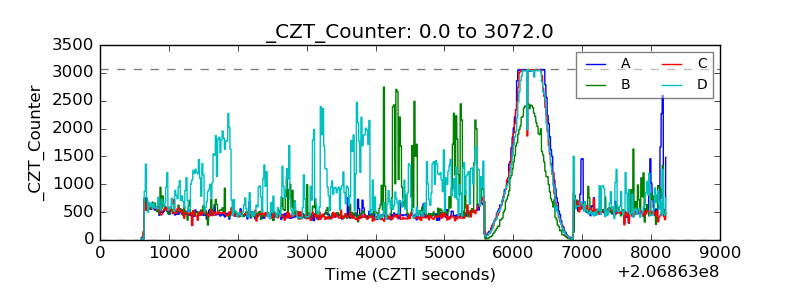

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

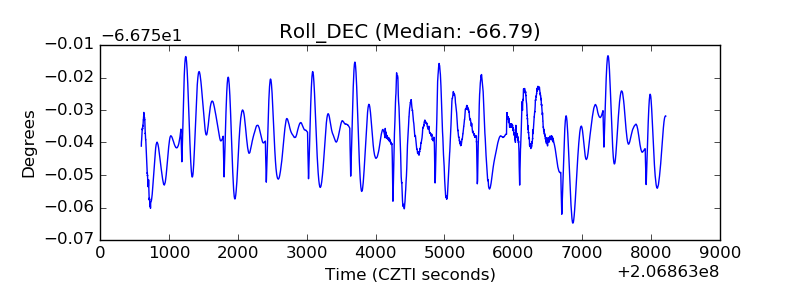

| _Roll_DEC |  |

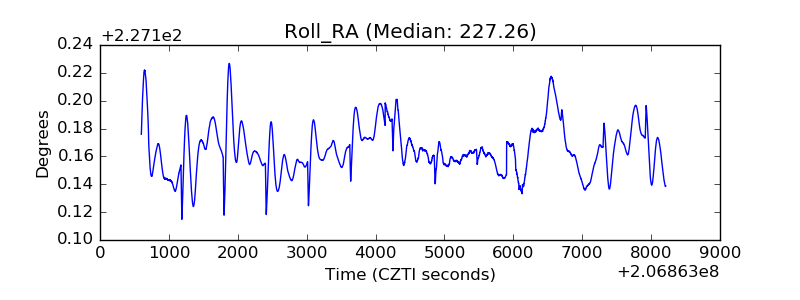

| _Roll_RA |  |

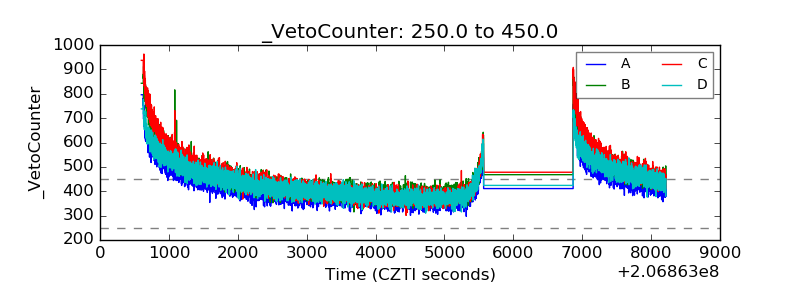

| Veto Counter |  |
