| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_230T04_9000000550_04427cztM0_level2.evt | modeM0/AS1G05_230T04_9000000550_04427cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,873,600 | 72,279,360 |
| Size | 441.4 MB | 68.9 MB |
| Events in quadrant A | 3,180,452 | 441,895 |
| Events in quadrant B | 3,868,305 | 445,967 |
| Events in quadrant C | 3,232,841 | 450,725 |
| Events in quadrant D | 3,333,814 | 435,665 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13515 | 2 |
| B | 0 | 15468 | 1 |
| C | 0 | 13601 | 1 |
| D | 0 | 14069 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5929 | 236 | 3.980435% |
| B | 5929 | 500 | 8.433125% |
| C | 5929 | 102 | 1.720358% |
| D | 5929 | 116 | 1.956485% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7104 | 5930 | 97 | 97 | 1.37% | 1.64% |  |
| B | 7104 | 5930 | 365 | 365 | 5.14% | 6.16% |  |
| C | 7104 | 5930 | 49 | 49 | 0.69% | 0.83% |  |
| D | 7104 | 5930 | 60 | 60 | 0.84% | 1.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 450237 | 3230.88 | 687 | 673 | 139.1 |
| A | 0 | 50 | 76777 | 546.94 | 687 | 673 | 139.1 |
| A | 0 | 226 | 7137 | 46.45 | 687 | 673 | 139.1 |
| B | 14 | 167 | 966674 | 7494.03 | 683 | 666 | 128.9 |
| B | 10 | 16 | 182297 | 1409.04 | 683 | 666 | 128.9 |
| B | 4 | 170 | 48058 | 367.65 | 683 | 666 | 128.9 |
| C | 14 | 48 | 500551 | 3184.41 | 684 | 685 | 157.0 |
| C | 9 | 16 | 40730 | 255.11 | 684 | 685 | 157.0 |
| C | 9 | 247 | 14437 | 87.61 | 684 | 685 | 157.0 |
| D | 13 | 114 | 306425 | 1896.53 | 677 | 656 | 161.2 |
| D | 2 | 136 | 234263 | 1448.95 | 677 | 656 | 161.2 |
| D | 13 | 53 | 61437 | 376.99 | 677 | 656 | 161.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

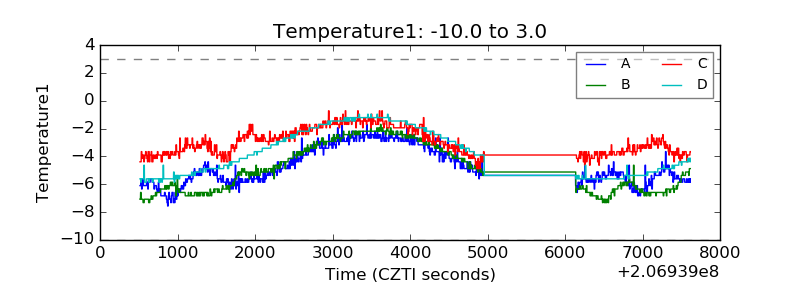

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

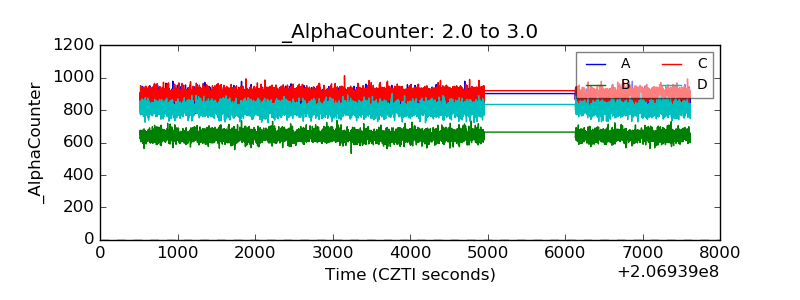

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

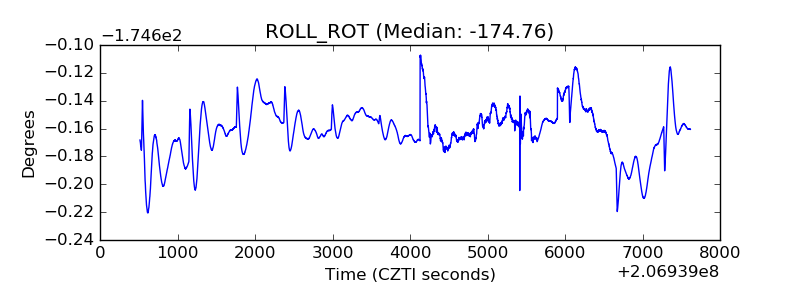

| _ROLL_ROT |  |
| _Roll_DEC |  |

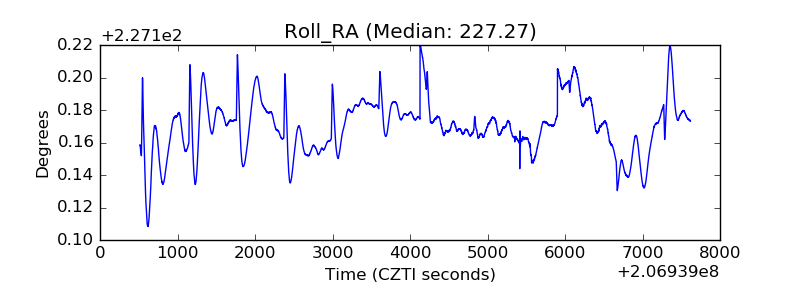

| _Roll_RA |  |

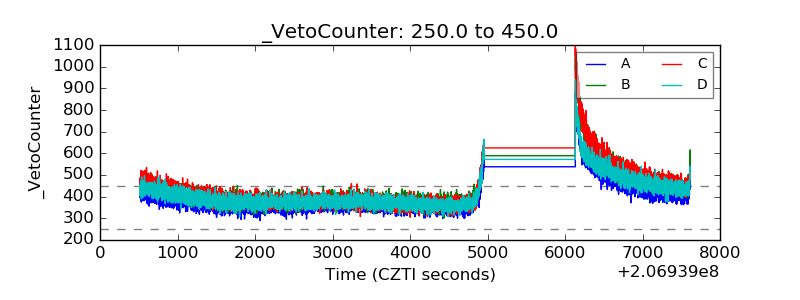

| Veto Counter |  |
