| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000552_04432cztM0_level2.evt | modeM0/AS1G05_214T01_9000000552_04432cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,187,520 | 71,784,000 |
| Size | 424.6 MB | 68.5 MB |
| Events in quadrant A | 3,226,046 | 427,019 |
| Events in quadrant B | 3,402,709 | 438,177 |
| Events in quadrant C | 3,055,016 | 434,267 |
| Events in quadrant D | 3,346,824 | 411,202 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14052 | 2 |
| B | 0 | 14479 | 1 |
| C | 0 | 13681 | 1 |
| D | 0 | 14581 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6644 | 199 | 2.995184% |
| B | 6644 | 225 | 3.386514% |
| C | 6644 | 146 | 2.197471% |
| D | 6620 | 164 | 2.477341% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7149 | 6645 | 14 | 14 | 0.20% | 0.21% |  |
| B | 7149 | 6645 | 33 | 33 | 0.46% | 0.50% |  |
| C | 7149 | 6645 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7149 | 6622 | 26 | 26 | 0.36% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 149152 | 914.41 | 790 | 771 | 162.3 |
| A | 0 | 50 | 30364 | 182.37 | 790 | 771 | 162.3 |
| A | 12 | 194 | 7896 | 43.91 | 790 | 771 | 162.3 |
| B | 14 | 167 | 250200 | 1615.92 | 797 | 777 | 154.4 |
| B | 15 | 204 | 48369 | 308.33 | 797 | 777 | 154.4 |
| B | 0 | 228 | 15523 | 95.53 | 797 | 777 | 154.4 |
| C | 9 | 247 | 21727 | 115.2 | 773 | 776 | 181.9 |
| C | 9 | 16 | 12216 | 62.91 | 773 | 776 | 181.9 |
| C | 13 | 61 | 6272 | 30.22 | 773 | 776 | 181.9 |
| D | 13 | 239 | 178065 | 962.1 | 762 | 739 | 184.3 |
| D | 12 | 16 | 93613 | 503.9 | 762 | 739 | 184.3 |
| D | 2 | 63 | 71579 | 384.35 | 762 | 739 | 184.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

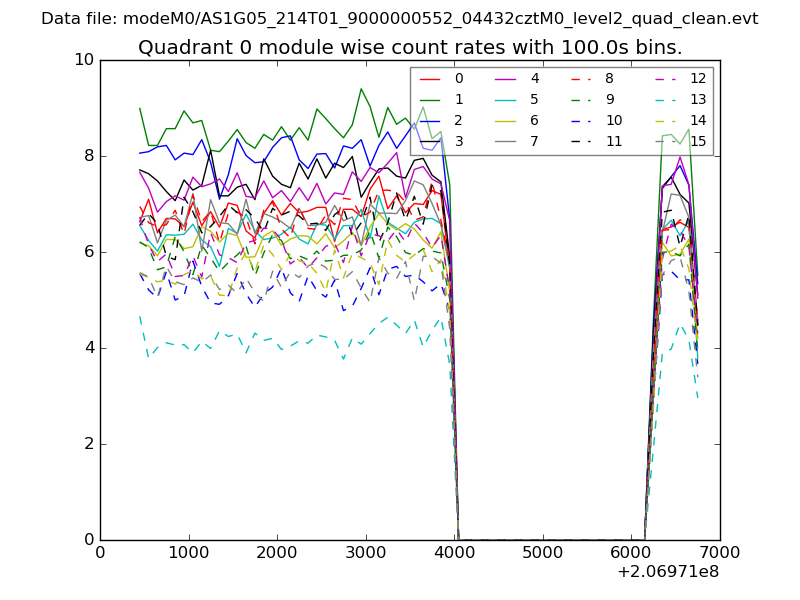

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
