| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000552_04434cztM0_level2.evt | modeM0/AS1G05_214T01_9000000552_04434cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,313,920 | 85,299,840 |
| Size | 481.0 MB | 81.3 MB |
| Events in quadrant A | 3,771,061 | 513,257 |
| Events in quadrant B | 3,626,864 | 527,130 |
| Events in quadrant C | 3,488,642 | 525,254 |
| Events in quadrant D | 3,874,303 | 493,028 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16472 | 2 |
| B | 0 | 15808 | 1 |
| C | 0 | 15667 | 1 |
| D | 0 | 16892 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7537 | 243 | 3.224094% |
| B | 7537 | 225 | 2.985273% |
| C | 7537 | 176 | 2.335147% |
| D | 7537 | 294 | 3.900756% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

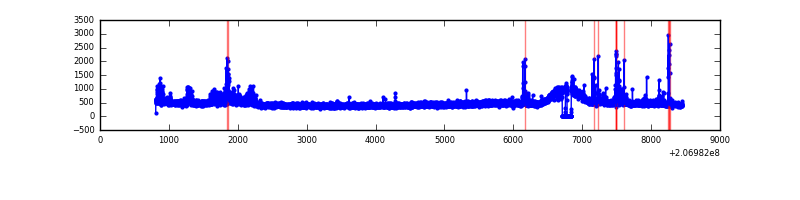

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7642 | 7539 | 14 | 14 | 0.18% | 0.19% |  |
| B | 7642 | 7539 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7642 | 7539 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7642 | 7539 | 105 | 105 | 1.37% | 1.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 294838 | 1580.65 | 903 | 883 | 186.0 |
| A | 12 | 194 | 9059 | 43.96 | 903 | 883 | 186.0 |
| A | 0 | 226 | 8828 | 42.72 | 903 | 883 | 186.0 |
| B | 14 | 167 | 50460 | 279.44 | 917 | 895 | 177.4 |
| B | 4 | 48 | 23439 | 127.1 | 917 | 895 | 177.4 |
| B | 12 | 111 | 17308 | 92.54 | 917 | 895 | 177.4 |
| C | 9 | 247 | 8434 | 35.74 | 890 | 892 | 211.0 |
| C | 13 | 61 | 7296 | 30.35 | 890 | 892 | 211.0 |
| C | 12 | 4 | 3275 | 11.29 | 890 | 892 | 211.0 |
| D | 14 | 34 | 270914 | 1259.69 | 879 | 855 | 214.4 |
| D | 13 | 239 | 118550 | 548.99 | 879 | 855 | 214.4 |
| D | 8 | 230 | 36686 | 167.13 | 879 | 855 | 214.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

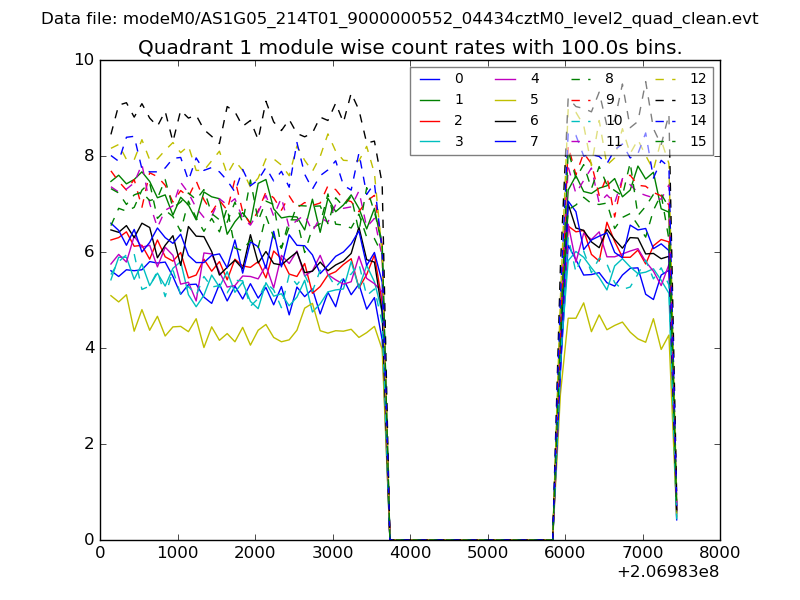

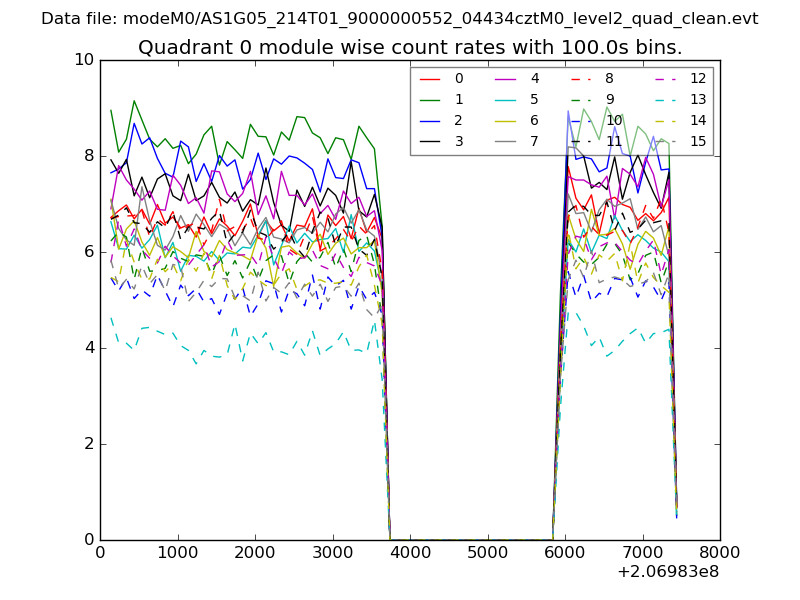

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

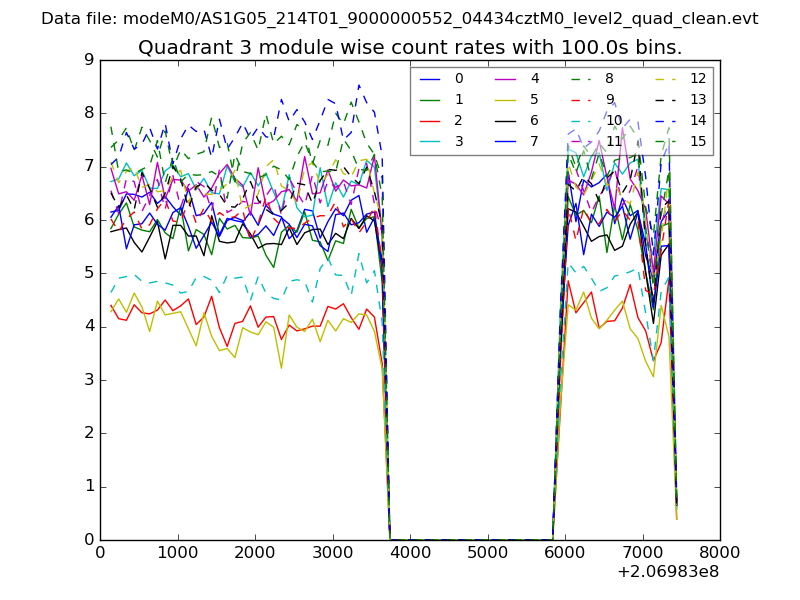

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

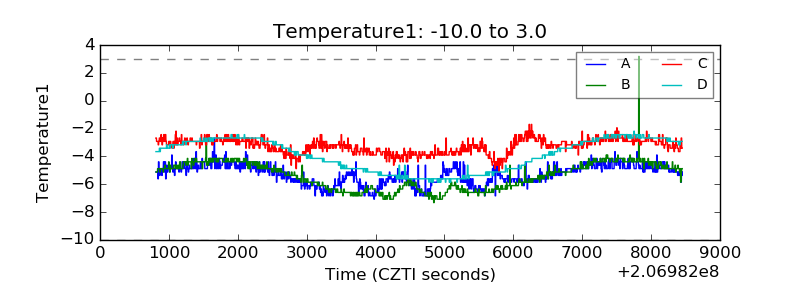

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

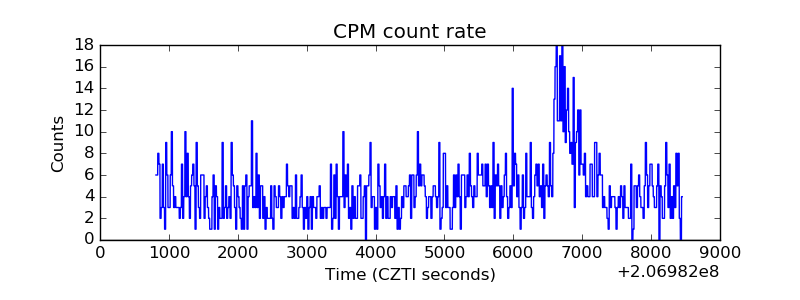

| _CPM_Rate |  |

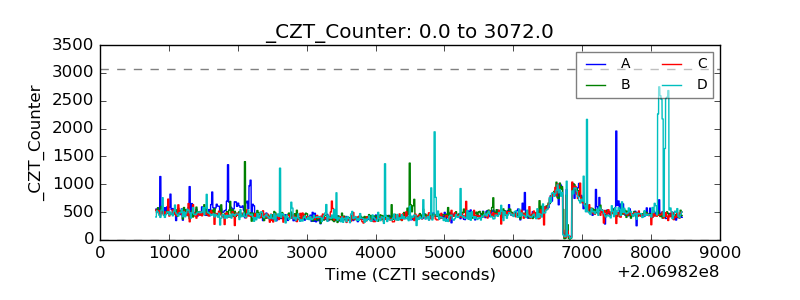

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

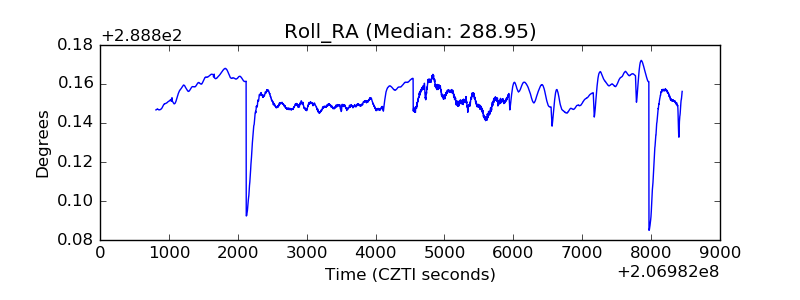

| _Roll_RA |  |
| Veto Counter |  |
