| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_214T01_9000000552_04438cztM0_level2.evt | modeM0/AS1G05_214T01_9000000552_04438cztM0_level2_quad_clean.evt |
| Size (bytes) | 362,652,480 | 54,241,920 |
| Size | 345.9 MB | 51.7 MB |
| Events in quadrant A | 2,313,110 | 316,188 |
| Events in quadrant B | 2,387,911 | 322,898 |
| Events in quadrant C | 3,453,900 | 322,997 |
| Events in quadrant D | 2,467,591 | 309,394 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10733 | 0 |
| B | 0 | 10837 | 0 |
| C | 0 | 14184 | 0 |
| D | 0 | 11337 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5291 | 40 | 0.756001% |
| B | 5291 | 40 | 0.756001% |
| C | 5291 | 186 | 3.515404% |
| D | 5291 | 33 | 0.623701% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

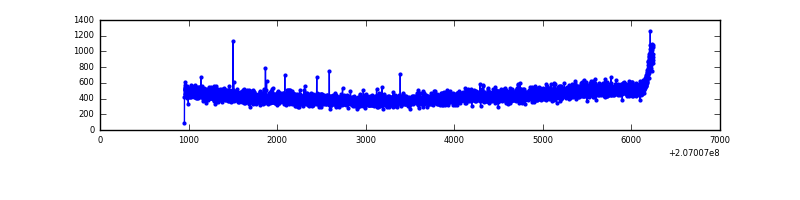

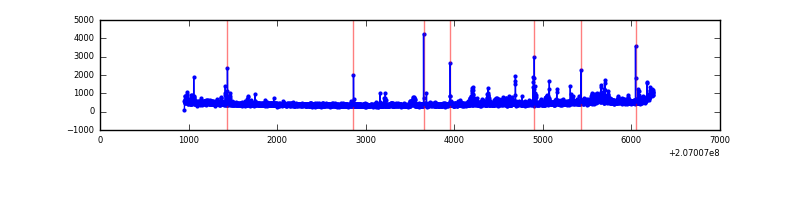

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5291 | 5291 | 0 | 0 | 0.00% | 0.00% |  |
| B | 5291 | 5291 | 0 | 0 | 0.00% | 0.00% |  |
| C | 5291 | 5291 | 182 | 182 | 3.44% | 3.44% |  |
| D | 5291 | 5291 | 7 | 7 | 0.13% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 194 | 5925 | 43.31 | 600 | 587 | 123.2 |
| A | 0 | 226 | 5806 | 42.35 | 600 | 587 | 123.2 |
| A | 10 | 17 | 1870 | 10.41 | 600 | 587 | 123.2 |
| B | 4 | 48 | 14779 | 120.58 | 607 | 594 | 117.6 |
| B | 12 | 111 | 11393 | 91.8 | 607 | 594 | 117.6 |
| B | 11 | 111 | 8864 | 70.3 | 607 | 594 | 117.6 |
| C | 9 | 247 | 1152036 | 8316.32 | 582 | 585 | 138.5 |
| C | 7 | 239 | 19308 | 135.23 | 582 | 585 | 138.5 |
| C | 14 | 48 | 9014 | 60.88 | 582 | 585 | 138.5 |
| D | 2 | 63 | 185762 | 1219.43 | 579 | 564 | 151.9 |
| D | 13 | 239 | 30213 | 195.22 | 579 | 564 | 151.9 |
| D | 8 | 112 | 17329 | 110.39 | 579 | 564 | 151.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

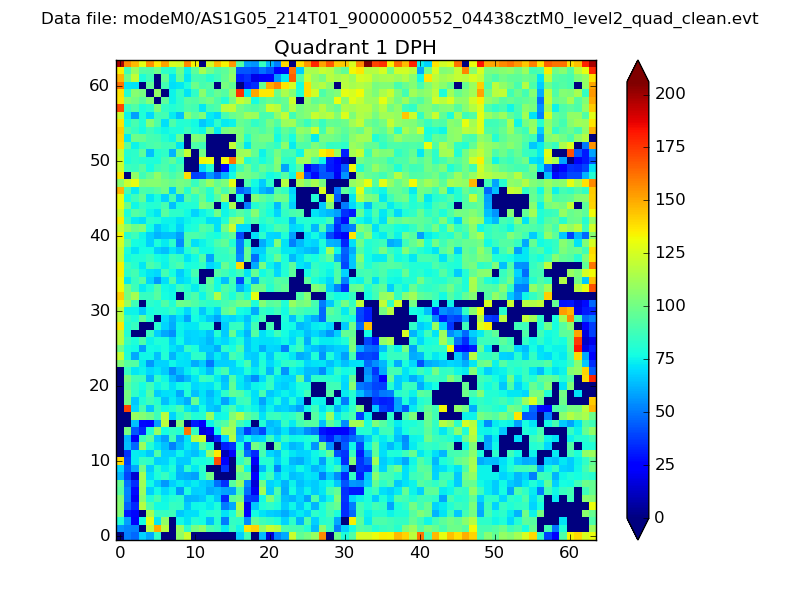

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

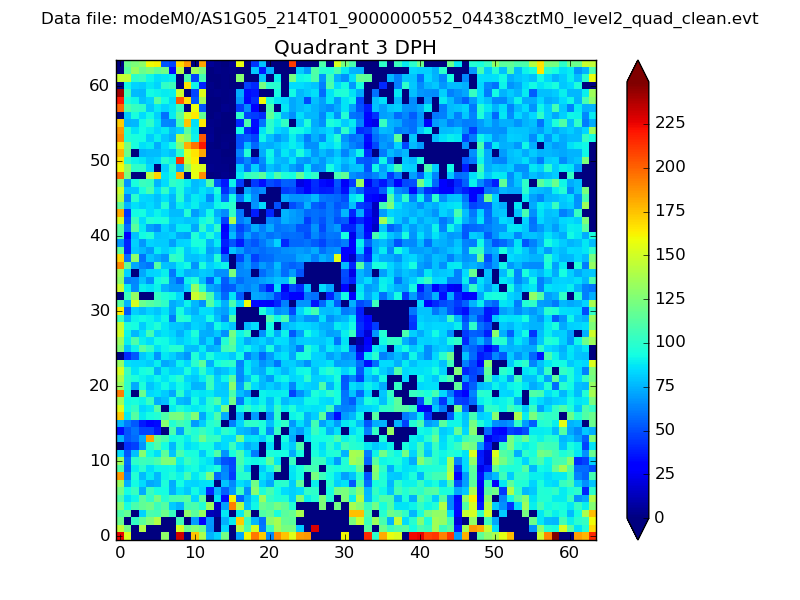

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

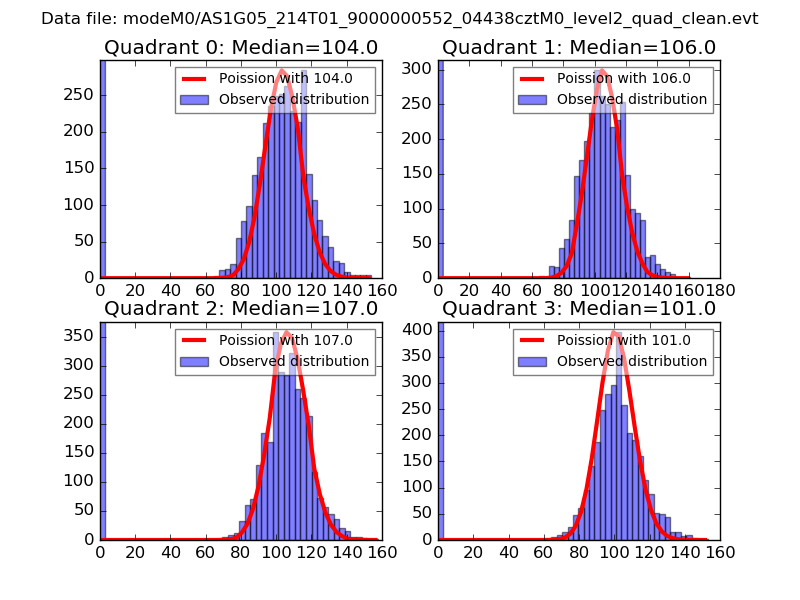

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

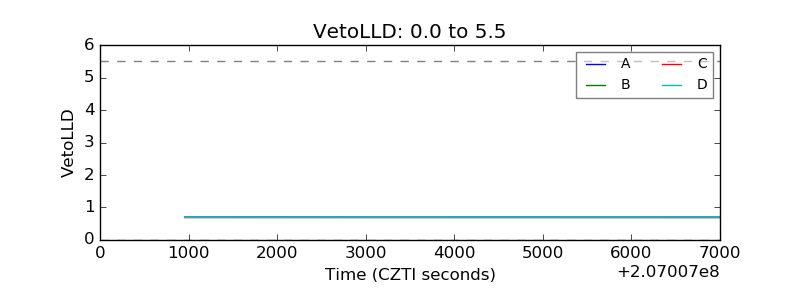

| Veto LLD |  |

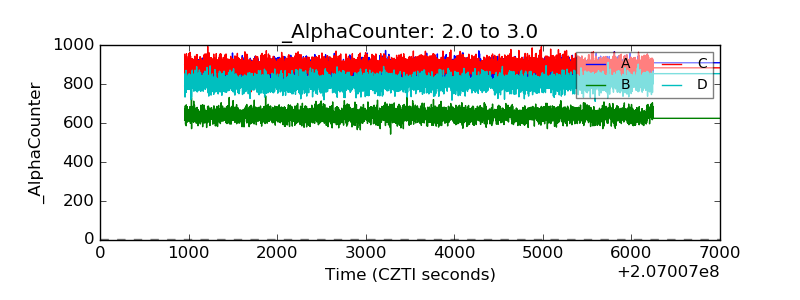

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
