| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_253T01_9000000560_04446cztM0_level2.evt | modeM0/AS1G05_253T01_9000000560_04446cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,116,800 | 78,189,120 |
| Size | 414.0 MB | 74.6 MB |
| Events in quadrant A | 3,443,948 | 480,402 |
| Events in quadrant B | 2,982,157 | 482,853 |
| Events in quadrant C | 3,194,586 | 481,408 |
| Events in quadrant D | 3,082,756 | 468,171 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14890 | 2 |
| B | 0 | 13339 | 1 |
| C | 0 | 14121 | 1 |
| D | 0 | 14001 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6515 | 252 | 3.867997% |
| B | 6515 | 116 | 1.780507% |
| C | 6515 | 124 | 1.903300% |
| D | 6514 | 121 | 1.857538% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7255 | 6516 | 71 | 71 | 0.98% | 1.09% |  |
| B | 7255 | 6516 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7255 | 6516 | 36 | 36 | 0.50% | 0.55% |  |
| D | 7255 | 6516 | 33 | 33 | 0.45% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 498019 | 3265.28 | 748 | 733 | 152.3 |
| A | 0 | 118 | 37203 | 239.47 | 748 | 733 | 152.3 |
| A | 15 | 169 | 10998 | 67.4 | 748 | 733 | 152.3 |
| B | 15 | 204 | 30897 | 208.77 | 757 | 736 | 144.5 |
| B | 12 | 111 | 13005 | 84.93 | 757 | 736 | 144.5 |
| B | 4 | 48 | 12187 | 79.26 | 757 | 736 | 144.5 |
| C | 9 | 16 | 237537 | 1412.3 | 724 | 727 | 167.7 |
| C | 9 | 247 | 78193 | 462.0 | 724 | 727 | 167.7 |
| C | 14 | 48 | 39637 | 232.05 | 724 | 727 | 167.7 |
| D | 13 | 239 | 88455 | 495.79 | 728 | 706 | 177.0 |
| D | 8 | 112 | 55193 | 307.86 | 728 | 706 | 177.0 |
| D | 12 | 233 | 51624 | 287.69 | 728 | 706 | 177.0 |

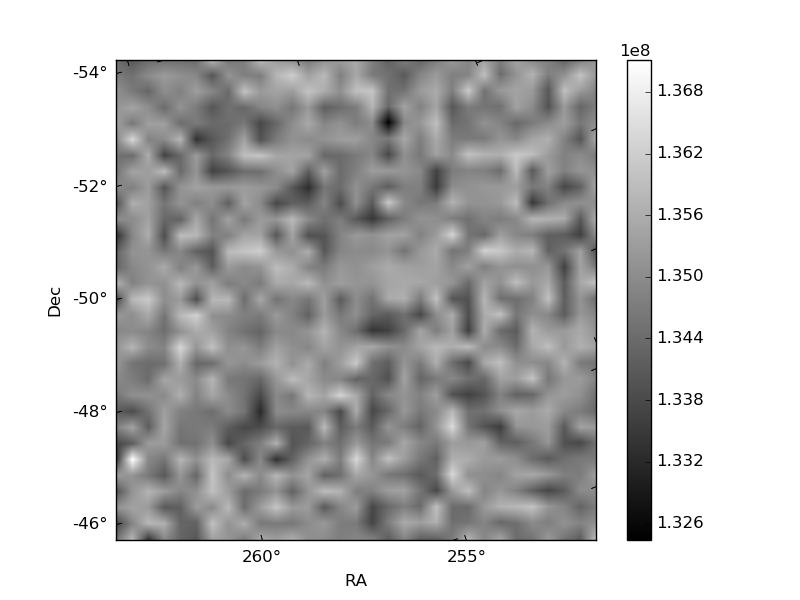

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

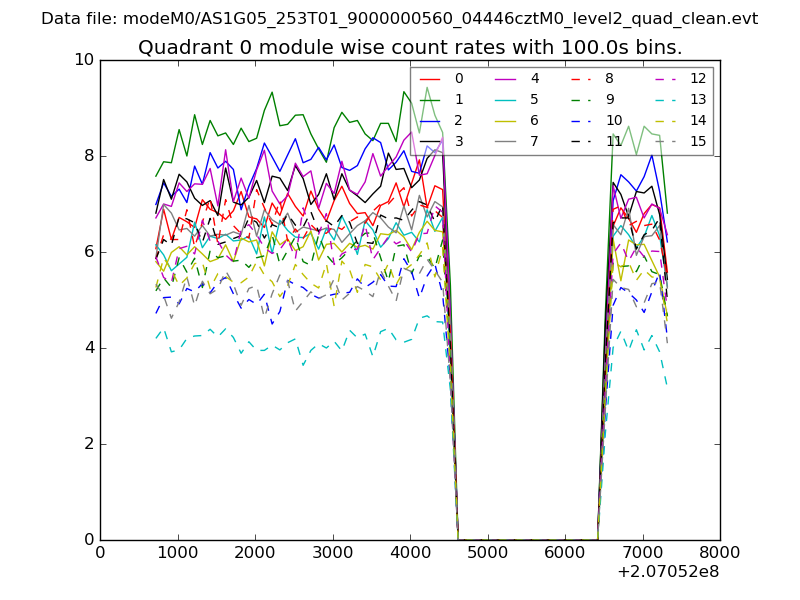

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

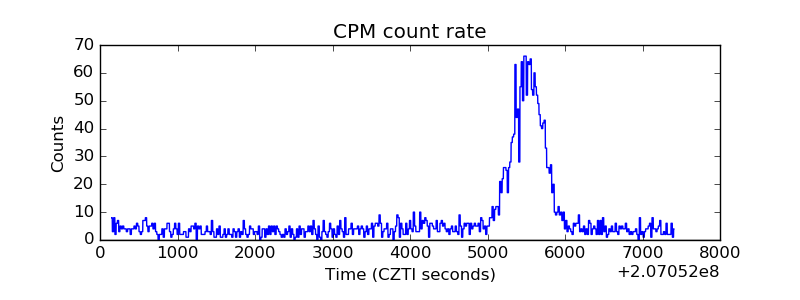

| _CPM_Rate |  |

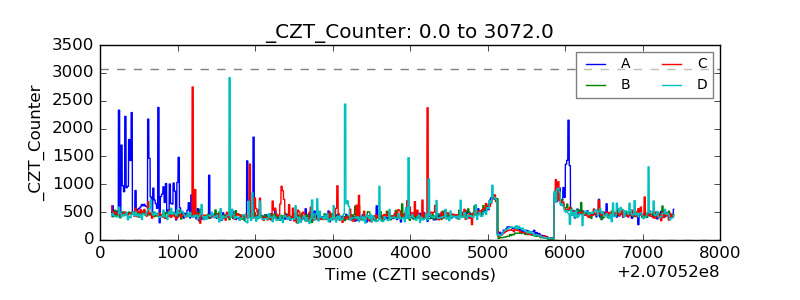

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

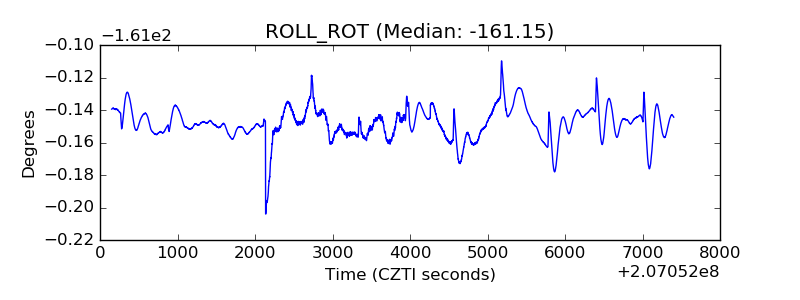

| _ROLL_ROT |  |

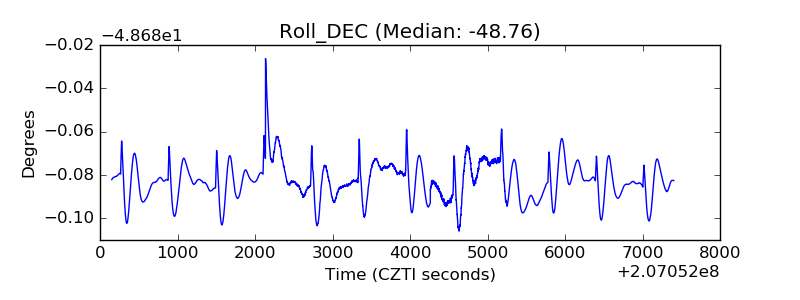

| _Roll_DEC |  |
| _Roll_RA |  |

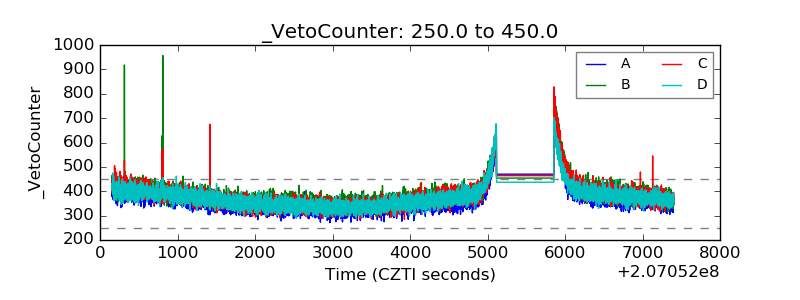

| Veto Counter |  |
