| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_253T01_9000000560_04460cztM0_level2.evt | modeM0/AS1G05_253T01_9000000560_04460cztM0_level2_quad_clean.evt |
| Size (bytes) | 403,968,960 | 74,119,680 |
| Size | 385.3 MB | 70.7 MB |
| Events in quadrant A | 2,926,760 | 452,595 |
| Events in quadrant B | 2,952,958 | 454,005 |
| Events in quadrant C | 2,832,960 | 459,820 |
| Events in quadrant D | 3,097,166 | 442,577 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13027 | 2 |
| B | 0 | 12824 | 1 |
| C | 0 | 12823 | 1 |
| D | 0 | 13470 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6231 | 111 | 1.781416% |
| B | 6231 | 85 | 1.364147% |
| C | 6231 | 83 | 1.332049% |
| D | 6231 | 101 | 1.620928% |

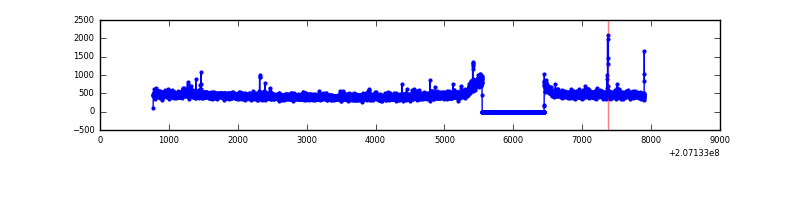

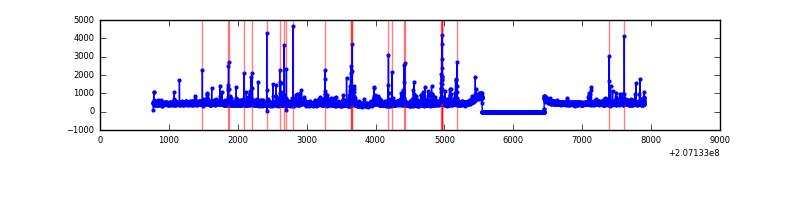

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7131 | 6232 | 15 | 15 | 0.21% | 0.24% |  |
| B | 7131 | 6232 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7131 | 6232 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7131 | 6232 | 27 | 27 | 0.38% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 100826 | 672.25 | 725 | 709 | 148.9 |
| A | 15 | 234 | 18051 | 116.44 | 725 | 709 | 148.9 |
| A | 0 | 226 | 7761 | 47.35 | 725 | 709 | 148.9 |
| B | 15 | 204 | 37622 | 260.84 | 732 | 716 | 141.5 |
| B | 15 | 185 | 25228 | 173.25 | 732 | 716 | 141.5 |
| B | 4 | 48 | 14116 | 94.71 | 732 | 716 | 141.5 |
| C | 14 | 48 | 42877 | 256.07 | 708 | 709 | 164.7 |
| C | 9 | 16 | 12935 | 74.24 | 708 | 709 | 164.7 |
| C | 9 | 247 | 7868 | 43.47 | 708 | 709 | 164.7 |
| D | 13 | 235 | 114679 | 673.26 | 704 | 682 | 169.3 |
| D | 2 | 136 | 65974 | 385.61 | 704 | 682 | 169.3 |
| D | 8 | 112 | 49343 | 287.39 | 704 | 682 | 169.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

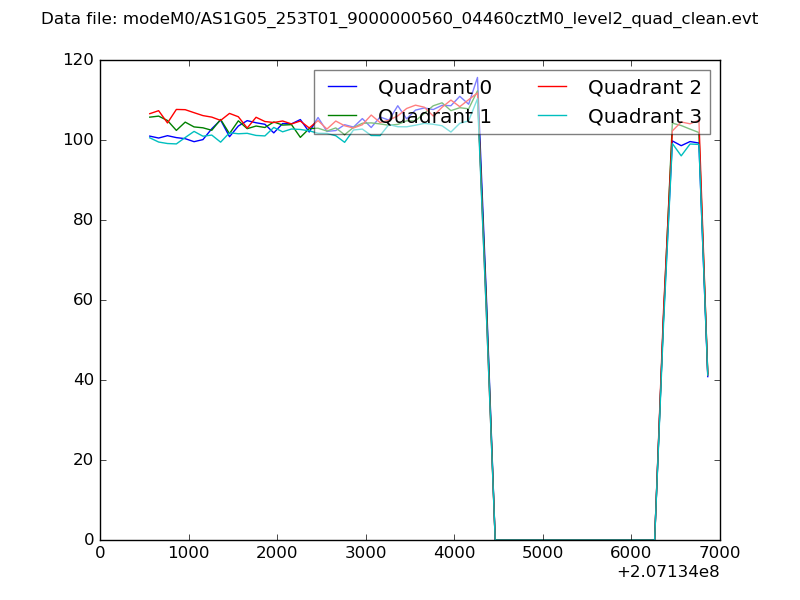

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

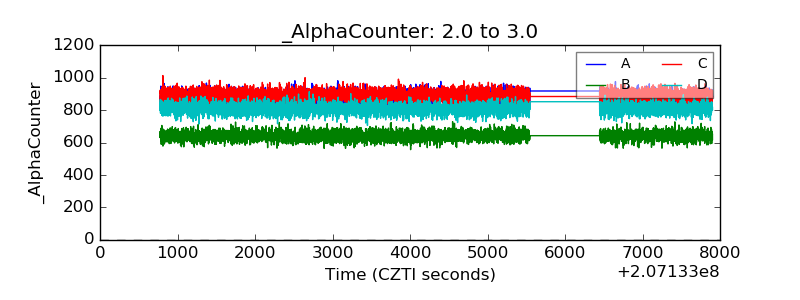

| Alpha Counter |  |
| _CPM_Rate |  |

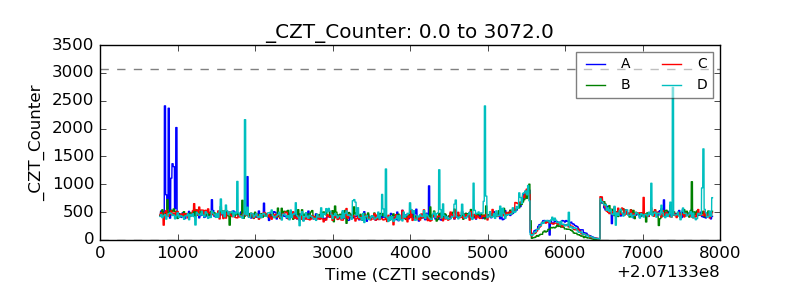

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

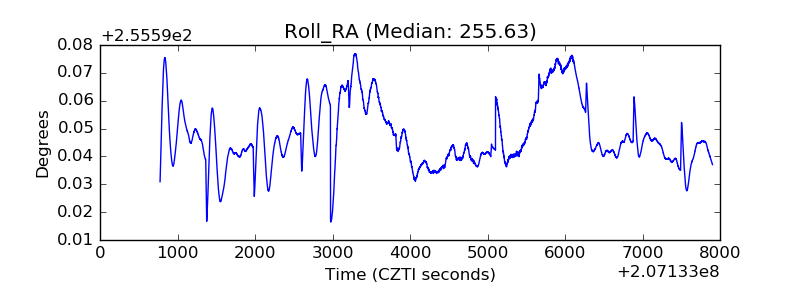

| _ROLL_ROT |  |

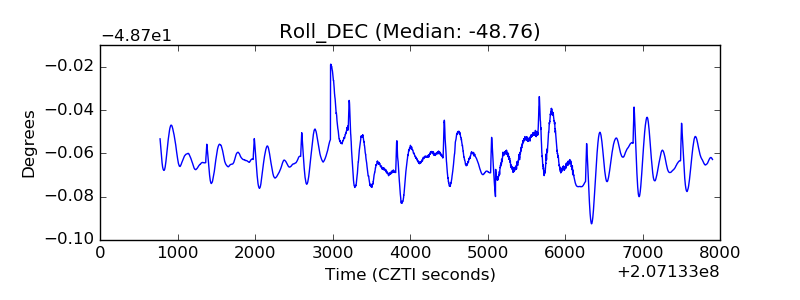

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
