| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_253T03_9000000562_04471cztM0_level2.evt | modeM0/AS1G05_253T03_9000000562_04471cztM0_level2_quad_clean.evt |
| Size (bytes) | 462,156,480 | 53,740,800 |
| Size | 440.7 MB | 51.3 MB |
| Events in quadrant A | 3,051,774 | 302,915 |
| Events in quadrant B | 2,921,424 | 310,456 |
| Events in quadrant C | 2,785,536 | 310,415 |
| Events in quadrant D | 4,836,675 | 290,657 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12986 | 2 |
| B | 0 | 12391 | 1 |
| C | 0 | 12126 | 1 |
| D | 0 | 18144 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5902 | 49 | 0.830227% |
| B | 5902 | 21 | 0.355812% |
| C | 5902 | 18 | 0.304981% |
| D | 5902 | 633 | 10.725178% |

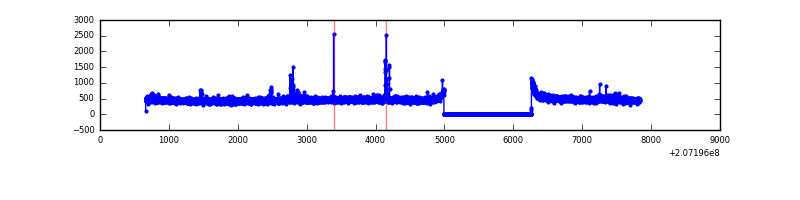

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7172 | 5903 | 15 | 15 | 0.21% | 0.25% |  |
| B | 7172 | 5903 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7172 | 5903 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7172 | 5903 | 557 | 557 | 7.77% | 9.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 244208 | 1692.6 | 704 | 690 | 143.9 |
| A | 0 | 13 | 66233 | 455.56 | 704 | 690 | 143.9 |
| A | 0 | 118 | 28041 | 190.11 | 704 | 690 | 143.9 |
| B | 15 | 204 | 74791 | 538.25 | 720 | 704 | 137.6 |
| B | 15 | 185 | 23610 | 166.41 | 720 | 704 | 137.6 |
| B | 4 | 48 | 21233 | 149.14 | 720 | 704 | 137.6 |
| C | 9 | 16 | 42140 | 256.82 | 697 | 702 | 161.4 |
| C | 14 | 48 | 12581 | 73.62 | 697 | 702 | 161.4 |
| C | 13 | 61 | 5784 | 31.5 | 697 | 702 | 161.4 |
| D | 8 | 112 | 1567905 | 9856.35 | 656 | 638 | 159.0 |
| D | 13 | 235 | 390046 | 2448.94 | 656 | 638 | 159.0 |
| D | 12 | 79 | 185286 | 1161.23 | 656 | 638 | 159.0 |

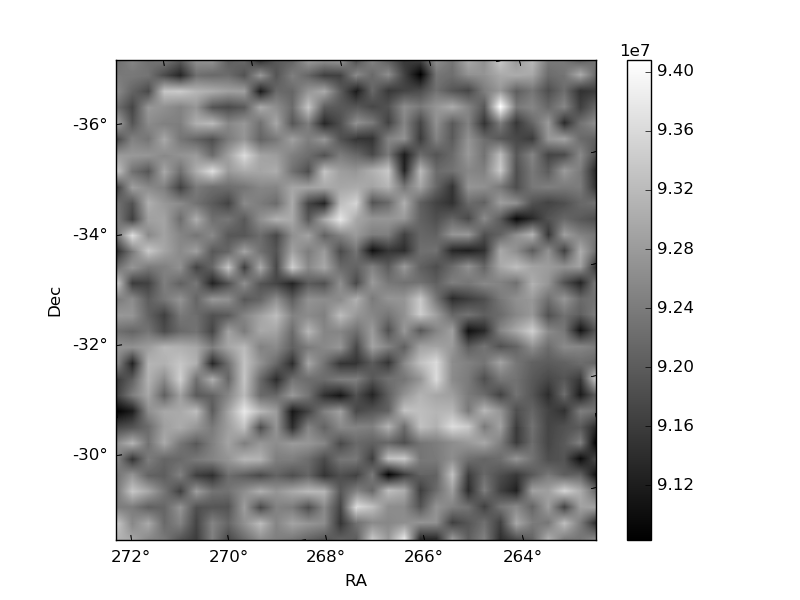

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

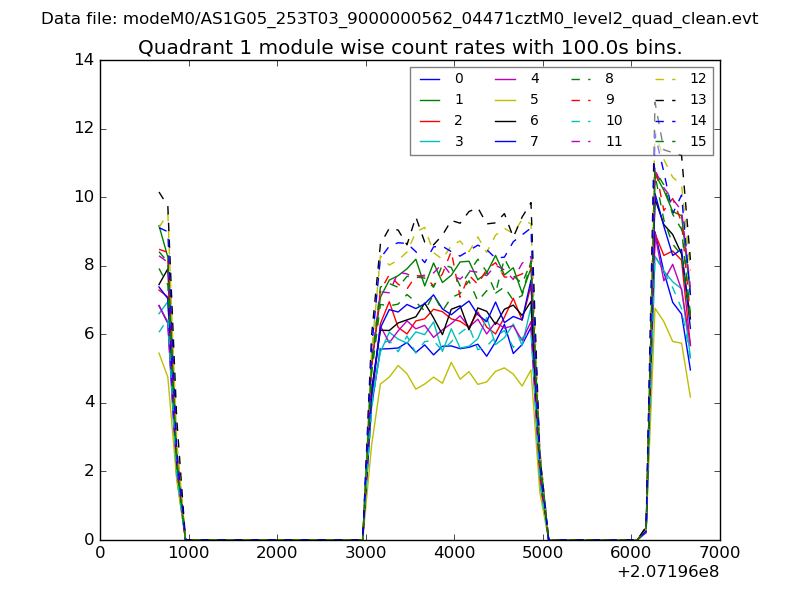

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

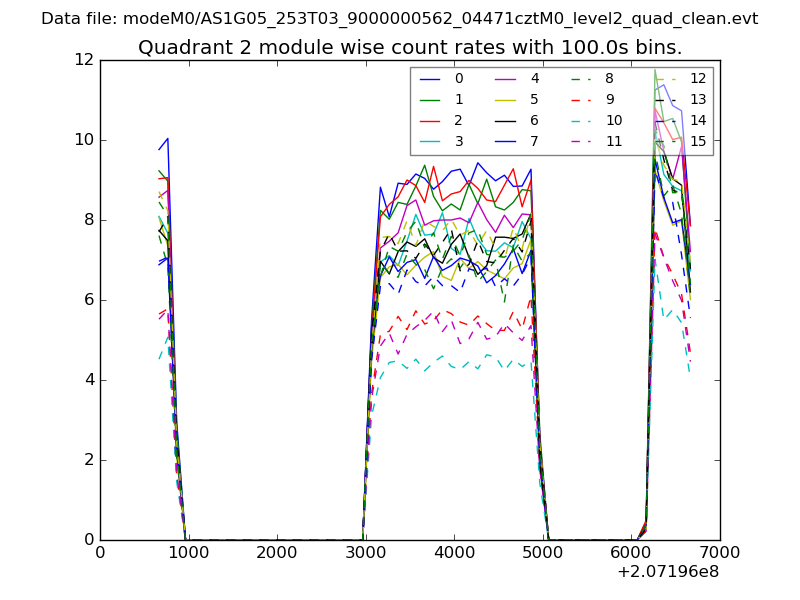

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

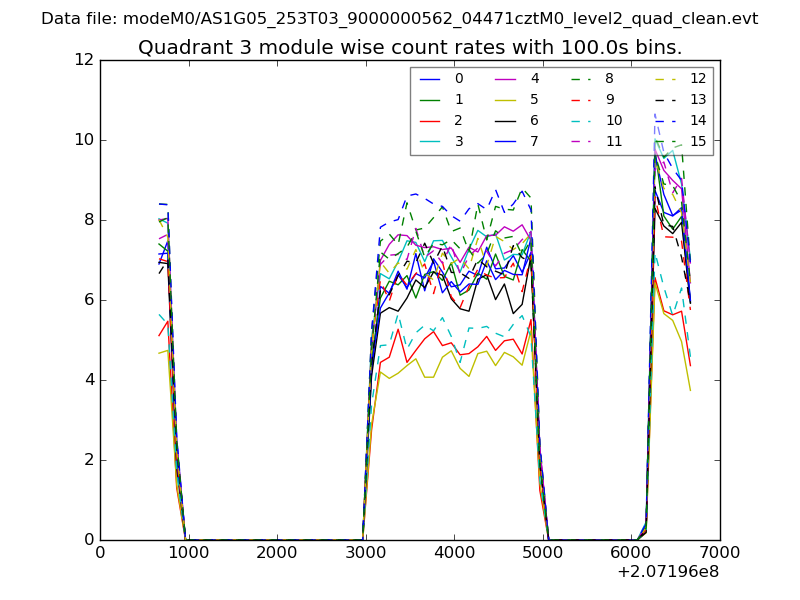

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

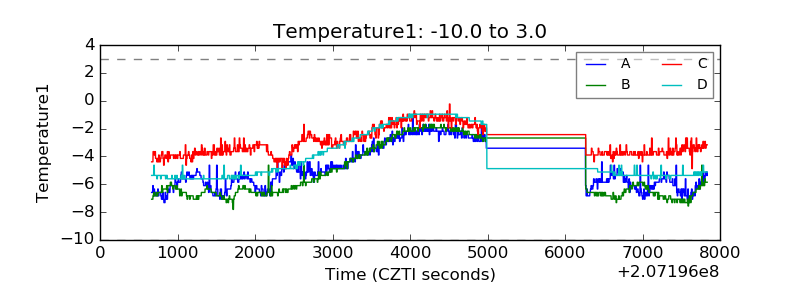

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

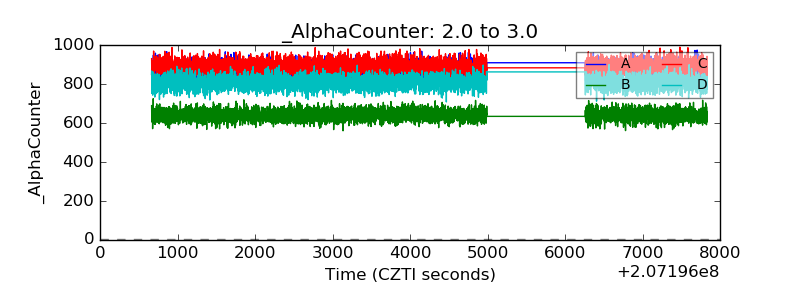

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

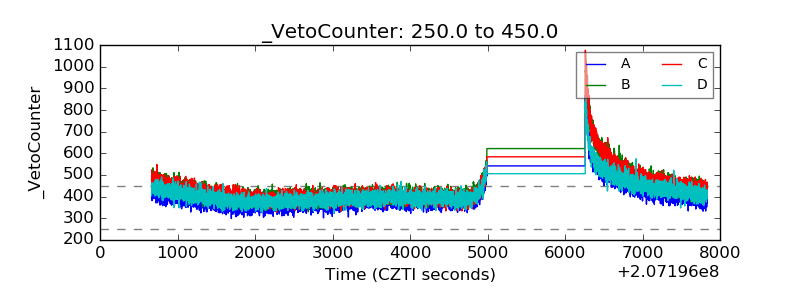

| Veto Counter |  |
