| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_253T03_9000000562_04473cztM0_level2.evt | modeM0/AS1G05_253T03_9000000562_04473cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,304,000 | 53,847,360 |
| Size | 431.4 MB | 51.4 MB |
| Events in quadrant A | 3,869,762 | 301,935 |
| Events in quadrant B | 3,043,528 | 305,221 |
| Events in quadrant C | 2,948,835 | 308,231 |
| Events in quadrant D | 3,424,588 | 291,902 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15457 | 3 |
| B | 0 | 12737 | 2 |
| C | 0 | 12689 | 2 |
| D | 0 | 14142 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6050 | 213 | 3.520661% |
| B | 6050 | 66 | 1.090909% |
| C | 6050 | 67 | 1.107438% |
| D | 6050 | 137 | 2.264463% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7315 | 6052 | 103 | 103 | 1.41% | 1.70% |  |
| B | 7315 | 6052 | 6 | 6 | 0.08% | 0.10% |  |
| C | 7315 | 6052 | 4 | 4 | 0.05% | 0.07% |  |
| D | 7315 | 6052 | 64 | 64 | 0.87% | 1.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 825319 | 5536.18 | 730 | 714 | 148.9 |
| A | 15 | 234 | 201565 | 1348.46 | 730 | 714 | 148.9 |
| A | 0 | 118 | 15511 | 99.34 | 730 | 714 | 148.9 |
| B | 15 | 54 | 29436 | 201.59 | 745 | 728 | 142.4 |
| B | 4 | 170 | 28543 | 195.32 | 745 | 728 | 142.4 |
| B | 15 | 185 | 28281 | 193.48 | 745 | 728 | 142.4 |
| C | 9 | 16 | 70988 | 419.43 | 722 | 725 | 167.5 |
| C | 14 | 48 | 54058 | 318.37 | 722 | 725 | 167.5 |
| C | 9 | 247 | 6541 | 34.72 | 722 | 725 | 167.5 |
| D | 13 | 235 | 357504 | 2080.64 | 711 | 689 | 171.5 |
| D | 12 | 79 | 112250 | 650.53 | 711 | 689 | 171.5 |
| D | 5 | 51 | 110664 | 641.28 | 711 | 689 | 171.5 |

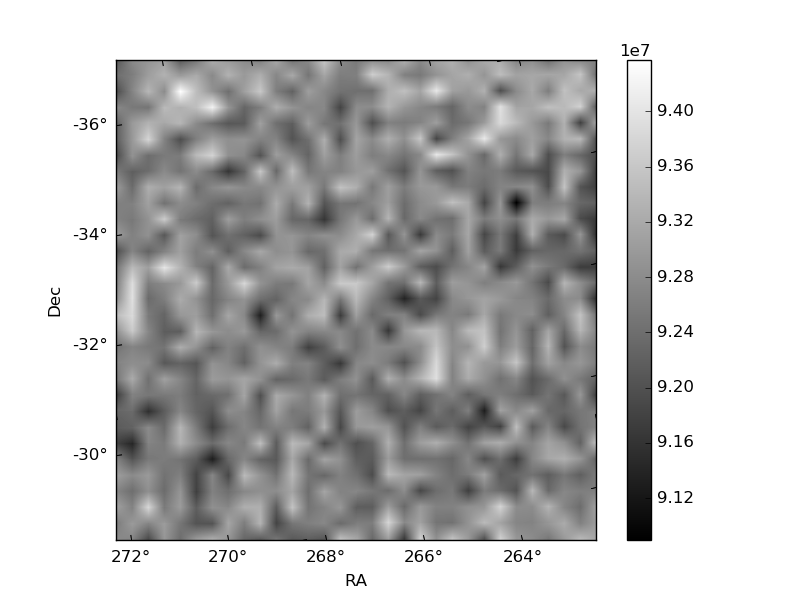

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

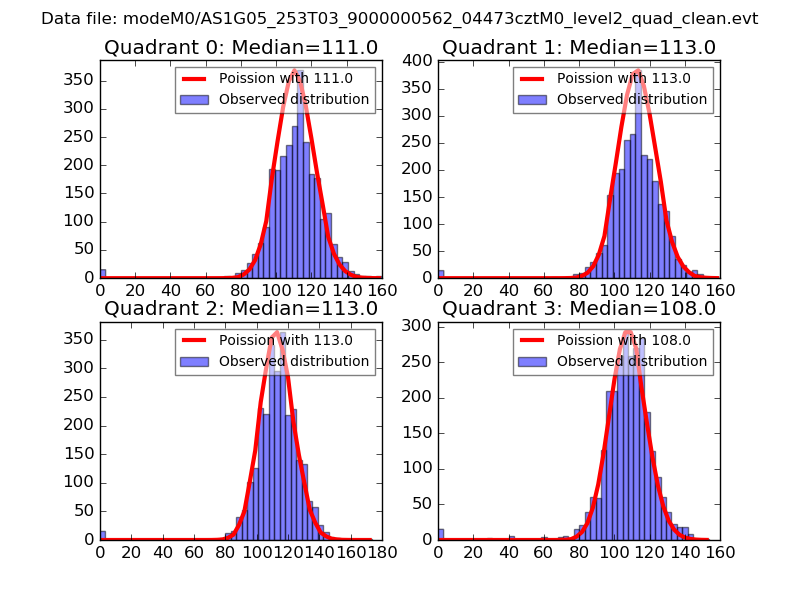

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
