| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_253T03_9000000562_04485cztM0_level2.evt | modeM0/AS1G05_253T03_9000000562_04485cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,858,240 | 69,773,760 |
| Size | 430.0 MB | 66.5 MB |
| Events in quadrant A | 3,105,632 | 414,638 |
| Events in quadrant B | 3,268,854 | 427,117 |
| Events in quadrant C | 3,027,060 | 421,679 |
| Events in quadrant D | 3,805,257 | 390,033 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13669 | 3 |
| B | 0 | 13914 | 2 |
| C | 0 | 13389 | 2 |
| D | 0 | 15985 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6582 | 44 | 0.668490% |
| B | 6582 | 17 | 0.258280% |
| C | 6582 | 10 | 0.151930% |
| D | 6582 | 144 | 2.187785% |

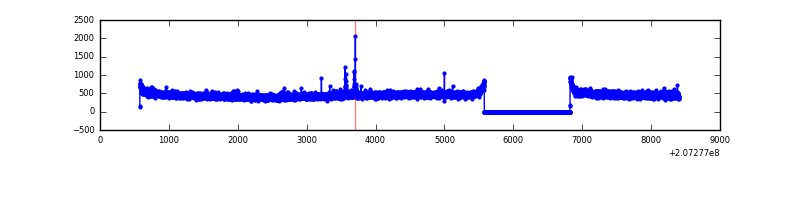

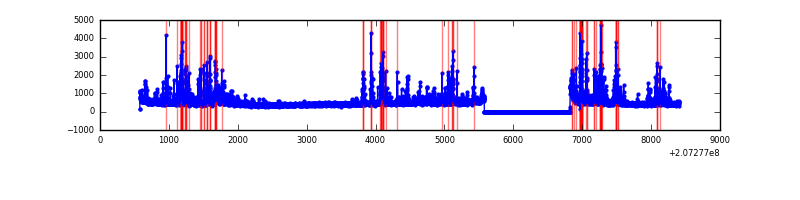

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7827 | 6583 | 17 | 17 | 0.22% | 0.26% |  |
| B | 7827 | 6583 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7827 | 6583 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7827 | 6583 | 117 | 117 | 1.49% | 1.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 60317 | 377.08 | 776 | 758 | 157.9 |
| A | 0 | 118 | 21357 | 130.42 | 776 | 758 | 157.9 |
| A | 13 | 248 | 19417 | 118.13 | 776 | 758 | 157.9 |
| B | 15 | 204 | 93759 | 621.37 | 797 | 781 | 149.6 |
| B | 4 | 48 | 45646 | 299.83 | 797 | 781 | 149.6 |
| B | 4 | 170 | 15194 | 96.32 | 797 | 781 | 149.6 |
| C | 9 | 247 | 15627 | 83.62 | 765 | 770 | 177.7 |
| C | 14 | 48 | 11325 | 59.41 | 765 | 770 | 177.7 |
| C | 9 | 54 | 6897 | 34.49 | 765 | 770 | 177.7 |
| D | 13 | 235 | 614518 | 3416.63 | 743 | 724 | 179.6 |
| D | 14 | 34 | 214139 | 1187.96 | 743 | 724 | 179.6 |
| D | 2 | 136 | 108113 | 597.77 | 743 | 724 | 179.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

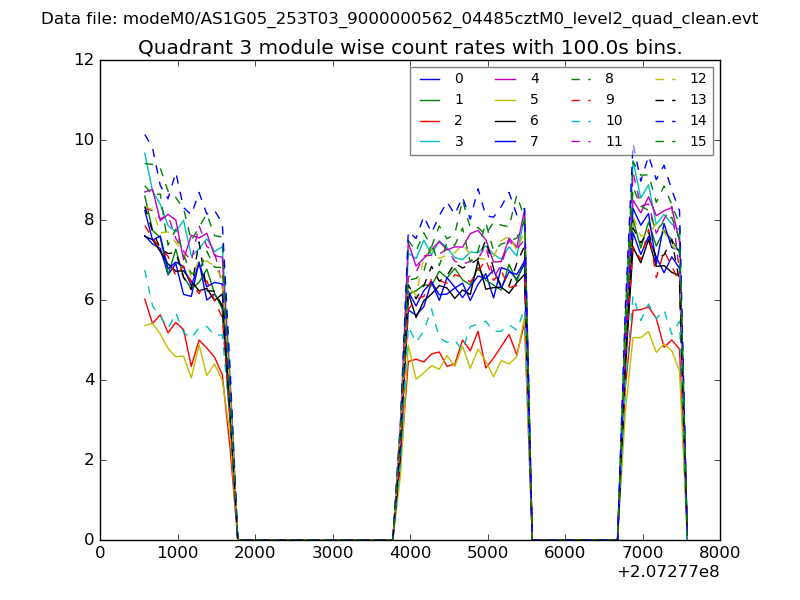

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

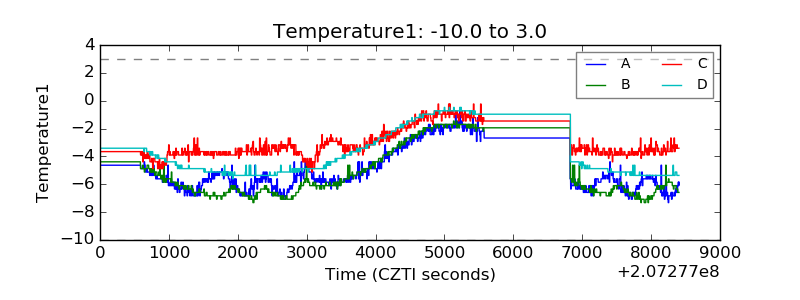

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

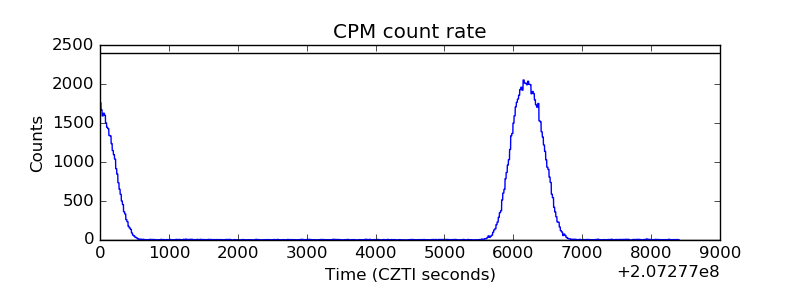

| _CPM_Rate |  |

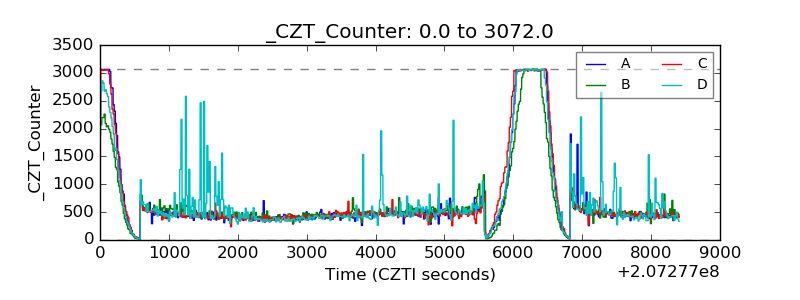

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

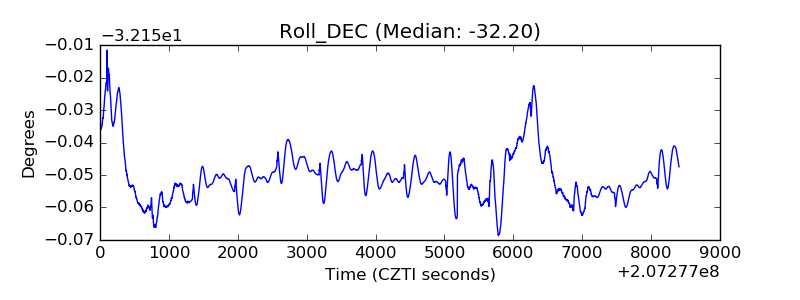

| _Roll_DEC |  |

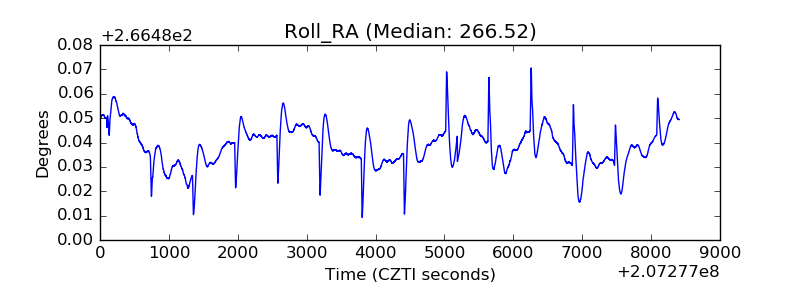

| _Roll_RA |  |
| Veto Counter |  |
