| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_253T03_9000000562_04490cztM0_level2.evt | modeM0/AS1G05_253T03_9000000562_04490cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,057,280 | 72,555,840 |
| Size | 451.1 MB | 69.2 MB |
| Events in quadrant A | 3,281,359 | 428,962 |
| Events in quadrant B | 3,597,704 | 432,417 |
| Events in quadrant C | 3,273,286 | 437,247 |
| Events in quadrant D | 3,702,504 | 414,865 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14523 | 2 |
| B | 0 | 15132 | 1 |
| C | 0 | 14599 | 1 |
| D | 0 | 15864 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6934 | 202 | 2.913181% |
| B | 6934 | 169 | 2.437266% |
| C | 6934 | 145 | 2.091145% |
| D | 6934 | 247 | 3.562157% |

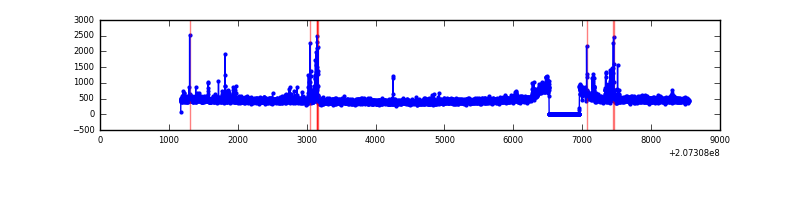

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7374 | 6935 | 14 | 14 | 0.19% | 0.20% |  |
| B | 7374 | 6935 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7374 | 6935 | 9 | 9 | 0.12% | 0.13% |  |
| D | 7374 | 6935 | 64 | 64 | 0.87% | 0.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 118 | 77016 | 452.41 | 813 | 794 | 168.5 |
| A | 7 | 16 | 32591 | 188.73 | 813 | 794 | 168.5 |
| A | 8 | 15 | 22487 | 128.76 | 813 | 794 | 168.5 |
| B | 15 | 204 | 235945 | 1485.87 | 824 | 804 | 158.3 |
| B | 8 | 3 | 92358 | 578.54 | 824 | 804 | 158.3 |
| B | 4 | 48 | 24995 | 152.86 | 824 | 804 | 158.3 |
| C | 9 | 247 | 83353 | 442.97 | 797 | 801 | 186.4 |
| C | 9 | 54 | 58352 | 308.82 | 797 | 801 | 186.4 |
| C | 9 | 16 | 10154 | 50.19 | 797 | 801 | 186.4 |
| D | 13 | 235 | 317718 | 1647.13 | 787 | 761 | 192.4 |
| D | 14 | 34 | 141598 | 731.89 | 787 | 761 | 192.4 |
| D | 9 | 35 | 103873 | 535.84 | 787 | 761 | 192.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

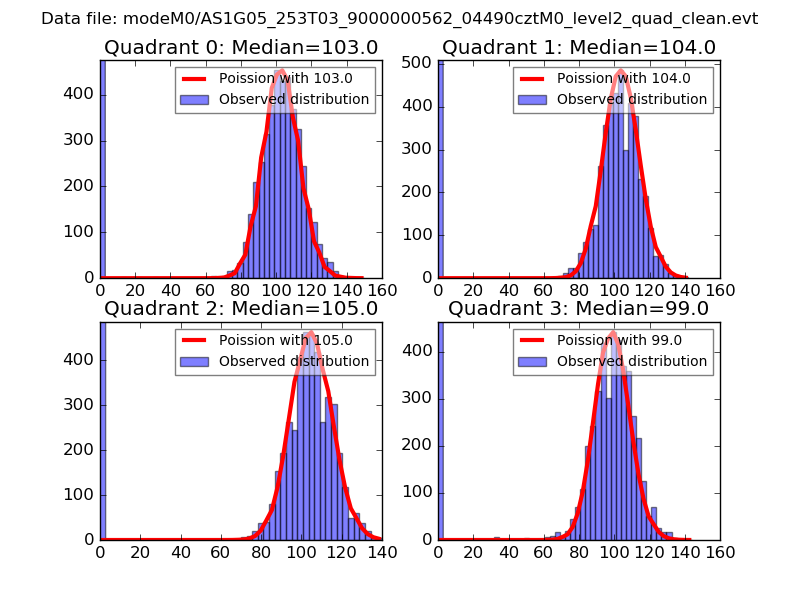

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

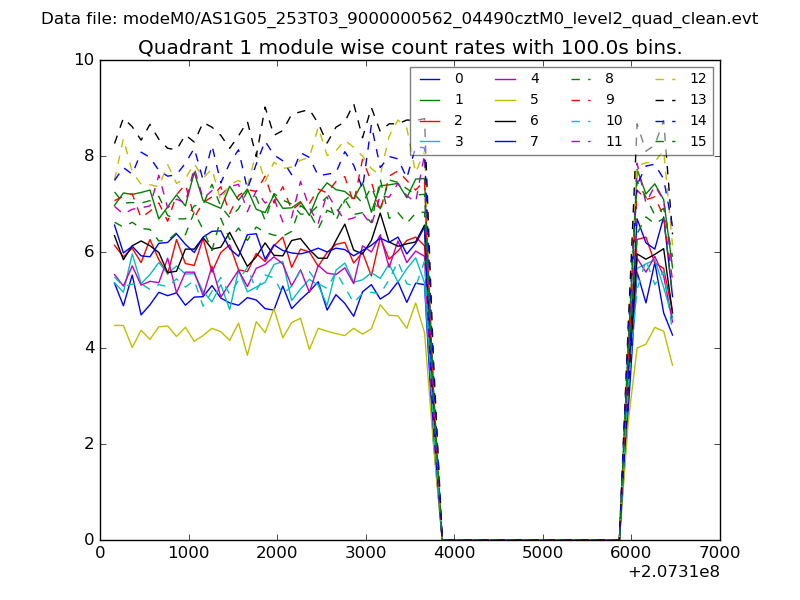

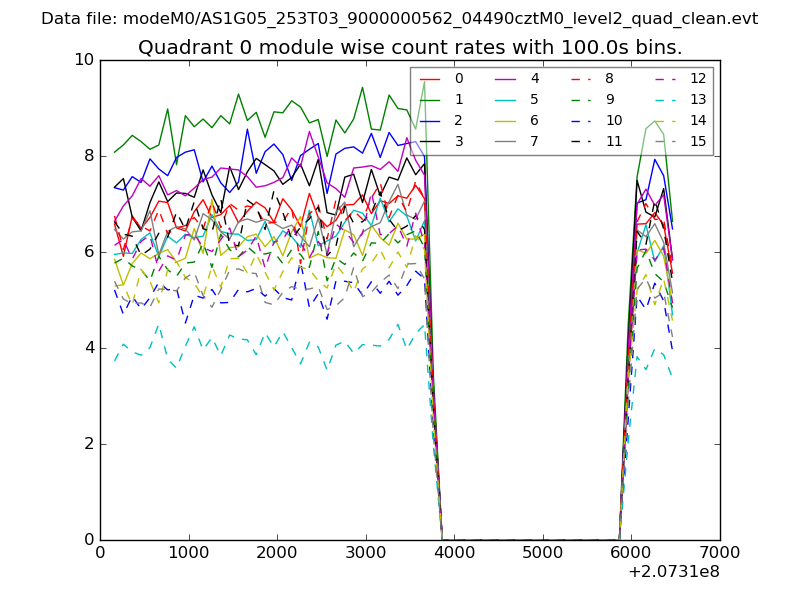

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

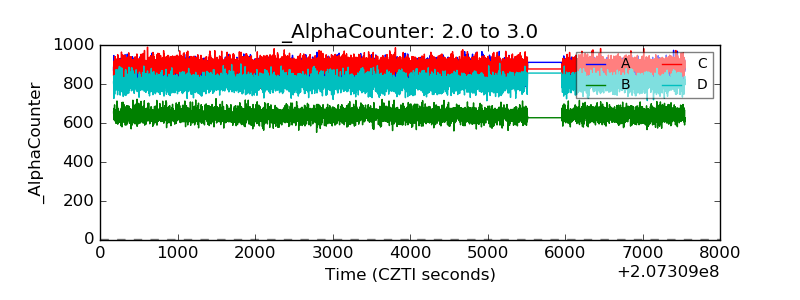

| Alpha Counter |  |

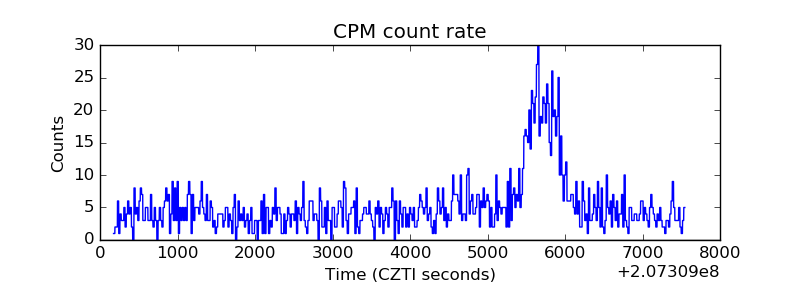

| _CPM_Rate |  |

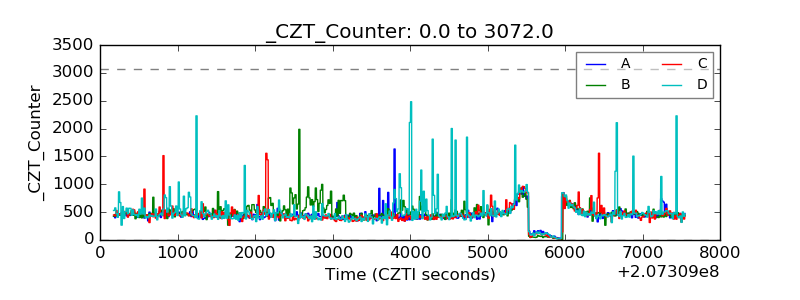

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

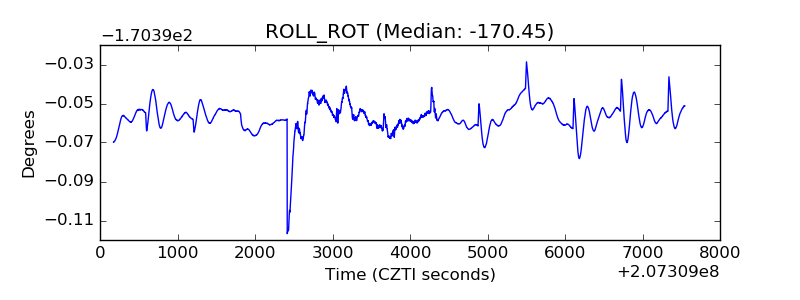

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
