| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_173T01_9000000564_04496cztM0_level2.evt | modeM0/AS1G05_173T01_9000000564_04496cztM0_level2_quad_clean.evt |
| Size (bytes) | 324,247,680 | 52,061,760 |
| Size | 309.2 MB | 49.6 MB |
| Events in quadrant A | 2,381,930 | 308,500 |
| Events in quadrant B | 2,367,428 | 307,887 |
| Events in quadrant C | 2,207,508 | 307,680 |
| Events in quadrant D | 2,517,726 | 297,113 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10634 | 14 |
| B | 0 | 10533 | 13 |
| C | 0 | 10277 | 11 |
| D | 0 | 11153 | 11 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5060 | 43 | 0.849802% |
| B | 5059 | 41 | 0.810437% |
| C | 5060 | 20 | 0.395257% |
| D | 5060 | 70 | 1.383399% |

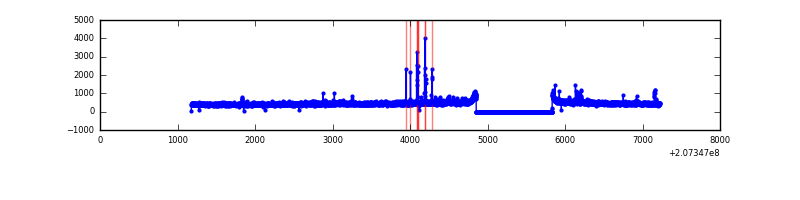

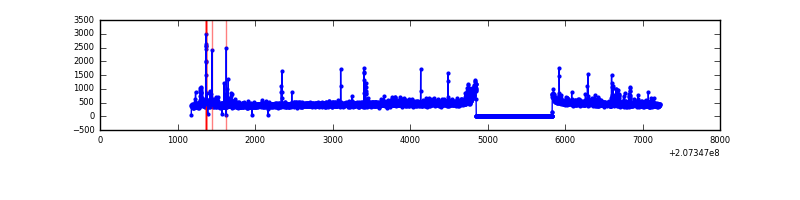

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6045 | 5066 | 8 | 8 | 0.13% | 0.16% |  |
| B | 6045 | 5066 | 9 | 9 | 0.15% | 0.18% |  |
| C | 6045 | 5066 | 1 | 1 | 0.02% | 0.02% |  |
| D | 6045 | 5066 | 37 | 37 | 0.61% | 0.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 156355 | 1321.21 | 572 | 557 | 117.9 |
| A | 7 | 16 | 8535 | 67.66 | 572 | 557 | 117.9 |
| A | 0 | 50 | 7010 | 54.72 | 572 | 557 | 117.9 |
| B | 15 | 204 | 47452 | 421.52 | 578 | 564 | 111.2 |
| B | 4 | 48 | 46380 | 411.88 | 578 | 564 | 111.2 |
| B | 4 | 80 | 23254 | 203.98 | 578 | 564 | 111.2 |
| C | 9 | 16 | 12524 | 91.79 | 558 | 560 | 130.3 |
| C | 9 | 247 | 6814 | 47.98 | 558 | 560 | 130.3 |
| C | 13 | 61 | 4633 | 31.25 | 558 | 560 | 130.3 |
| D | 13 | 235 | 252823 | 1884.92 | 554 | 539 | 133.8 |
| D | 2 | 136 | 54016 | 399.55 | 554 | 539 | 133.8 |
| D | 12 | 36 | 27463 | 201.16 | 554 | 539 | 133.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

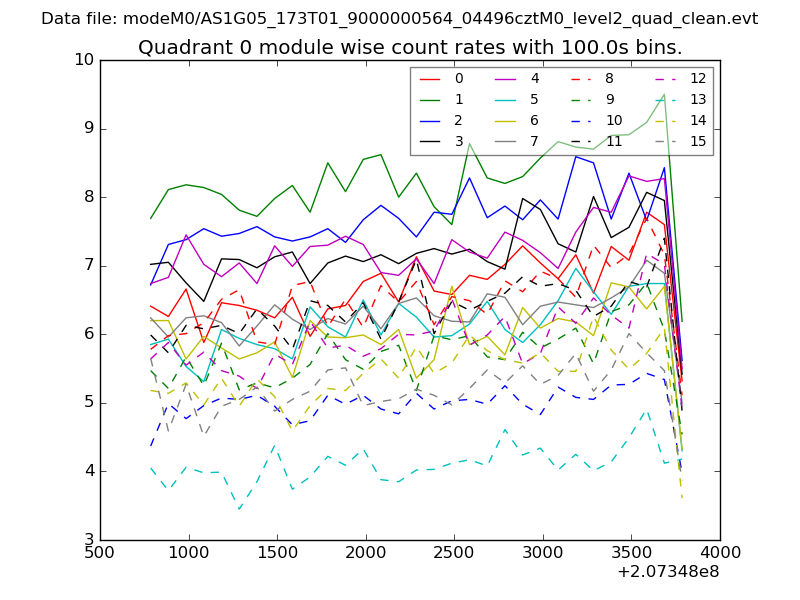

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

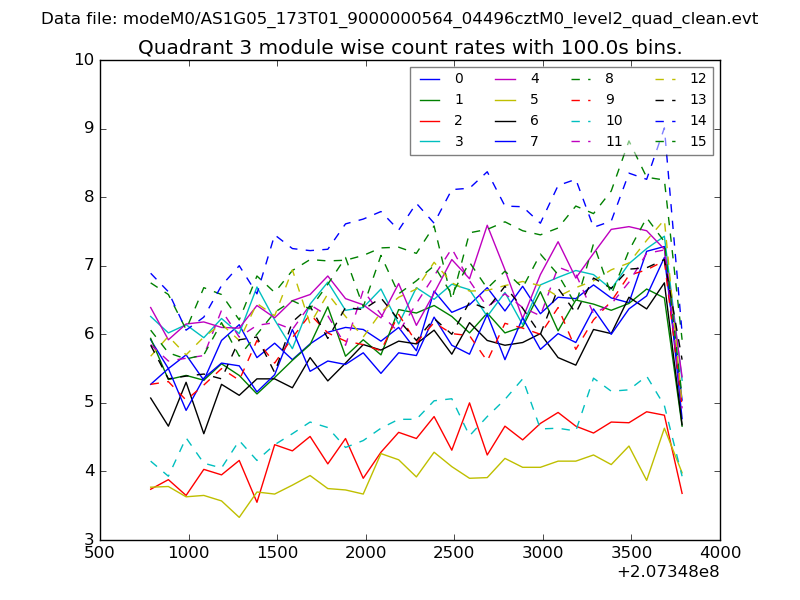

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

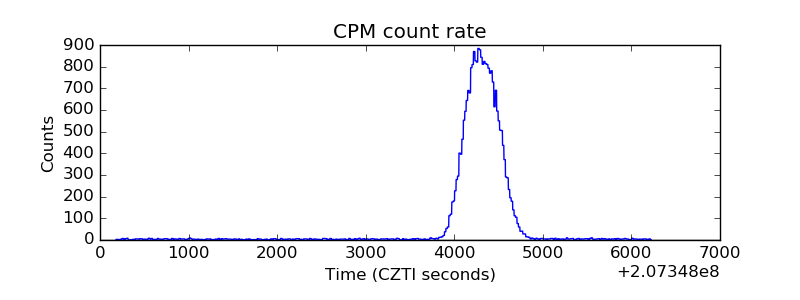

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

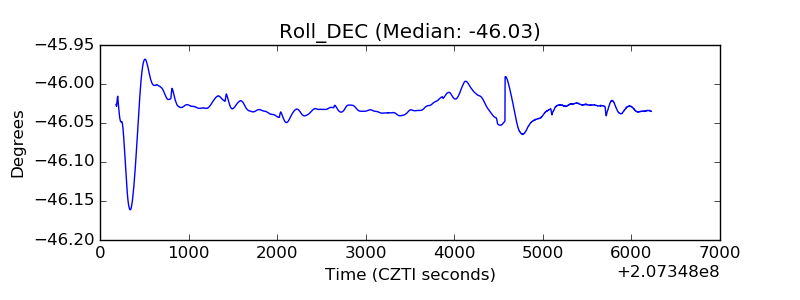

| _Roll_DEC |  |

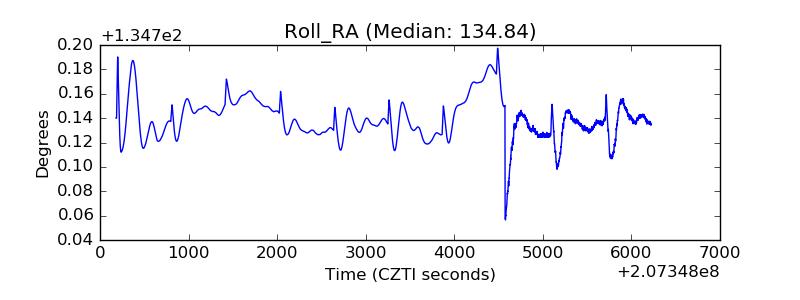

| _Roll_RA |  |
| Veto Counter |  |
