| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_173T01_9000000564_04499cztM0_level2.evt | modeM0/AS1G05_173T01_9000000564_04499cztM0_level2_quad_clean.evt |
| Size (bytes) | 158,158,080 | 19,301,760 |
| Size | 150.8 MB | 18.4 MB |
| Events in quadrant A | 1,118,742 | 104,635 |
| Events in quadrant B | 1,135,186 | 106,664 |
| Events in quadrant C | 1,206,129 | 101,957 |
| Events in quadrant D | 1,165,353 | 99,036 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 48 | 0 |
| B | 0 | 48 | 0 |
| C | 0 | 48 | 0 |
| D | 0 | 48 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4880 | 1 |
| B | 0 | 4923 | 1 |
| C | 0 | 5190 | 1 |
| D | 0 | 5193 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2380 | 2 | 0.084034% |
| B | 2380 | 11 | 0.462185% |
| C | 2380 | 27 | 1.134454% |
| D | 2380 | 16 | 0.672269% |

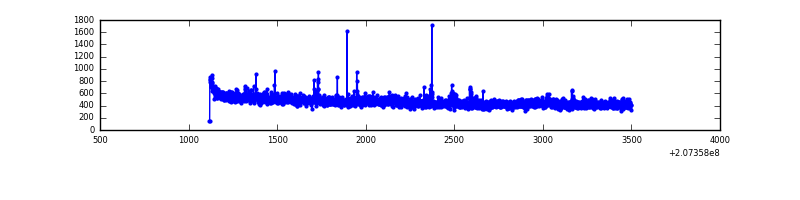

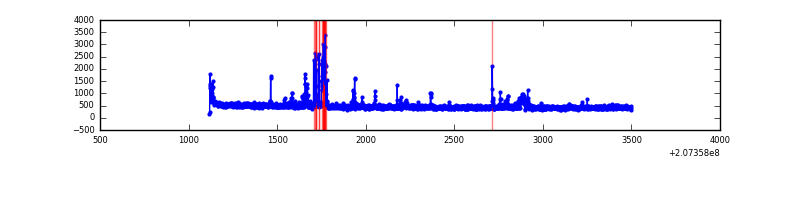

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2380 | 2380 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2380 | 2380 | 0 | 0 | 0.00% | 0.00% |  |
| C | 2380 | 2380 | 20 | 20 | 0.84% | 0.84% |  |
| D | 2380 | 2380 | 11 | 11 | 0.46% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 31512 | 540.09 | 278 | 273 | 57.8 |
| A | 7 | 16 | 14655 | 248.65 | 278 | 273 | 57.8 |
| A | 12 | 194 | 2722 | 42.34 | 278 | 273 | 57.8 |
| B | 4 | 80 | 13955 | 247.94 | 285 | 279 | 55.2 |
| B | 15 | 204 | 9244 | 162.53 | 285 | 279 | 55.2 |
| B | 12 | 111 | 4718 | 80.48 | 285 | 279 | 55.2 |
| C | 9 | 247 | 109168 | 1697.71 | 273 | 275 | 64.1 |
| C | 9 | 54 | 25058 | 386.38 | 273 | 275 | 64.1 |
| C | 12 | 4 | 3209 | 45.74 | 273 | 275 | 64.1 |
| D | 13 | 235 | 47807 | 729.26 | 267 | 259 | 65.2 |
| D | 2 | 136 | 29464 | 447.92 | 267 | 259 | 65.2 |
| D | 10 | 40 | 28522 | 433.48 | 267 | 259 | 65.2 |

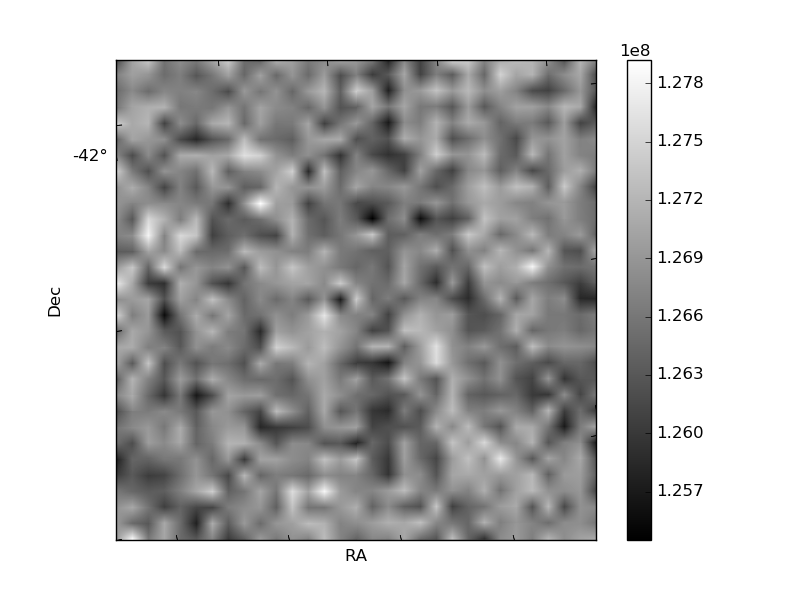

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

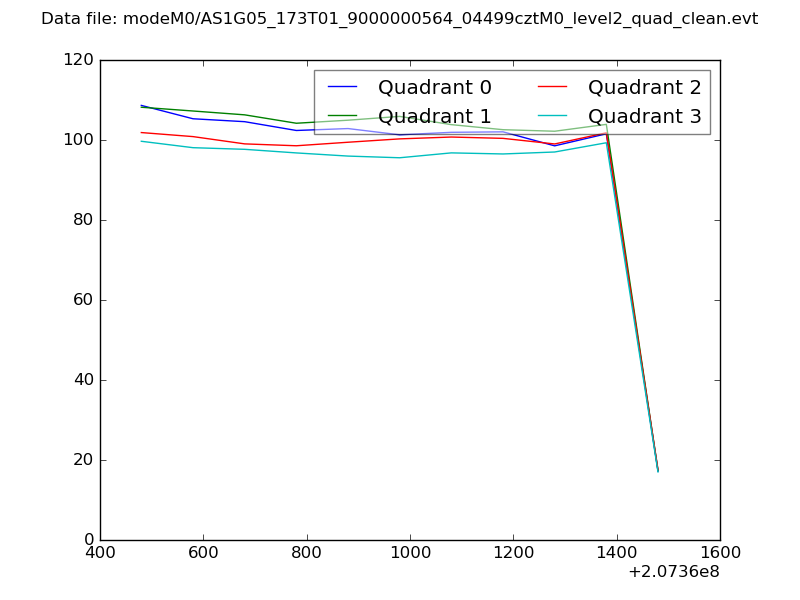

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

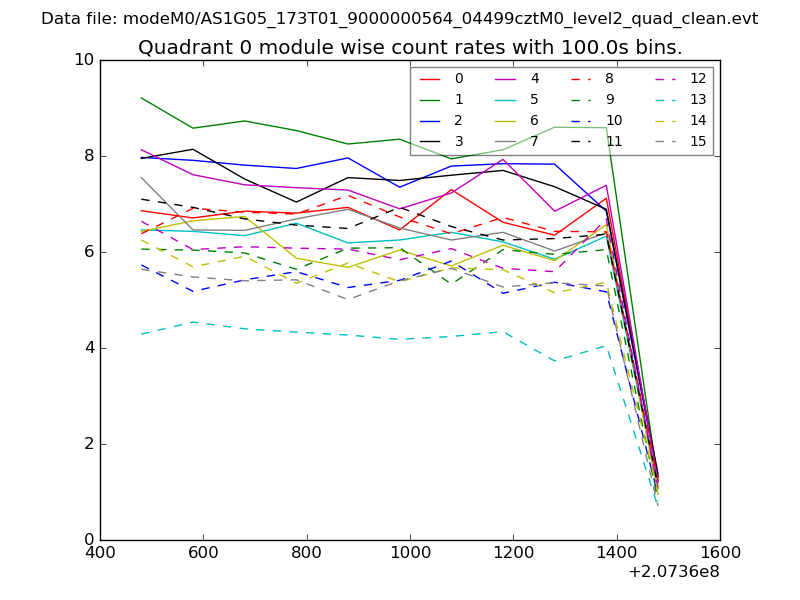

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

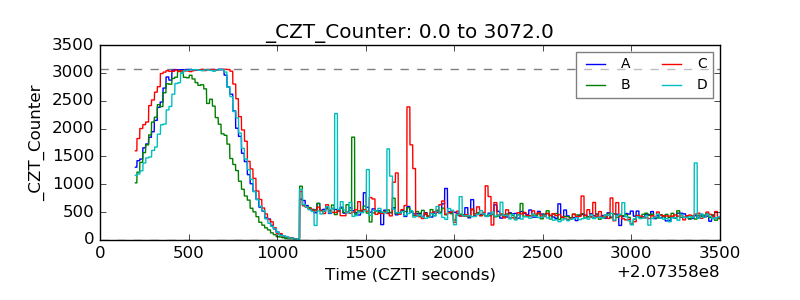

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

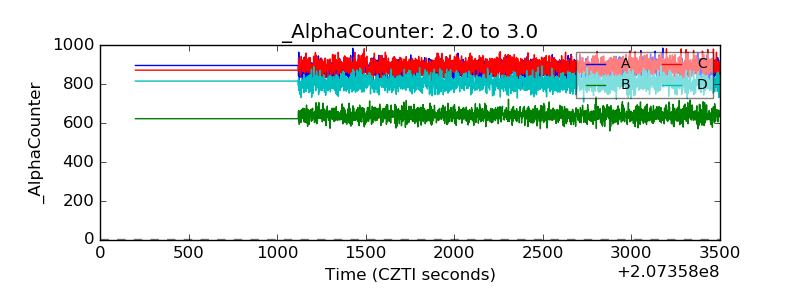

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

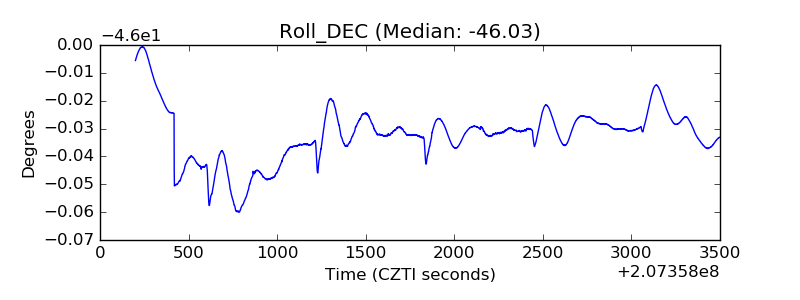

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
