| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_083T03_9000000566_04501cztM0_level2.evt | modeM0/AS1G05_083T03_9000000566_04501cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,584,960 | 56,975,040 |
| Size | 510.8 MB | 54.3 MB |
| Events in quadrant A | 3,334,922 | 334,854 |
| Events in quadrant B | 4,943,522 | 312,496 |
| Events in quadrant C | 3,236,639 | 331,063 |
| Events in quadrant D | 4,273,555 | 302,058 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13792 | 3 |
| B | 0 | 18818 | 2 |
| C | 0 | 13721 | 2 |
| D | 0 | 17102 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6368 | 104 | 1.633166% |
| B | 6368 | 652 | 10.238693% |
| C | 6368 | 81 | 1.271985% |
| D | 6368 | 374 | 5.873116% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

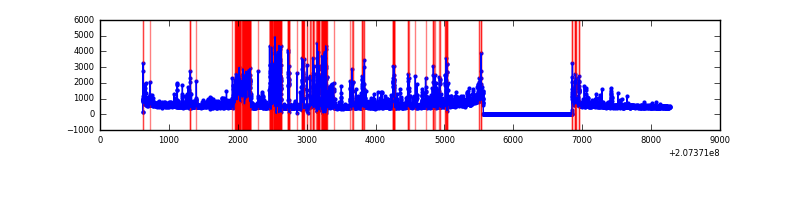

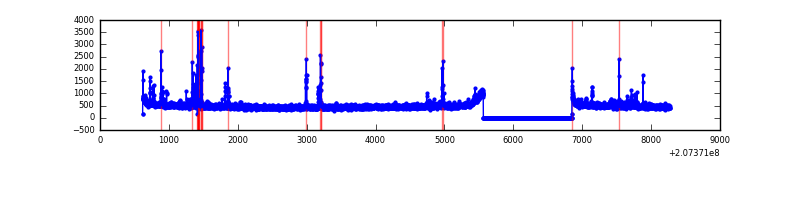

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7653 | 6369 | 14 | 14 | 0.18% | 0.22% |  |
| B | 7653 | 6369 | 341 | 341 | 4.46% | 5.35% |  |
| C | 7653 | 6369 | 26 | 26 | 0.34% | 0.41% |  |
| D | 7653 | 6369 | 287 | 287 | 3.75% | 4.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 203683 | 1225.61 | 803 | 788 | 165.5 |
| A | 7 | 16 | 25401 | 148.68 | 803 | 788 | 165.5 |
| A | 0 | 226 | 8685 | 47.7 | 803 | 788 | 165.5 |
| B | 10 | 16 | 1873801 | 12998.19 | 768 | 752 | 144.1 |
| B | 4 | 80 | 24353 | 163.78 | 768 | 752 | 144.1 |
| B | 4 | 170 | 23952 | 161.0 | 768 | 752 | 144.1 |
| C | 9 | 247 | 181712 | 1016.81 | 773 | 779 | 177.9 |
| C | 7 | 247 | 16256 | 86.98 | 773 | 779 | 177.9 |
| C | 14 | 48 | 15359 | 81.94 | 773 | 779 | 177.9 |
| D | 10 | 40 | 1043342 | 5769.06 | 751 | 731 | 180.7 |
| D | 13 | 235 | 181769 | 1001.73 | 751 | 731 | 180.7 |
| D | 14 | 34 | 82680 | 453.45 | 751 | 731 | 180.7 |

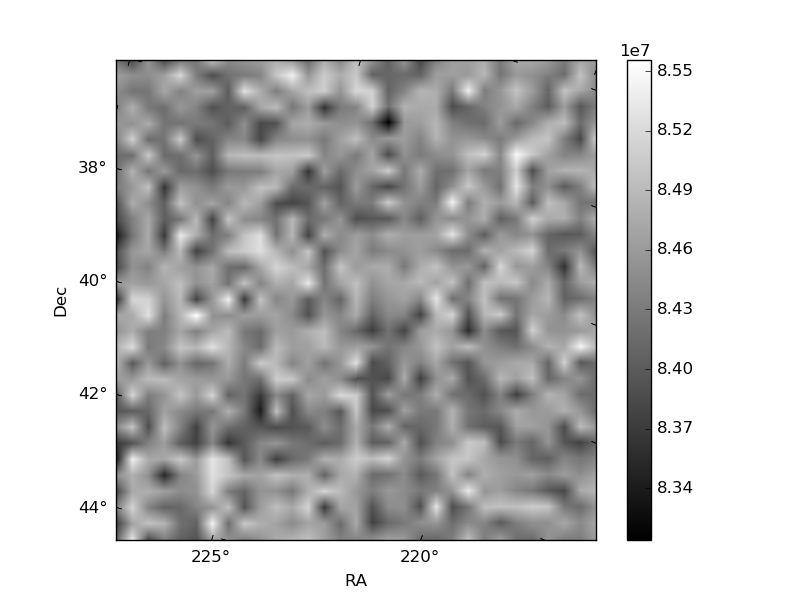

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

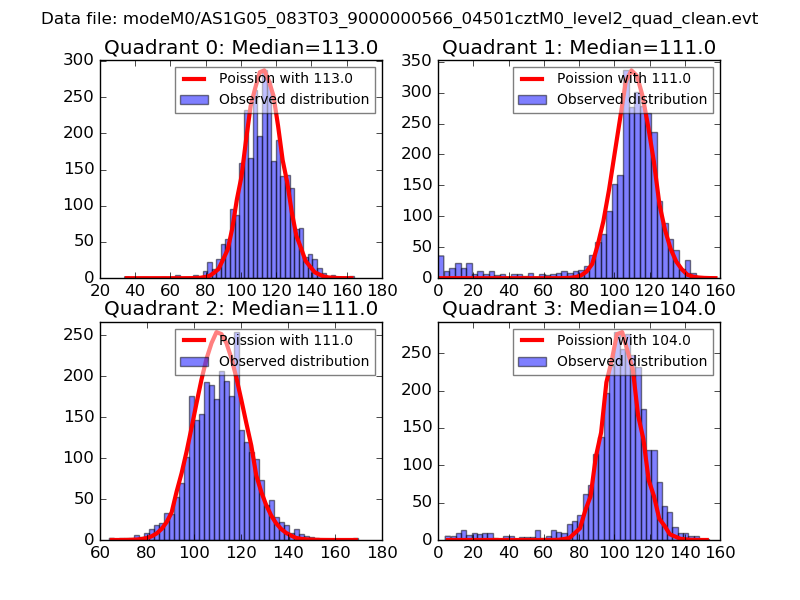

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

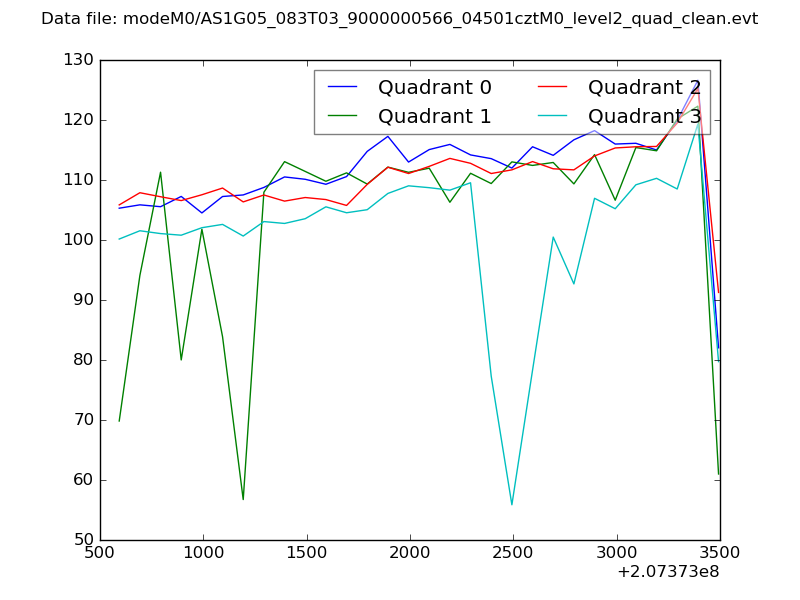

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

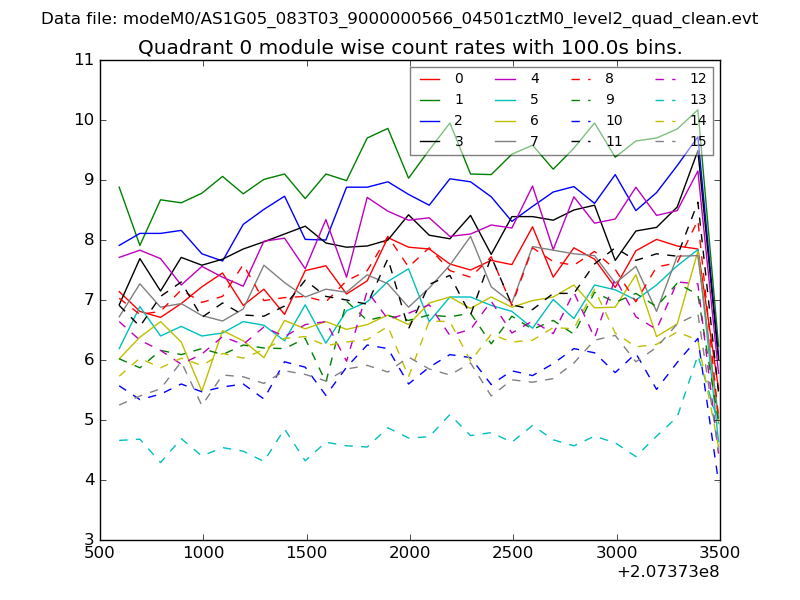

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

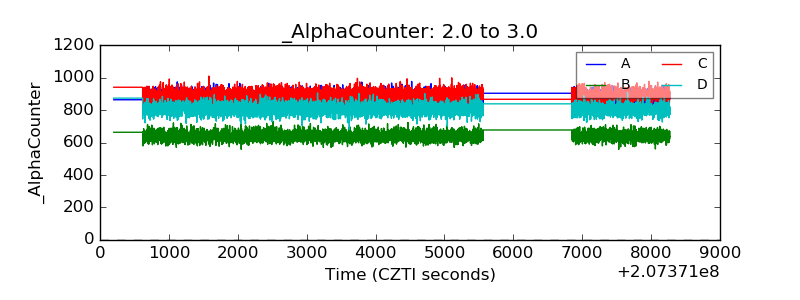

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

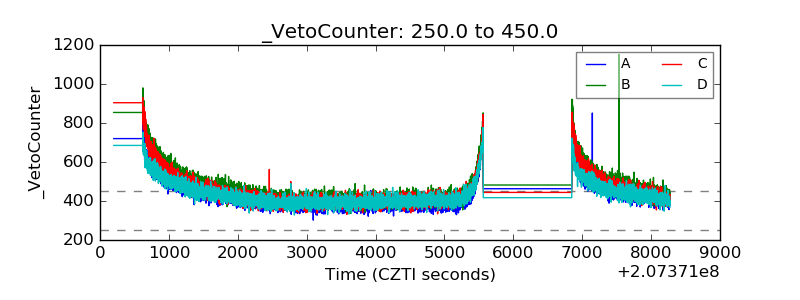

| Veto Counter |  |
