| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_250T01_9000000568_04527cztM0_level2.evt | modeM0/AS1G05_250T01_9000000568_04527cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,007,680 | 84,631,680 |
| Size | 486.4 MB | 80.7 MB |
| Events in quadrant A | 5,393,118 | 509,387 |
| Events in quadrant B | 2,981,849 | 541,292 |
| Events in quadrant C | 2,883,891 | 536,664 |
| Events in quadrant D | 3,742,186 | 518,641 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20493 | 3 |
| B | 0 | 13509 | 2 |
| C | 0 | 13398 | 2 |
| D | 0 | 15656 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6543 | 687 | 10.499771% |
| B | 6543 | 23 | 0.351521% |
| C | 6543 | 22 | 0.336237% |
| D | 6543 | 106 | 1.620052% |

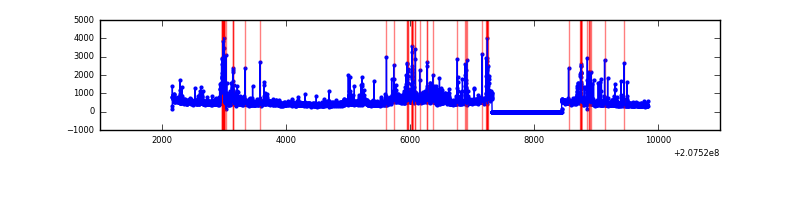

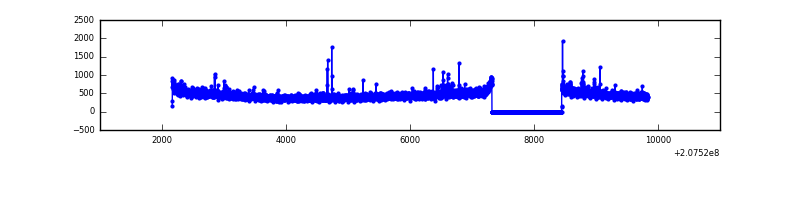

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7668 | 6544 | 471 | 471 | 6.14% | 7.20% |  |
| B | 7668 | 6544 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7668 | 6544 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7668 | 6544 | 74 | 74 | 0.97% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 13 | 2457703 | 17177.03 | 705 | 690 | 143.0 |
| A | 8 | 15 | 118135 | 821.06 | 705 | 690 | 143.0 |
| A | 14 | 111 | 60904 | 420.96 | 705 | 690 | 143.0 |
| B | 4 | 48 | 29524 | 201.47 | 747 | 727 | 142.9 |
| B | 15 | 204 | 17575 | 117.87 | 747 | 727 | 142.9 |
| B | 4 | 80 | 14801 | 98.46 | 747 | 727 | 142.9 |
| C | 9 | 247 | 28949 | 167.6 | 723 | 726 | 168.4 |
| C | 9 | 54 | 19927 | 114.03 | 723 | 726 | 168.4 |
| C | 12 | 4 | 12680 | 70.99 | 723 | 726 | 168.4 |
| D | 13 | 53 | 407945 | 2422.89 | 708 | 687 | 168.1 |
| D | 13 | 235 | 210025 | 1245.41 | 708 | 687 | 168.1 |
| D | 13 | 239 | 183448 | 1087.29 | 708 | 687 | 168.1 |

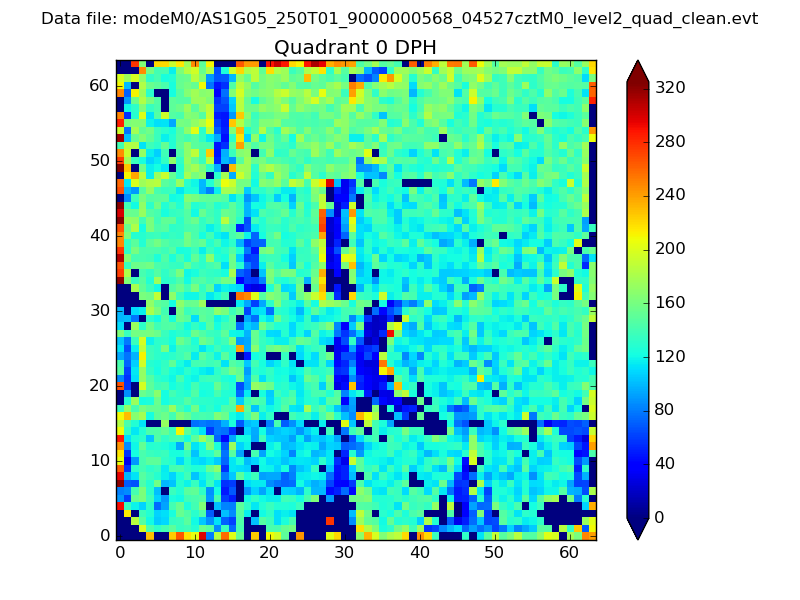

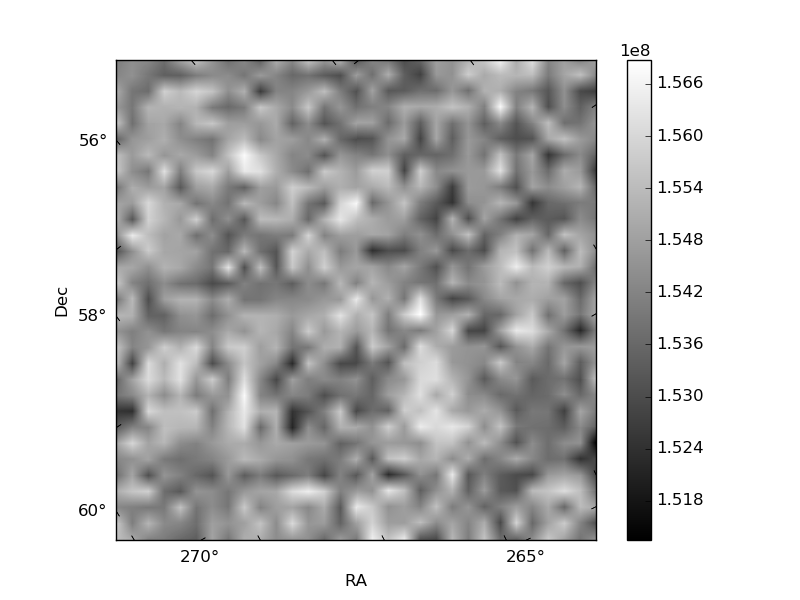

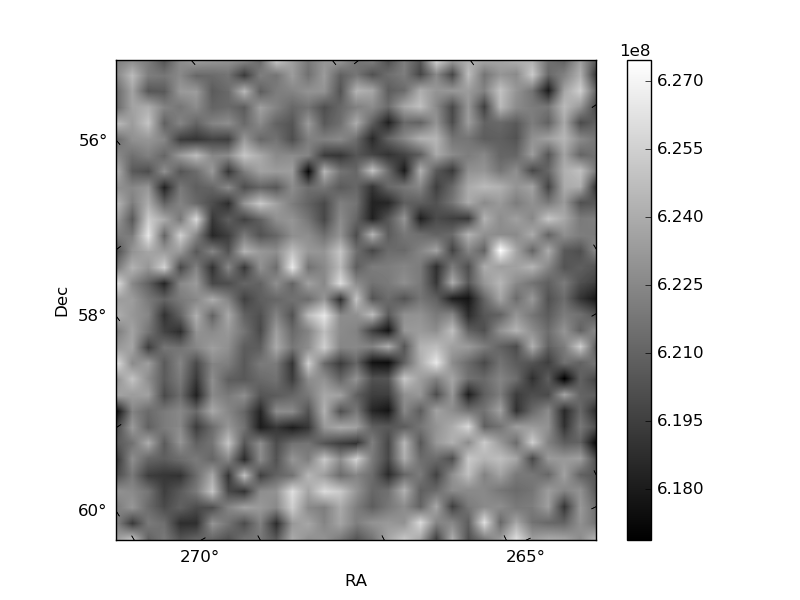

Histogram calculated using DETX and DETY for each event in the final _common_clean file

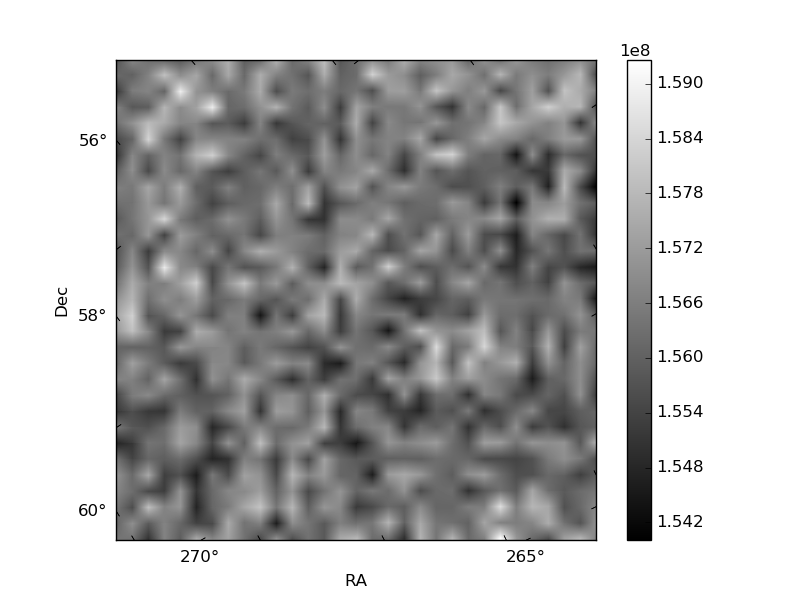

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

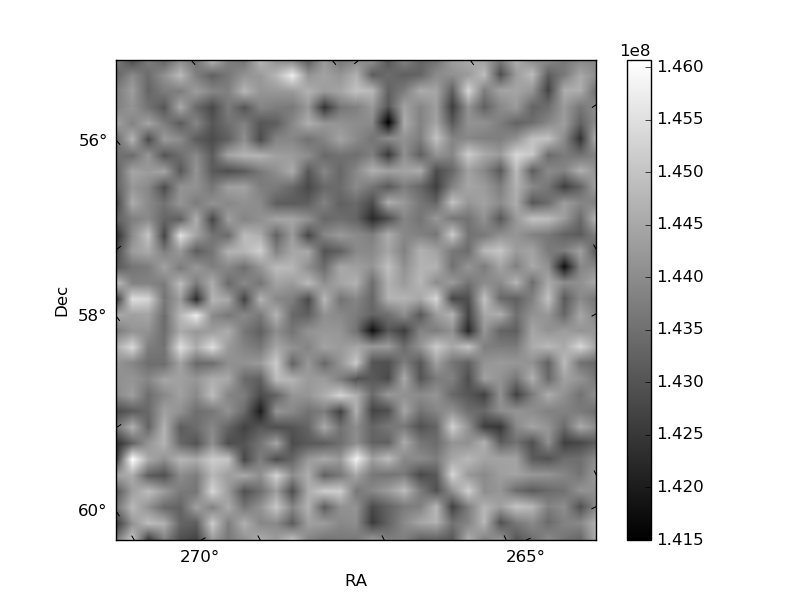

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

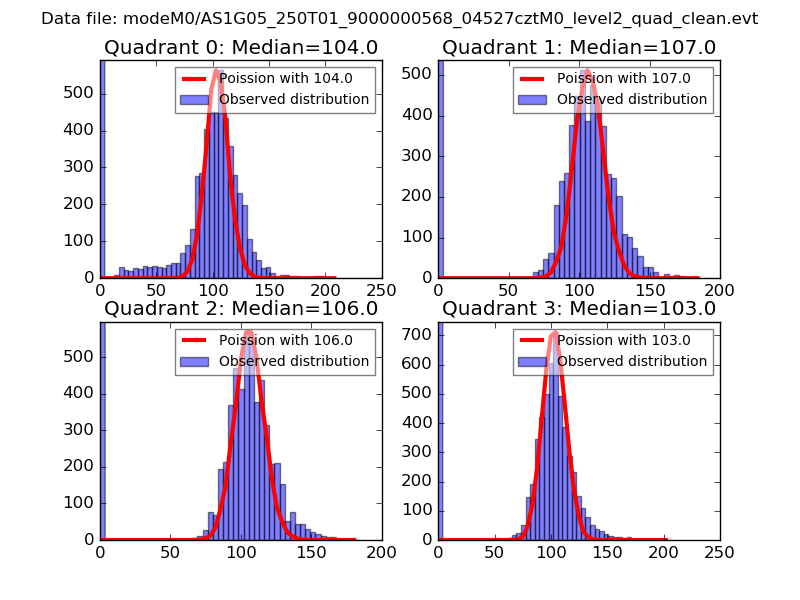

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

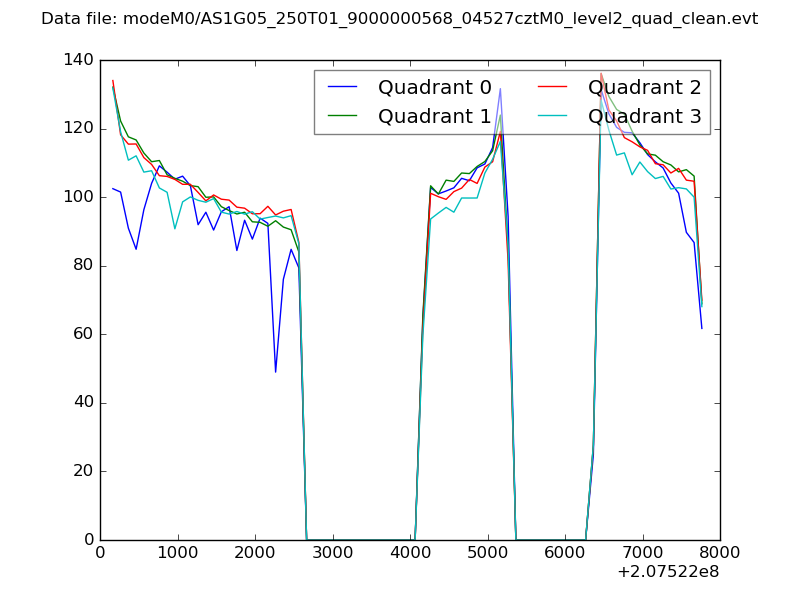

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

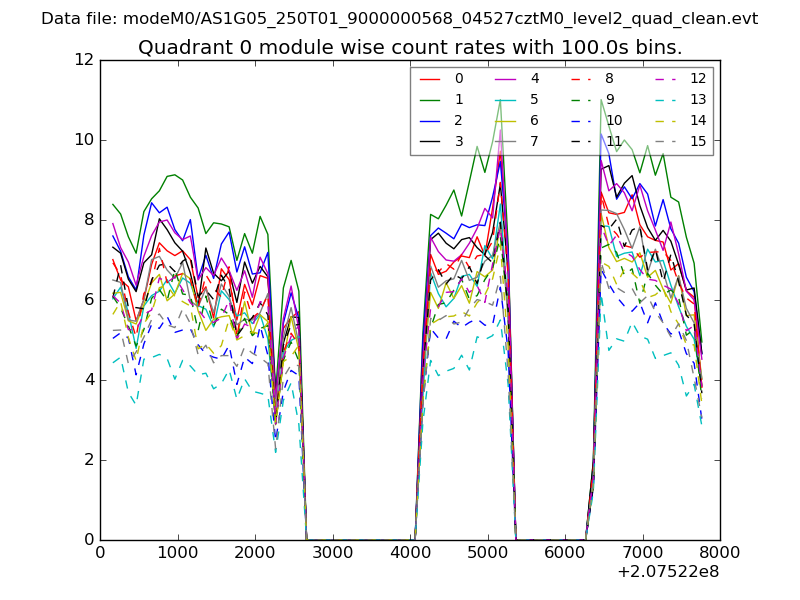

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

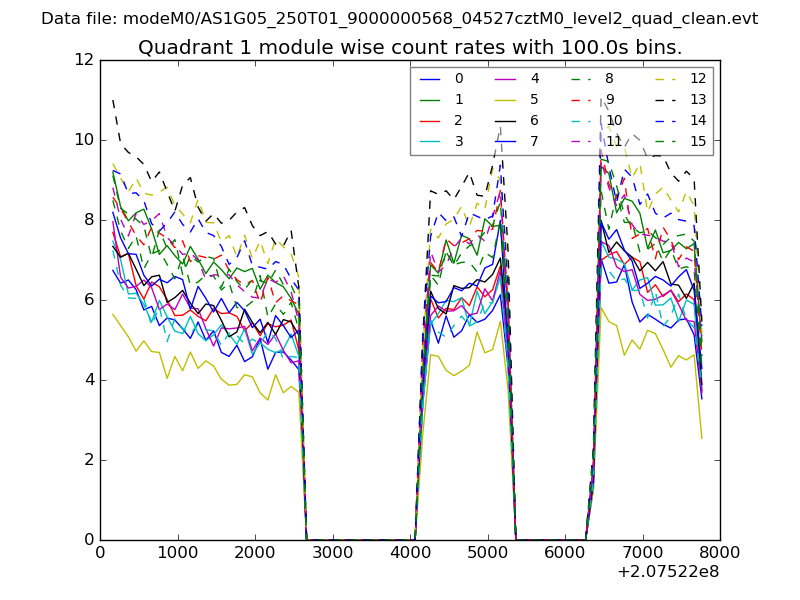

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

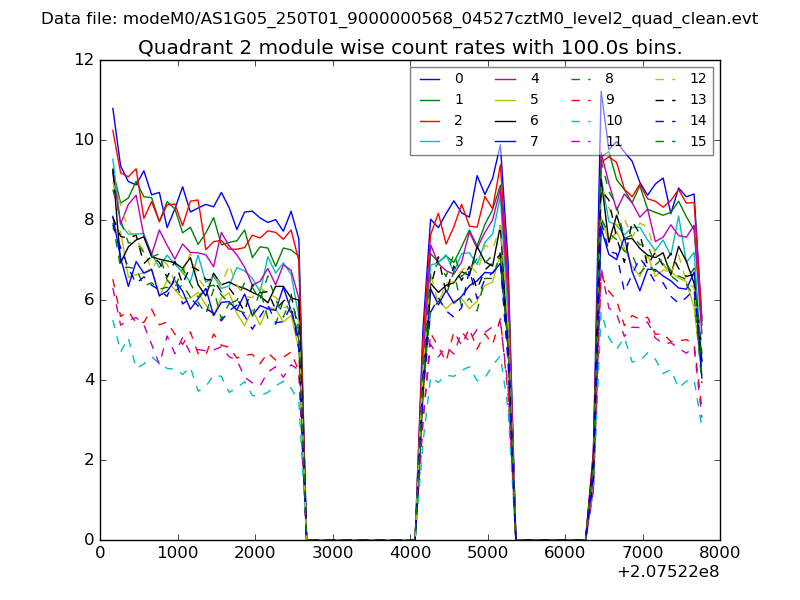

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

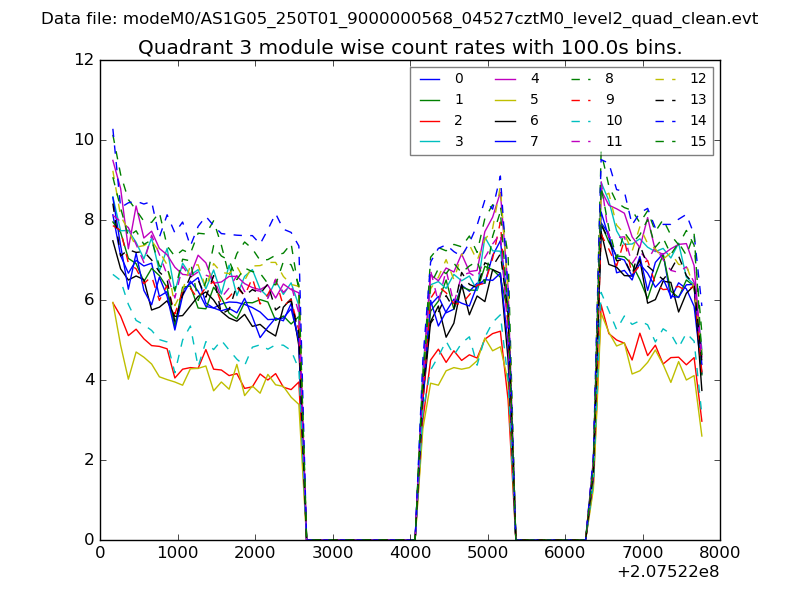

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

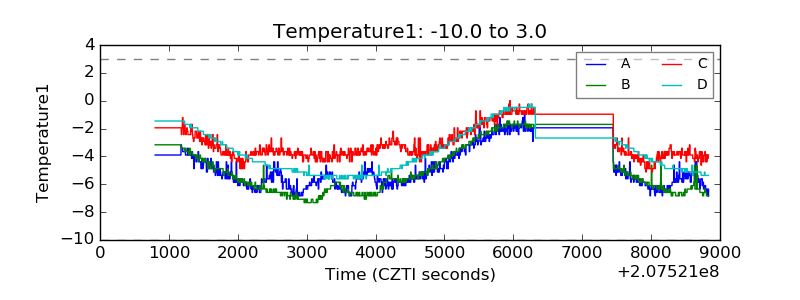

| Temperature 1 |  |

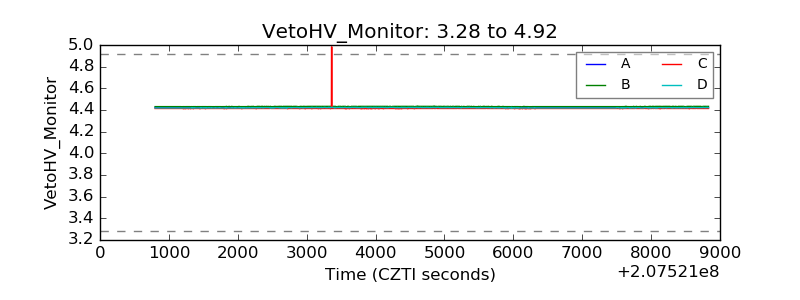

| Veto HV Monitor |  |
| Veto LLD |  |

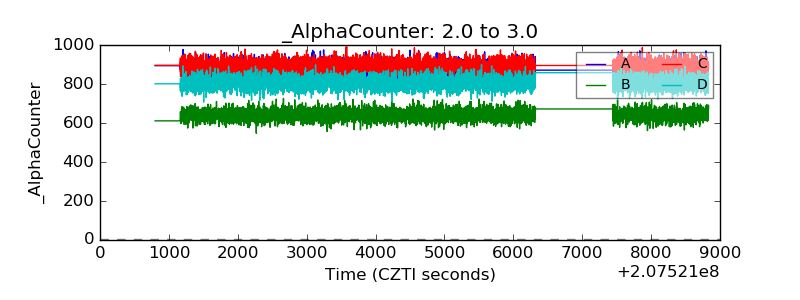

| Alpha Counter |  |

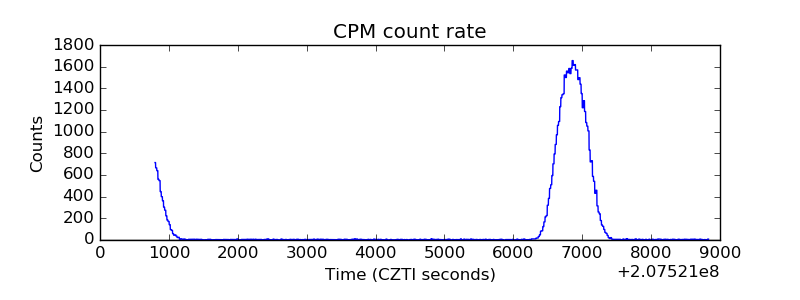

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

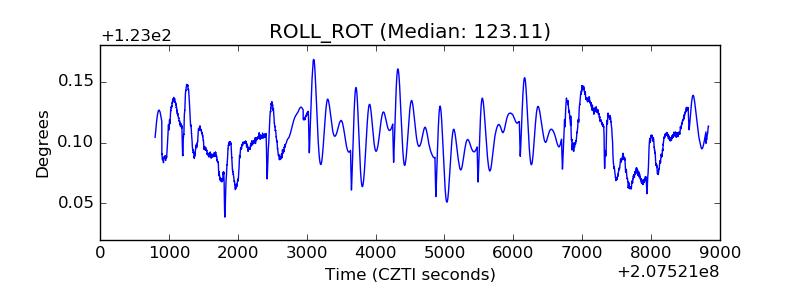

| _ROLL_ROT |  |

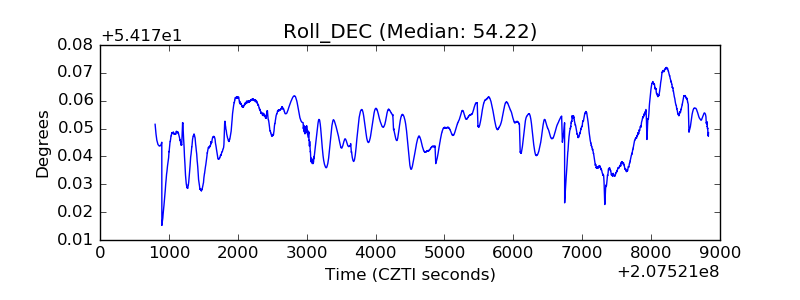

| _Roll_DEC |  |

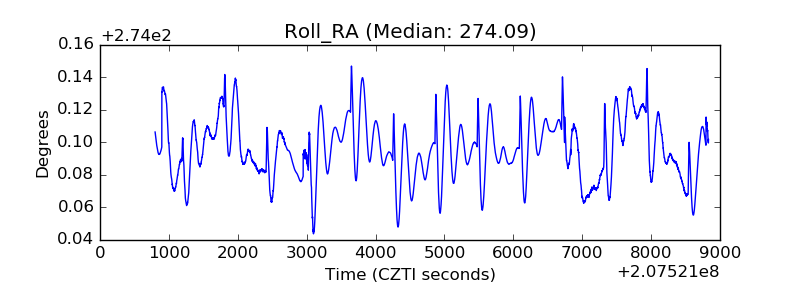

| _Roll_RA |  |

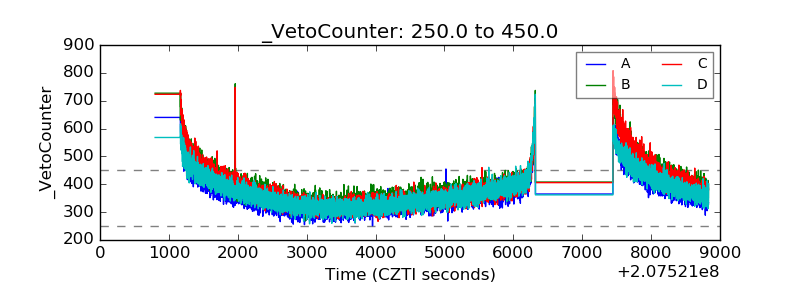

| Veto Counter |  |
