| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_233T10_9000000570_04587cztM0_level2.evt | modeM0/AS1G05_233T10_9000000570_04587cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,522,560 | 72,371,520 |
| Size | 427.7 MB | 69.0 MB |
| Events in quadrant A | 3,133,983 | 438,372 |
| Events in quadrant B | 3,270,089 | 447,107 |
| Events in quadrant C | 3,280,773 | 435,025 |
| Events in quadrant D | 3,456,245 | 416,675 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13792 | 3 |
| B | 0 | 14015 | 2 |
| C | 0 | 13872 | 2 |
| D | 0 | 14907 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6511 | 68 | 1.044386% |
| B | 6511 | 32 | 0.491476% |
| C | 6511 | 22 | 0.337890% |
| D | 6511 | 47 | 0.721855% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7856 | 6512 | 35 | 35 | 0.45% | 0.54% |  |
| B | 7856 | 6512 | 5 | 5 | 0.06% | 0.08% |  |
| C | 7856 | 6512 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7856 | 6512 | 15 | 15 | 0.19% | 0.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 50 | 94193 | 599.61 | 770 | 754 | 155.8 |
| A | 0 | 118 | 55137 | 348.98 | 770 | 754 | 155.8 |
| A | 0 | 226 | 12949 | 78.25 | 770 | 754 | 155.8 |
| B | 15 | 204 | 84455 | 565.88 | 788 | 771 | 147.9 |
| B | 10 | 16 | 76289 | 510.66 | 788 | 771 | 147.9 |
| B | 5 | 70 | 23329 | 152.54 | 788 | 771 | 147.9 |
| C | 14 | 48 | 244601 | 1400.46 | 754 | 757 | 174.1 |
| C | 9 | 247 | 71218 | 404.68 | 754 | 757 | 174.1 |
| C | 9 | 54 | 9670 | 51.19 | 754 | 757 | 174.1 |
| D | 13 | 235 | 493933 | 2738.78 | 743 | 720 | 180.1 |
| D | 2 | 136 | 78328 | 430.95 | 743 | 720 | 180.1 |
| D | 9 | 35 | 24228 | 130.54 | 743 | 720 | 180.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

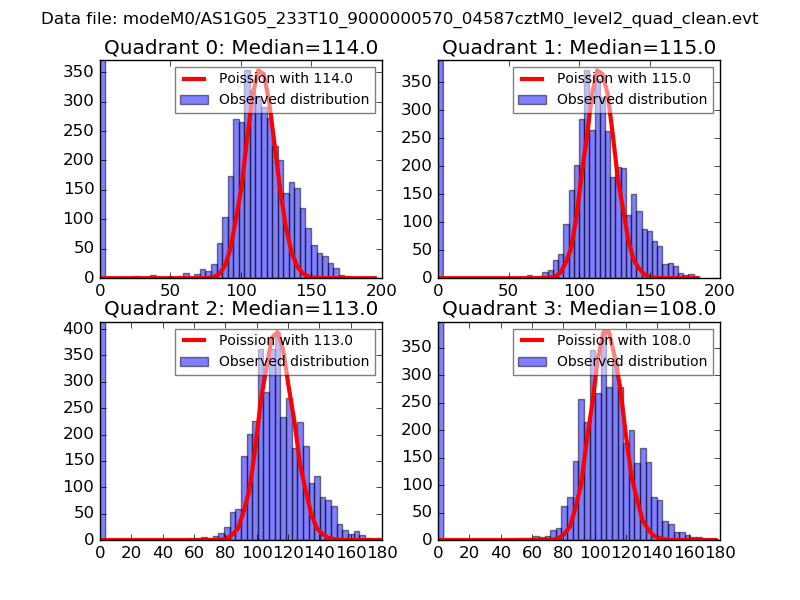

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

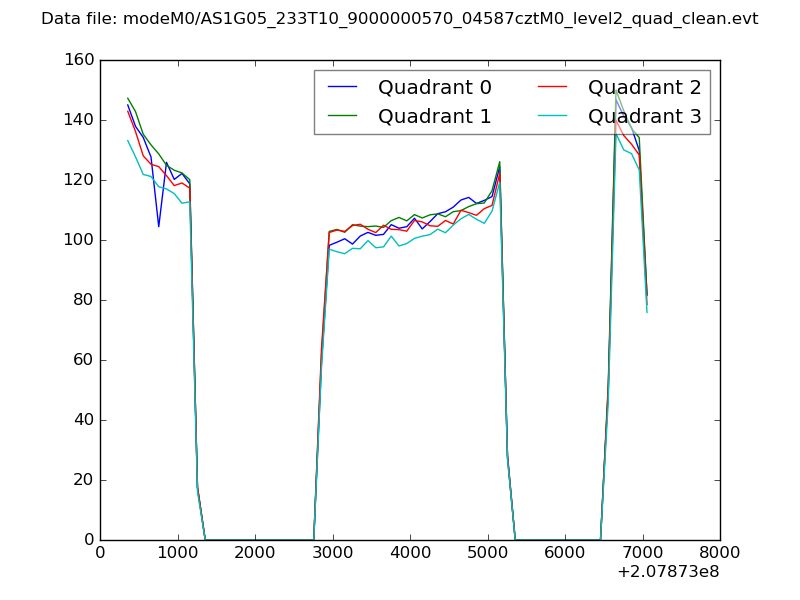

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

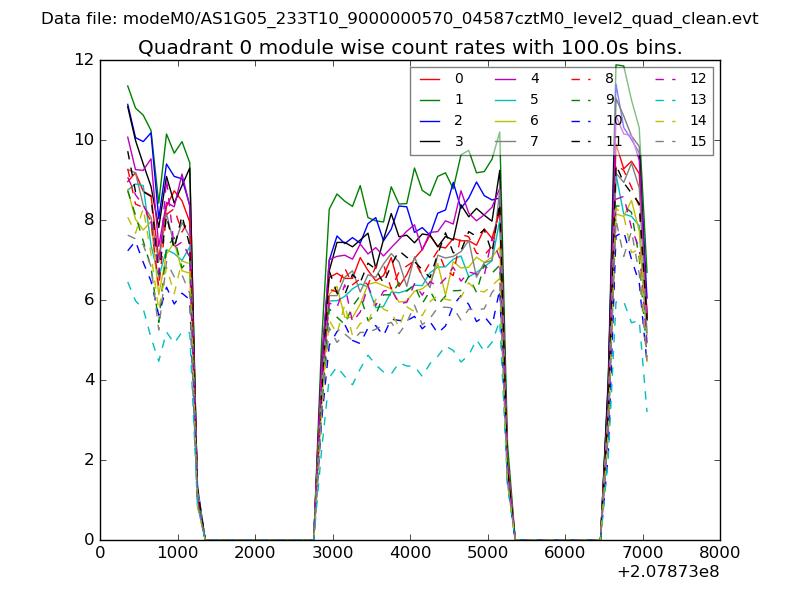

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

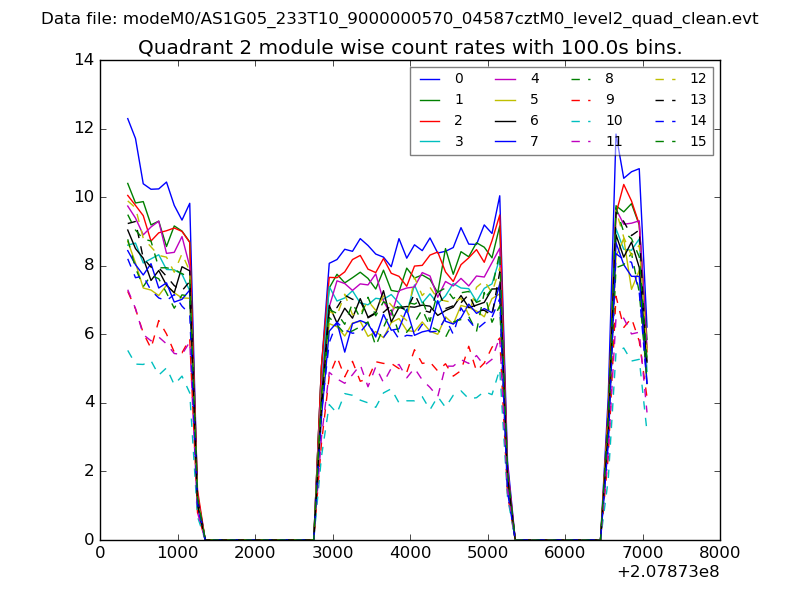

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

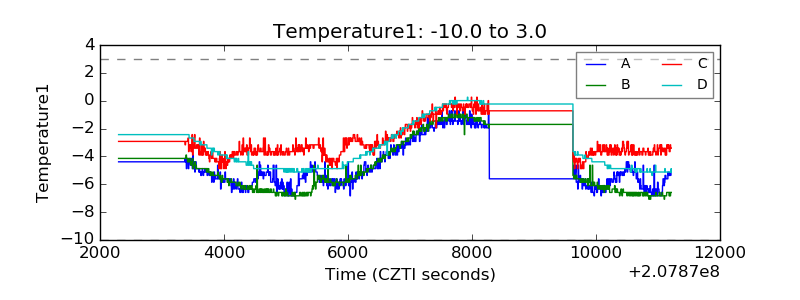

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

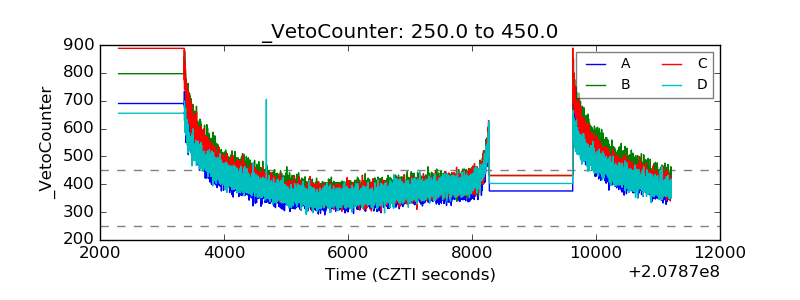

| Veto Counter |  |
