| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_191T01_9000000572_04589cztM0_level2.evt | modeM0/AS1G05_191T01_9000000572_04589cztM0_level2_quad_clean.evt |
| Size (bytes) | 423,158,400 | 85,279,680 |
| Size | 403.6 MB | 81.3 MB |
| Events in quadrant A | 3,020,709 | 548,457 |
| Events in quadrant B | 3,119,262 | 552,466 |
| Events in quadrant C | 3,006,113 | 535,347 |
| Events in quadrant D | 3,243,742 | 509,425 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13085 | 3 |
| B | 0 | 13270 | 2 |
| C | 0 | 13319 | 2 |
| D | 0 | 14135 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6253 | 39 | 0.623701% |
| B | 6253 | 34 | 0.543739% |
| C | 6253 | 28 | 0.447785% |
| D | 6253 | 76 | 1.215417% |

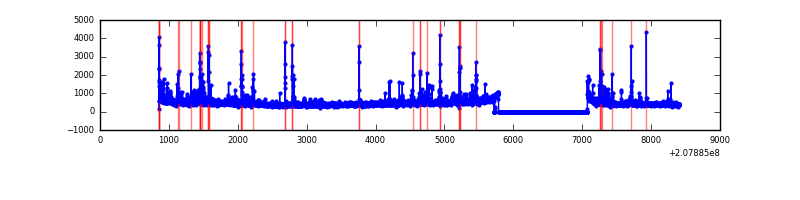

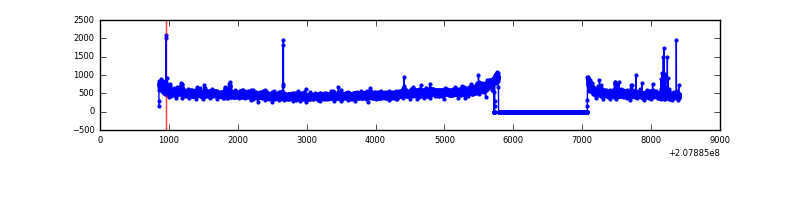

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7558 | 6255 | 8 | 8 | 0.11% | 0.13% |  |
| B | 7558 | 6255 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7558 | 6255 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7558 | 6255 | 45 | 45 | 0.60% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 47741 | 303.68 | 771 | 759 | 154.7 |
| A | 12 | 194 | 7633 | 44.43 | 771 | 759 | 154.7 |
| A | 0 | 226 | 7507 | 43.62 | 771 | 759 | 154.7 |
| B | 15 | 204 | 23573 | 154.49 | 781 | 768 | 147.6 |
| B | 4 | 80 | 19125 | 124.36 | 781 | 768 | 147.6 |
| B | 5 | 200 | 16365 | 105.66 | 781 | 768 | 147.6 |
| C | 14 | 48 | 87296 | 502.18 | 742 | 748 | 172.3 |
| C | 9 | 54 | 8889 | 47.24 | 742 | 748 | 172.3 |
| C | 9 | 247 | 6634 | 34.15 | 742 | 748 | 172.3 |
| D | 13 | 235 | 330240 | 1835.63 | 732 | 712 | 179.5 |
| D | 2 | 136 | 54992 | 302.37 | 732 | 712 | 179.5 |
| D | 12 | 110 | 43583 | 238.81 | 732 | 712 | 179.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

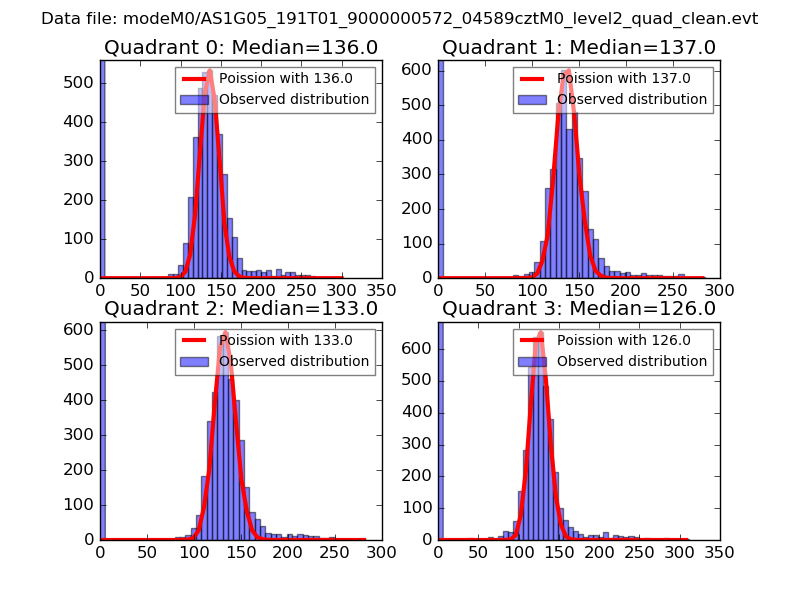

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

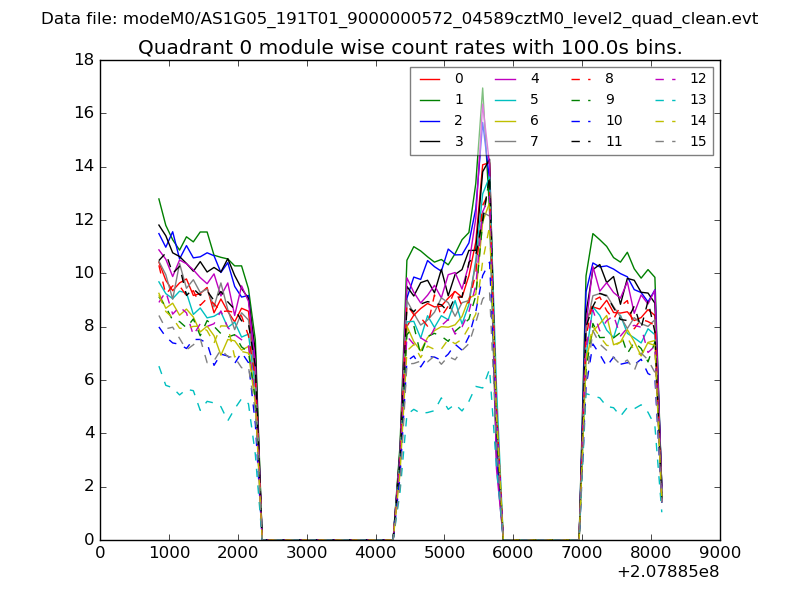

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

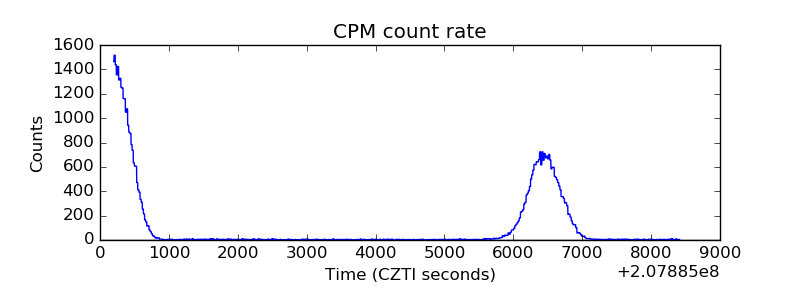

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

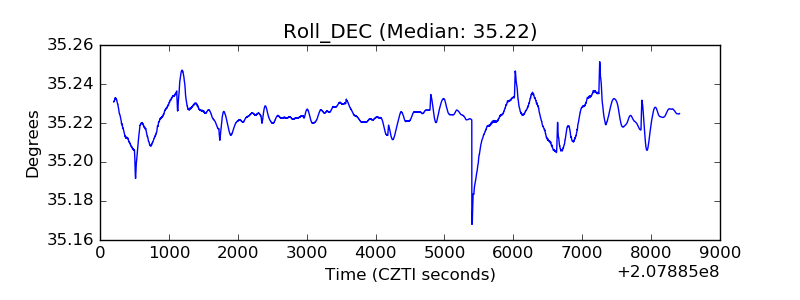

| _Roll_DEC |  |
| _Roll_RA |  |

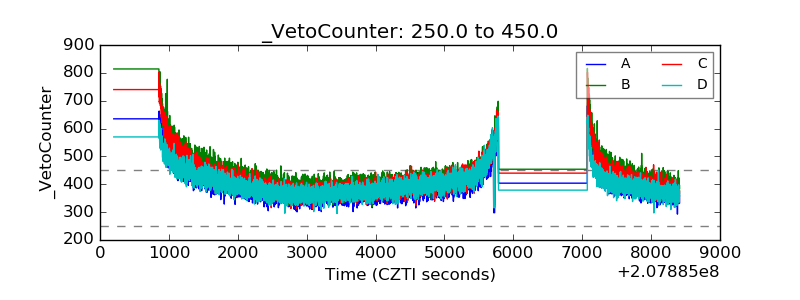

| Veto Counter |  |
